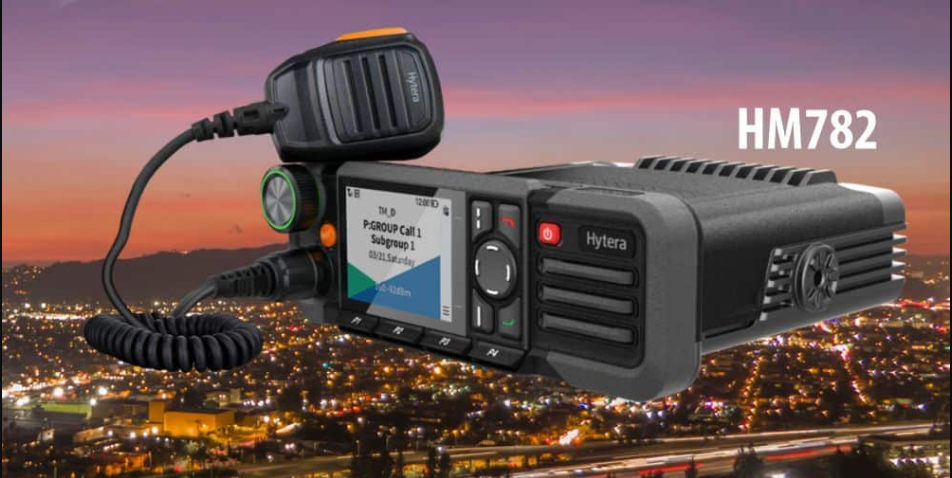

Hytera HM782-V1 DMR Mobile VHF Radio – 136–174 MHz, 5–50W

Reliable mobile communication is essential for transportation, public safety, utilities, construction, fleet management, and other professional operations where teams need dependable communication from vehicles and fixed mobile installations. The Hytera HM782-V1 DMR Mobile Radio delivers professional VHF communication across 136–174 MHz with selectable RF output power up to 50 watts.

Part of Hytera's H-Series professional DMR mobile radio platform, the HM782 combines digital and analog communication capabilities, a high-resolution color display, powerful audio, flexible system support, and a rugged IP54-rated design. The HM782 platform supports conventional analog and digital operation as well as advanced DMR networking and trunking configurations.

The HM782-V1 is the VHF 136–174 MHz configuration with 5–50W RF output. Hytera also offers separate HM782 variants with GPS and Bluetooth, making the HM782-V1 a suitable choice for organizations that do not require those optional features in their radio configuration.

Professional VHF DMR Mobile Communication

The Hytera HM782-V1 is designed for professional users who need a high-power mobile radio for vehicle-based or fixed communication applications. Its VHF operating range and high-power transmitter provide a strong platform for organizations operating across large sites, road networks, rural areas, and other environments where VHF communication is preferred.

With support for both analog and digital communication, the HM782-V1 can help organizations transition from legacy analog systems to DMR while maintaining compatibility with existing communication infrastructure where appropriate.

Key Features

• VHF frequency range: 136–174 MHz

• RF output power: 5–50W

• DMR professional mobile radio

• Supports analog and digital conventional operation

• Supports DMR Tier II and Tier III systems

• Supports XPT trunking

• Supports DMR IP Multi-Site Connect

• Supports DMR simulcast systems

• 1,024-channel capacity

• 64 zones, with up to 256 channels per zone

• 2.4-inch HD TFT-LCD color display

• 240 × 320 display resolution

• AI-based noise suppression and voice enhancement

• Built-in front-facing speaker

• IP54 dust and water protection

• MIL-STD-810 C/D/E/F/G environmental compliance

• Emergency button

• Programmable buttons

• 360-degree smart knob for volume and channel control

• RJ-45 Ethernet port for networking and gateway functions

• 13.6V ±15% operating voltage

• 50Ω antenna impedance

5–50W VHF RF Power

One of the key advantages of the HM782-V1 is its high-power VHF transmitter.

Hytera specifies the VHF version with:

• Low Power: 5–25W

• High Power: 5–50W

This flexible power range allows the radio to be configured according to the communication environment and system requirements. The maximum 50W output makes the HM782-V1 particularly suitable for professional mobile applications where dependable VHF coverage is important.

Digital and Analog Communication

The HM782-V1 supports both digital and analog communication modes, providing flexibility for organizations operating mixed radio fleets.

The radio supports DMR Tier II, DMR Tier III, analog conventional operation, XPT trunking, IP Multi-Site Connect, and DMR simulcast systems. This range of system capabilities allows the HM782 platform to support different communication architectures as operational requirements grow.

For organizations upgrading an existing analog radio system, the HM782-V1 can provide a pathway toward digital DMR communications while retaining analog functionality where required.

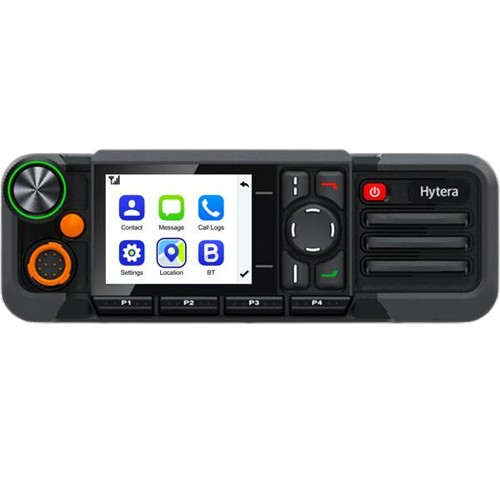

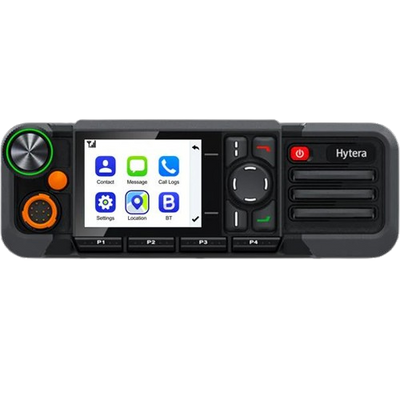

Clear 2.4-Inch Color Display

The HM782 features a 2.4-inch 240 × 320 HD TFT-LCD display with support for 262,000 colors and a 10-row interface.

The large display and intuitive navigation system make it easier for mobile operators to access channels, radio information, and programmable functions. The design is intended for use in professional vehicles where controls need to remain easy to access while the operator stays focused on the road or work environment.

AI-Based Noise Suppression

Vehicle environments can contain substantial background noise from engines, road surfaces, machinery, and other equipment.

The HM782 uses AI-based noise suppression and voice enhancement to help separate speech from background noise. Hytera states that its technology can extract human voice from noise and reduce unwanted background sounds, helping provide clearer communication in challenging environments.

This makes the HM782-V1 well suited to mobile applications where communication clarity is important.

Rugged Design for Professional Applications

The HM782-V1 is designed for demanding professional environments. The radio carries an IP54 rating for dust and water protection and is designed according to MIL-STD-810 C/D/E/F/G environmental requirements for humidity, shock, and vibration.

Its aluminum chassis uses a compact 1-DIN form factor, making the radio suitable for vehicle installations where available dashboard space can be limited.

Flexible System Connectivity

The HM782 platform supports multiple communication architectures, including:

• Analog Conventional

• Digital Conventional

• DMR Tier II

• DMR Tier III

• XPT Trunking

• IP Multi-Site Connect

• DMR Simulcast

• Gateway applications

The radio also includes an Ethernet RJ-45 port for network and gateway functions and an accessory port for additional system capabilities.

This makes the HM782-V1 more than a basic vehicle radio and gives organizations room to expand their communication infrastructure as requirements change.

Applications

Transportation and Fleet Management

Fleet operators can use the HM782-V1 for vehicle-to-vehicle and vehicle-to-dispatch communication. Its VHF range and high-power output make it suitable for professional transportation environments where dependable mobile communication is essential.

Public Safety

Public safety organizations can benefit from a professional VHF mobile radio platform that supports digital and analog communications. The HM782's emergency button, programmable controls, high-power transmission, and system flexibility make it suitable for demanding operational environments.

Construction

Construction companies can use vehicle-mounted VHF radios to coordinate supervisors, operators, drivers, and field teams across large job sites.

Utilities

Utility crews working across service areas can use high-power VHF mobile communication to stay connected with dispatch and other field personnel.

Agriculture and Rural Operations

VHF communication can be useful for farms, agricultural operations, and rural businesses where teams operate across large areas. The HM782-V1 provides a professional mobile communication platform for vehicles and field operations.

Manufacturing and Industrial Operations

Industrial organizations can integrate mobile radios into plant vehicles, maintenance vehicles, security fleets, and other operational equipment.

Security and Facility Management

Security teams can use vehicle-mounted radios to maintain communication between mobile patrol personnel, dispatchers, and facility teams.

Technical Specifications

Specifications are based on Hytera's published HM782 technical documentation and ordering information.

HM782-V1 Without GPS and Bluetooth

The HM782-V1 should be distinguished from Hytera's GPS/Bluetooth-equipped variants.

Hytera's ordering information identifies:

• HM782-V1: VHF 136–174 MHz, 5–50W

• HM782-G-BT-V1: VHF 136–174 MHz, 5–50W, with GPS and Bluetooth

Therefore, the HM782-V1 is the appropriate model when an organization needs the VHF 5–50W mobile radio platform without selecting the GPS/Bluetooth-equipped configuration.

Standard Accessories

Hytera identifies accessories for the HM782 platform including the SM16A1 Palm Microphone, PWC10 DC Power Cable, and BRK08 Mounting Bracket. Additional accessories and system components may be available depending on the installation and communication requirements.

When ordering accessories, it is recommended to verify compatibility with the exact HM782 configuration and installation requirements.

Why Choose the Hytera HM782-V1?

The HM782-V1 combines high-power VHF transmission with professional DMR capabilities in a compact mobile radio platform.

Major advantages include:

• 136–174 MHz VHF operation

• Up to 50W RF output

• Digital and analog communication support

• Large 2.4-inch color display

• AI-assisted noise suppression

• 1,024-channel capacity

• 64-zone capacity

• DMR Tier II and Tier III support

• XPT and IP Multi-Site Connect support

• IP54 protection

• MIL-STD-810 environmental compliance

• Compact 1-DIN chassis

• Professional vehicle and fixed-installation applications

Why Buy Hytera Radios from Deputy Electronics?

At Deputy Electronics, we provide professional communication equipment for businesses, fleets, public safety organizations, contractors, industrial operations, security teams, and other professional users.

If you are looking for a Hytera HM782-V1 DMR Mobile VHF Radio, our team can help with product information, pricing, availability, and accessory requirements.

If you are unsure whether the HM782-V1 is the right radio for your operation, provide us with your coverage requirements, application, quantity, and existing radio system information, and we can help identify an appropriate communication solution.

Request Pricing or Place an Order

Looking for the Hytera HM782-V1 DMR Mobile VHF Radio?

Contact Deputy Electronics for current pricing and availability. You can provide your quantity and application requirements, and our team can assist with your order and compatible accessories.

Final Thoughts

The Hytera HM782-V1 DMR Mobile VHF Radio is a professional communication solution for organizations that require reliable VHF mobile communications, high RF output, digital DMR functionality, and a rugged design.

With 136–174 MHz coverage, 5–50W output power, 1,024-channel capacity, digital and analog operation, AI-based noise suppression, IP54 protection, and support for advanced DMR systems, the HM782-V1 provides a flexible platform for transportation, public safety, utilities, construction, security, and other professional applications.
