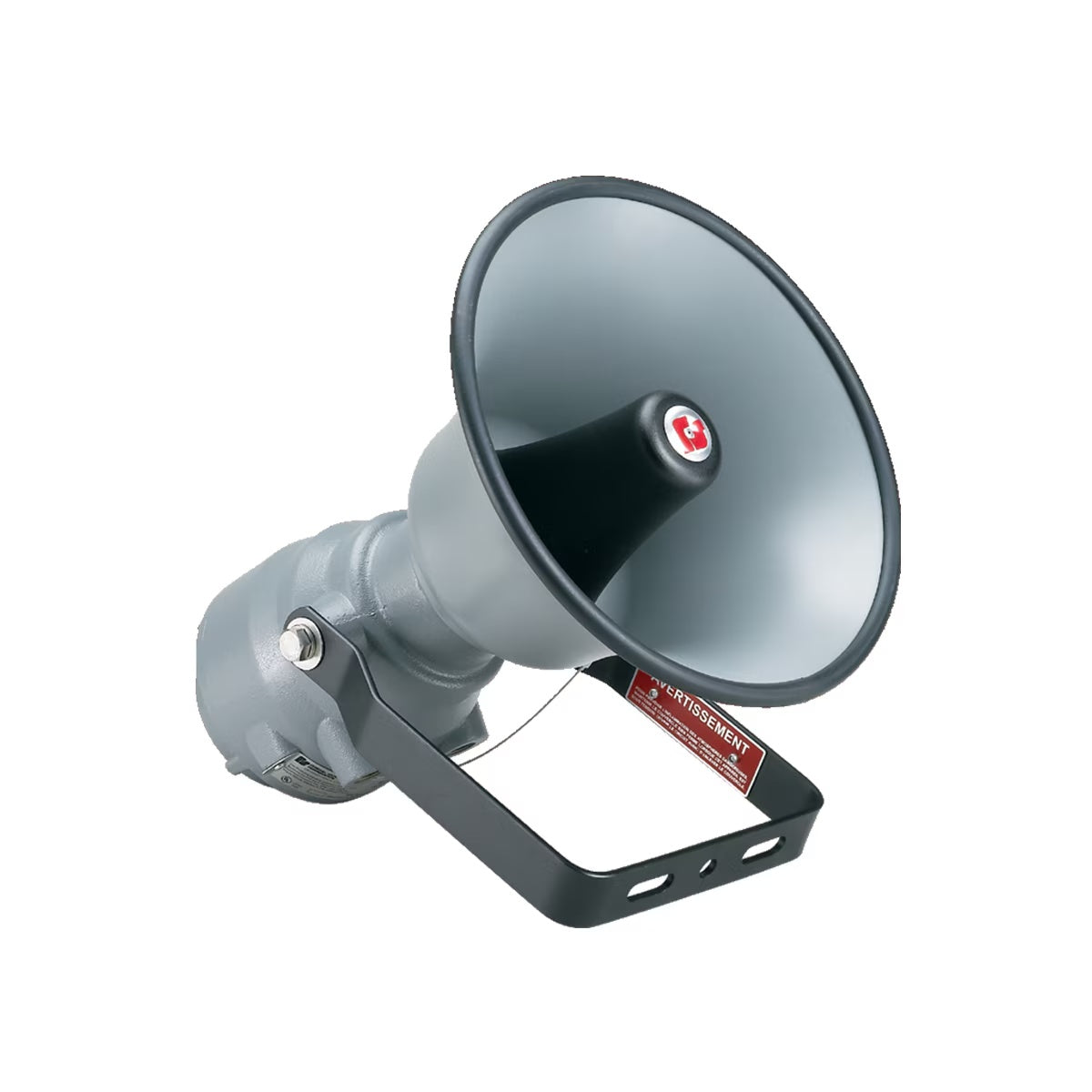

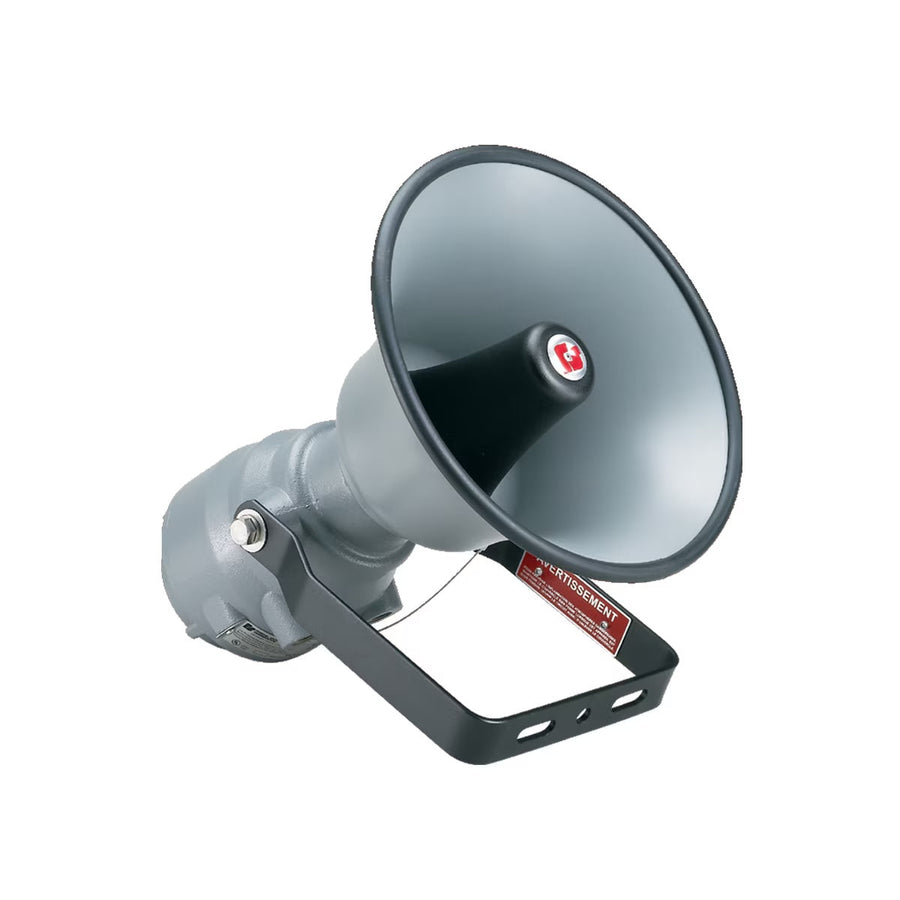

304X-024 and 314X(30W) SelecTone® Explosion Proof Amplified Speakers Gray

Federal Signal’s Models 304X and 314X Explosion-Proof Amplified Speakers are designed to produce crisp, clear tones in supervised alarm notification systems. Both models are compatible with fire alarm, voice evacuation, suppression supervised control panels, and power boosters.

These amplified speakers can broadcast tones generated by a Tone Card installed into the speaker (the plug-in 32-tone UTM*) or by a central tone source in a voice evacuation or paging system. When live public address or voice messages are required, plug-in Connector Cards (AM25CK or AM70CK) interface with the Vrms of the EVAC panel.

*ULC Fire Listed Models (-CN models) can only be used with a UTM tone card

Features

• Available in 24VDC
• Four wire supervisable power circuit
• Capable of producing tones or voice messages
• Built-in gain control
• Fused input and output
• Cast aluminum housing, spun aluminum projector
• External mounting tabs
• Indoor/outdoor use
• Type 4X, IP66 enclosure
• CSFM Approved
• UL and cUL Listed for Class I, Division 1, Groups B, C and D; Class I, Division 2, Group A, B, C and D; Class II, Division 2, Groups F and G; Class III
• 304X/314X UL Fire Listed
• 304X-CN/314X-CN ULC Fire Listed
