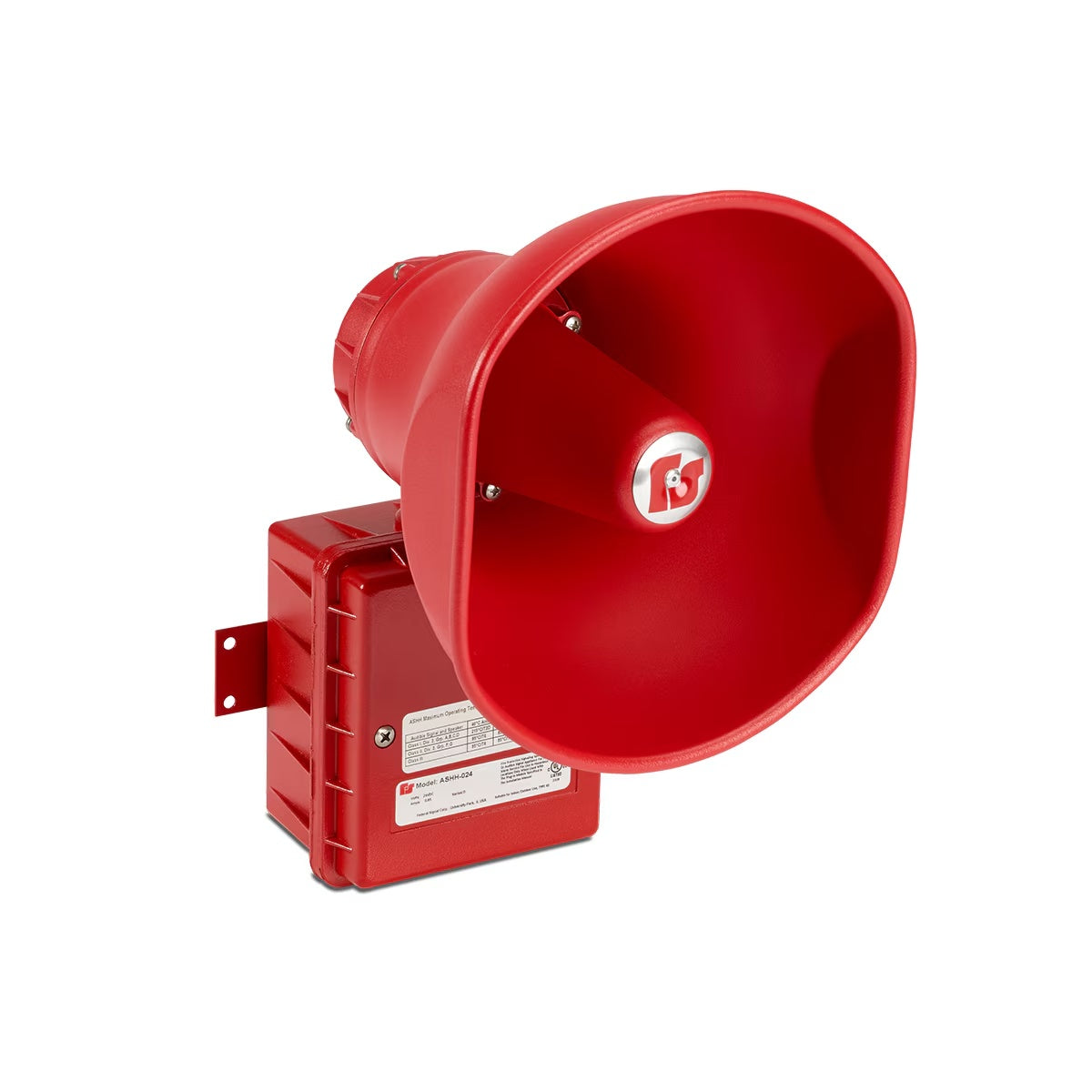

ASHH-024 and ASUH Hazardous Location Amplified Speakers Red

Models ASHH and ASUH Hazardous Location Amplified Speakers are designed to produce crisp, clear tones in supervised alarm notification systems. Both amplified speakers are compatible with fire alarm, voice evacuation, suppression supervised control panels and power boosters.

These amplified speakers can broadcast tones generated by a Tone Card installed into the speaker (the plug-in 32-tone UTM) or by a central tone source in a voice evacuation or paging system. When live public address or voice messages are required, plug-in Connector Cards (AM25CK or AM70CK) interface with the audio output of the EVAC panel.

The speaker cone and projector are constructed of rugged spun aluminum. The solid-state amplifier circuit is protected in a die-cast aluminum housing. Dust and moisture-proof gaskets provide protection from the elements. All external surfaces are sealed with red powder coat paint.

Features

• 15 watt (ASHH) or 30 watt (ASUH)
• 24VDC
• Four wire supervisable power circuit
• Reliable, solid-state circuitry
• Digital signal amplification
• Fused input and output
• Built-in gain control
• External mounting tabs
• Type 4X, IP66 enclosure
• IP69K compliant
• CSFM Approved
• UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; Class III
• UL Fire Listed
