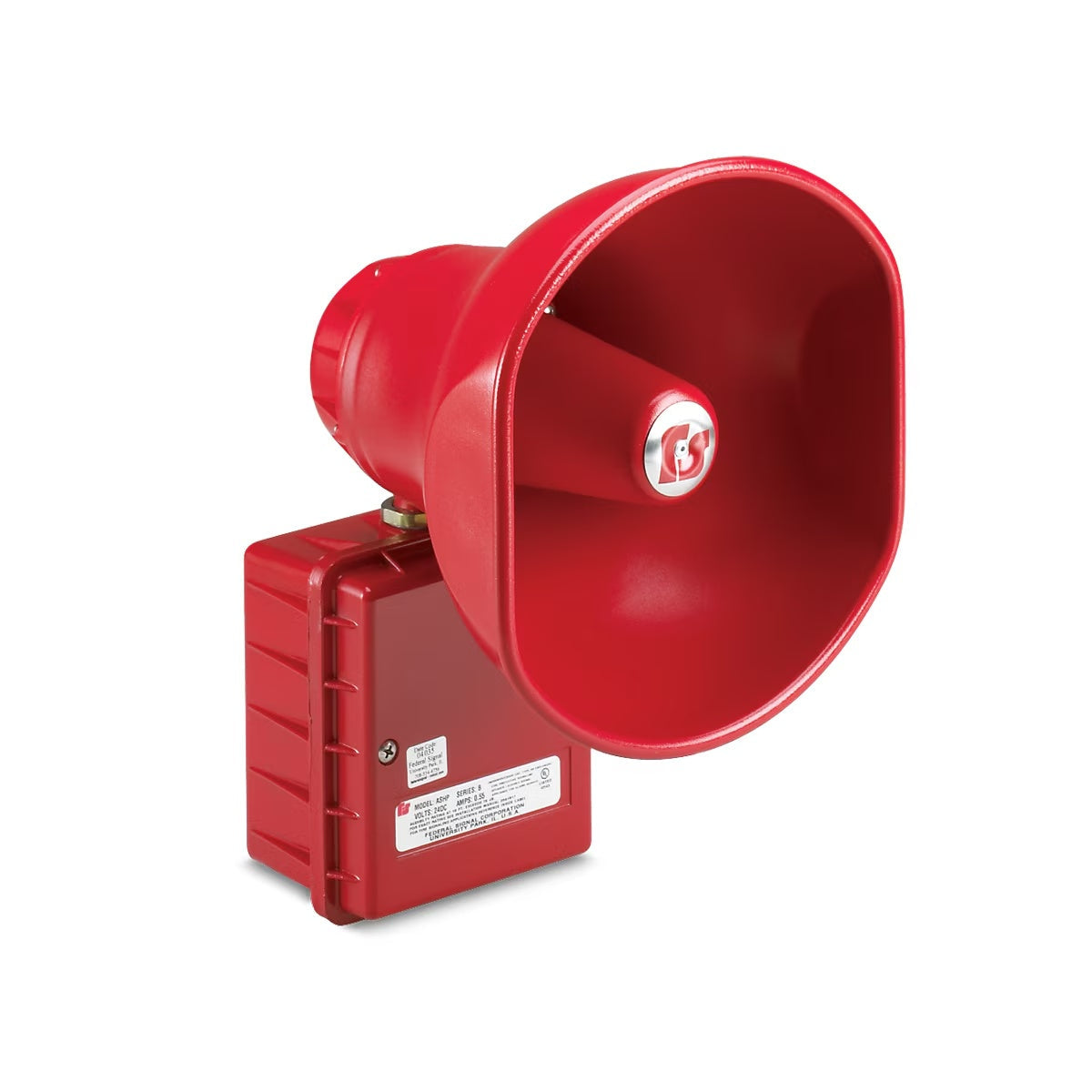

ASUP-024 and ASUP Amplified Speakers Red

Models ASHP and ASUP Amplified Speakers are designed to produce crisp, clear tones in supervised alarm notification systems. These amplified speakers can broadcast tones generated by a tone card installed into the speaker (the plugin 32-tone UTM) or by a central tone source in a voice evacuation or paging system. When live public address or voice messages are required, plug-in Connector Cards (AM25CK or AM70CK) interface with the Vrms of the EVAC panel. Both amplified speakers are compatible with fire alarm and suppression supervised control panels and power boosters.

The speaker cone and projector are constructed of rugged spun aluminum. The solid-state amplifier circuit is protected in a die-cast aluminum housing. Dust- and moisture-proof gaskets provide protection from the elements. All external surfaces are sealed with red powder coat paint.

Features

• 15 watt (ASHP) or 30 watt (ASUP)
• 24VDC
• Built-in gain control
• Four wire supervisable power circuit
• Digital signal amplification
• Fused input and output
• Easily installed on any flat surface
• Indoor/outdoor use
• Type 3R enclosure
• CSFM Approved
• UL Fire Listed
