A compact, efficient stereo amplifier for media presentation systems.
Overview

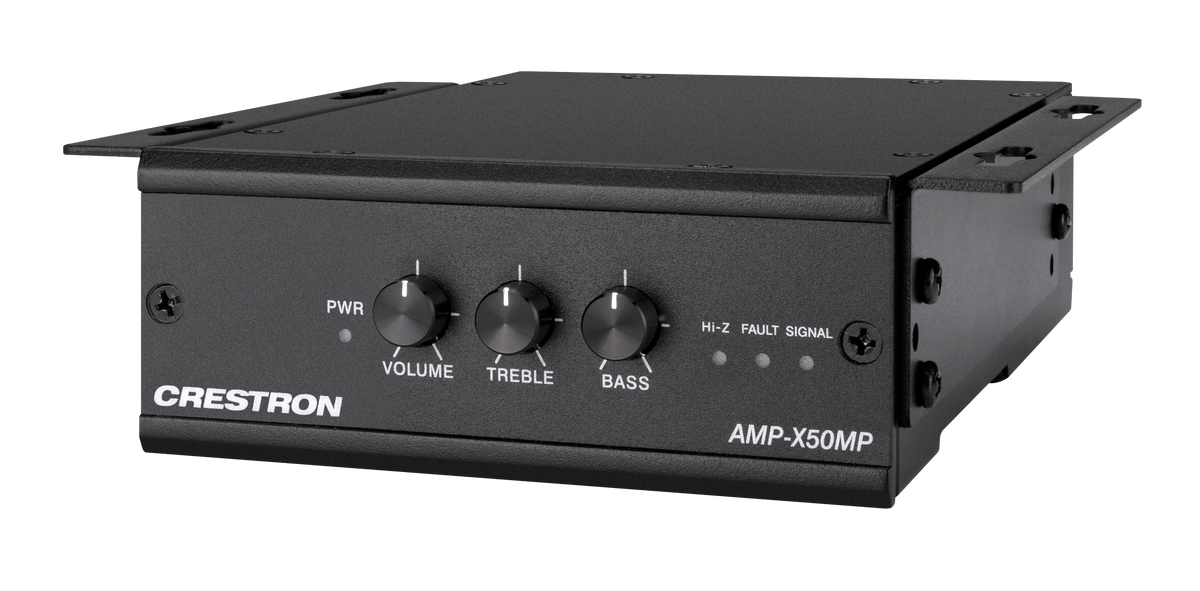

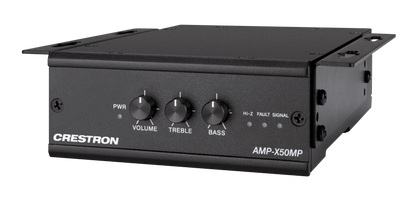

The Crestron® AMP-X50MP is a low-cost audio amplifier solution that is suitable for a variety of applications. It features a compact, surface‑mountable design that installs virtually anywhere without requiring an equipment rack.
LoZ (4/8 Ω) and Hi-Z (70V or 100V) Output
High-efficiency Class D circuitry delivers 25 W per channel to drive one pair of 4 or 8 Ohm speakers, making it ideal to support stereo speakers at the front of a room or mono speakers in the ceiling. The amplifier can also be used with Hi-Z (70/100V) speakers, delivering 50 W.
Convection Cooling
The efficient design provides cool running operation to ensure long term reliability. The AMP-X50MP is high-density stackable with other Crestron X Series and Modular Amplifiers, allowing multiple units to be installed vertically in an equipment rack without needing extra ventilation space.
Easy Installation
Installation and setup of the AMP-X50MP is simple. Detachable connectors facilitate the termination of wiring. Balanced and unbalanced inputs can connect directly to the line output of a video projector or display, audio processor, mixer, or AV switcher. Independent controls for volume, bass, and treble allow a custom sound in any location. A knob cover is included with the product to protect against accidental changes to the front panel settings.
Fully Protected
The AMP-X50MP features protection against overheating, shorted or overloaded speaker lines, excessive input signals, and other faults. In the case of a shorted speaker line, both outputs mute automatically until the fault condition is resolved.
Energy Efficient
In addition to its high efficiency operation, the AMP-X50MP powers down automatically when no input signal is detected for more than 25 minutes, reducing overall power consumption and heat. The amplifier quickly powers back on the instant an input signal is detected. A remote input can connect to a contact closure to place the amplifier in standby mode.
Features
Key Features
- Compact and versatile power amplifier
- 2 x 25 W per channel (1 x 50 W) into 4 or 8 Ohm speakers
- 1 x 50 W output for Hi-Z (70V and 100V) speakers
- Balanced, unbalanced, and stereo 3.5 mm inputs with auto summing
- Stereo or mono-summed operation
- Remote power control
- Energy saving design reduces power consumption when idle
- Highly sensitive audio-sensing circuitry with high-speed wake time
- Convection cooled for noiseless operation
- Volume, bass, and treble adjustments

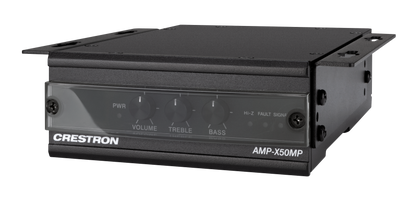

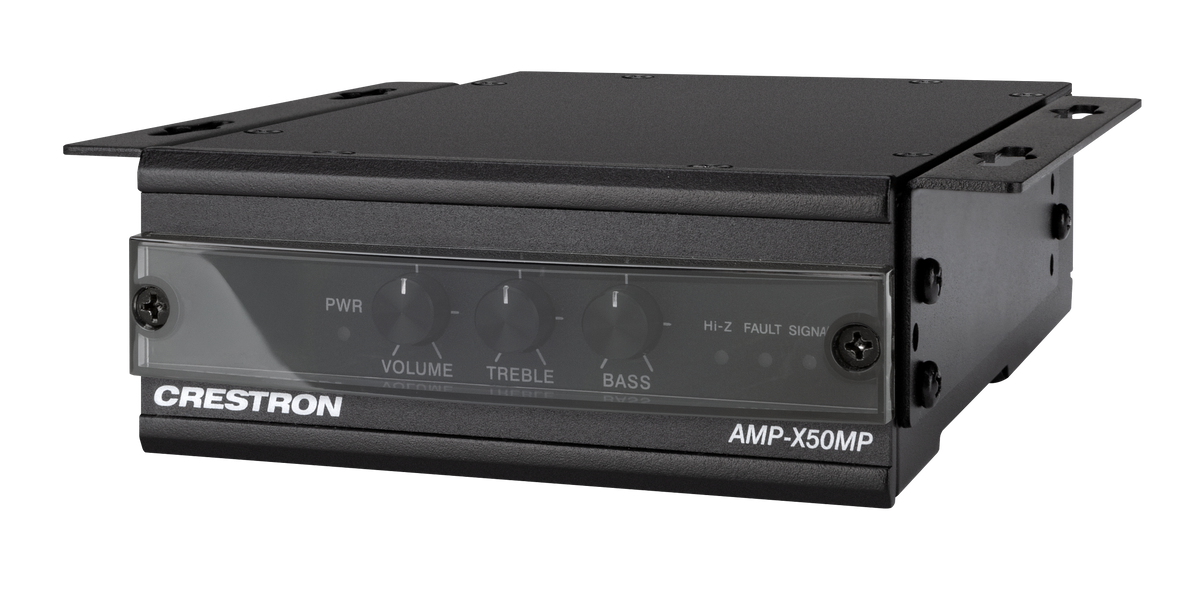

- Knob cover protects accidental changes to the device settings
- Captive speaker and power connectors for secure and robust connectivity
- Electronic short-circuit and overload protection
- Factory installed surface mount flange brackets are removable and reversible
- Quarter-Rack width for rack mounting with optional kit
- 60 W DC power supply with locking barrel connector and DC cable included
Specifications
| Audio | |||||||||||||
| Input Signal Types | Balanced or unbalanced analog line-level | ||||||||||||
Output Power
|
|||||||||||||
| Frequency Response | LoZ (4-8 Ohms): 20 Hz to 20kHz +/-0.5 dB at 1 W; Hi-Z (70V/100V): 90 Hz to 20kHz +/-3 dB at 1 W; HPF @ 80 Hz (+/-10 Hz), -12 dB/Octave |
||||||||||||
| THD+N | < 0.1 % at 1kHz @ -3 dB full rated output power | ||||||||||||
| S/N Ratio | > 90 dBA, 20 Hz to 20kHz, balanced, Hi-Z | ||||||||||||
| Crosstalk | -75 dB at 1 kHz | ||||||||||||
| Input Sensitivity | 1.23Vrms, +4 dBu balanced; 0.316Vrms, -10 dBV unbalanced; For 25 W @ 8 Ohms 50 W @ 70V/100V |
||||||||||||
| Gain | 21.5 dB @ 8 Ohms, Balanced | ||||||||||||
| Wake Signal Threshold | -57 dBu (1 mV) max | ||||||||||||
| Protection | Clip limiter, over current, under voltage, over temperature, DC offset, extreme high frequency | ||||||||||||

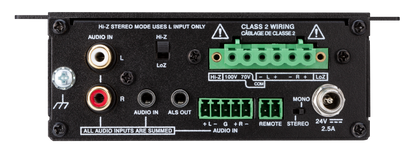

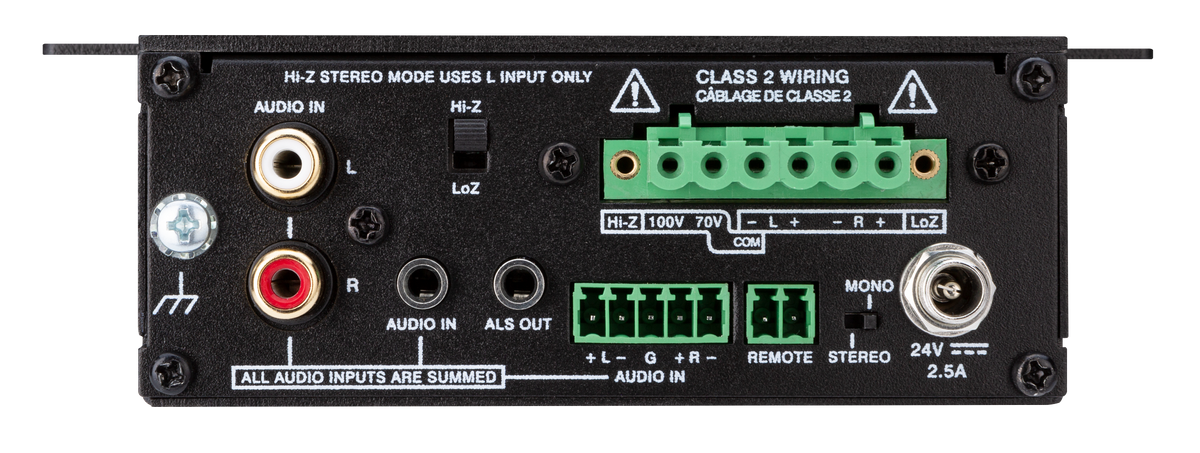

| Connectors | |||||||||||||
| Speaker Output |
(1) 6-pin, 5.08 mm pitch, 12A plug with screw locking retainers; |
||||||||||||
| ALS OUT |
(1) 3.5 mm connector, female; |
||||||||||||
| AUDIO IN 1-2 (unbalanced) |
(2) RCA connectors, female; |
||||||||||||
| AUDIO IN 1-2 (unbalanced) |
(1) 3.5 mm connector, female; |
||||||||||||
| AUDIO IN 1-2 (balanced) |
(1) 5 pin 3.5 mm detachable terminal block; |
||||||||||||
| REMOTE |
(1) 2 pin 3.5 mm detachable terminal block; |
||||||||||||
| G |
(1) M3 with captivated internal tooth lock washer screw; |
||||||||||||
| 24V, 2.5A |
(1) External 60 W desktop power supply (24VDC/2.5A); |
||||||||||||

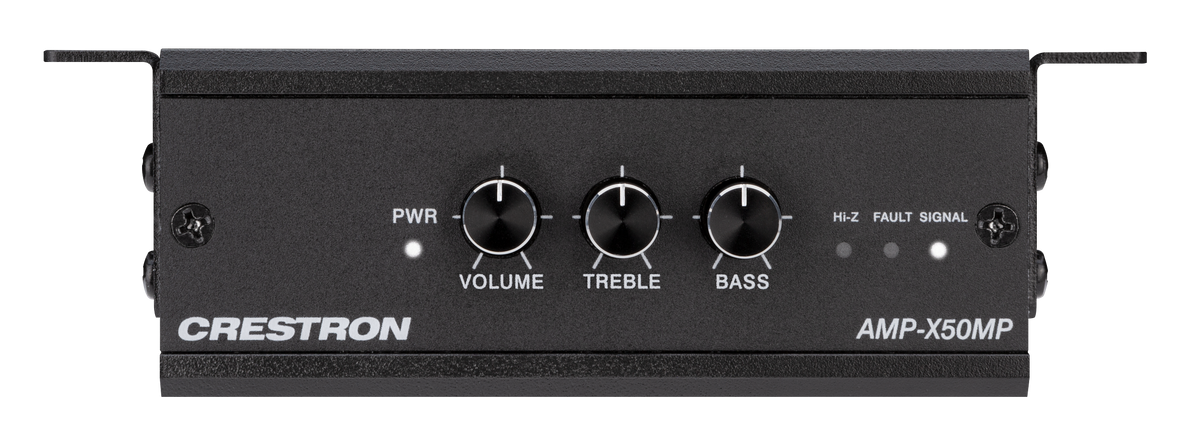

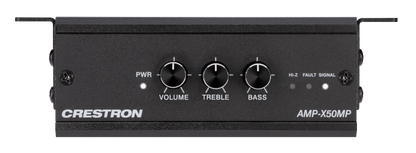

| Controls & Indicators | |||||||||||||
| PWR |
(1) Bi-color white/red LED; |
||||||||||||
| FAULT | (1) Red LED; Indicates an over temperature or over current fault |
||||||||||||
| SIGNAL | (1) Bi-color white/red LED; White indicates input signal presence; Red indicates input signal clipping/limiting |
||||||||||||
| Hi-Z | (1) White LED; Indicates speaker output is in Hi-Z (70V/100V) mode |
||||||||||||
| MONO/STEREO | (1) Slide switch to select STEREO, MONO; STEREO preserves channels; MONO creates a mono downmix of the input signals |
||||||||||||
| Hi-Z/LoZ | (1) Slide switch to select LoZ (low impedance 4-8 ohms) or Hi-Z (high impedance 70V/100V) | ||||||||||||
| VOLUME, BASS, TREBLE | (3) Rotary knobs adjust volume, bass (+/- 6 dB), and treble (+/- 6 dB) levels | ||||||||||||
| Power | |||||||||||||
| Main Power |
24VDC, 2.5A; |
||||||||||||
| Power Consumption |
14.6 W, 2 channels driven at 1/8th output power (4 ohms); |
||||||||||||
| Environmental | |||||||||||||
| Temperature | 41° to 104°F (5° to 40°C) | ||||||||||||
| Humidity | 10% to 90% RH (non‑condensing) | ||||||||||||
| Construction | |||||||||||||
| Chassis | Metal, convection cooled (fanless) | ||||||||||||
| Front Panel | Metal, black finish with polycarbonate label overlay | ||||||||||||
| Mounting |
Freestanding, surface mount, or 1/4 width 1 RU 19 in. rack mountable; |
||||||||||||
| Knob Cover | Polycarbonate transparent material | ||||||||||||
| Dimensions | |||||||||||||
| Height |
1.74 in. (44 mm) without feet; |
||||||||||||
| Width |
4.33 in. (110 mm); |
||||||||||||
| Depth | 6.99 in. (178 mm) without knob cover; 7.57 in. (192 mm) with knob cover |
||||||||||||
| Weight | |||||||||||||
| 3.24 lb (1.5kg) | |||||||||||||
| Compliance | |||||||||||||
|
Regulatory Model: M201926002 TUV Listed for the United States and Canada to UL/IEC 62368-1 safety standards. Meets CE, IC, and FCC compliance requirements |
|||||||||||||
