Provides a convenient termination block for Cresnet® control wiring.
Overview

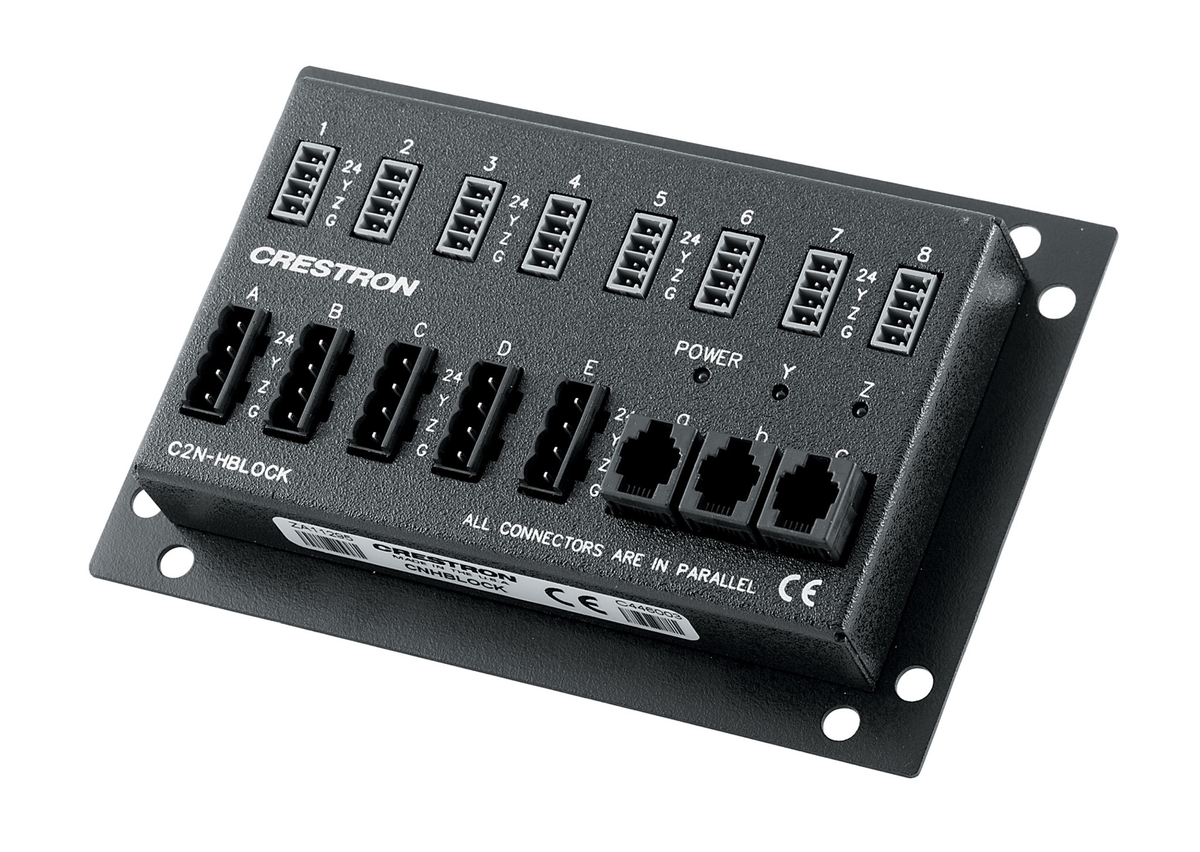

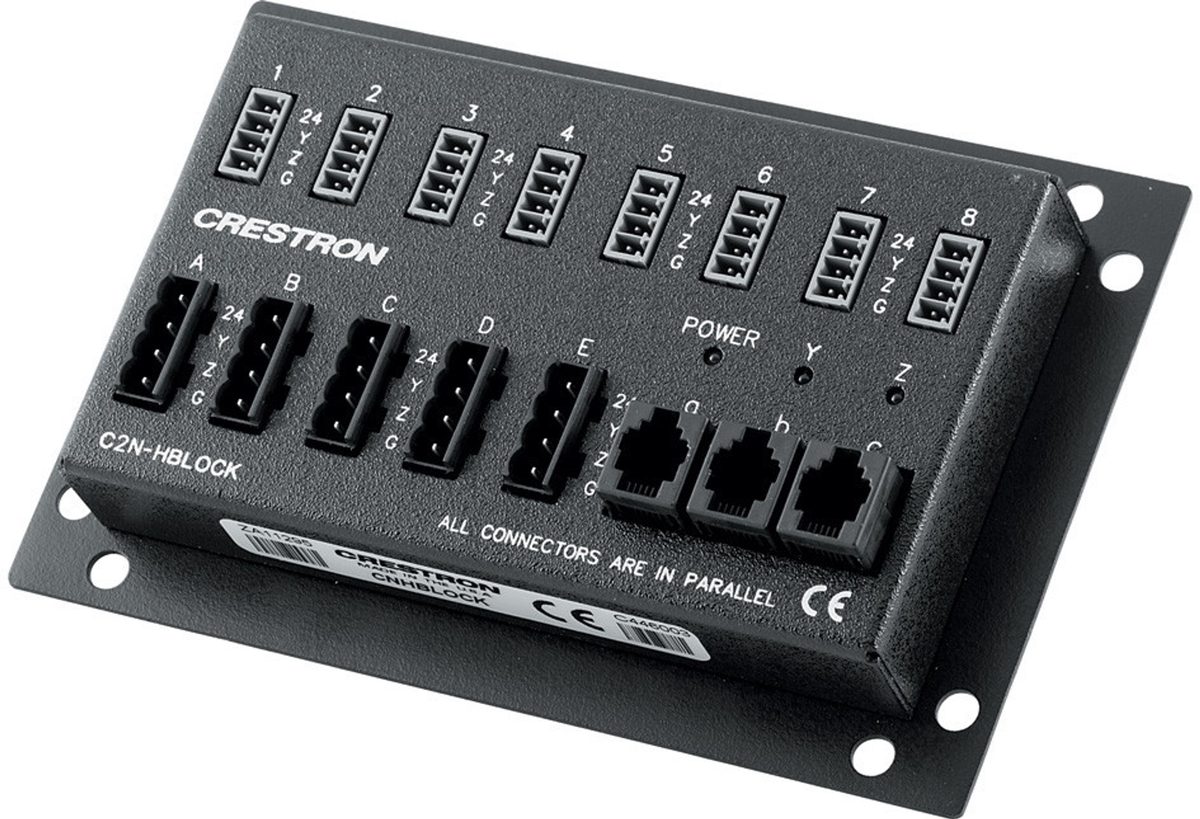

The C2N-HBLOCK is a parallel distribution block for termination of multiple Cresnet® cables. Three different types of connectors are provided to accommodate all types of Cresnet wiring including standard 4-wire Cresnet cable, Cresnet "High-Power" cable, and RJ11 modular cables. Diagnostic LEDs indicate presence of network power and data. A mounting plate (included) provides for standalone surface mounting. Up to three units may be rack mounted together using the optional CNXRMAK rack mount kit (sold separately).
The C2N-HBLOCK is designed for transparent communications between all connected Cresnet devices and the control system. Multiple units may be cascaded for expanded connectivity.
Features
Specifications
| Connectors | ||
| 1 – 8 | (8) 4-pin 3.5mm detachable terminal blocks; Cresnet distribution ports[1] | |
| A – E | (5) 4-pin 5mm detachable terminal blocks; Cresnet distribution ports[1] | |
| a – c | (3) 6-pin RJ11 female; RJ11-style Cresnet distribution ports[1] | |
| Indicators | ||
| POWER | (1) green LED, indicates Cresnet power is present at any port | |
| Y | (1) red LED, indicates presence and integrity of the Cresnet “Y” data signal | |
| Z | (1) red LED, indicates presence and integrity of the Cresnet “Z” data signal | |
| Enclosure | ||
| Metal with black finish, surface mount box with removable mounting plate, rack mount kit available separately | ||
| Dimensions | ||
| Including mounting plate: | ||
| Height | 1.33 in (34 mm) | |
| Width | 6.55 in (167 mm) | |
| Depth | 4.30 in (110 mm) | |
| Weight | ||
| 10.9 oz (309 g) including all supplied terminal block connectors | ||
