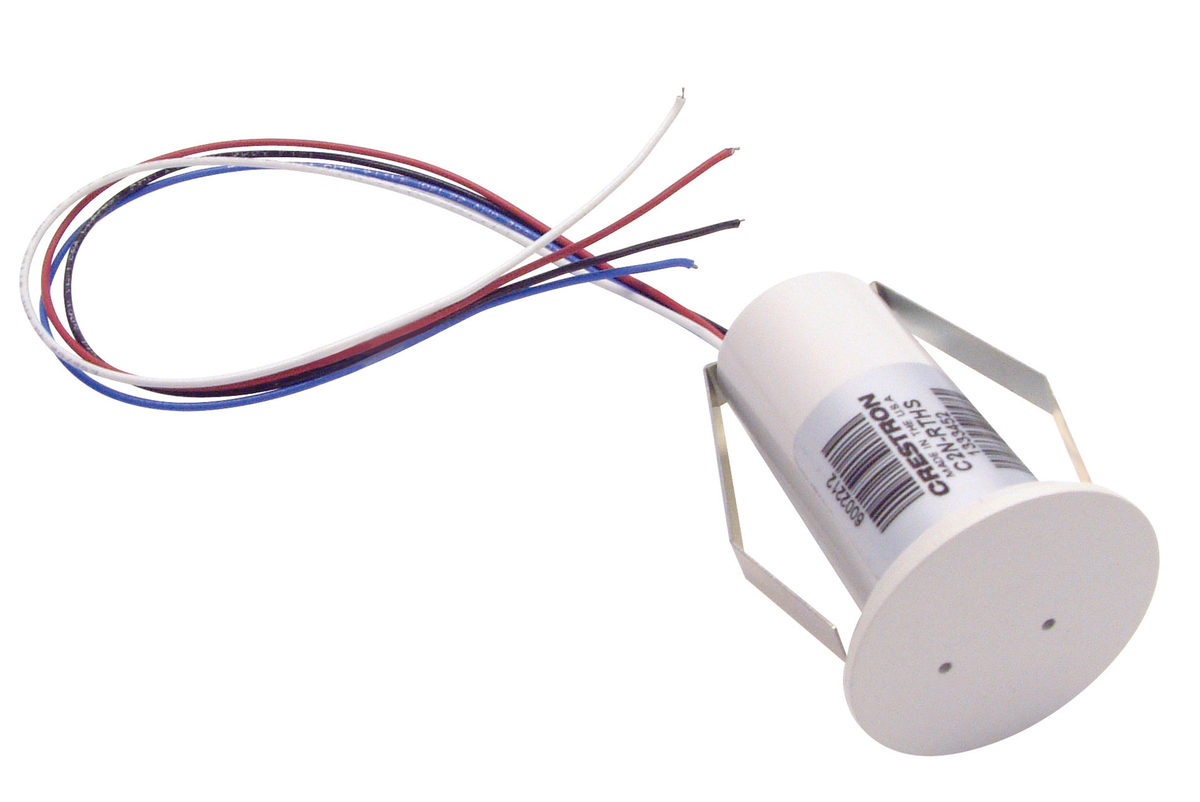

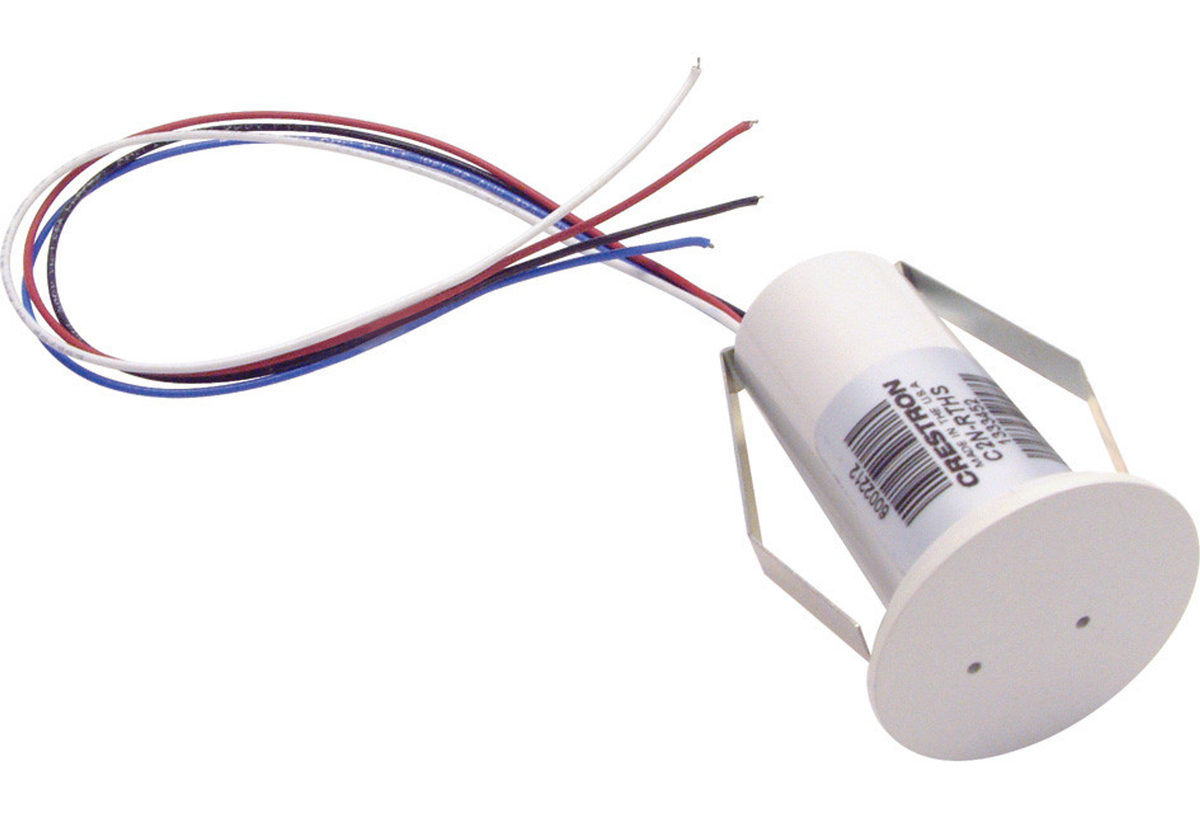

The C2N-RTHS is a wall-mounted temperature and relative humidity sensor that communicates directly with any Crestron® Control System via the Cresnet® control network. One-piece mounting makes the C2N-RTHS simple to install. The 1-1/2 inch diameter face protrudes just 1/8 inch from the wall surface and is easily painted or wallpapered to blend into the wall surface.
Overview
The C2N-RTHS is a wall-mounted remote temperature and relative humidity sensor that communicates with a Crestron® Control System over the Cresnet® wired control network. One-piece mounting makes the C2N-RTHS simple to install. The 1‑1/2 in. diameter face protrudes just 1/8 in. from the wall surface and is easily painted or wallpapered to blend into the wall surface.
Use with the MMK‑RS (sold separately) to simplify the wiring and sensor positioning during the rough-in stage of construction. The MMK-RS has an option to completely flush mount the sensor and make it virtually hidden on a wall.
Features
Key Features
- Wall-mounted remote temperature and humidity sensor
- System integration via Cresnet® wired communications
- Simple installation
- Optional MMK‑RS pre-construction mounting kit (sold separately) allows for simplified rough-in for wiring and positioning, as well as an option to completely flush mount the sensor
Specifications
| Measurement Range | |
| Temperature | -40° to 176°F (-40° to 80°C) |
| Humidity | 0% to 100% RH |
| Temperature Tolerance | |
| Over Full Range | ±1ºF (±0.5ºC) |
| Output Resolution | 0.1ºF (0.1ºC); 1% RH |
| Humidity Tolerance | |
|
±5% |
|
| Connections | |
|
(1) ~10 in. (254 mm) 4-wire pigtail; |
|
| Controls | |
| Setup | (1) recessed miniature push button; Used for Touch-Settable ID (TSID) |
| Power Requirements | |
| Cresnet Power Usage | 0.25 W (0.01A @ 24VDC) |
| Construction | |
|
Material |
Cylindrical plastic; |
|
Mounting |
Drywall mountable in a 1 in. (26 mm) diameter round hole, protrudes ~1/8 in. (3 mm) from wall surface; |
| Dimensions | |
| Diameter | 1.50 in. (39 mm) |
| Depth | 2.22 in. (57 mm) |
