The C2N-SDC is a 2-channel Shade and Drape Controller designed to provide a convenient and cost-effective solution for controlling a variety of motorized window treatments as well as motorized doors, sunroofs, lifts and projection screens.
Overview
The C2N-SDC is a 2-channel Shade and Drape Controller designed to provide a convenient and cost-effective solution for controlling a variety of motorized window treatments as well as motorized doors, sunroofs, lifts and projection screens. The C2N-SDC is a Cresnet® device with two independently controlled 120V AC outputs. Each output provides up/down or open/close control of a conventional three-wire bidirectional type motor. Built-in timing and interlock logic make it easy to program the C2N-SDC for failsafe operation.

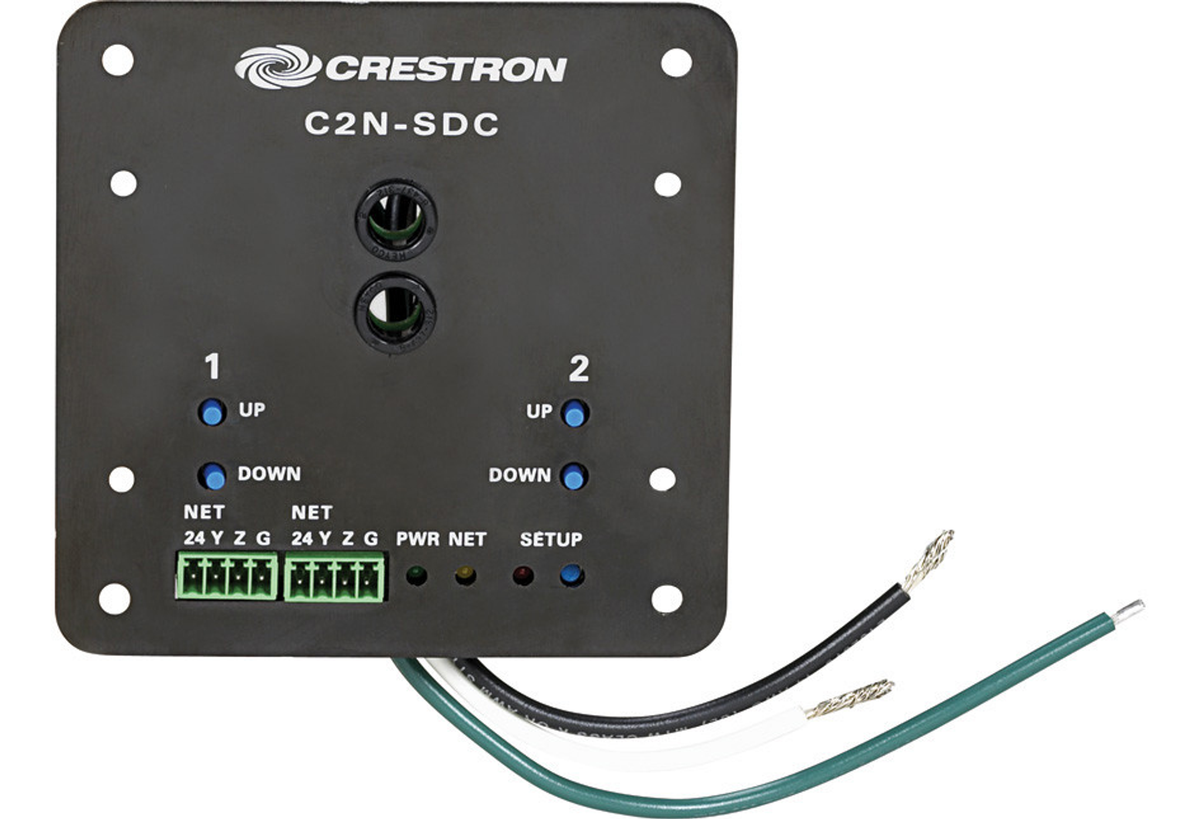

The C2N-SDC mounts in the wall or ceiling using an off-the-shelf 4" square or 2-gang electrical box. Pushbuttons on the front of the unit allow for manual operation of the motors during installation and setup.
Features
Specifications
| Load Ratings | ||
| Motor Control Channels | 2 | |
| Per Channel | 7.5 Amps, 1/3 HP | |
| Total | 15 Amps | |
| Load Types | 3-Wire 120V AC bidirectional motors | |
| Power Requirements | ||
| Line Power | 120 Volts AC, 50-60Hz, single-phase | |
| Cresnet Power Usage | 3 Watts (0.125 Amps @ 24 Volts DC) | |

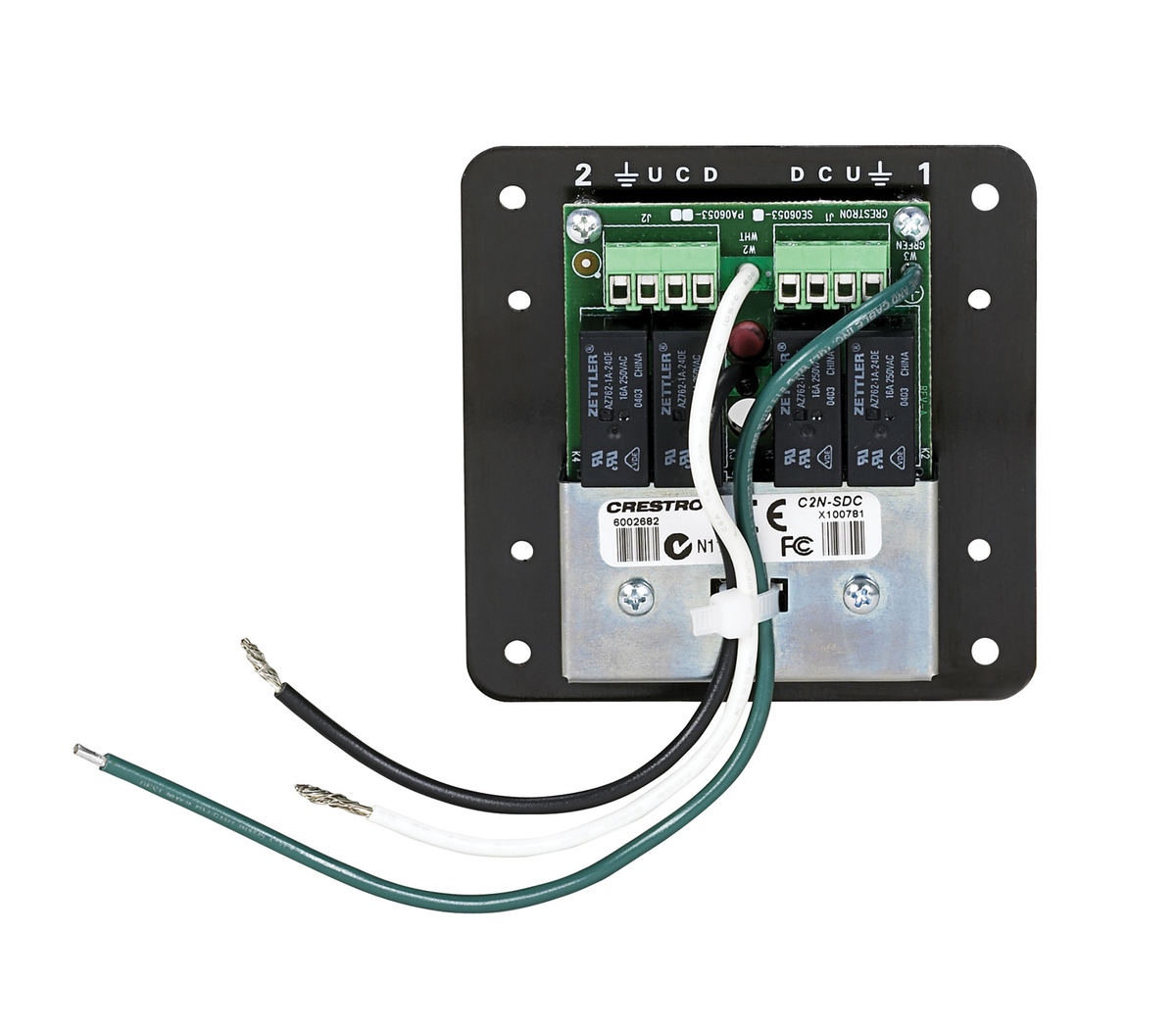

| Connections (rear) | ||
| Hot | (1) Class 1 flying lead, 14 AWG, black, line power input | |
| Neutral | (1) Class 1 flying lead, 14 AWG, white, neutral | |
| Ground | (1) Class 1 flying lead, 14 AWG, green, ground | |
| Load 1 - 2 | (2) 4-pin terminal blocks comprising (2) independent 120V AC 3-wire bidirectional motor control outputs; Includes terminals for up/open drive (U), down/close drive (D), common/neutral (C), and ground; Maximum Wire Size: 14 AWG |
|

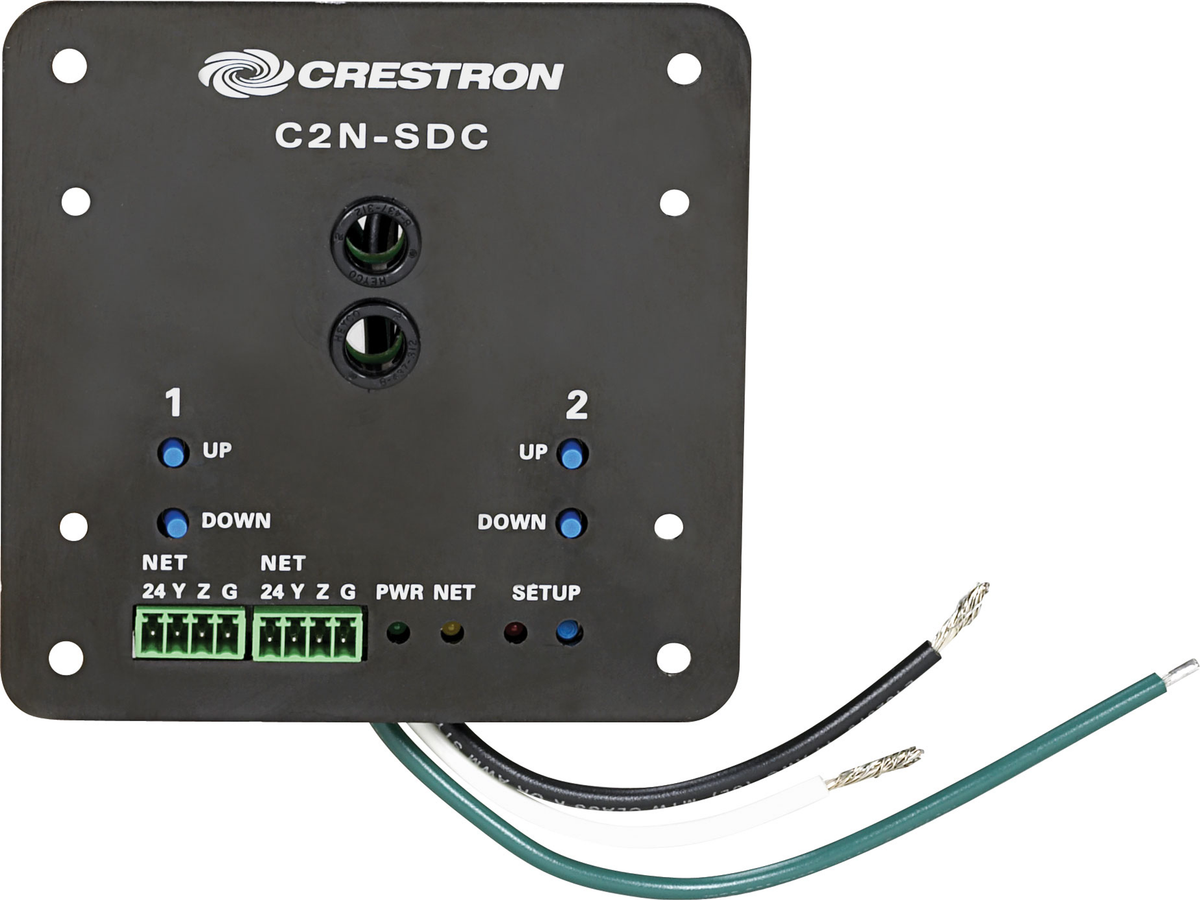

| Connectors (front) | ||
| NET | (2) 4-pin 3.5mm detachable terminal blocks; Cresnet slave ports, paralleled; Connect to Cresnet control network |
|
| Buttons | ||
| 1 UP/DOWN | (2) buttons for local control of output #1 | |
| 2 UP/DOWN | (2) buttons for local control of output #2 | |
| SETUP | (1) button used for touch-settable ID (TSID) | |
| LED Indicators | ||
| PWR | (green) Indicates DC power supplied from Cresnet network | |
| NET | (yellow) Indicates communication with the Cresnet system | |
| SETUP | (red) used for touch-settable ID (TSID) | |
| Environmental | ||
| Temperature | 41° to 122°F (5° to 50°C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Enclosure | ||
| Flat metal plate mountable in a 4-inch square or 2-gang electrical box, 1.5 inch minimum depth; mount 2-gang box horizontally to maintain correct orientation | ||
| Dimensions | ||
| Height | 4.10 in (104.1 mm) | |
| Width | 4.10 in (104.1 mm) | |
| Depth | 1.15 in (29.2 mm) | |
| Weight | ||
| 0.55 lb (0.25 kg) | ||
| Compliance | ||
| ETL Listed for the United States and Canada to UL 924 and CSA C22.2 No. 141. | ||
