The C2N-SDC-DC is a 2-channel Shade and Drape Controller designed to provide a convenient and cost-effective solution for controlling 24 Volt DC motorized shades and drapes.
Overview
The C2N-SDC-DC is a 2-channel Shade and Drape Controller designed to provide a convenient and cost-effective solution for controlling 24 Volt DC motorized shades and drapes. The C2N-SDC-DC is a Cresnet® device with two independently controlled 24V DC outputs, each designed to provide standard up/down or open/close control of a conventional two-wire bidirectional type motor.

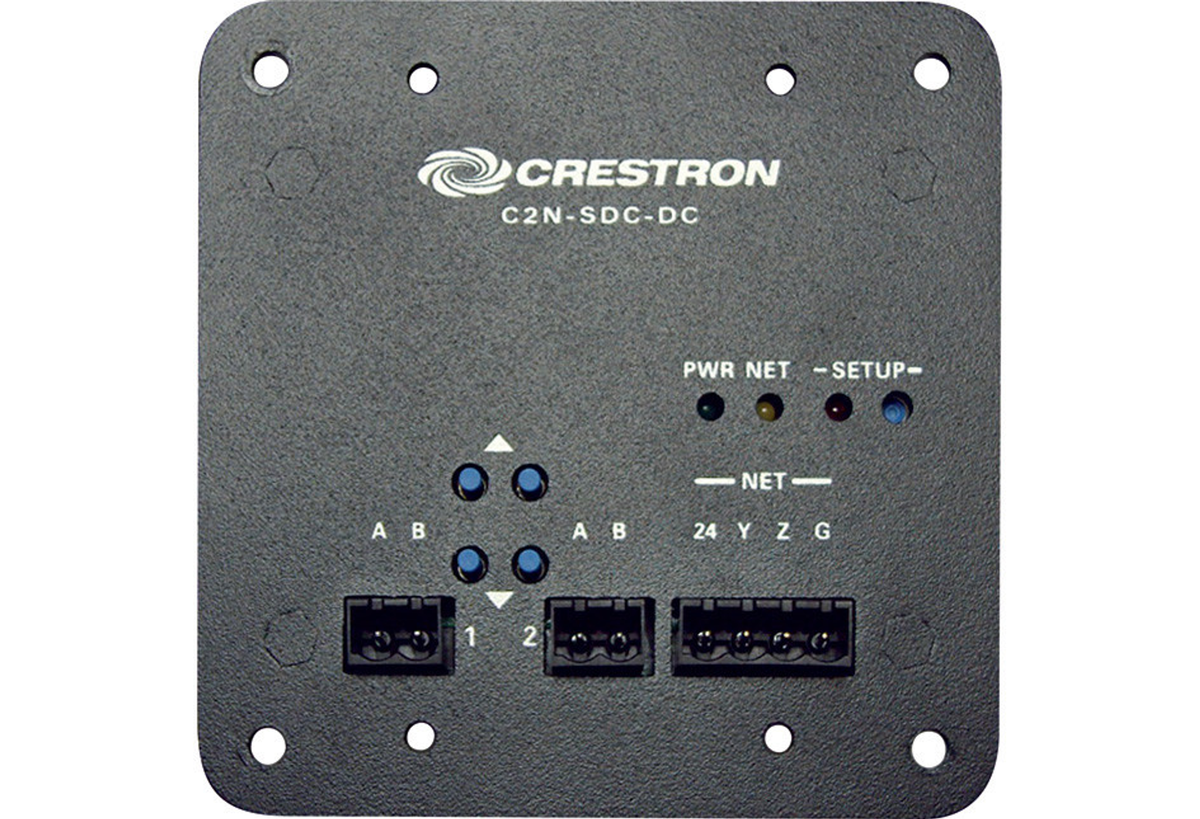

The C2N-SDC-DC mounts in the wall or ceiling using an off-the-shelf 4" square or 2-gang electrical box. Pushbuttons on the front of the unit allow for manual operation of the motors during installation and setup.
Features
Specifications
| Load Ratings | ||
| Motor Control Channels | 2 | |
| Per Channel | 30 Watts (1.25 Amps) @ 24 Volts DC | |
| Total | 30 Watts (1.25 Amps) @ 24 Volts DC | |
| Load Type | 2-Wire 24V DC bidirectional motors, Somfy® LT28B or similar | |
| Power Requirements | ||
| Cresnet Power Usage | Up to 33 Watts (1.38 Amps @ 24 Volts DC) depending on motor load, dedicated power supply recommended | |
| Connections – Front Panel | ||
| AB 1 – 2 | (2) 2-pin 3.5mm detachable terminal blocks providing (2) 24V DC 2-wire bidirectional motor control outputs | |
| NET | (1) 4-pin 3.5mm detachable terminal block; Cresnet slave port, connects to Cresnet control network |
|
| Buttons | ||
| 1 UP/DOWN | (2) buttons for local control of output #1 | |
| 2 UP/DOWN | (2) buttons for local control of output #2 | |
| SETUP | (1) button used for touch-settable ID (TSID) | |
| LED Indicators | ||
| PWR | (green) Indicates DC power supplied from Cresnet network | |
| NET | (yellow) Indicates communication with the Cresnet system | |
| SETUP | (red) used for touch-settable ID (TSID) | |
| Environmental | ||
| Temperature | 41° to 122°F (5° to 50°C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Enclosure | ||
| Flat metal plate mountable in a 4-inch square or 2-gang electrical box, 1.5 inch minimum depth | ||
| Dimensions | ||
| Height | 4.10 in (104.2 mm) | |
| Width | 4.10 in (104.2 mm) | |
| Depth | 1.16 in (29.5 mm) | |
| Weight | ||
| 0.55 lb (0.25 kg) | ||
| Compliance | ||
| ETL Listed for the United States and Canada to UL 924 and CSA C22.2 No. 141. | ||
