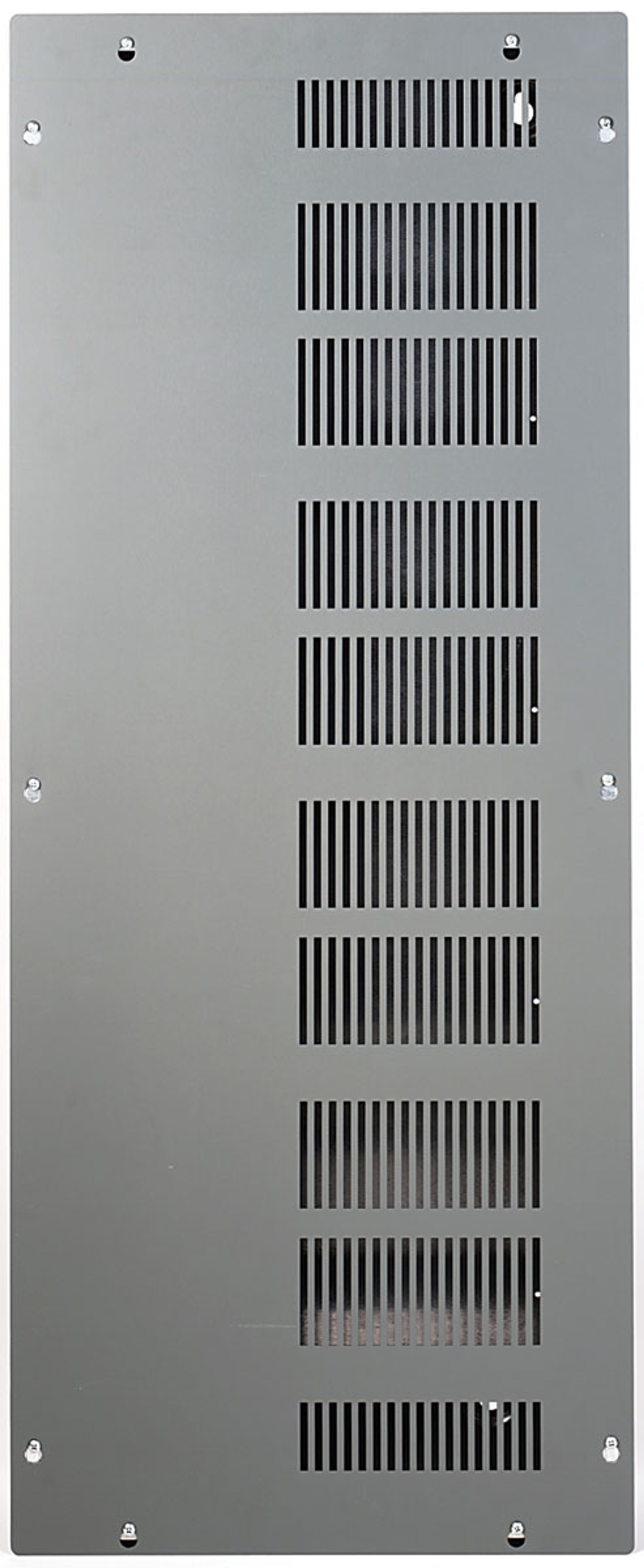

Designed to house the Crestron® CLX Series lighting control modules, CLX-DIN-AP3 3-Series Control System®, or PAC2M control system. CAEN enclosures are available in an assortment of sizes, and are suitable for surface or flush wall-mount installation. Each model has been engineered to provide a clean and manageable installation and has abundant provisions for wire termination and electrical knockouts.
Overview
The CAEN Series automation enclosures are designed to house the Crestron CLX Series lighting control modules, as well as DIN-AP4 or DIN-AP4-R control systems. Mounting DIN 4-Series™ automation processors and Cresnet® hubs to the CAEN requires a CAEN-UMP1X2-DIN-PWS. CAEN enclosures are available in an assortment of sizes, and are suitable for surface or flush wall-mount installation. Each model has been engineered to provide a clean and manageable installation and has abundant provisions for wire termination and electrical knockouts.
CAEN automation enclosures are designed to use space efficiently, supporting over a hundred possible circuits in the largest model. Both centralized and distributed configurations are possible. A single PAC2M control system installed in a central enclosure can support numerous satellite extension enclosures distributed throughout a residence or commercial facility. Interconnection of the complete network of enclosures requires just one circulating Cresnet® cable. Dozens of keypads, touch screens, wall box dimmers, shade controllers, and other peripherals can also be terminated within an enclosure, with separate compartments provided for high- and low-voltage wiring.

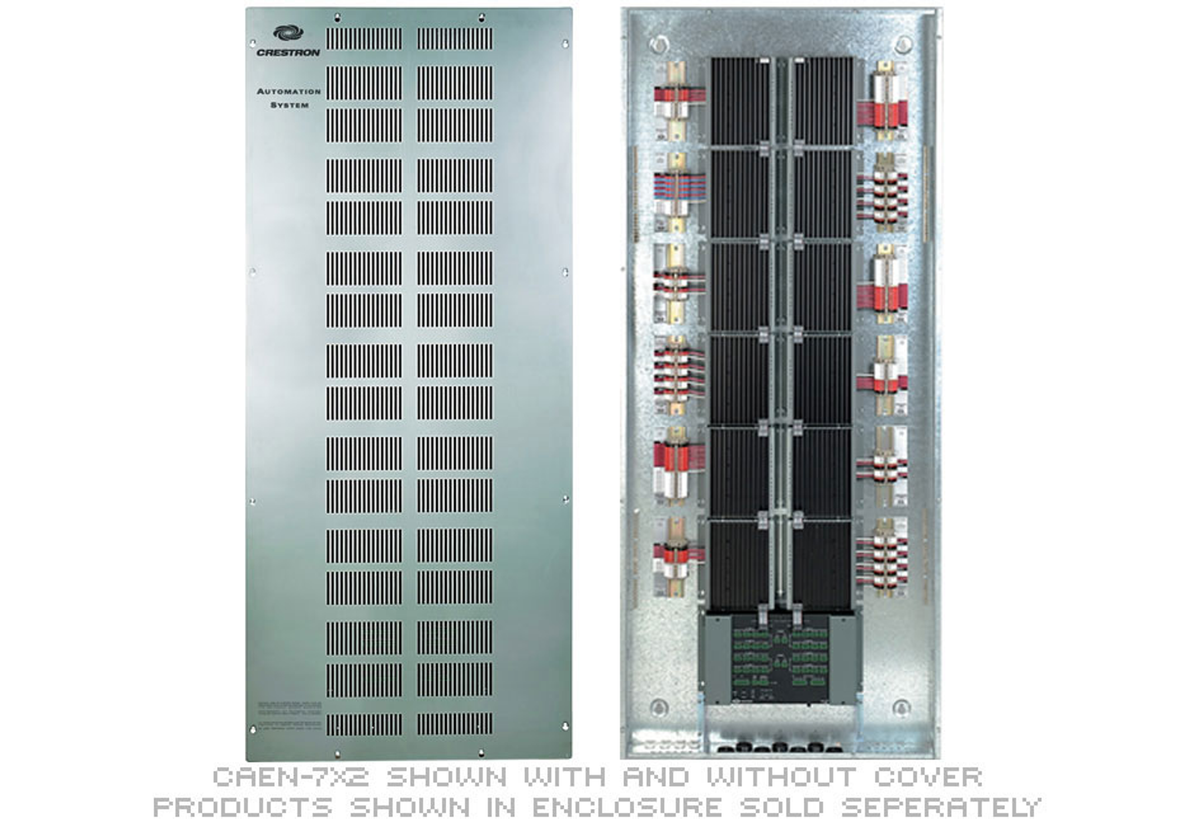

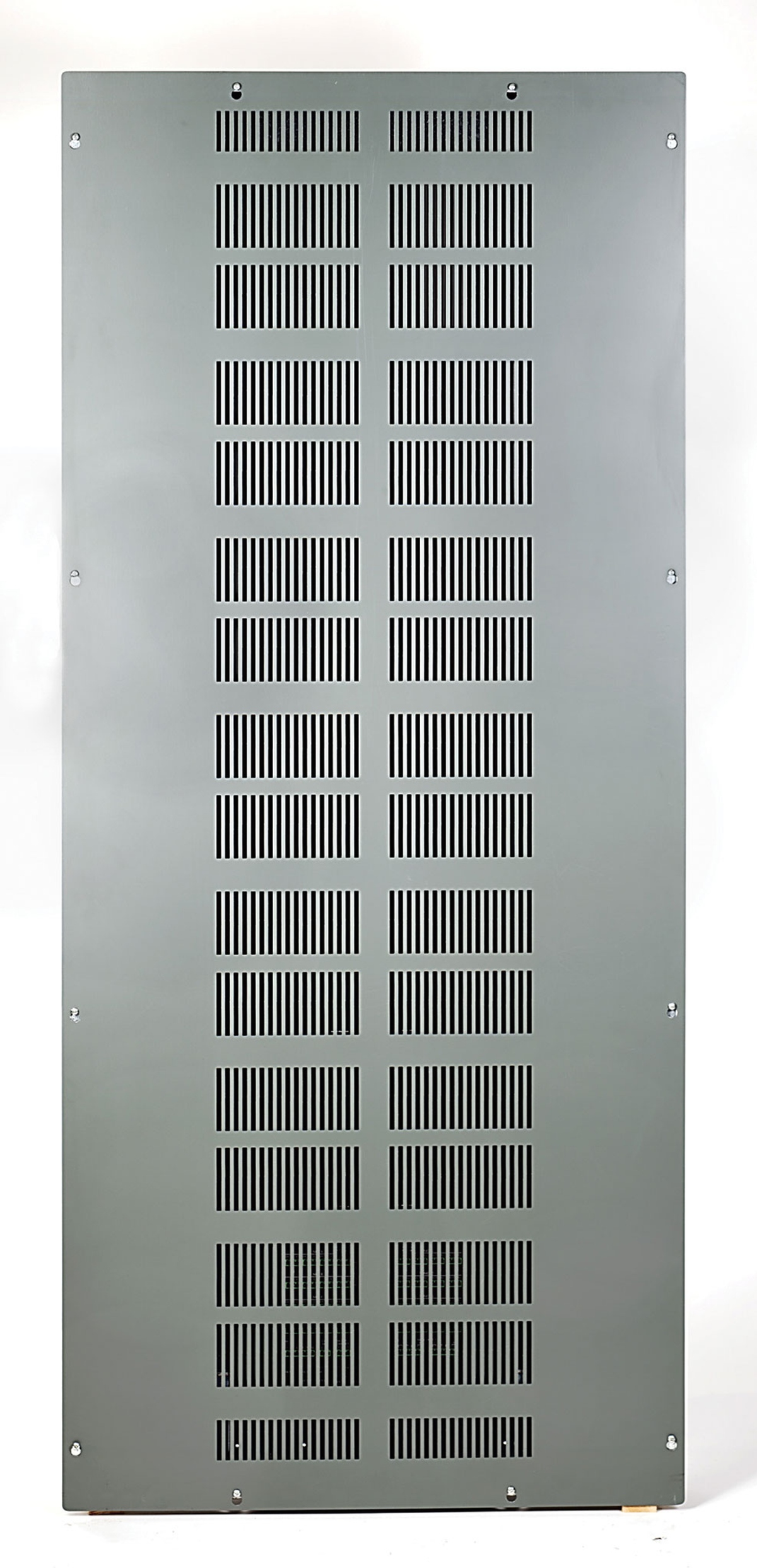

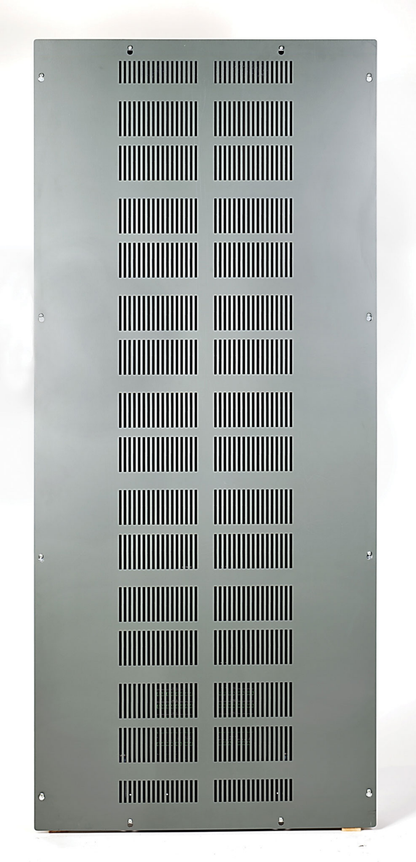

Crestron lighting and automation systems are completely convection cooled for silent and reliable operation. A vented front cover is included with every enclosure. All models are constructed of 16-gauge galvanized steel and are pre-drilled for mounting CLX-DIN-AP3 control systems, PAC2M control systems, CLX Series modules, CLT Series terminal blocks, power supplies, and CAEN-BLOCK terminal blocks. Additional non-CLX Series lighting modules and third-party contactors may be installed using Crestron's CAEN-UMP universal mounting plates. Grounding blocks and low-voltage partitions are included.
CAEN enclosures are also well suited for all types of Class 2 and Class 3 applications including voice and data structured wiring, security, and RF signal distribution (as permitted by applicable codes).
CAEN enclosures are UL and C-UL listed. If you require a complete UL Listed panel, Crestron offers this service through its UL Listed panel shop, providing complete in-factory system configuration and assembly.
Features
Key Features
- Enclosures for CLX Series lighting control modules and Crestron control systems
- Available in six convenient sizes
- Surface or flush wall-mountable
- Built to enable over 100 dimmer-controlled circuits per enclosure
- Support for centralized and distributed system configurations
- Residential and commercial applications
- Quiet and reliable, with efficient convection cooling
- Galvanized steel backbox with grounding blocks, low- voltage partitions, and vented front cover
- Additional mounting and termination accessories available
- For 120 and 230 Volt systems
- Additional uses for non-lighting applications such as voice and data structured wiring, security, and RF signal distribution
- UL Listed panel shop fabrication service available
Specifications
| Environmental | ||
| Temperature | 32° to 104° F (0° to 40° C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Enclosure | ||
| 16-gauge galvanized steel backbox with perforated grey steel cover, surface or flush wall-mount installation | ||
| Backbox Dimensions | ||
| CAEN-7X2 |

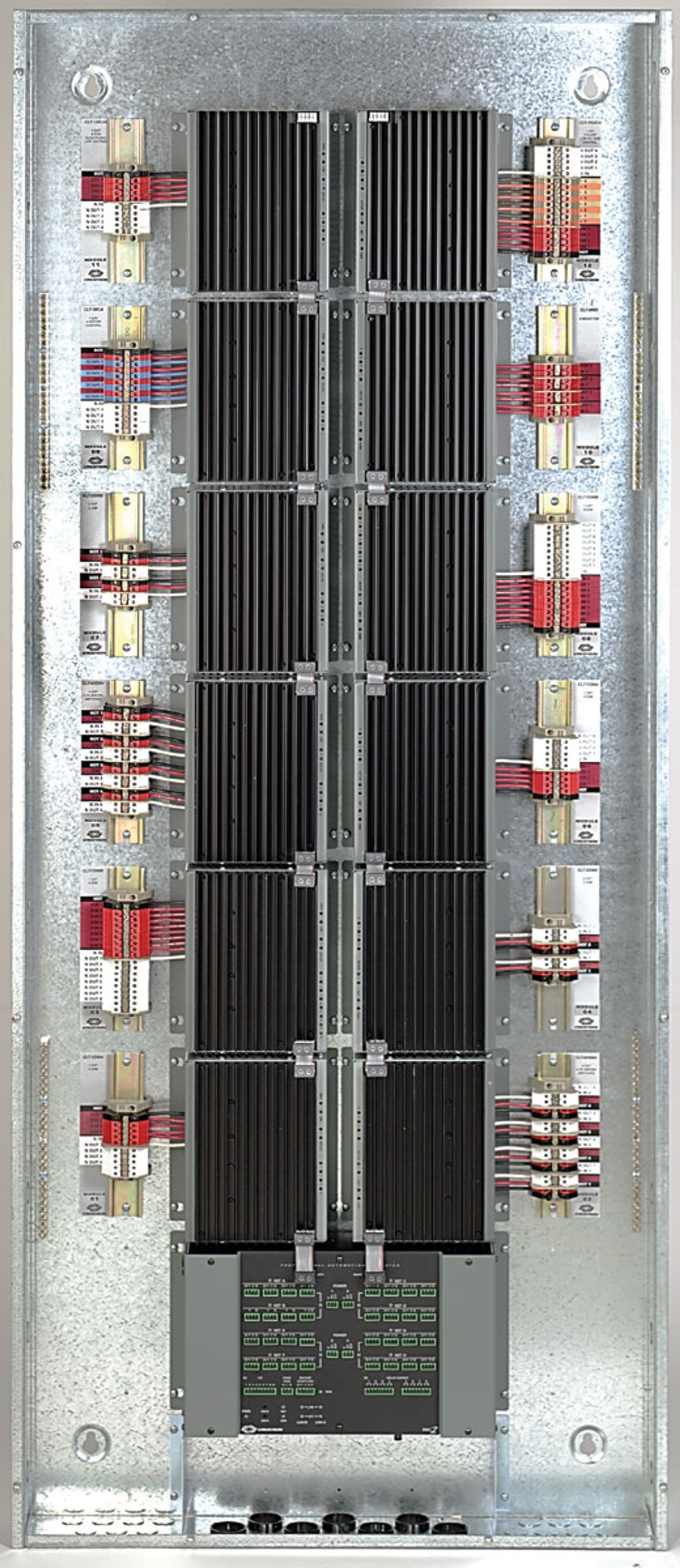

Height: 62.00 in (157.48 cm) Width: 25.50 in (64.77 cm) Depth: 4.00 in (10.16 cm) |
|
| CAEN-7X1 |

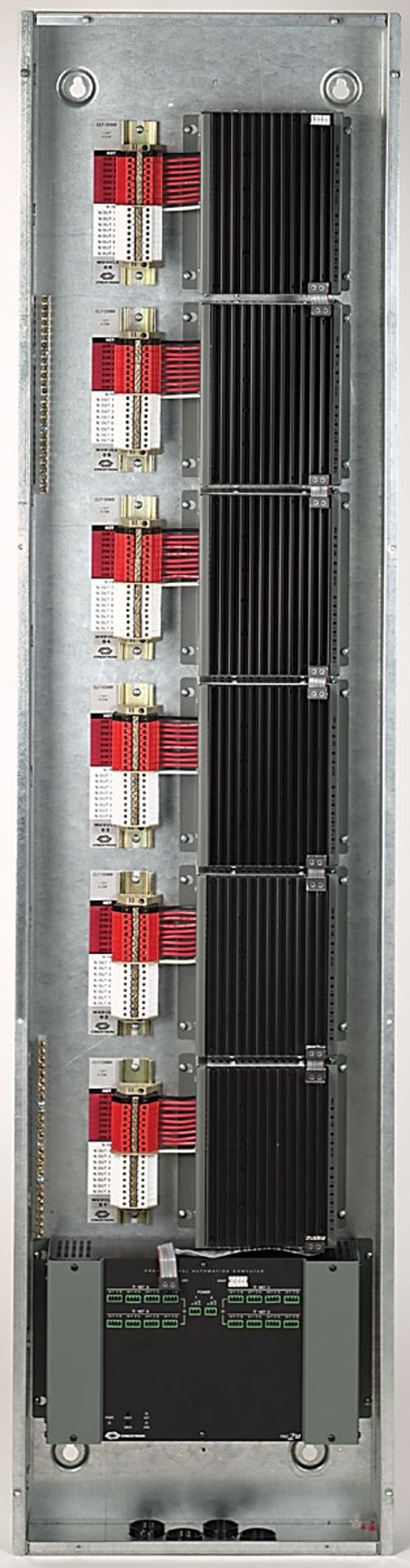

Height: 62.00 in (157.48 cm) Width: 14.38 in (36.51 cm) Depth: 4.00 in (10.16 cm) |
|
| CAEN-4X2 |
Height: 38.25 in (97.16 cm) Width: 25.50 in (64.77 cm) Depth: 4.00 in (10.16 cm) |
|
| CAEN-4X1 |

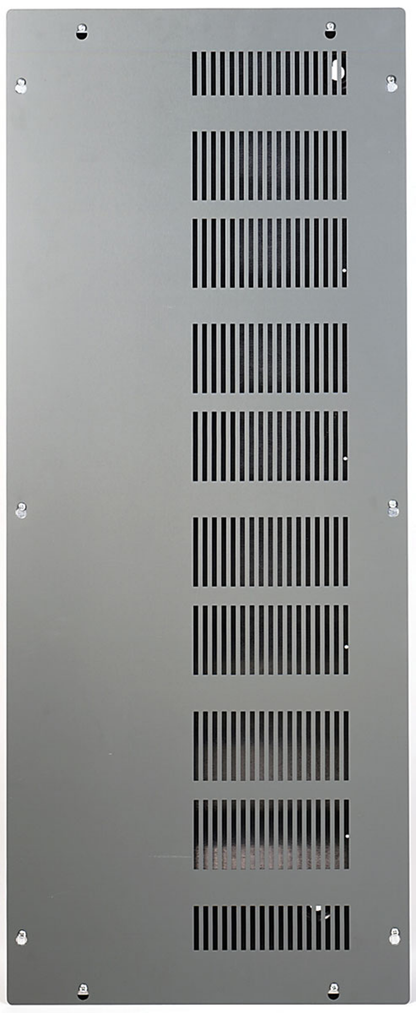

Height: 38.25 in (97.16 cm) Width: 14.38 in (36.51 cm) Depth: 4.00 in (10.16 cm) |
|
| CAEN-2X1 |
Height: 23.50 in (59.69 cm) Width: 14.38 in (36.51 cm) Depth: 4.00 in (10.16 cm) |
|
| CAEN-1X1 |

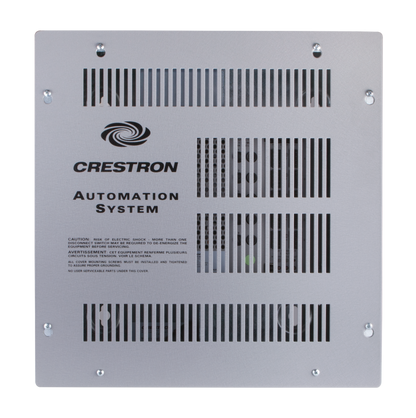

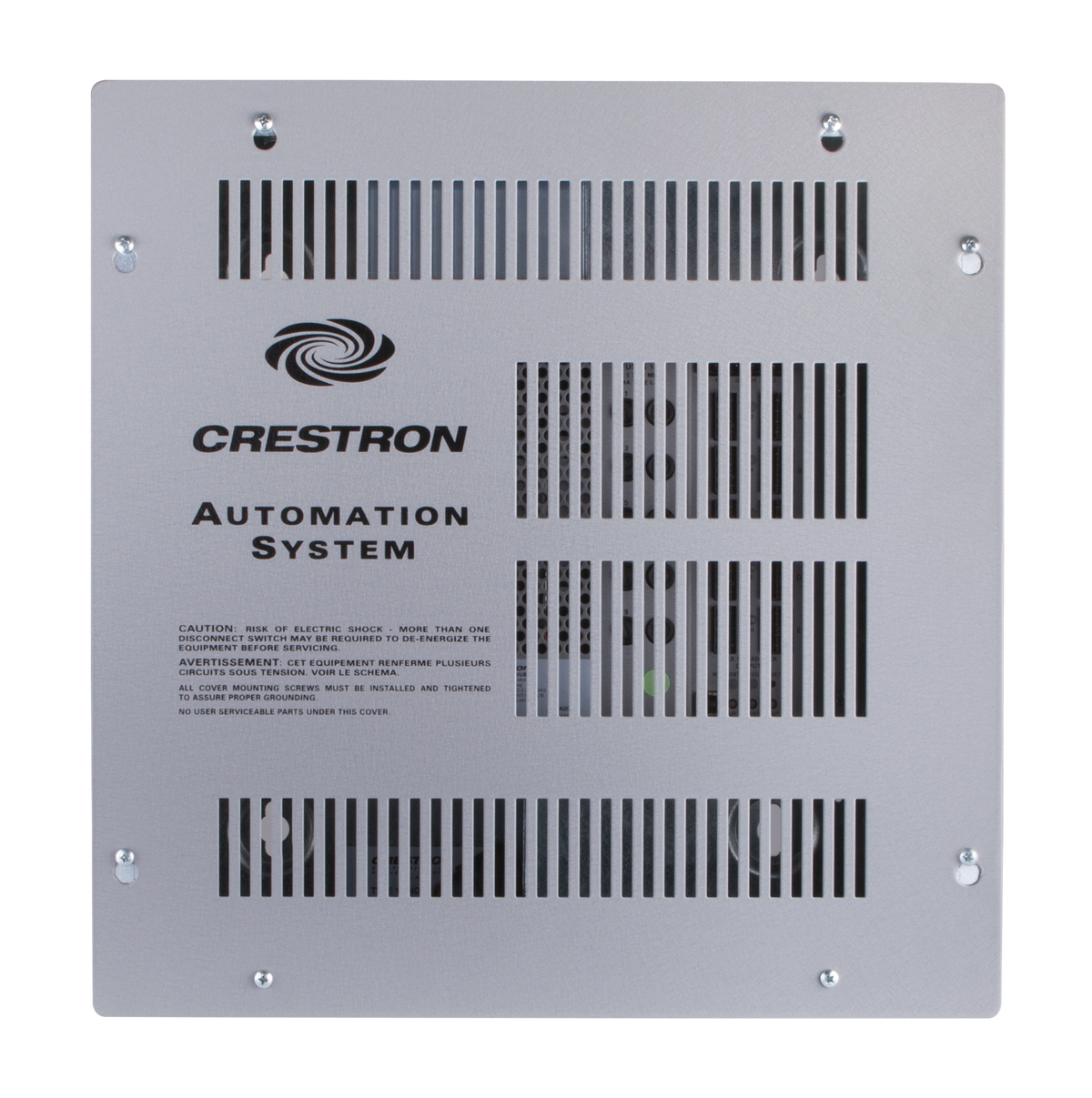

Height: 16.56 in (42.06 cm) Width: 16.10 in (40.90 cm) Depth: 4.25 in (10.80 cm) |
|
| Weight | ||
| CAEN-7X2 | 65.0 lbs (29.48 kg) | |
| CAEN-7X1 | 42.0 lbs (19.05 kg) | |
| CAEN-4X2 | 43.0 lbs (19.50 kg) | |
| CAEN-4X1 | 28.0 lbs (12.70 kg) | |
| CAEN-2X1 | 19.0 lbs (8.62 kg) | |
| CAEN-1X1 | 14.0 lbs (6.35 kg) | |
| Compliance | ||
|
Regulatory Model: CAEN ETL Listed for the United States and Canada under UL 50 and CSA C22.2 No. 94.1. Fully assembled enclosures manufactured in Crestron's ETL-certified panel shop are listed under UL 508A and CSA C22.2 No. 286. |
||
