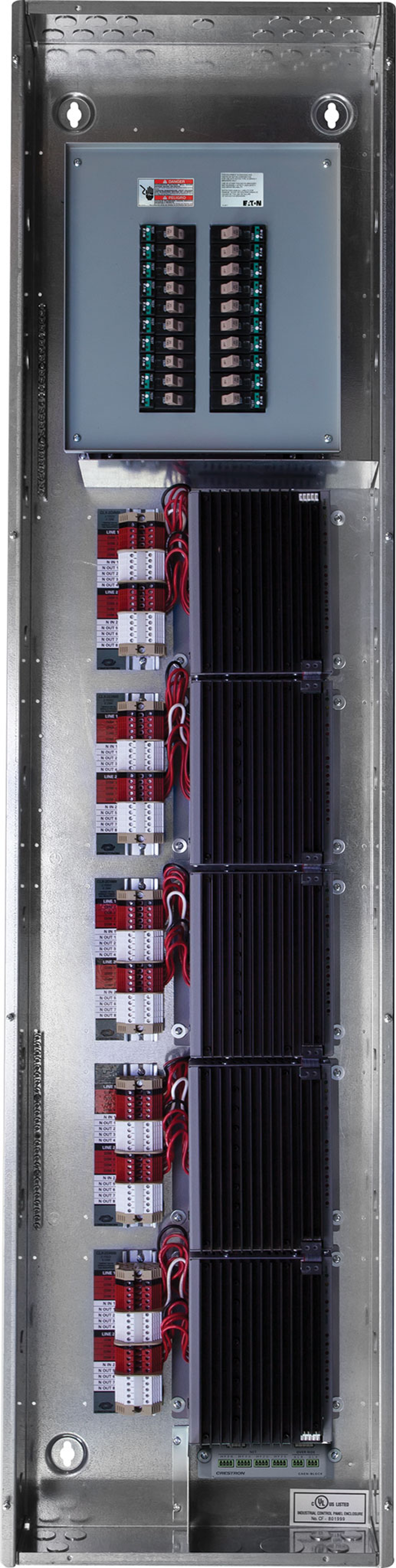

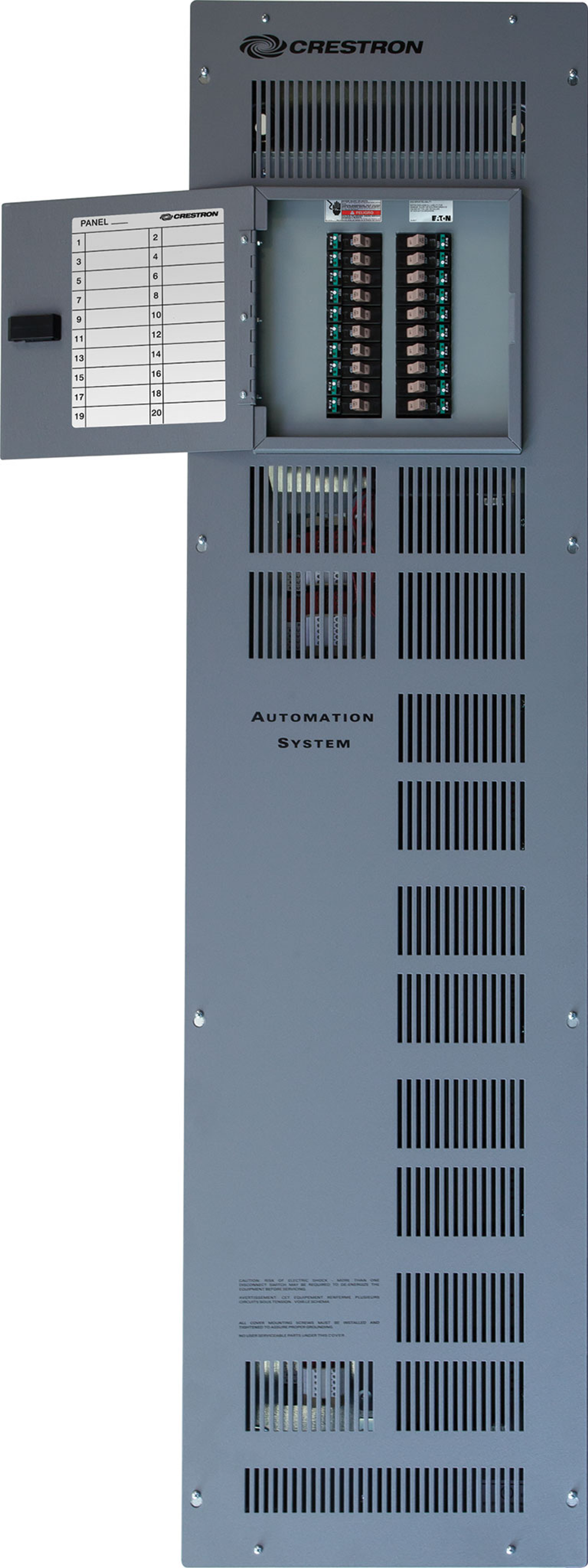

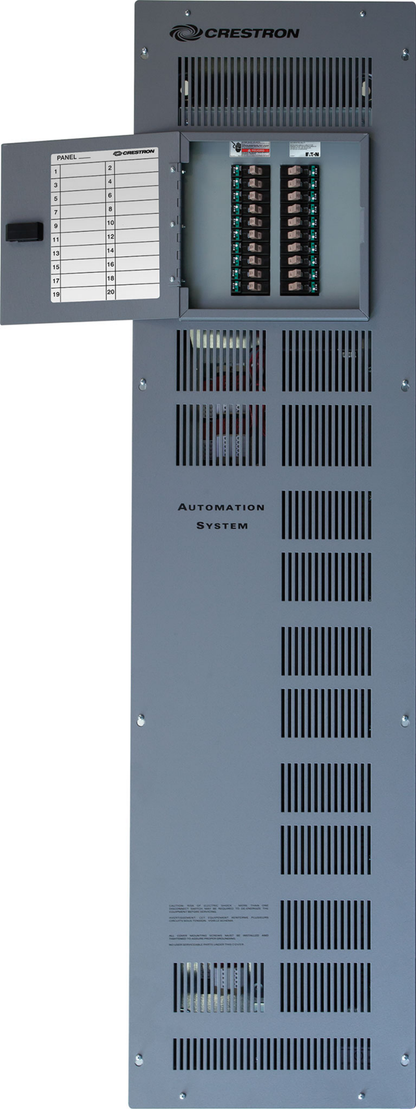

Provides a professional centralized dimming solution for residential and commercial applications.CAEN-5X1-MLO shown. Circuit breakers, modules, and terminal blocks sold separately.
Overview

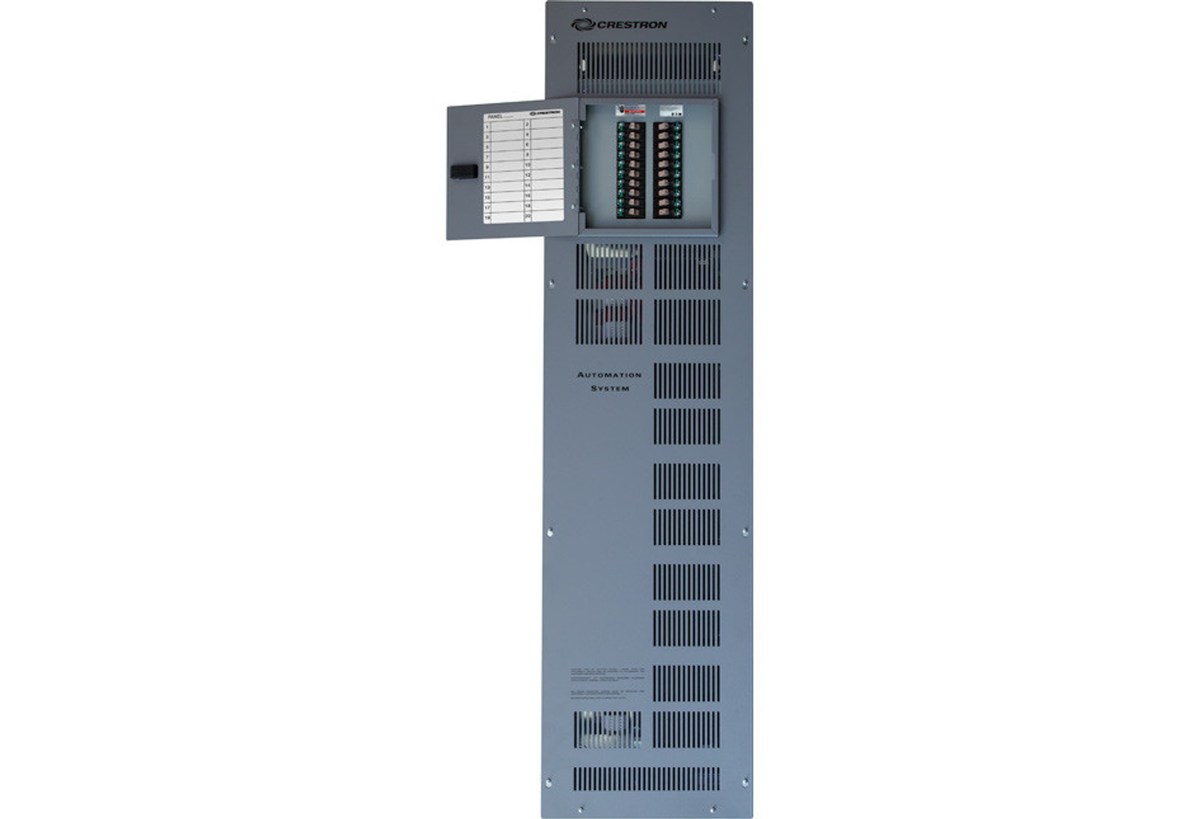

Crestron® CAEN-MLO automation enclosures are designed to provide a professional centralized dimming solution for residential and commercial applications. CAEN-MLO enclosures are available in three physical sizes, providing options for both surface and flush wall mount installation. Each model has been engineered to provide a clean and manageable installation with abundant provisions for wire termination and electrical knockouts.
Space-Efficient and Configurable
CAEN-MLO automation enclosures are designed to use space efficiently, supporting up to 80 controlled circuits in the largest model. Configured using Crestron CLX Series lighting control modules[1], CAEN-MLO enables versatile combinations of dimming, switching, fan, and motor control in a single enclosure. Five enclosure models are offered, each designed for use as a subpanel with either split phase or three phase main lugs. As an option, Crestron offers complete factory assembly and testing in our panel shop.
Integrated Circuit Breakers
Up to 20 circuit breakers may be installed[1], providing a choice of thermal magnetic, ground fault, and combination arc fault breaker types. To ensure premium electrical circuit protection, Crestron has chosen Eaton® CH circuit breakers for use in our CAEN-MLO automation enclosures. These breakers have been rigorously tested and proven to work reliably with Crestron dimmers, exhibiting excellent immunity to nuisance tripping under dimmed loads up to 2000 Watts. An innovative plug-on neutral design eliminates the need for individual pigtails wired to a separate bus bar, affording a cleaner, more efficient assembly.
Control System Options
Any CAEN-MLO automation enclosure can be equipped with a Crestron automation control system[1], affording fully integrated control for a complete residence or commercial facility. A Crestron control system provides a fully programmable control solution, with the ability to augment the centralized lighting controls with in-wall dimmers and switches, shading controls, climate controls, remote sensors, keypads and touch screen controllers throughout the building. Crestron control systems also allow for integration with security, AV, HVAC, irrigation, pool and spa, and a variety of other systems.
Features
Key Features
- Centralized lighting and automation for residential and commercial applications
- Configurable using CLX Series lighting control modules1
- Provides up to 20 breaker slots per enclosure (or 6 in the smallest model)1
- Thermal magnetic, ground fault, and combination arc fault breakers available
- Enables up to 80 controlled circuits in a single enclosure
- Available with split phase or three phase main lugs
- Designed for use as a sub panel
- Supports centralized and distributed system topologies
- Accommodates a Crestron® automation control system1
- Available in three convenient sizes
- Allows surface or flush wall mounting
- Allows inverted mounting for use in flood prone areas
- All metal composition with a generous assortment of knockout openings
- Includes vented front cover with hinged breaker access door and dead front
- Includes grounding blocks and low voltage partitions
- Additional mounting and termination accessories available1
- Features quiet, reliable, and efficient convection cooling
- Panel shop fabrication service available
- Intertek® Listed for US & Canada
Specifications

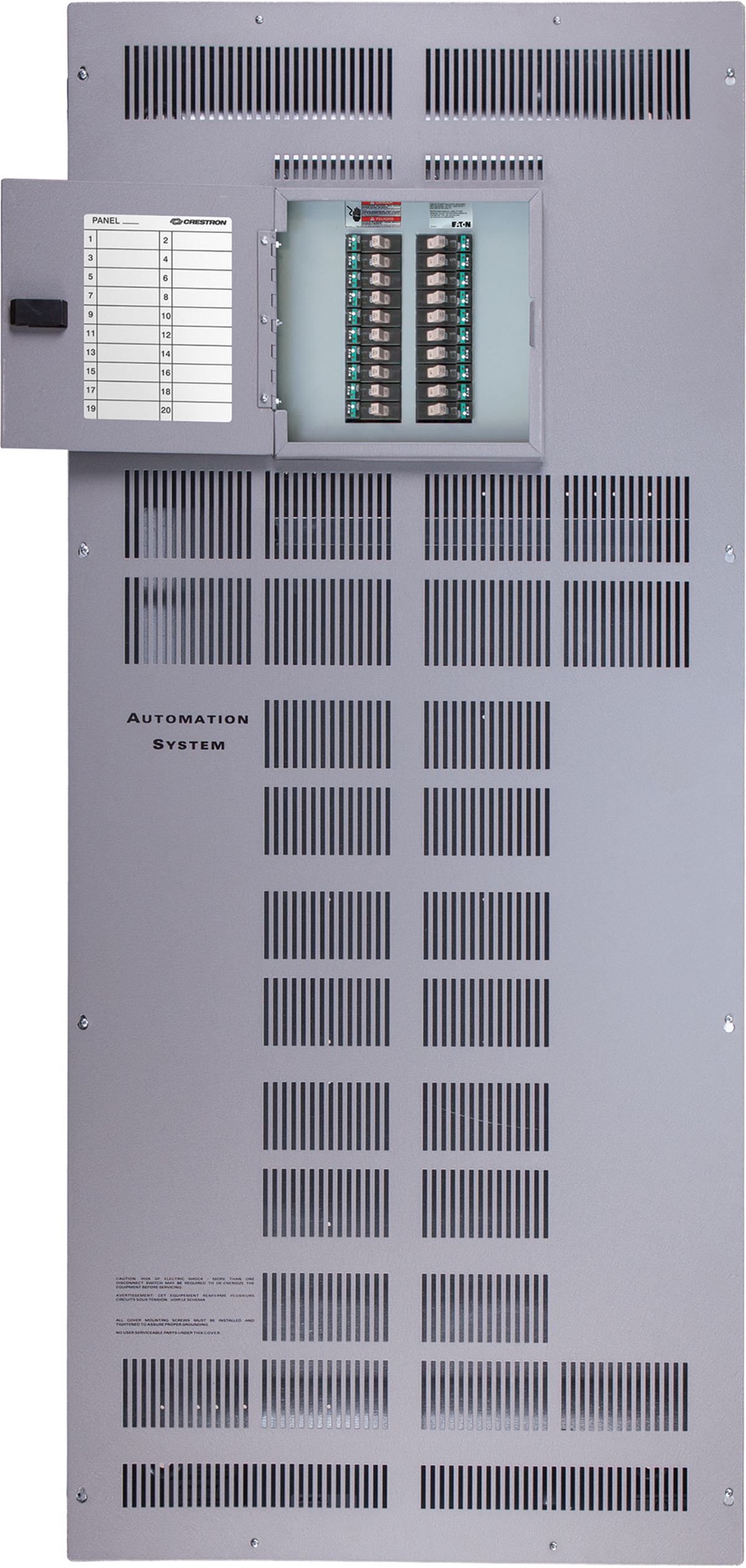

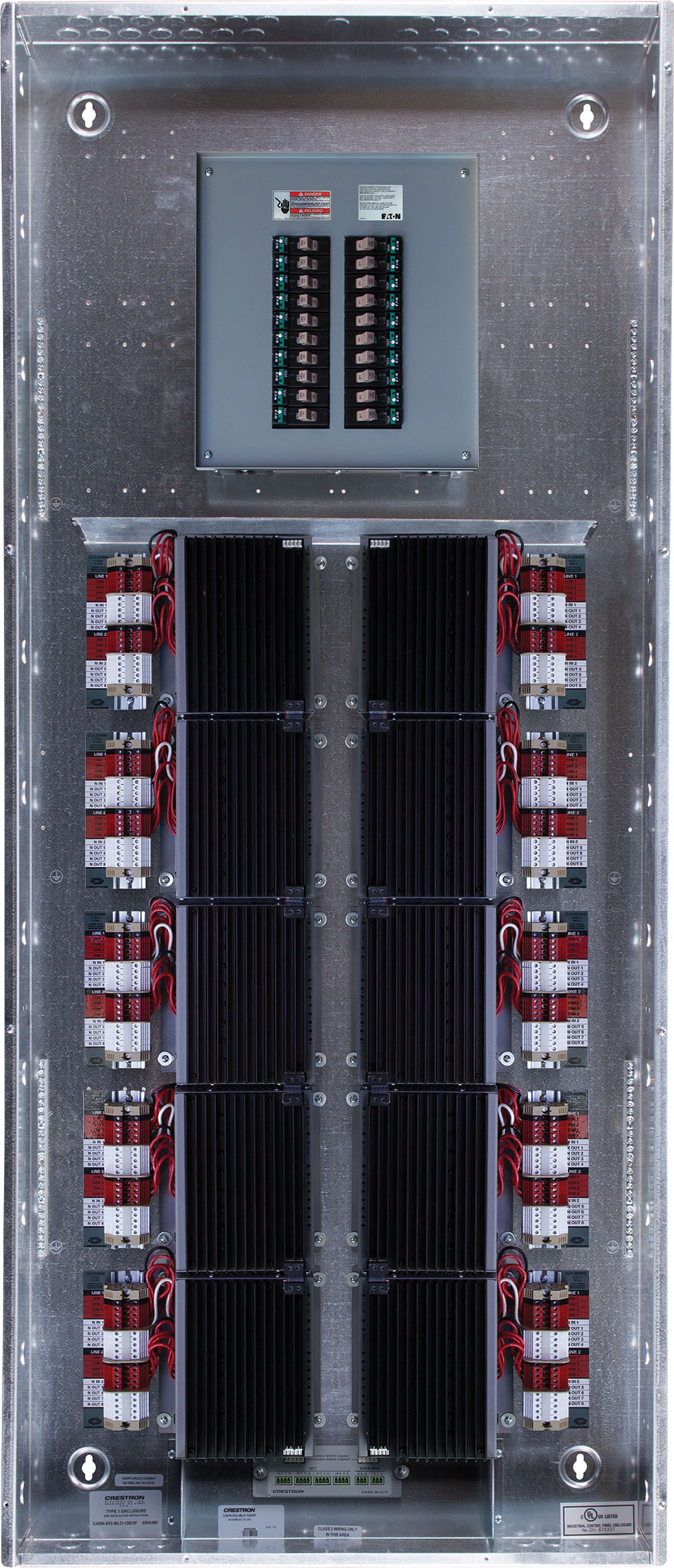

| Load Ratings | ||
| Per Channel | Refer to each CLX Series module spec sheet[1] | |
| Load Types | Refer to each CLX Series module spec sheet | |
| Main Lug | ||
| Line Power, 3-Phase | 120/208 Volts AC, 225 Amps maximum, 50/60 Hz phase to-neutral | |
| Line Power, Split-Phase | 120/240 Volts AC, 225 Amps maximum, 50/60 Hz phase to-neutral | |
| Maximum Wire Gauge | 4/0 AWG (CAEN-5X1/5X2-MLO), 2/0 AWG (CAEN-3X1-MLO) | |
| Circuit Breakers | ||
| Types | Eaton® CHF120, CHFCAF120PN, and CHFGF120PN; single-pole, 20A, 10kAIC rated; see Available Accessories for Crestron model numbers[1] | |
| Maximum Wire Gauge | 4 AWG | |
| Environmental | ||
| Temperature | 32° to 104°F (0° to 40°C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Enclosure | ||
| 16 Gauge galvanized steel backbox with perforated grey steel cover, surface or flush wall mount, invertible | ||
| Backbox Dimensions | ||
| CAEN-5X2-MLO |
Height: 62.75 in (1594 mm); Width: 27.25 in (693 mm); Depth: 4.98 in (127 mm) |
|
| CAEN-5X1-MLO |
Height: 62.75 in (1594 mm); Width: 16.10 in (409 mm); Depth: 4.98 in (127 mm) |
|

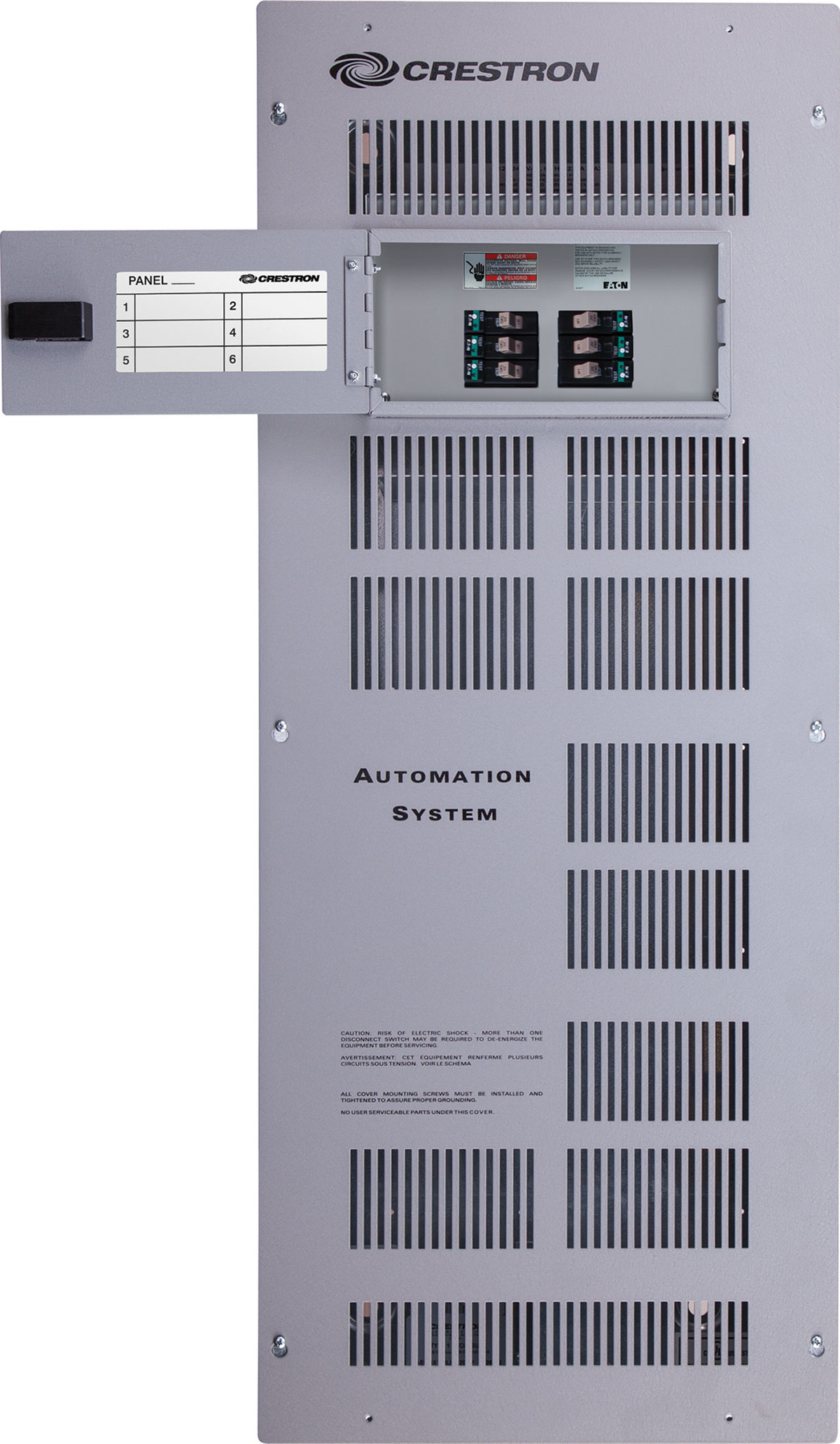

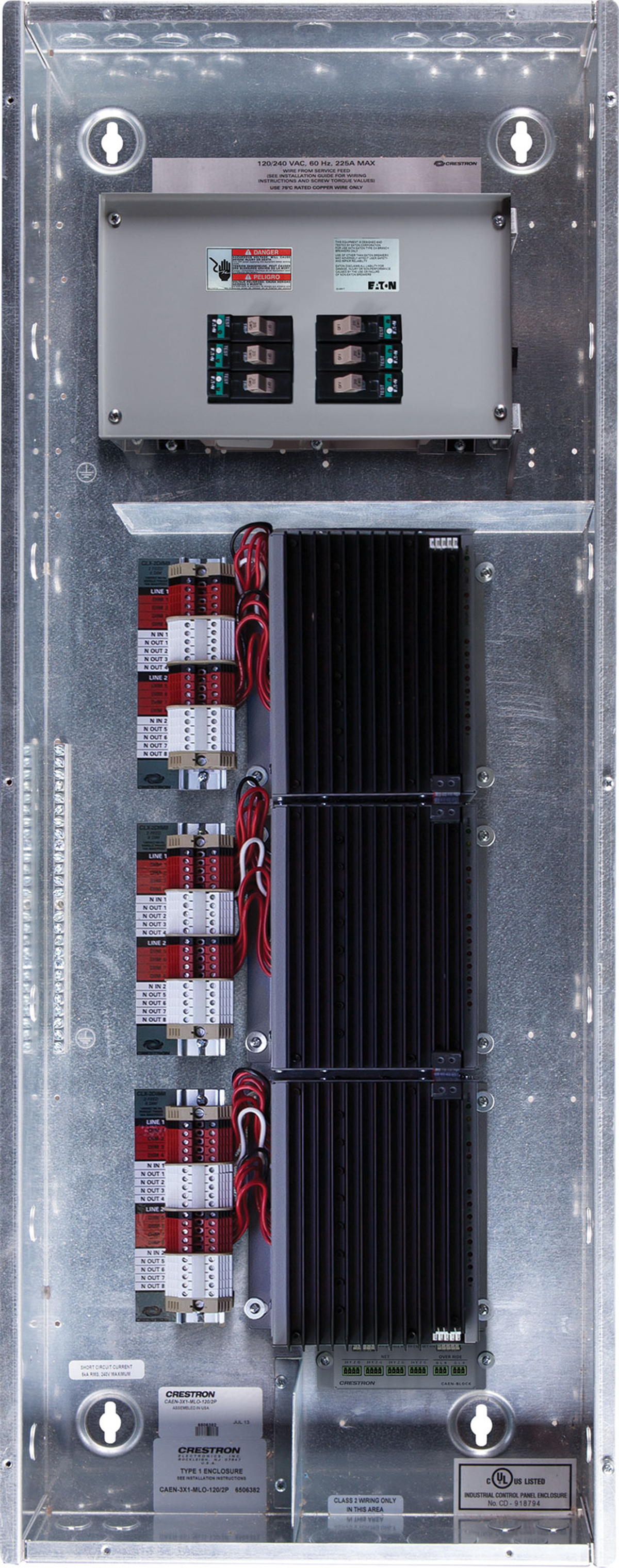

| CAEN-3X1-MLO |
Height: 39.65 in (1008 mm); Width: 16.10 in (409 mm); Depth: 4.98 in (127 mm) |
|
| Weight | ||
| CAEN-5X2-MLO | 73.0 lb (33.11 kg) | |
| CAEN-5X1-MLO | 50.0 lb (22.68 kg) | |
| CAEN-3X1-MLO | 33.0 lb (14.97 kg) | |
| Compliance | ||
|
Regulatory Model: CAEN ETL Listed for the United States and Canada under UL 50 and CSA C22.2 No. 94.1. Fully assembled enclosures manufactured in Crestron's ETL-certified panel shop are listed under UL 508A and CSA C22.2 No. 286. |
||
