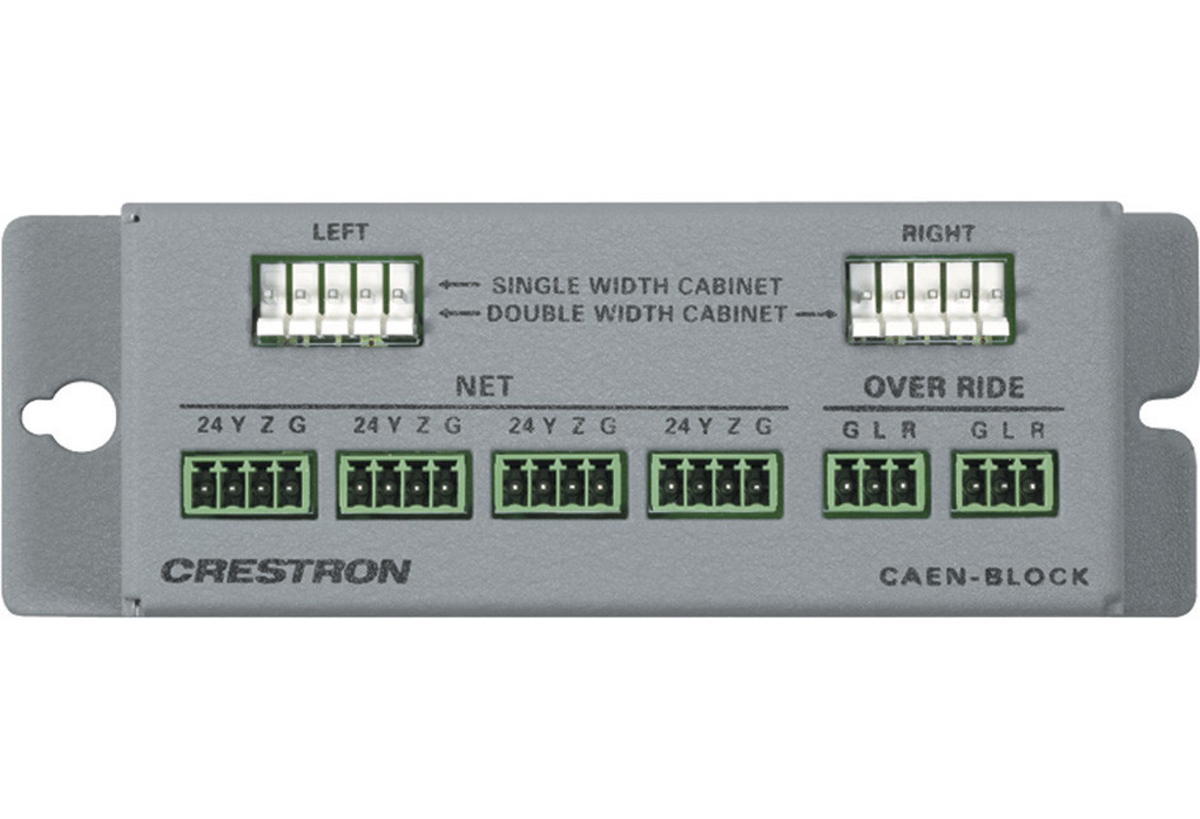

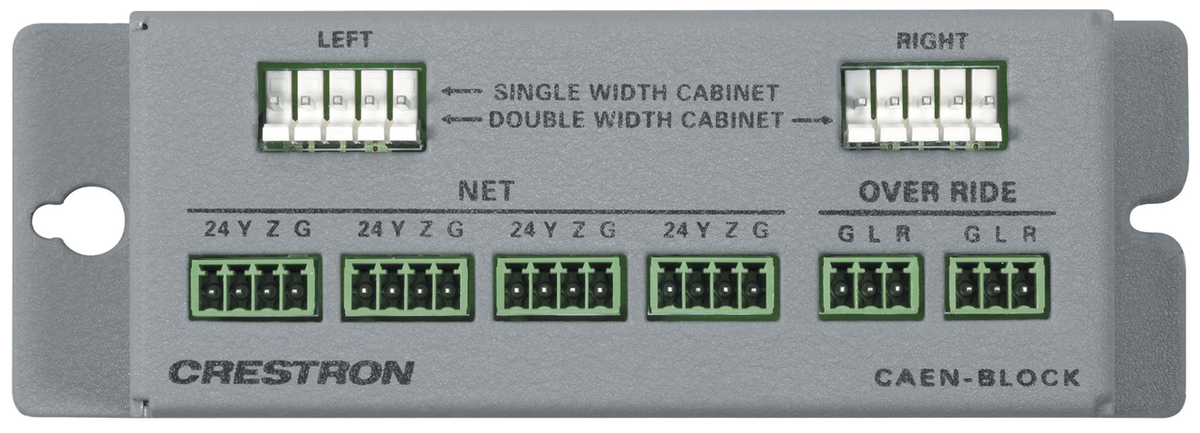

The CAEN-BLOCK is a Cresnet terminal block designed specifically for Crestron lighting and automation systems to link extension enclosures and satellite enclosures to the central PAC2 or PAC2M control system. The CAEN-BLOCK mounts at the bottom of each CAEN or CAENIB enclosure that does not contain a control system to provide Cresnet and Override signal connectivity for CLX-Series lighting control modules within. The CAEN-BLOCK serves as a parallel distribution block for multiple Cresnet cables, and especially provides for connection of the Cresnet and override signal cables from the central control system.
Overview
The CAEN-BLOCK is a Cresnet terminal block designed specifically for Crestron lighting and automation systems to link extension and satellite enclosures to the central control system. The CAEN-BLOCK mounts at the bottom of a CAEN, CAEN-MLO, or CAENIB enclosure that does not contain a control system to provide Cresnet and Override signal connectivity for CLX-Series lighting control modules. The CAEN-BLOCK serves as a parallel distribution block for multiple Cresnet cables, and provides connections for Cresnet and override signal cables from the central control system.
Features
Specifications
| Connectors | ||
| LEFT/RIGHT | (2) 5-pin 0.156 inch headers; Cresnet/Override interconnect ports; Connect to CLX-Series lighting control modules using interconnect cables provided |
|
| NET | (4) 4-pin 3.5mm detachable terminal blocks; Connect to standard 4-wire Cresnet cables |
|
| OVERRIDE |
(2) 3-pin 3.5mm detachable terminal blocks, paralleled, comprising (2) inputs (and pass-thru) for external contact closures to trigger the preset Override state in each CLX-Series module connected via the LEFT and RIGHT module interconnect ports |
|
| Enclosure | ||
| Gray metal, surface mount module with (2) integral mounting flanges | ||
| Dimensions | ||
| Height | 2.0 in (5.08 cm) | |
| Width | 6.0 in (15.24 cm) | |
| Depth |
1.75 in (4.44 cm) |
|
| Weight | ||
| 3.4 oz (0.10 kg) | ||
