Product Information
Equipment for mounting 4-Series™ automation processor and hub control system to CAEN, CAEN‑MLO, or CAENIB automation enclosures.
Overview

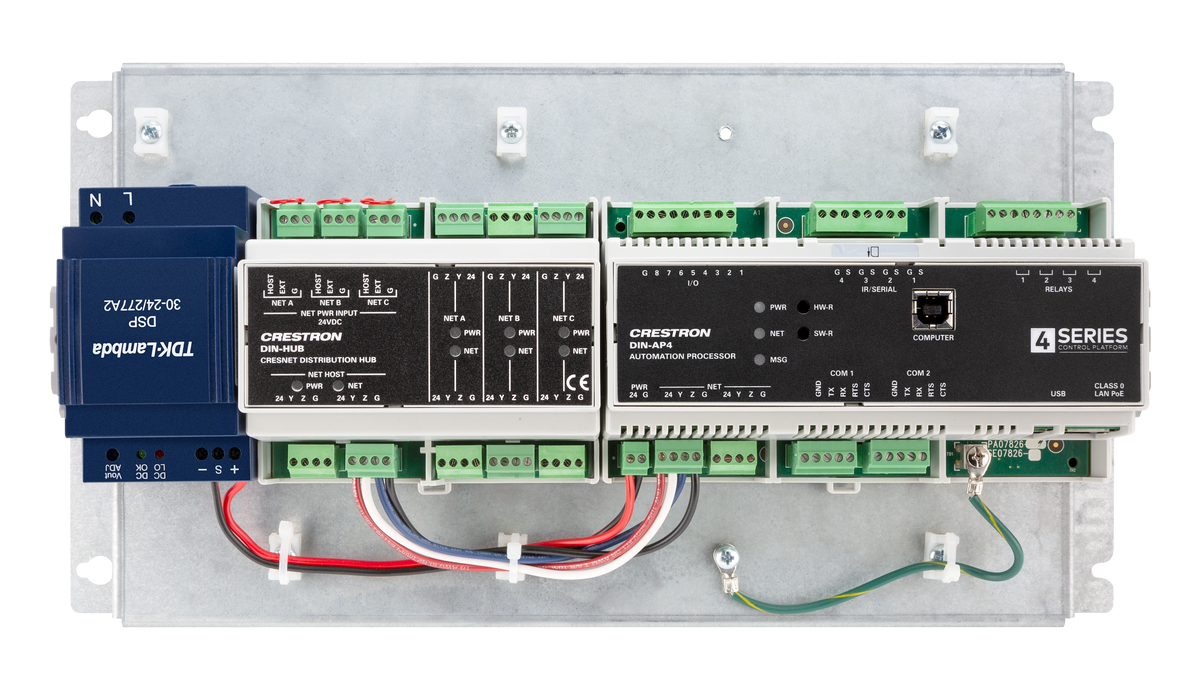

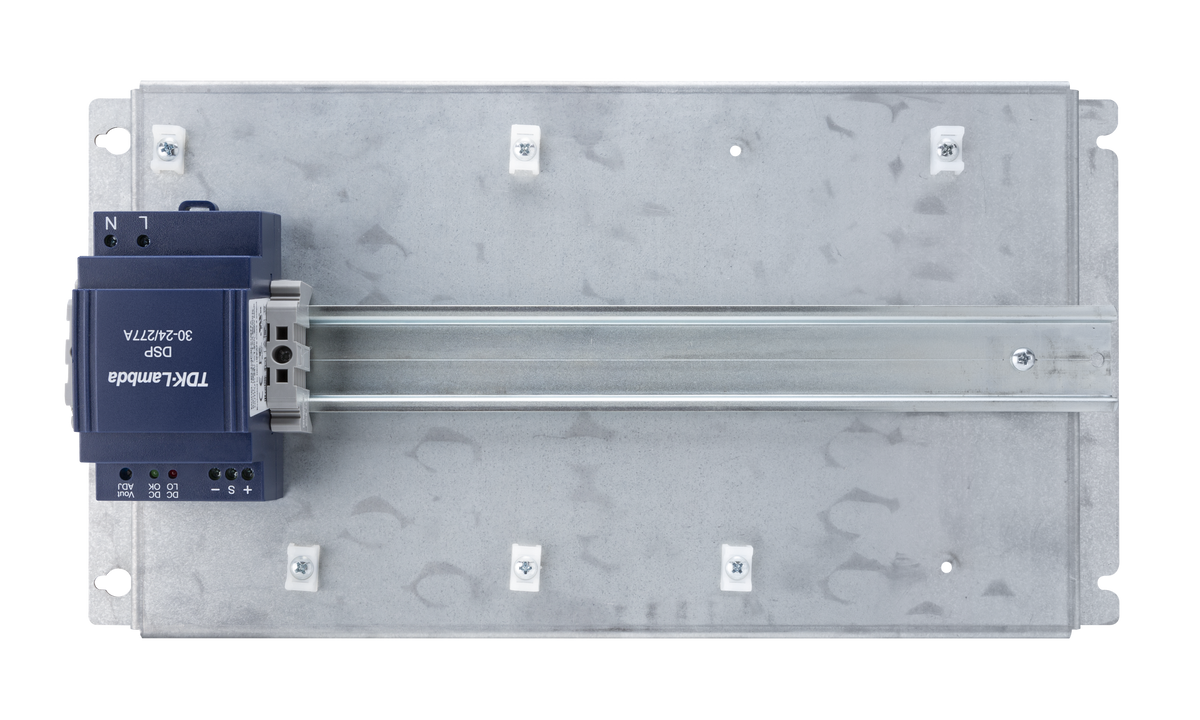

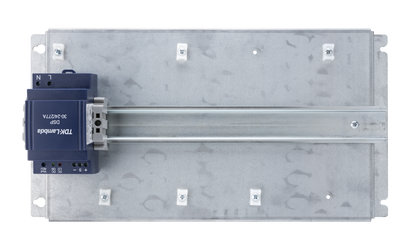

The CAEN‑UMP1X2‑DIN‑PWS mounting kit provides a simple solution for installing a DIN‑AP4 4-Series™ control system (sold separately) and DIN‑HUB Cresnet Distribution Hub (sold separately) to a CAEN, CAEN‑MLO, or CAENIB automation enclosure (sold separately). The CAEN‑UMP1X2 mounting plate is equipped with a DIN rail and a DIN‑PWS30‑277 30 W Cresnet® power supply. The CAEN‑UMP1X2‑DIN‑PWS also includes DIN rail endcaps, screws, and cables for connecting the DIN products.
For additional details, refer to the DIN‑PWS30‑277 and CAEN‑UMP1X2 product pages.
Features
Key Features
- Mounting equipment for a DIN‑AP4 4-Series™ control system (sold separately) and DIN‑HUB Cresnet® hub (sold separately) assembly
- Lighting control solution for a single CAEN (CAEN, CAEN‑MLO, or CAENIB) enclosure
- Supports up to 80 directly connected Cresnet devices when used with the DIN‑HUB
- Provides up to 20 W of power for connected devices when used with the DIN‑AP4
- Contains a DIN‑PWS30‑277 Cresnet power supply
Specifications
| Power | |
| Main Power | 100-277VAC, 50/60 Hz |
| Available Power | 30 W maximum from the DIN‑PWS30‑277 |
| Environmental | |
| Temperature | 41° to 113 °F (5° to 45 °C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Enclosure | |
|
Mounting Plate: Metal with attached DIN rail and tie-down anchors |
|
| Dimensions | |
| Height | 7.40 in. (188 mm) |
| Width | 14 in. (356 mm) |
| Depth | 2.91 in. (74 mm) |
