Product Information

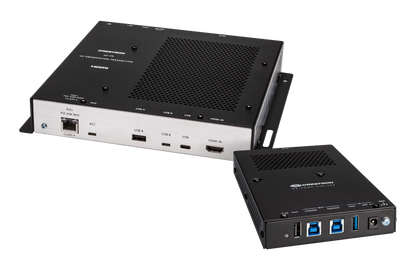

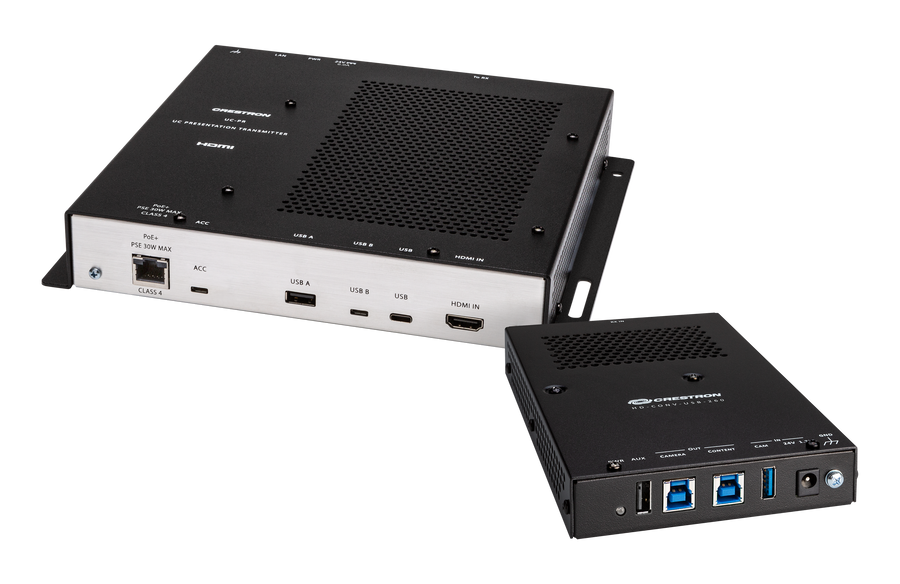

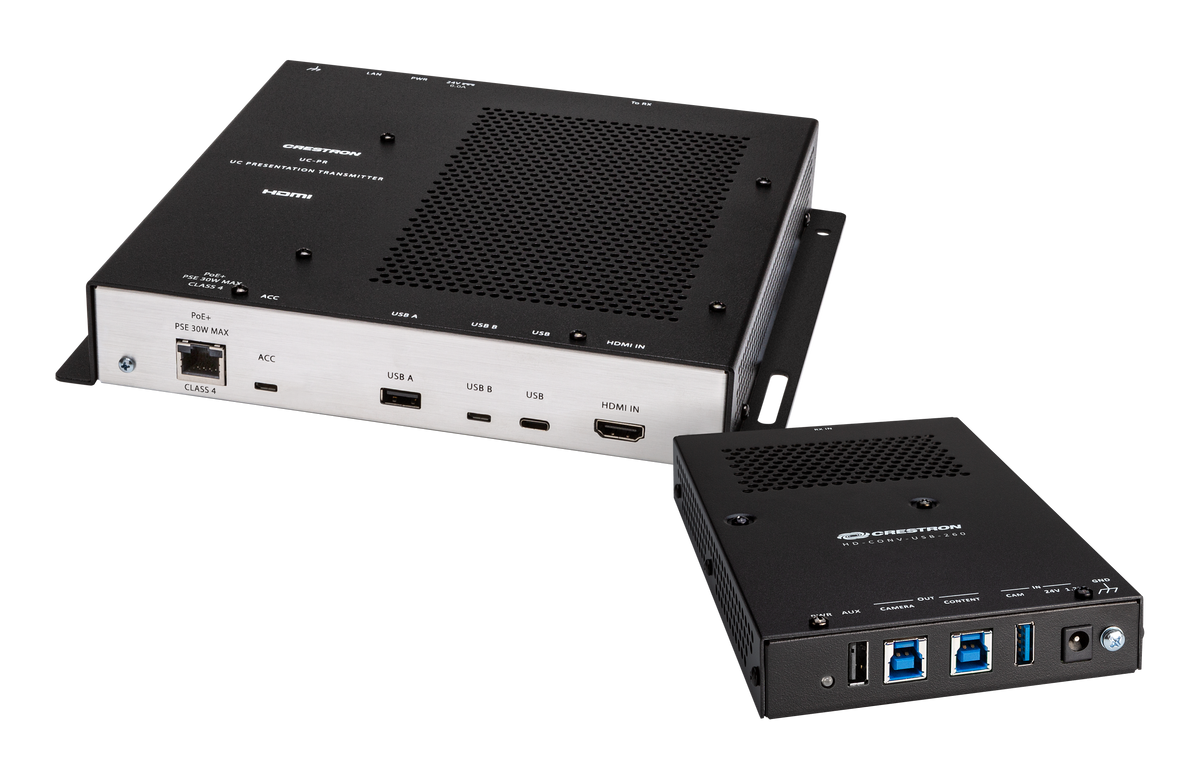

The CCC-BYOD-KIT provides Bring Your Own Device (BYOD) functionality for Crestron Collab Compute devices. The UC Presentation Transmitter (UC‑PR) switches to the laptop's meeting platform when connected and returns to the Crestron Collab Compute's native platform when disconnected.
Overview
The CCC-BYOD-KIT provides Bring Your Own Device (BYOD) functionality for Crestron Collab Compute devices. The UC Presentation Transmitter (UC‑PR) switches to the laptop's meeting platform when connected and returns to the Crestron Collab Compute's native platform when disconnected.
The CCC-BYOD-KIT is compatible with the following Crestron Collab Compute devices:
Features
Specifications
| UC Presentation Transmitter (UC-PR)1 | |
| Communications | |
| Ethernet | 100 Mbps |
| HDMI | HDCP |
| HDMI over CAT5 Ethernet | HDCP |
| USB | USB 2.0 and USB 3.0 |
| Indicators | |
| PWR | (1) Green LED indicator for operating power supplied via power supply |
| Ethernet | (2) LEDs on To RX port; Green indicates Ethernet link status; Amber indicates Ethernet activity |
| Video | |
| Input Signals | HDMI, DisplayPort 1.2 via the USB Type-C® port |
| Output Signal | HDMI over CAT5 |
| Resolution | 1080p |
| Video Content Protection | HDCP 1.4 and HDCP 2.2 |
| Audio | |
| Input Signal | HDMI, DisplayPort 1.2 via the USB Type-C port |
| Output Signal | HDMI over CAT5 |
| Connectors | |
| LAN PoE | (1) 8 pin RJ-45 connector, female |
| ACC | (1) USB 3.0 Type B connector, female; For firmware loading only |
| USB-A | (1) USB 2.0 Type A connector, female |
| USB-B | (1) USB 2.0 Type B connector, female |
| USB | (1) USB Type-C 2.0 connector, female |
| HDMI IN | (1) HDMI Type A, female |

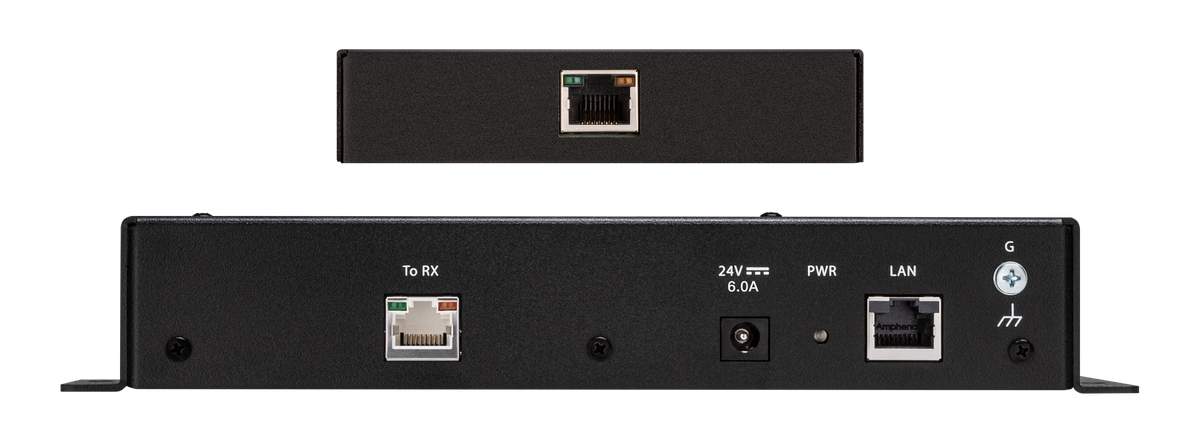

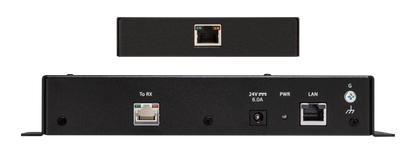

| To RX | (1) 8-pin RJ-45 connector, female |
| Power Jack | (1) DC power connector |
| LAN | (1) 8-pin RJ-45 connector, female |
| Ground | (1) 6-32 screw |
| Power | |
| Power (from included power supply) | 24VDC, 3.75A, 100-240VAC, 90 W |
| Device Charging | Up to 60 W charging for devices connected via the USB Type-C port |
| Environmental | |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 95% RH (noncondensing) |
| Heat Dissipation | 360 BTU/hr Idle, 430 BTU/hr typical; 553 BTU/hr maximum |
| Construction | |
| Chassis | Metal, black finish, integral mounting flanges; Vented top, front, bottom, and sides |
| Mounting | Attaches to a single rack rail or freestanding |
| Dimensions | |
| Height | 1.58 in. (40 mm) |
| Width | 9.25 in. (235 mm) |
| Depth | 8.37 in. (213 mm) |
|
HD-CONV-USB-260 |
|
| Communications | |
| RX IN | DM Essentials via UC Presentation Transmitter (UC-PR) |
| USB | USB 2.0 and USB 3.0 |
| Indicators | |
| PWR | (1) Green LED indicator for operating power supplied via power supply |
| Ethernet | (2) LEDs on RX IN port; Green indicates Ethernet link status; Amber indicates Ethernet activity |
| Connectors | |
| RX IN | (1) 8-pin RJ-45 connector |
| Camera OUT | (1) USB 3.0 Type B connector, female; For USB UVC Device |
| Content OUT | (1) USB 3.0 Type B connector, female; For USB UVC Device |
| CAM IN | (1) USB 3.0 Type A connector, female |
| 24V 1.25A | (1) DC Power connector (via included power supply) |
| AUX | (1) USB 2.0 Type B connector, female; For USB UAC Device |
| Ground | (1) 6-32 screw |
| Power | |
| Power (from included power supply) | 24VDC, 1.25A, 100‑240VAC |
| Environmental | |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 95% RH (noncondensing) |
| Heat Dissipation | 360 BTU/hr Idle, 430 BTU/hr typical; 553 BTU/hr maximum |
| Construction | |
| Chassis | Metal, black finish, integral mounting flanges; Vented top, front, bottom, and sides |
| Mounting | Attaches to a single rack rail or freestanding |
| Dimensions | |
| Height | 1.05 in. (27 mm) |
| Width | 4.55 in. (116 mm) |
| Depth | 7.19 in. (163 mm) |
