Conferencing speakerphone and touch screen solution for use with Crestron Collab Compute hardware.
Overview

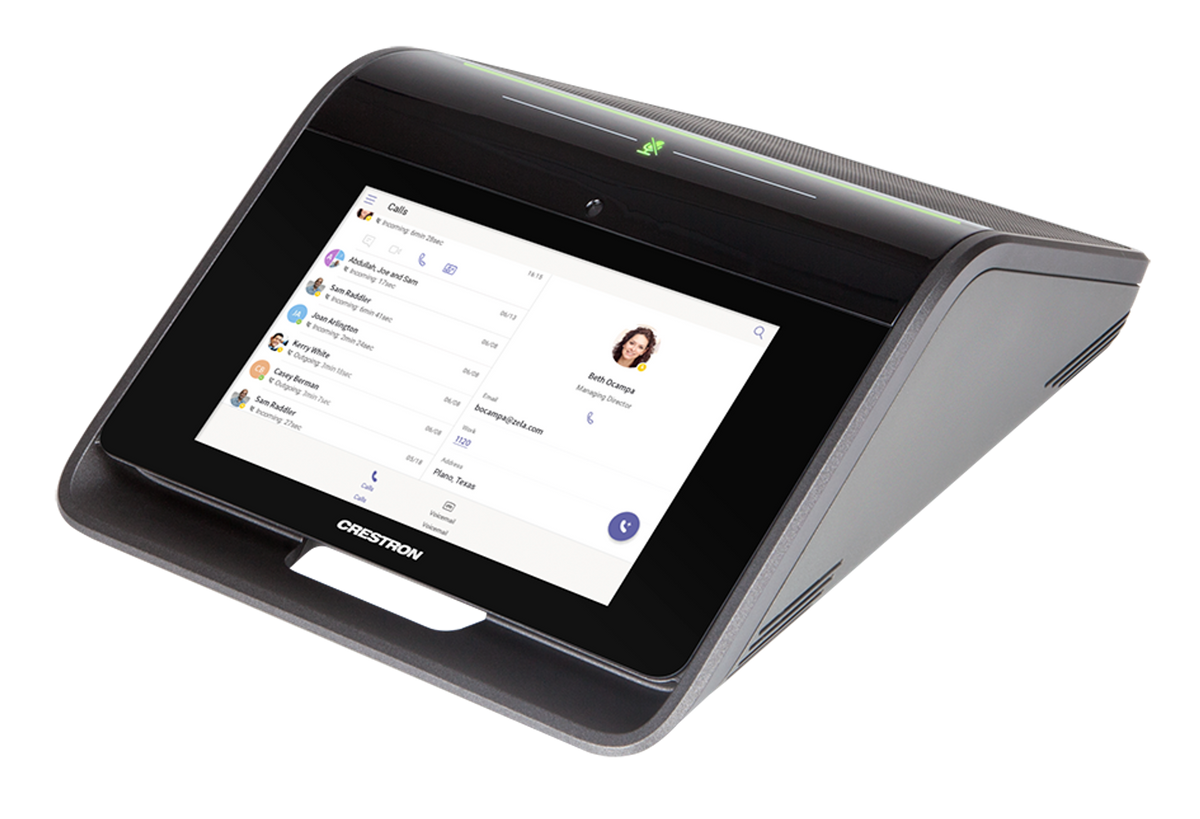

The CCS‑UC‑1 tabletop conferencing device provides a speakerphone and touch screen solution for use with Crestron Collab Compute hardware (sold separately).
Built-In Speakerphone
An integrated 360° quad microphone array captures voices from every seat at the table while the built-in speaker provides full-range audio playback for voice and program content. Echo cancellation is handled by the Microsoft Teams software running on the connected Crestron Collab Compute.
Intuitive UI
The built-in 7 in. (178 mm) capacitive multitouch screen receives a Microsoft Teams or Zoom Rooms user interface directly from the connected Crestron Collab Compute.1, 2 The interface displays meeting schedule details and basic call controls. The touch bar on the top of the conferencing device also provides a simple mute/unmute control and indicator.
Power over Ethernet
The CCS-UC-1 receives power over Ethernet (PoE+) from the connected Crestron Collab Compute. The PoE+ of the compute functions both as a power source and a dedicated touch screen configuration port. Once the proper setup is performed on the compute, connecting the CCS-UC-1 will automatically configure the conferencing device.
Features
Key Features
- Tabletop UC conferencing solution
- Automatically configures once connected to the PoE+ port of a Crestron Collab Compute (sold separately)
- 7 in. (178 mm) HD color touch screen with Microsoft Teams® or Zoom Rooms™ user interface
- Integrated 360° quad microphone array
- High-powered full-range speaker
- High-visibility mic mute indication
- Enterprise-grade security
- PoE+ or AC line powered (100-240VAC universal power pack included)
- CCS‑UCA‑SMK swivel mount kit sold separately
Specifications
| Communications | |
| Ethernet | 100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Legacy Active Directory® authentication, digest access authentication, password login, XiO Cloud client, IEEE 802.3at Type 2 PoE+ compliant |
| Audio | |
| Speaker | Full range speaker; Amplifier Power: 11 W (rated power); Maximum Output: 95 dB SPL @ 0.5 m; Frequency Response: 90 Hz - 22 kHz |
| Microphones | 360° quad mic array, 20 ft (6 m) typical pickup range |
| Touch Screen | |
| Screen | 7 in. (178 mm) diagonal capacitive multi‑touch TFT active matrix color LCD, 1280 x 800 pixels |
| UI | Microsoft Teams® or Zoom Rooms™ interface when paired with a Crestron Collab Compute device (sold separately)2 |
| Controls and Indicators | |
| Mic Mute Symbol and Light Bar | (2) Capacitive buttons with bi-color LEDs; Either button toggles between mute and unmute; Symbol LED blinks green when the unit is powering up; All LEDs illuminate red when the mic is muted; All LEDs illuminate green when the mic is unmuted during an active call or online meeting |
| Power | |
| Power | PoE+: IEEE 802.3at Type 2, Class 4 (25.5 W) PoE+ Powered Device; 24VDC: 24 Volts DC via external 100-240VAC, 50/60 Hz power pack, model PW‑2420RU (included) |
| Environmental | |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Dimensions | |
| Height | 4.11 in. (104 mm) |
| Width | 8.92 in. (227 mm) |
| Depth | 12.74 in. (324 mm) |
| Weight | |
| 8.38 lb (3.80 kg) | |
| Compliance | |
|
Regulatory Model: CCS-UC-1 UL® Listed for the United States and Canada, under UL/IEC 60950-1. CE compliant for applicable European market requirements. |
|
