Crestron

CTN CEN-SWPOE-12 12 Port PoE+ Managed Switch

CTN CEN-SWPOE-12 12 Port PoE+ Managed Switch

MFR: Crestron MPN : CEN-SWPOE-12
SKU: CEN-SWPOE-12
$681.25 USD
$681.25 USD
Sale Sold out
Shipping calculated at checkout.

Fast & Reliable Shipping

Ships in 3–5 business days

Secure Checkout

Your information is protected

Expert Support

Call, chat or email our team

View full details
Product Information

Class-leading NETGEAR® AV network switches are designed to make integration with Crestron AV-over-IP products as simple as possible. The CEN‑SWPOE‑12 is a 12 port managed Ethernet switch that provides PoE+ from eight of its ports. Two 1 Gigabit Base-X SFP ports enable use of transceiver modules to connect to a fiber network.

Overview

Class-leading NETGEAR® AV network switches are designed to make integration with Crestron AV-over-IP products as simple as possible. The CEN‑SWPOE‑12 12 port managed Ethernet switch provides PoE+ from eight of its ports. The two 1 Gigabit Base-X SFP ports enable use of transceiver modules to connect to a fiber network.

Web Browser Interface
Using a streamlined interface, quickly configure individual ports or assign AV profiles for use with DM NVX AV-over-IP or DM NAX audio-over-IP systems. An advanced command line interface is also available. Selecting a DM NVX or DM NAX profile from the web interface automatically configures the CEN‑SWPOE‑12 with the required multicast management functionality.

Two SFP Ports
Both SFP ports offer 1 Gigabit Base-X connections with support for both multimode and single-mode fiber transceiver modules.

Power Over Ethernet+
PoE+ is supplied on eight ports, offering a centralized power source for multiple devices while eliminating extra wiring and bulky power supplies. Up to 30 W is provided per port with a combined maximum output of 125 W.

Features

Key Features
  • Class-leading NETGEAR® AV network switch
  • Rack-mount 12 port managed switch
  • Ten 1000Base-T Gigabit Ethernet ports
  • Provides PoE+ (802.3at Type 2) on eight Ethernet ports, maximum 125 W combined output
  • Two 1 Gigabit SFP ports
  • Selectable DM NVX® AV-over-IP and DM NAX® Audio-over-IP profiles
  • Layer 2 and Layer 3 managed switching functionality
  • LLDP (Link Layer Discovery Protocol) support
  • 24 Gbps switching fabric (non-blocking)
  • Simple-to-use Web browser interface

Specifications

Ethernet
Ports (2) 10/100/1000Base-T auto-sensing Gigabit Ethernet;
(8) 10/100/1000Base-T auto-sensing Gigabit Ethernet w/PoE+;
(2) 1 Gigabit Base-X SFP
Network Standards IEEE 802.3af, 802.3at
MAC Addresses Up to 16K
Switch Fabric 24 Gbps non-blocking
Lite Layer 3 Package
Management Out-of-band;
IT Web GUI (main);
HTTPs, CLI, Telnet, SSH;
SNMP, MIBs, RSPAN;
Radius users, TACACS+
IPv4/IPv6 ACL and QoS Ingress/egress;
1 Kbps shaping, time-based;
Single rate policing
IPv4/IPv6 Multicast Filtering Automated IGMP between switches;
IGMPv3 MLDv2 snooping, proxy ASM and SSM;
IGMPv1, v2 querier (compatible with v3);
Control packet flooding
IPv4/IPv6 Policing and Convergence Auto-VoIP;
Policy-based routing;
LLDP-MED;
IEEE 1588 PTPv2
IPv4/IPv6 Authentication Security Successive tiering (DOT1X, MAB, Captive portal);
DHCP snooping;
Dynamic ARP inspection;
IP source guard
IPv4/IPv6 Static Routing Port, subnet, VLAN routing;
Multicast static routes;
DHCPv4 server;
DHCP relay;
Stateful DHCPv6 Server
IPv4/IPv6 Dynamic Routing IPv4: RIP;
IPv4/IPv6: PIM-SM, PIM-DM, SSM
Spanning Tree Green Ethernet STP, MTP, RSTP;
PV(R)STP;
BPDU/STRG;
EEE 802.3az
VLANs Static, dynamic, voice, MAC;
GVRP/GMRP;
Double VLAN mode;
Private VLANs

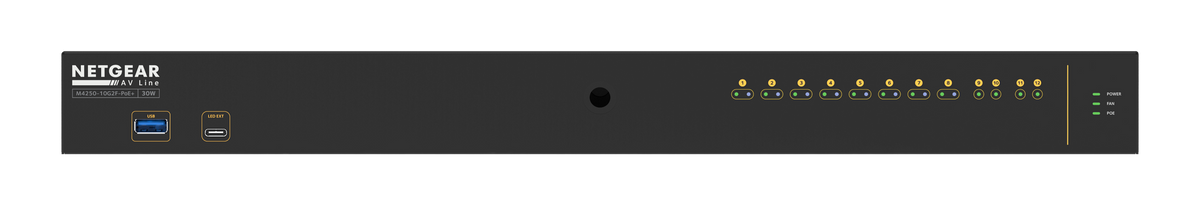

Controls & Indicators
POWER (1) green LED, indicates operating power supplied via main power input;
Repeated on front and rear panels
FAN (1) green LED, indicates fan is in operation;
Repeated on front and rear panels
POE (1) green LED, indicates the unit is supplying the maximum amount of PoE;
Repeated on front and rear panels
OOB (2) green LEDs for Ethernet port, indicates Ethernet link status for out-of-band (service) port
1-8 (2) LEDs per each (8) Ethernet port, green LEDs indicate Ethernet link status for each corresponding port, blue LEDs indicate PoE for each corresponding port;
Repeated on front and rear panels
9-10 (1) green LED per each (2) Ethernet port, indicates Ethernet link status for each corresponding port;
Repeated on front and rear panels
11-12 (1) green LED per SFP+ port, indicates active connection;
Repeated on front and rear panels
On/Off (1) Rocker switch, turns main power on or off
RESET (1) Recessed push button;
Used for reboot or factory reset

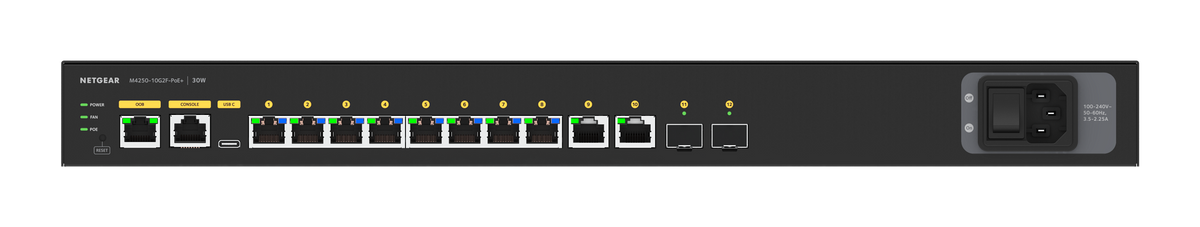

Connectors
OOB (1) 8-wire RJ45, female;
10/100/1000Base-T Ethernet port
CONSOLE (1) 8-wire RJ45, female
USB-C USB-C® port, female
100-240V (1) power connector
USB USB Type A, female
LED EXT USB-C® port, female
1-8 (8) 8-wire RJ45, female;
10/100/1000Base‑T Ethernet ports and PoE Power Sourcing Equipment (PSE) outputs;
Supports IEEE 802.3at Type 2 PoE+ power sourcing from any ports up to the maximum specified power capabilities;
Maximum 30 W per port, 125 W total
9-10 (2) 8-wire RJ45, female;
100/1000Base‑T Ethernet ports
11-12 (2) SFP ports, female;
1 Gigabit Base-X SFP
Power Requirements
Power Consumption Max PoE: 163.9 W;
Full Mesh Traffic, No PoE: 17.3 W;
Standby: 8.5 W
Environmental
Temperature 32° to 113° F (0° to 45° C)
Humidity 10% to 90% RH (non‑condensing)
Acoustic Noise Fanless: 0 dBA;
Quiet Mode: 27.4 dBA at 77° F (25° C);
Cool Mode: 55 dBA at 77° F (25° C)
Construction
Chassis Metal, black finish, fan-cooled, vented sides
Mounting Freestanding or 1U 19-inch rack-mountable with reversible rack ears
Dimensions
Height 1.7 in. (43.2 mm)
Width 17.32 in. (440 mm)
Depth 7.87 in. (200 mm)
Weight
6.28 lb (2.85 kg)
Compliance
Regulatory Model: GSM4212UX
