Product Information

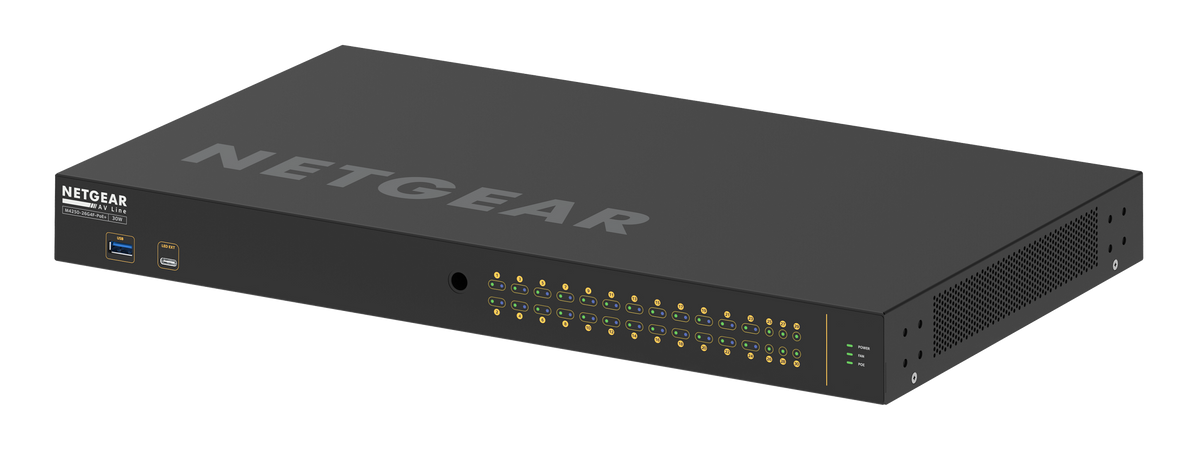

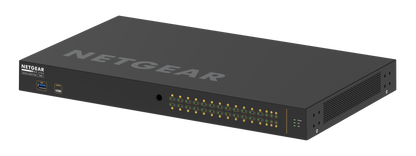

26 Port PoE+ Network Switch
Overview
This class-leading NETGEAR® network switch is designed to make integration with Crestron commercial lighting products as simple as possible. The CEN-SWPOE-26 is a 26 port managed Ethernet switch that provides PoE+ from 24 of its ports.
Quick Installation
Easily mount the CEN-SWPOE-26 in a lighting enclosure or 19 in. rack to provide an Ethernet connection with no configuration required. A Web browser interface and an advanced command line are available for complex systems.
Power Over Ethernet+
PoE+ is supplied simultaneously across 24 ports, providing a centralized power source for numerous PoE+ powered devices and eliminating the need for cumbersome power supplies and extra wiring. Up to 30 W is provided per port up to a combined maximum output of 300 W.
Features
Key Features
- Class-leading NETGEAR® lighting network switch
- 26 port managed switch
- Lighting enclosure or 19 in. rack mountable
- Twenty-six 1000Base-T Gigabit Ethernet ports
- Supports PoE+ (802.3at Type 2) on 24 Ethernet ports
- Provides up to 30 W per port, maximum 300 W combined output
- Layer 2 and Layer 3 managed switching functionality
- LLDP (Link Layer Discovery Protocol) support
- 60 Gbps switching fabric (non-blocking)
Specifications
| Ethernet | |
| Ports | (2) 10/100/1000Base-T auto-sensing Gigabit Ethernet (24) 10/100/1000Base-T auto-sensing Gigabit Ethernet w/PoE+ (4) 1 Gigabit Base-X SFP |
| Network Standards | IEEE 802.3af, 802.3at |
| MAC Addresses | Up to 16K |
| Switch Fabric | 60 Gbps non-blocking |
| Lite Layer 3 Package | |
| Management | Out-of-band; IT Web GUI (main); HTTPs, CLI, Telnet, SSH; SNMP, MIBs, RSPAN; Radius users, TACACS+ |
| IPv4/IPv6 ACL and QoS | Ingress/egress; 1 Kbps shaping, time-based; Single rate policing |
| IPv4/IPv6 Multicast Filtering | Automated IGMP between switches; IGMPv3 MLDv2 snooping, proxy ASM and SSM; IGMPv1, v2 querier (compatible with v3); Control packet flooding |
| IPv4/IPv6 Policing and Convergence | Auto-VoIP; Policy-based routing; LLDP-MED; IEEE 1588 PTPv2 |
| IPv4/IPv6 Authentication Security | Successive tiering (DOT1X, MAB, Captive portal); DHCP snooping; Dynamic ARP inspection; IP source guard |
| IPv4/IPv6 Static Routing | Port, subnet, VLAN routing; Multicast static routes; DHCPv4 server; DHCP relay; Stateful DHCPv6 Server |
| IPv4/IPv6 Dynamic Routing | IPv4: RIP; IPv4/IPv6: PIM-SM, PIM-DM, SSM |
| Spanning Tree Green Ethernet | STP, MTP, RSTP; PV(R)STP; BPDU/STRG; EEE 802.3az |
| VLANs | Static, dynamic, voice, MAC; GVRP/GMRP; Double VLAN mode; Private VLANs |

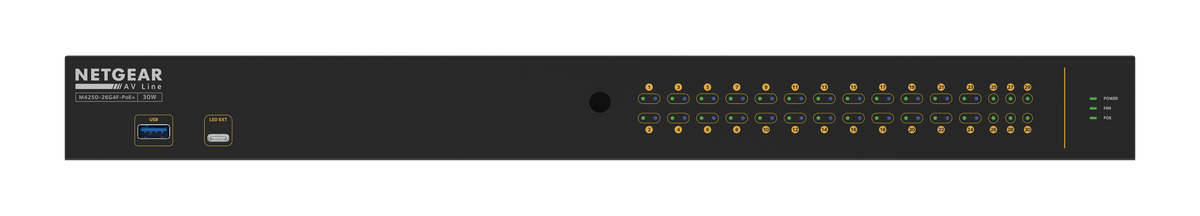

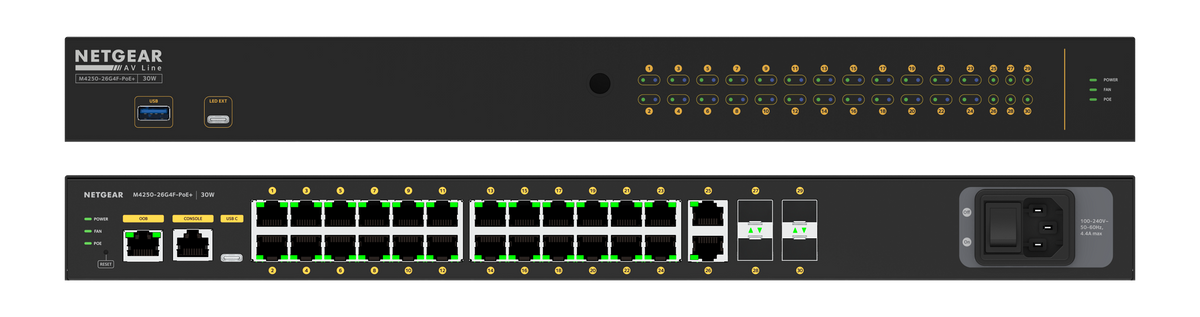

| Controls & Indicators | |
| POWER | (1) green LED, indicates operating power supplied via main power input; Repeated on front and rear panels |
| FAN | (1) green LED, indicates fan is in operation; Repeated on front and rear panels |
| PoE MAX | (1) green LED, indicates the unit is supplying the maximum amount of PoE; Repeated on front and rear panels |
| OOB | (2) green LEDs for Ethernet port, indicates Ethernet link status for out-of-band (service) port |
| 1-24 | (2) LEDs per each (24) Ethernet port, left (green) LEDs indicate Ethernet link status for each corresponding port, right (blue) LEDs indicate PoE for each corresponding port; Repeated on front and rear panels |
| 25-26 | (1) green LED per each (2) Ethernet port, indicates Ethernet link status for each corresponding port; Repeated on front and rear panels |
| 27-30 | (1) green LED per SFP port, indicates active connection; Repeated on front and rear panels |
| On / Off | (1) Rocker switch; Turns main power on or off |
| RESET | (1) Recessed push button; Used for reboot or factory reset |

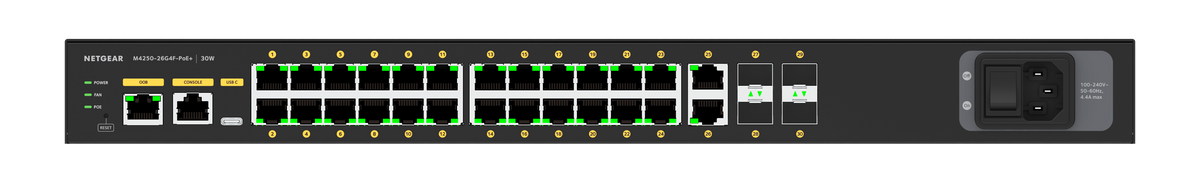

| Connectors | |
| OOB | (1) 8-wire RJ45, female; 10/100/1000Base-T Ethernet port |
| 1-24 | (24) 8-wire RJ45, female; 10/100/1000Base-T Ethernet ports and PoE Power Sourcing Equipment (PSE) outputs; Supports IEEE 802.3at Type 2 PoE+ power sourcing from any ports up to the maximum specified power capabilities; Maximum 30 Watts per port, 300 Watts total |
| 25-26 | (2) 8-wire RJ45, female; 10/100/1000Base-T Ethernet ports. |
| 27-30 | (4) SFP ports, female; 1 Gigabit Base-X SFP |
| Power Requirements | |
| Main Power | 4.4 Amps @ 100–240 Volts AC, 50/60Hz |
| Power Consumption | Max PoE: 401 W No PoE: 35.8 W Standby: 23.4 W |
| Environmental | |
| Temperature | 32° to 113° F (0° to 45° C) |
| Humidity | 10% to 90% RH (non‑condensing) |
| Acoustic Noise | 34 dBA at 77° F (25° C) |
| Construction | |
| Chassis | Metal, black finish, fan-cooled, vented sides |
| Mounting | Freestanding or 1U 19-inch rack-mountable with reversible rack ears |
| Dimensions | |
| Height | 1.7 in. (43.2 mm) |
| Width | 17.32 in. (440 mm) |
| Depth | 10.11 in. (257 mm) |
| Weight | |
| 9.47 lb (4.3 kg) | |
| Compliance | |
| Regulatory Model: GSM4230P | |
