Crestron

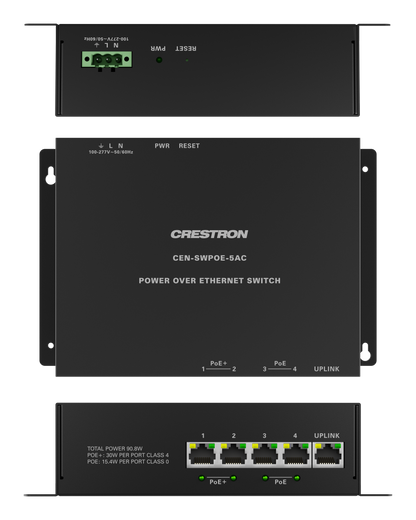

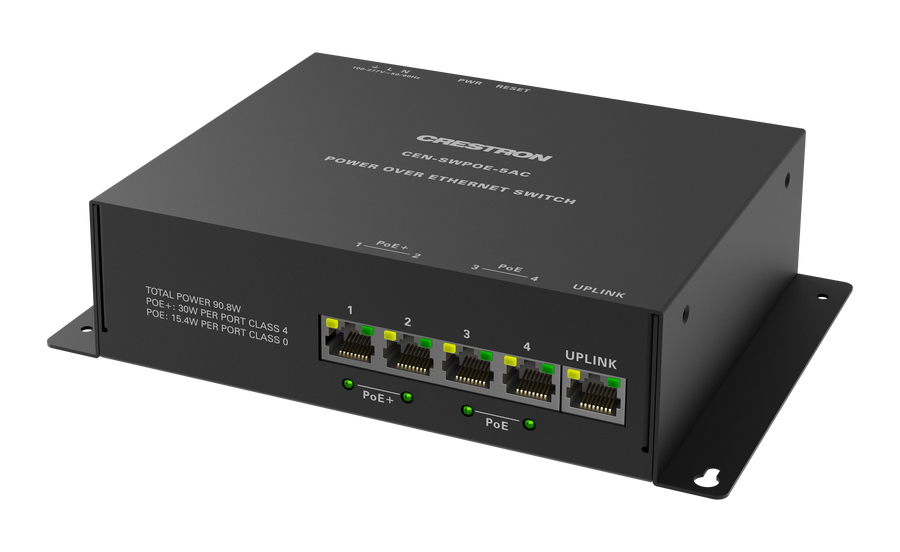

CTN CEN-SWPOE-5AC 5-Port PoE Network Switch

CTN CEN-SWPOE-5AC 5-Port PoE Network Switch

MFR: Crestron MPN : CEN-SWPOE-5AC
SKU: CEN-SWPOE-5AC
$343.75 USD
$343.75 USD
Sale Sold out
Shipping calculated at checkout.

Fast & Reliable Shipping

Ships in 3–5 business days

Secure Checkout

Your information is protected

Expert Support

Call, chat or email our team

View full details
Product Information

A 5-port Gigabit Ethernet switch with PoE on four ports. Supports lighting control for room-to-room communication.

Overview

The CEN-SWPOE‑5AC is a 5-port unmanaged Gigabit Ethernet switch that provides Power over Ethernet (PoE) from four of its ports. Power over Ethernet provides a one-wire solution for connecting Crestron touch screens, gateways, and other devices, delivering power and data over a single CAT5/6 network cable. Auto-negotiating and auto MDI/MDIX allows the ports to negotiate device connection types. All five ports are Gigabit capable to ensure maximum bandwidth for multimedia and critical control data.

Using the CEN-SWPOE‑5AC, there is no need to install a separate power supply at each networked device location. The CEN-SWPOE‑5AC can simply be mounted at a convenient location on a wall or in an equipment rack, providing a single power source for four separate 802.3af/at (up to 30 W each port) compliant PoE powered devices. Non-PoE devices may also be connected to any port on the CEN-SWPOE‑5AC without risk of damage to either component.

TAA Compliant

Features

Key Features
  • 5-port unmanaged Ethernet switch
  • All ports support 1000BASE-T Gigabit Ethernet
  • Provides PoE and PoE+ (802.3af/at) on four ports
  • Auto-negotiating and auto MDI/MDIX
  • Rugged metal enclosure
  • Mounting options for flat surface or ceiling, junction box, and DIN rail applications
  • Supports lighting control for room-to-room communication

Specifications

Ethernet
Ports (5) 100BASE-TX/1000BASE-T
Ethernet Network Standards IEEE 802.3, 802.3u, 802.3ab, 802.3x, & 802.3af /at
Transmission Method Store-and-forward
Indicators
PoE 1 – 4 (4) green LEDs, indicate a PoE powered device is connected to each corresponding Ethernet port
Uplink (1) green LED and (1) amber LED; indicate Ethernet link status, speed, and activity at the Uplink port
1 – 4 (1) green LED and (1) amber LED per each of (4) Ethernet ports;
indicate Ethernet link status, speed, and activity at each corresponding port
Power (1) green LED, indicates operating system

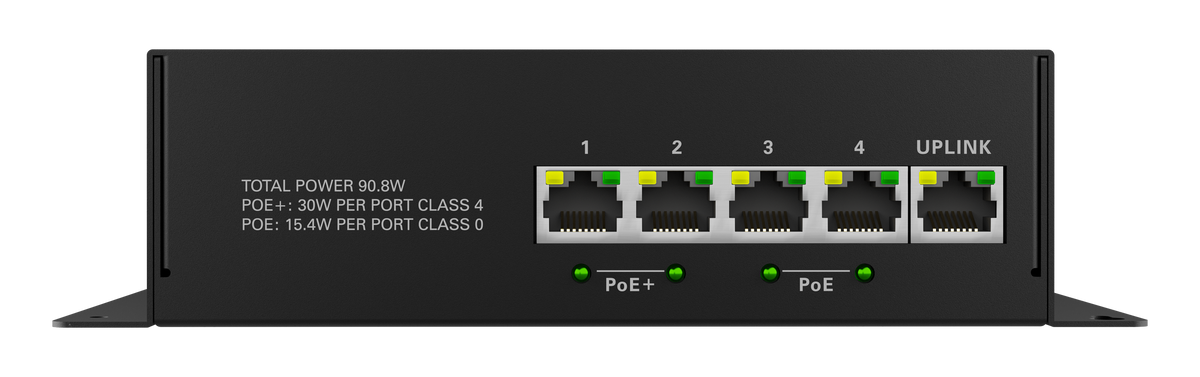

Connectors
Uplink (1) 8-wire RJ-45, female;
100BASE-TX/1000BASE-T Ethernet port
1 – 2 (2) 8-wire RJ-45, female;
100BASE-TX/1000BASE-T Ethernet ports and PoE+ Power Sourcing Equipment (PSE) outputs;
Ports 1 and 2: 30 W (max)
3 – 4 (2) 8-wire RJ-45, female;
100BASE-TX/1000BASE-T Ethernet ports and PoE Power Sourcing Equipment (PSE) outputs;
Ports 3 and 4: 15.4 W
Power Requirements

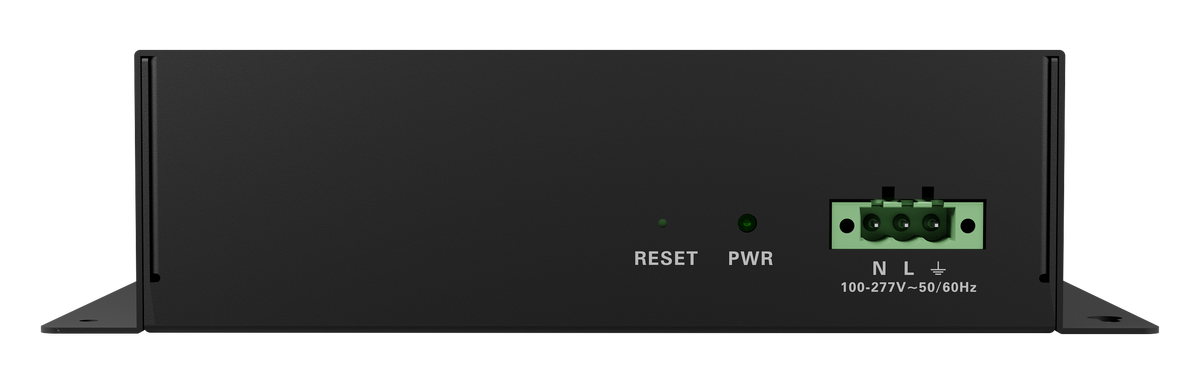

Input Range 100-277VAC 50/60Hz
Input Current 2A @ 115VAC, 1A @ 277VAC max
Environmental
Temperature 32° to 104°F (0° to 40°C)
Humidity 10% to 90% RH (noncondensing)
Heat Dissipation 10 BTU/hour
Construction
Chassis Metal, black finish, with (2) integral mounting flanges

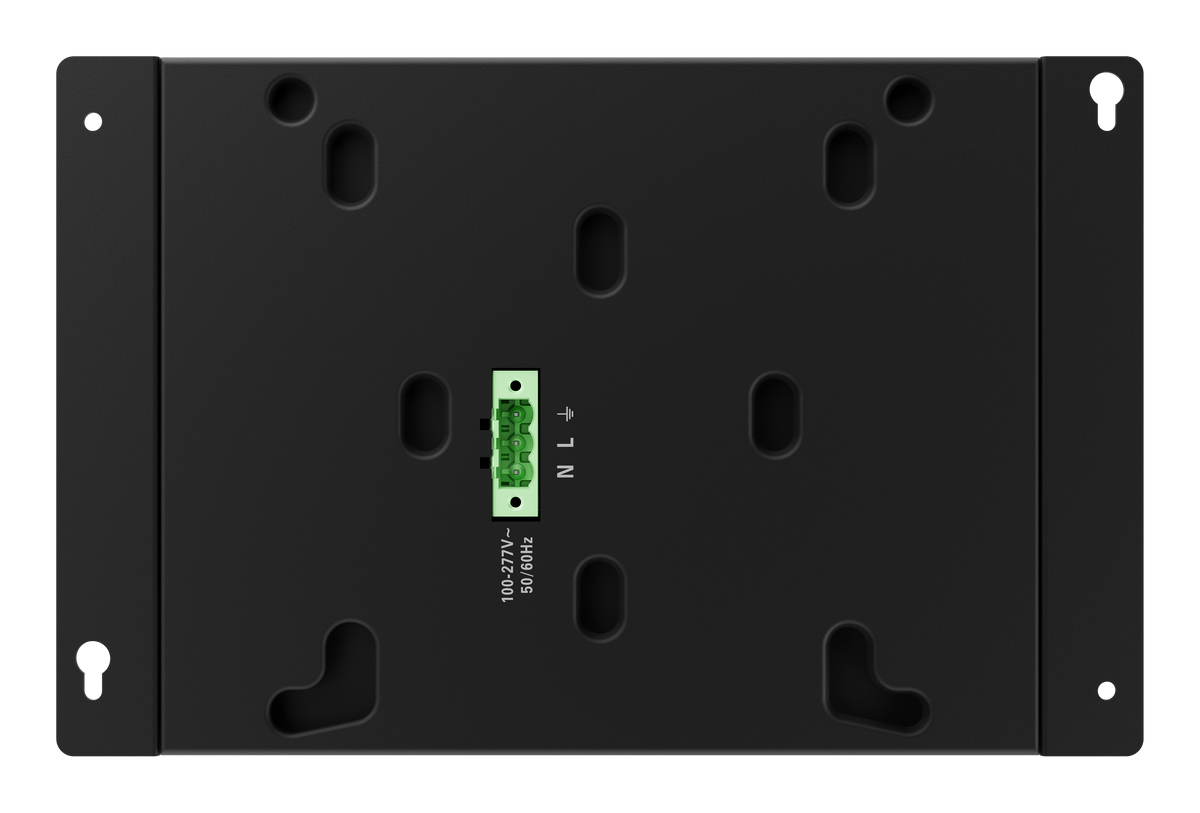

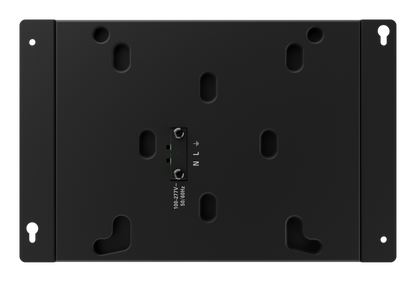

Mounting Freestanding, surface mount, ceiling wall box, DIN 49073, DIN Rail or attach to a single rack rail
Dimensions
Height 4.72 in. (120 mm)
Width 7.34 in. (187 mm)
Depth 1.85 in. (47 mm)
Weight
30 oz (850 g)
Compliance
Regulatory Model: M202214001
UL® Listed for the United States and Canada under UL/IEC 62368-1. CE compliant for applicable European market requirements.
