Class-leading NETGEAR® AV network switches are designed to make integration with Crestron AV-over-IP products as simple as possible. The CEN‑SWSFP‑40‑TAA is a 40 port managed Ethernet switch with 32 10 Gigabit Base-X SFP+ ports and eight 25 Gigabit Base-X SFP28 ports. All of the SFP ports enable use of transceiver modules to connect to a multimode or single-mode fiber network.
Overview
Class-leading NETGEAR® AV network switches are designed to make integration with Crestron AV-over-IP products as simple as possible. The CEN‑SWSFP‑40‑TAA is a 40 port managed Ethernet switch with 32 10 Gigabit Base-X SFP+ ports and eight 25 Gigabit Base-X SFP28 ports. All of the SFP ports enable use of transceiver modules to connect to a multimode or single-mode fiber network.
DM NVX and DM NAX AV-over-IP Profiles
When configuring a DM NVX AV-over-IP or DM NAX Audio-over-IP network, select the appropriate profile to automatically configure the CEN‑SWSFP‑40‑TAA with the multicast management functionality required.
Web Browser Interface
Using a streamlined interface, quickly configure individual ports or assign AV profiles for use with DM NVX or DM NAX systems. An advanced command line interface is also available.
Modular Power Supply Slot
The CEN‑SWSFP‑40‑TAA features a modular power supply slot compatible with the CEN‑SWSFP‑PWS600 for power redundancy.
Features
Key Features
- Class-leading NETGEAR® AV network switch
- Rack-mount 40 port managed switch
- One slot for modular power supply unit (sold separately)
- Thirty-two 10 Gigabit Base-X SFP+ ports
- Eight 25 Gigabit Base-X SFP28 ports
- Selectable DM NVX® AV-over-IP and DM NAX® Audio-over-IP profiles
- Layer 2 and Layer 3 managed switching functionality
- LLDP (Link Layer Discovery Protocol) support
- 1.04 Tbps switching fabric (non-blocking)
- Simple-to-use Web browser interface
- TAA compliant
Specifications
| Ethernet | |
| Ports | (32) 10 Gigabit Base-X SFP+; (8) 25 Gigabit Base-X SFP28 |
| Network Standards | IEEE 802.3af, 802.3at |
| MAC Addresses | Up to 16K |
| Switch Fabric | 1.04 Tbps non-blocking |
| Lite Layer 3 Package | |
| Management | Out-of-band; IT Web GUI (main); HTTPs, CLI, Telnet, SSH; SNMP, MIBs, RSPAN; Radius users, TACACS+ |
| IPv4/IPv6 ACL and QoS | Ingress/egress; 1 Kbps shaping, time-based; Single rate policing |
| IPv4/IPv6 Multicast Filtering | Automated IGMP between switches; IGMPv3 MLDv2 snooping, proxy ASM and SSM; IGMPv1, v2 querier (compatible with v3); Control packet flooding |
| IPv4/IPv6 Policing and Convergence | Auto-VoIP; Policy-based routing; LLDP-MED; IEEE 1588 PTPv2 |
| IPv4/IPv6 Authentication Security | Successive tiering (DOT1X, MAB, Captive portal); DHCP snooping; Dynamic ARP inspection; IP source guard |
| IPv4/IPv6 Static Routing | Port, subnet, VLAN routing; Multicast static routes; DHCPv4 server; DHCP relay; Stateful DHCPv6 Server |
| IPv4/IPv6 Dynamic Routing | IPv4: RIP; IPv4/IPv6: PIM-SM, PIM-DM, SSM |
| Spanning Tree Green Ethernet | STP, MTP, RSTP; PV(R)STP; BPDU/STRG; EEE 802.3az |
| VLANs | Static, dynamic, voice, MAC; GVRP/GMRP; Double VLAN mode; Private VLANs |

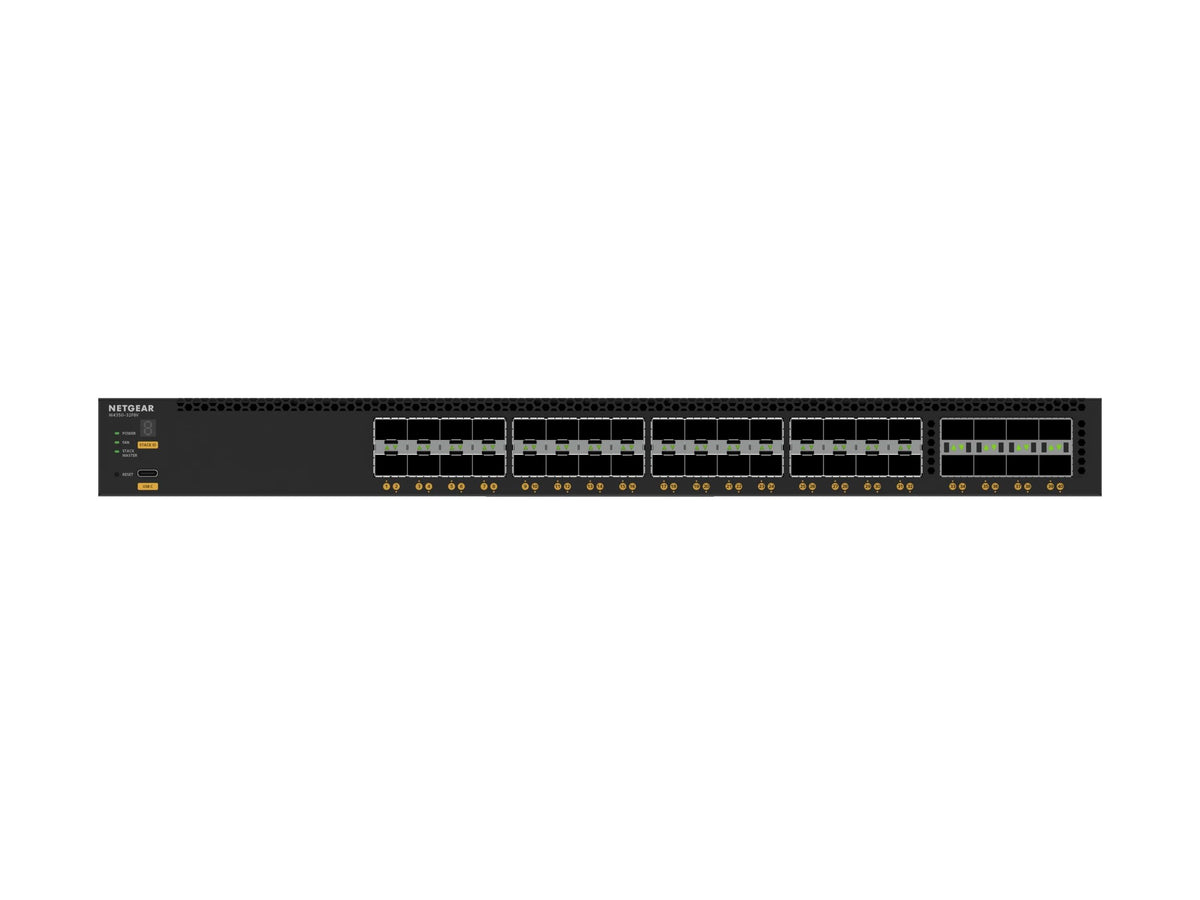

| Controls & Indicators | |
| POWER | (1) green LED, indicates operating power supplied via main power input |
| FAN | (1) green LED, indicates fan is in operation |
| OOB | (2) green LEDs for Ethernet port, indicates Ethernet link status for out-of-band (service) port |
| STACK MASTER | (1) green LED, indicates that the unit is operating as stack master for its switch stack |
| STACK ID | (1) Seven-segment green LED digit, indicates the number of the switch in its switch stack |
| 1-40 | (1) green LED per SFP+ or SFP28 port, indicates active connection |
| On / Off | (1) Rocker switch; Turns main power on or off |
| RESET | (1) Recessed push button; Used for reboot or factory reset |

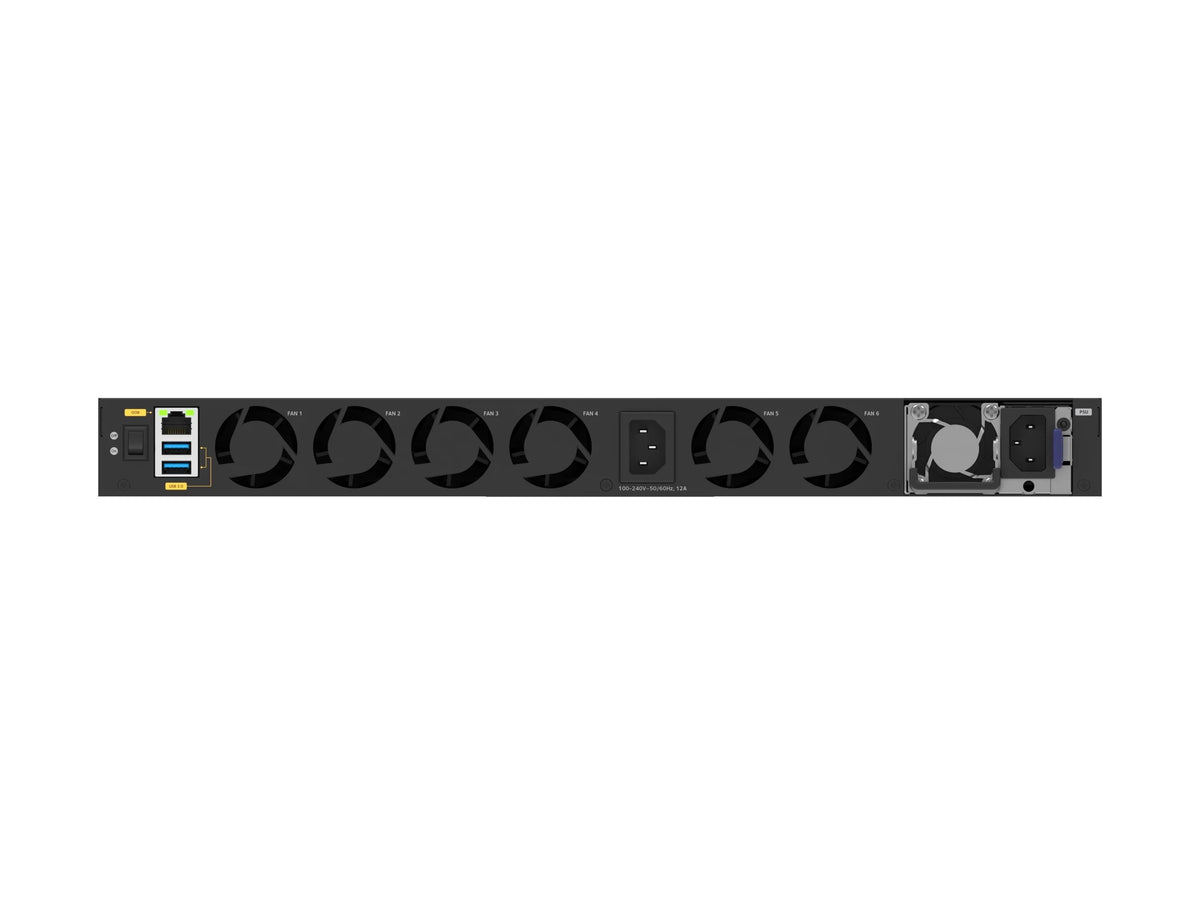

| Connectors | |
| OOB | (1) 8-wire RJ45, female; 100/1000Base-T Ethernet port |
| USB-C | USB-C® port, female |
| 100-240V | (1) power connector |
| PSU | (1) Modular power supply slot for CEN‑SWSFP‑PWS600 (sold separately) |
| USB 3.0 | (2) USB Type A connectors, female |
| 1-32 | (32) SFP+ ports, female; 10 Gigabit Base-X SFP+ |
| 33-40 | (8) SFP28 ports, female; 25 Gigabit Base-X SFP28 |
| Power Requirements | |
| Main Power | 12A @ 100–240VAC, 50/60 Hz |
| Power Consumption | Full Mesh Traffic: 156.4 W; Standby: 42.6 W |
| Environmental | |
| Temperature | 32° to 122° F (0° to 50° C) |
| Humidity | 10% to 90% RH (non‑condensing) |
| Acoustic Noise | Quiet Mode: 33 dBA at 77° F (25° C); Cool Mode: 63 dBA at 77° F (25° C) |
| Construction | |
| Chassis | Metal, black finish, fan-cooled, vented sides |
| Mounting | Freestanding or 1U 19-inch rack-mountable with reversible rack ears |
| Dimensions | |
| Height | 1.7 in. (43.2 mm) |
| Width | 17.32 in. (440 mm) |
| Depth | 15.74 in. (400 mm) |
| Weight | |
| 15.32 lb (6.95 kg) | |
| Compliance | |
| Regulatory Model: XSM4340FV-TAANAS | |
