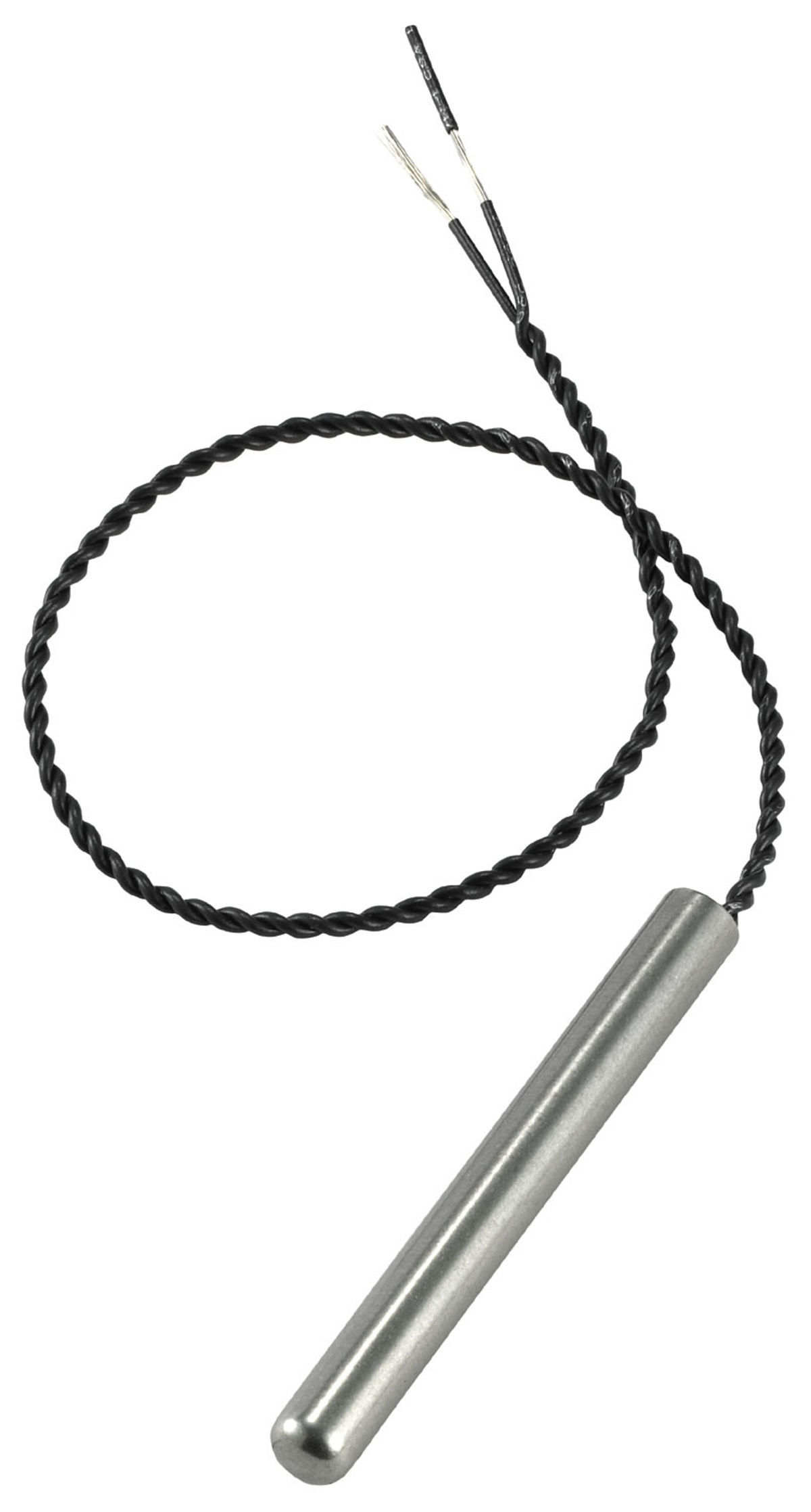

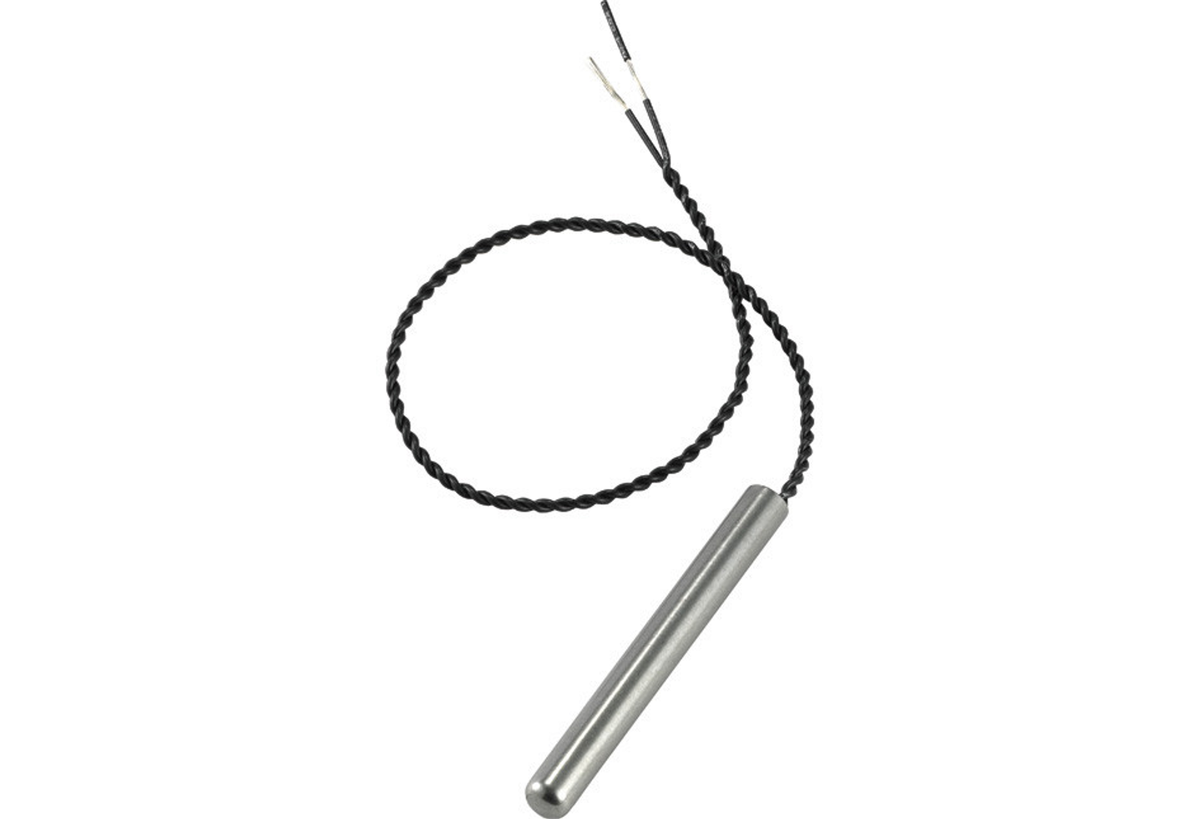

The CHV-RSS is a remote temperature sensor designed for use with select Crestron® thermostats. Ideally suited for concrete slab, under floor, or any outdoor installation, the CHV-RSS is an extremely accurate temperature sensor potted within a rugged, waterproof stainless steel sleeve.
Overview
The CHV-RSS is a remote temperature sensor designed for use with select Crestron® thermostats. Ideally suited for concrete slab, under floor, or any outdoor installation, the CHV-RSS is an extremely accurate temperature sensor potted within a rugged, waterproof stainless steel sleeve. Using CAT5 or similar low-capacitance wire, the remote sensor may be mounted up to 500 feet (152 meters) from the thermostat. One-piece mounting and a single non-polarized twisted-pair connection make the CHV-RSS simple to install. Up to four CHV-RSS sensors may be connected to a single CHV-THSTAT, CHV-TSTAT, CHV-TSTATEX, CHV-TSTATEX-FCU, HZ-THSTAT, DIN-THSTAT, or DIN-1TSTAT8 thermostat.
Features
Key Features
- Remote temperature sensor ideal for concrete slab, under floor, or any outdoor installation
- Designed for use with select Crestron® thermostats
- Remote sensor may be mounted up to 500 ft (152 m) from the thermostat
- Rugged, waterproof stainless steel sleeve
Specifications
| Measurement Range | ||
| Indoor Temperature | 0° to 110°F (-18° to 43°C) | |
| Outdoor Temperature | -40º to 170º F (-40º to 77 º C) | |
| Accuracy | ±1°F (±0.5°C) | |
| Temperature Tolerance | ||
| Over Full Range | ±1ºF (±0.5ºC) | |
| At Room Temperatures | ±1ºF (+0.1/-0.4ºC) | |
| Connection | ||
| 20 ft (6 m) twisted-pair pigtail; Non-polarized connection to remote sensor input of CHV-TSTAT, CHV-THSTAT, CHV-TSTATEX, CHV-TSTATEX-FCU, HZ-THSTAT, DIN-THSTAT, or DIN-1TSTAT8; Maximum Cable Length: 500 ft (152 m) via CAT5 |
||
| Enclosure | ||
| Cylindrical stainless steel | ||
| Dimensions | ||
| Diameter | 0.32 in (8 mm) | |
| Depth | 2.75 in (70 mm) | |
