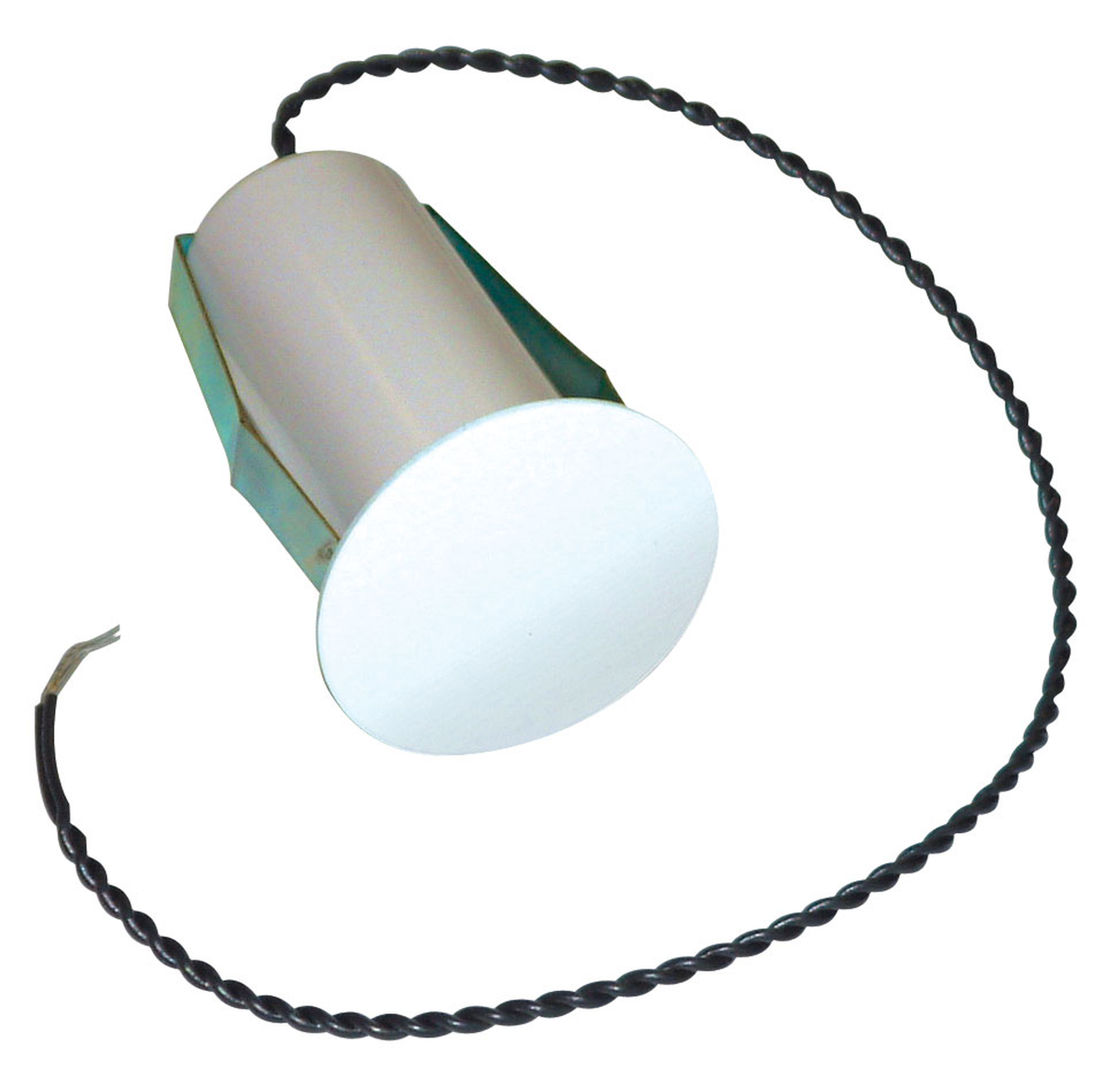

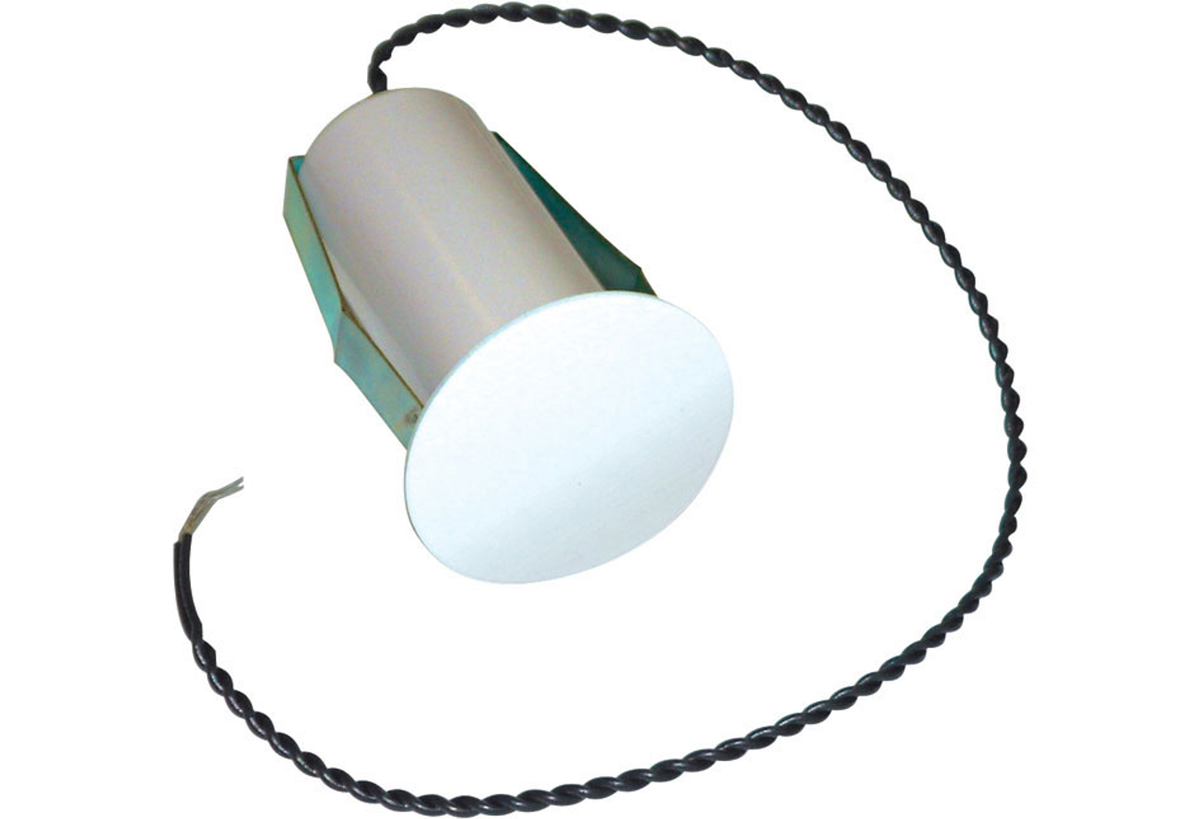

The CHV-RTS is a wall-mounted remote temperature sensor designed for use with select Crestron® thermostats. The 1-1/2 inch diameter face of the CHV-RTS protrudes just 1/8 inch from the wall surface and is easily painted or wallpapered to blend into the wall surface.
Overview
The CHV-RTS is a wall-mounted remote temperature sensor designed for use with select Crestron® thermostats. Using CAT5 or similar low-capacitance wire, the remote sensor can be mounted up to 500 ft (152 m) from the thermostat. One-piece mounting and a single nonpolarized twisted-pair connection make the CHV‑RTS simple to install. The 1‑1/2 in. diameter face protrudes just 1/8 in. from the wall surface and is easily painted or wallpapered to blend into the wall surface.
Use with the MMK‑RS (sold separately) to simplify the wiring and sensor positioning during the rough-in stage of construction. The MMK-RS has an option to completely flush mount the sensor and make it virtually hidden on a wall.
Features
Key Features
- Wall-mounted remote temperature sensor
- Designed for use with select Crestron® thermostats
- Can be mounted up to 500 ft (152 m) from the thermostat
- Optional MMK‑RS pre-construction mounting kit (sold separately) allows for simplified rough-in for wiring and positioning, as well as an option to completely flush mount the sensor
Specifications
| Measurement Range | |
| Indoor Temperature | 0° to 110°F (-18° to 43°C) |
| Outdoor Temperature |
-30º to 120ºF (-35º to 49ºC) |
| Temperature Tolerance | |
| Over Full Range | ±1ºF (±0.5ºC) |
| At Room Temperatures |
±1ºF (+0.1/-0.4ºC) |
| Connections | |
|
(1) 10 in. (254 mm) 2-wire twisted-pair pigtail, 22 AWG; |
|
| Construction | |
|
Material |
Cylindrical plastic; |
|
Mounting |
Drywall mountable in a 1 in. (26 mm) diameter round hole, protrudes ~1/8 in. (3 mm) from wall surface; |
| Dimensions | |
| Diameter | 1.50 in. (39 mm) |
| Depth | 1.22 in. (57 mm) |
