The CHV-THSTAT-PIR-10 thermostat enables precision control of two stage heat/cool systems, two stage heat pump systems with an auxiliary heat stage, 2-pipe and 4-pipe FCU systems, and humidity systems.
Overview
The CHV-THSTAT-PIR-10 thermostat enables precision control of two stage heat/cool systems, two stage heat pump systems with an auxiliary heat stage, 2‑pipe and 4‑pipe FCU systems, and humidity systems. Achieve variable heating, cooling, and fan speed control in hotels, apartments, or other multi-dwelling residences with 0-10V or relay control options. A built-in passive infrared (PIR) sensor detects room occupancy for energy efficiency. Whether used as a standalone unit or as part of a complete Crestron control system, the CHV-TSTAT-PIR-10 delivers complete functionality in a stylish wall mount design.
Simple Operation
The backlit LCD display with a simple user interface and intuitive push buttons make this thermostat easy to use and ideal for hospitality installs. The screen displays useful information such as the current setpoint, mode, fan setting, and (optionally) the current room temperature. The thermostat provides buttons for raising or lowering the temperature, changing the climate mode, adjusting the fan speed, and toggling between Fahrenheit and Celsius.
Complete Climate Control
Climate control features include separate heating and cooling setpoints, with an optional automatic changeover between heating and cooling modes. Adjustable anticipators and staging parameters ensure a comfortable space. Continuous fan operation can be selected when needed for increased circulation.
Occupancy Sensing
Built with versatility and energy efficiency in mind, the CHV‑THSTAT‑PIR‑10 features a built-in PIR sensor to ensure that energy spent on climate control is never wasted on a vacant room.
Automation System Integration
Multiple Crestron thermostats may be networked via Cresnet wired communications, a simple 4-wire network bus that acts as the communications backbone for Crestron lighting dimmers, keypads, shades, thermostats, and other devices. Integrate the thermostat network with a Crestron control system to enable global temperature and humidity adjustments from any thermostat in the system.
Features
Key Features
- Compatible with conventional heat/cool 2H/2C systems, heat pump 2H/2C systems with auxiliary heat, dual-fuel heat pump, 2‑Pipe FCU, 4‑Pipe FCU, and humidity control
- Supports 0-10V or relay control for heating, cooling, and fan speed
- Backlit LCD display
- Large, backlit push buttons for heating, cooling, fan speed, temperature scale, and temperature adjustments
- Built-in passive infrared (PIR) sensor to detect room occupancy for energy efficiency
- Designate up to four setpoints based on occupancy and hospitality room booking status
- External temperature/humidity sensor input enables the use of an extra, alternative, or auto-changeover sensor
- Control system integration via the Cresnet® network
- Utilizes built-in temperature and humidity sensors
- Wall-mount installation

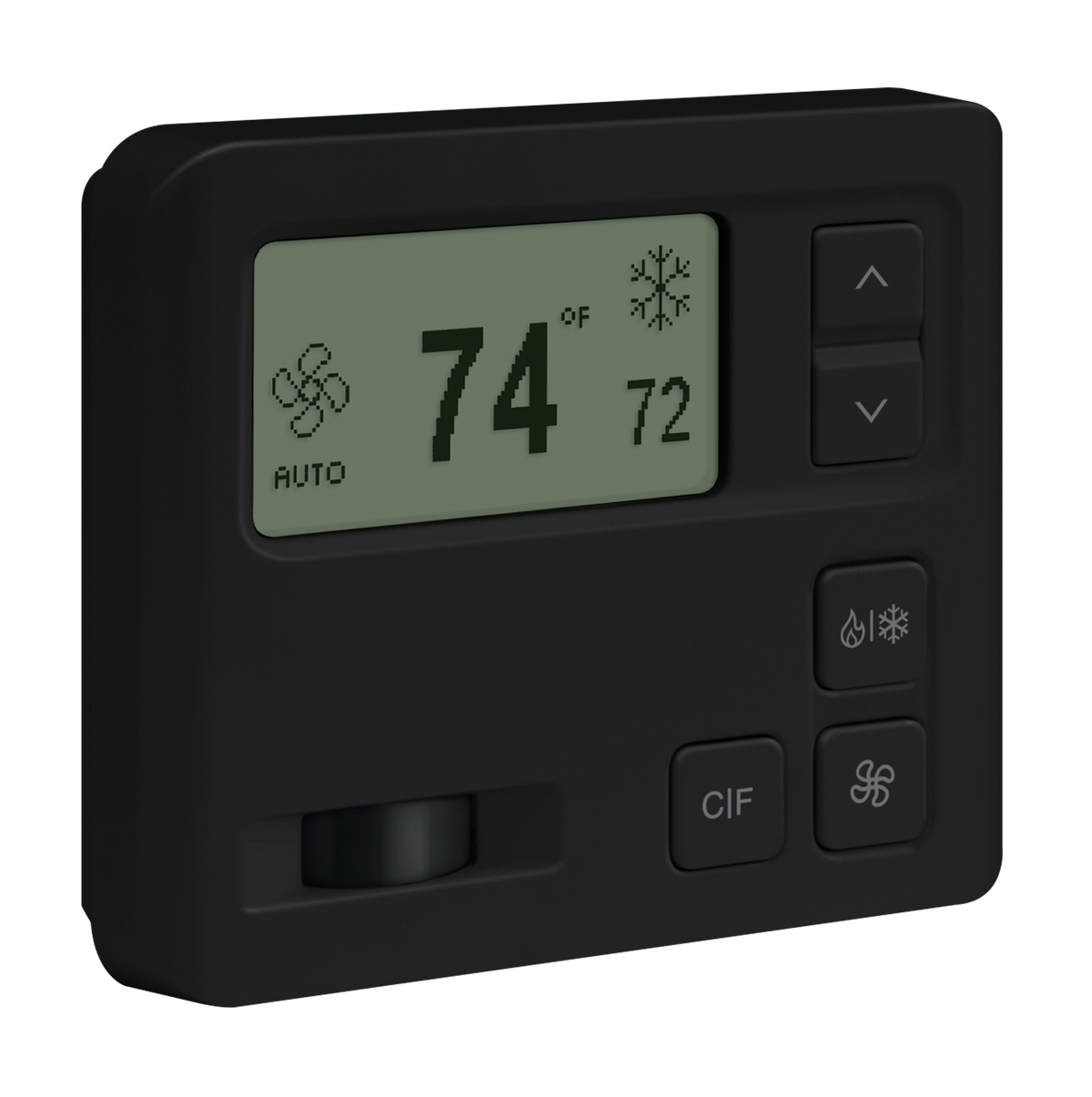

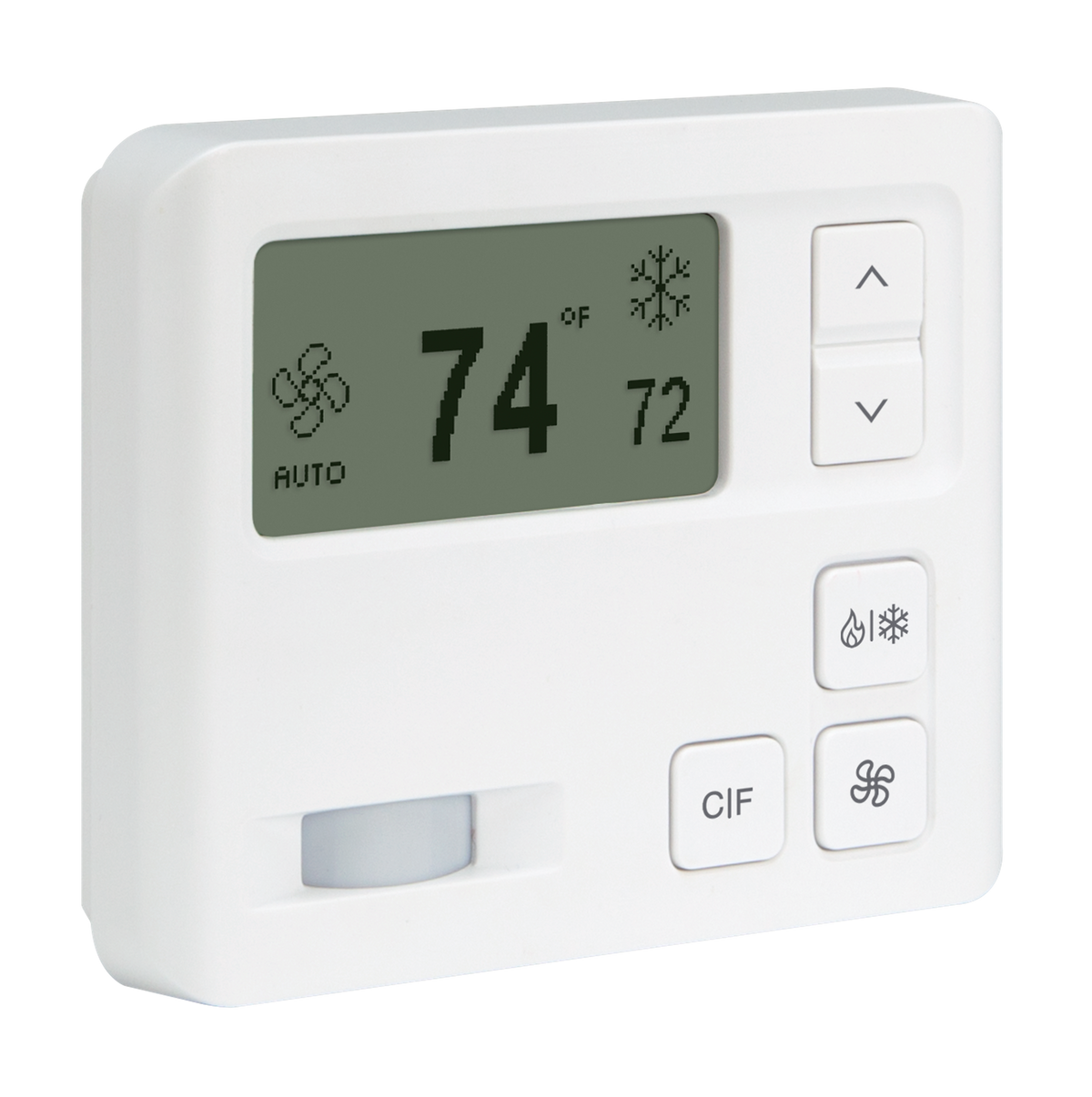

- Available in white and black finishes
Specifications
| Measurement Range | |
| 0º to 110ºF (-18-43ºC) | |
| Temperature and Humidity Tolerance | |
| Over Full Range | ±1ºF (±0.5ºC) |
| Humidity | ±5% |
| Setpoint Range | |
| Heat | 38° to 89°F (3° to 32°C) |
| Cool | 59° to 99°F (15° to 37°C) |
| Relay Rating | |
| 1A @ 40VDC or 24VAC (nominal) | |
| Power Requirements | |
| Cresnet® Network | 24VDC |
| HVAC Unit | 24VAC |
| Power Consumption | Approximately 1.5 W |
| Note: The device can be powered entirely via Cresnet 24VDC by placing a jumper between the Cresnet 24/G and HVAC 24R/24C connections and setting the POWER jumper to 24R. Powering the CHV‑THSTAT‑PIR‑10 from the HVAC system is recommended when possible. | |
| Communications | |
| Cresnet Wired | Control system integration or networking; Unit is a fully functional standalone thermostat and does not require a connection to the Cresnet network |
| Buttons | |
| Mode | Switches between Off, Heat, Cool, and Auto modes |
| FAN | Controls fan speed; Cycles through Auto, High, Medium, and Low settings |
| UP | Raises the room's setpoint by 1.0ºF, 1.0ºC, or 0.5ºC, depending on the active temperature scale and device settings |
| Down | Lowers the room’s setpoint by 1.0ºF, 1.0ºC, or 0.5ºC, depending on the active temperature scale and device settings |
| C|F | Switches between Fahrenheit and Celsius temperature scales |
| Motion Sensor | |
| On-board passive infrared sensor; Enables thermostat to switch between four previously defined setpoints based on occupancy and hospitality room booking status; When motion is detected, the Occupied setpoint is used; When the room is vacant, the Unoccupied setpoint is used |
|
| Sensor Range | 15 ft (4.6 m) |
| Sensor Angle | 144 degrees horizontal; 30 degrees vertical |
| Display | |
| Displays current room temperature, current setpoint, current Heat or Cool mode, thermostat’s call for heating or cooling, and current fan setting | |
| Type | Transflective LCD, backlit |
| Size | 2.75 in. (70 mm) |
| Resolution | 128 x 64 |
| Viewing Angle | ±50° horizontal at 0° vertical; ±50° vertical at 0° horizontal |
| Connections | |
| 24C | (3) Common for 24VAC/VDC device power connection |
| 24R | (1) 24VAC/VDC Device Power Connection |
| R | (1) Reference voltage for heat, cool, compressor and fan relay calls. |
| GH | Non-FCU: (1) Fan call FCU: (1) Fan call (high) |
| GM* | Non-FCU: (1) W2 or O call; FCU: (1) Fan call (medium) |
| GL* | Non-FCU: (1) Y2 (compressor stage 2) call; FCU: (1) Fan call (low) |
| Y | Non-FCU: (1) Cool or compressor stage 1 call; FCU (4-Pipe): (1) Cool valve call; FCU (2-Pipe C): (1) Cool valve call |
| W | Non-FCU: (1) Heat call; FCU (4-Pipe): (1) Heat valve call; FCU (2-Pipe H/C): (1) Valve call; FCU (2-Pipe H): (1) Heat valve call |
| HUM | (1) Humidistat call |
| RHU | (1) Reference, humidistat call |
| TS+ and TS- | (2) Remote sensor inputs, comprised of TS1+ and TS1- terminals; For remote temperature sensors (CHV‑RTS, CHVI‑RTS‑1G‑N‑W, and CHVI‑RTS‑1G‑SM‑W), remote slab sensor (CHV‑RSS), remote temperature and humidity sensors (CHV‑RTHS), and 10k thermistors (all sensors and thermistors are sold separately); Using CAT5 or similar low-capacitance wire, connect up to (2) Crestron temperature sensors, (1) Crestron temperature/humidity sensor, or (1) 10k thermistor; Can also be designated as an autochangeover sensor for an FCU 2-pipe heat/cool system |
Notes:
|
|
| GM | (1) 0-10V fan control |
| WM | FCU (4-Pipe): (1) Heat valve call FCU (2-Pipe H/C): (1) Valve call FCU (2-Pipe H): (1) Heat valve call |
| YM | FCU (4-Pipe): (1) Cool valve call FCU (2-Pipe C): (1) Cool valve call |
| Cresnet Network (G, Z, Y, 24) |
(1) 4-position terminal block; Cresnet device port, connects to Cresnet control network |
| Environmental | |
| Humidity | 10% to 95% RH (noncondensing) |
| Temperature | 32° to 122°F (0° to 50°C) |
| Construction | |
| White or black plastic, surface-mountable to the front of a horizontally-oriented 1-gang electrical box | |
| Dimensions | |
| Height | 4.00 in. (102 mm) |
| Width | 5.00 in. (127 mm) |
| Depth | 1.10 in. (28 mm) |
| Weight | |
| 5.80 oz (165 g) | |
| Compliance | |
|
Regulatory Model: M202349001 ETL Listed for the United States and Canada to UL/IEC 60730-2-9 safety standards. CE compliant for applicable European market requirements. |
|
