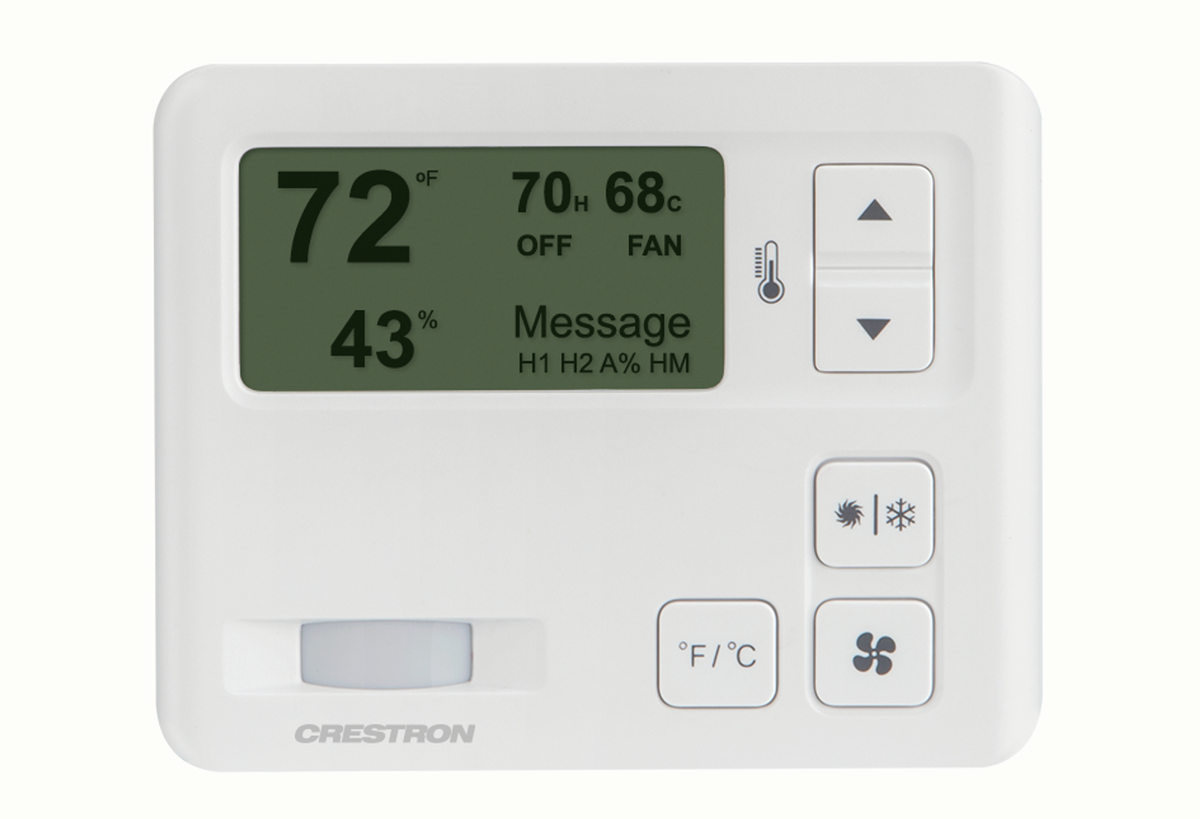

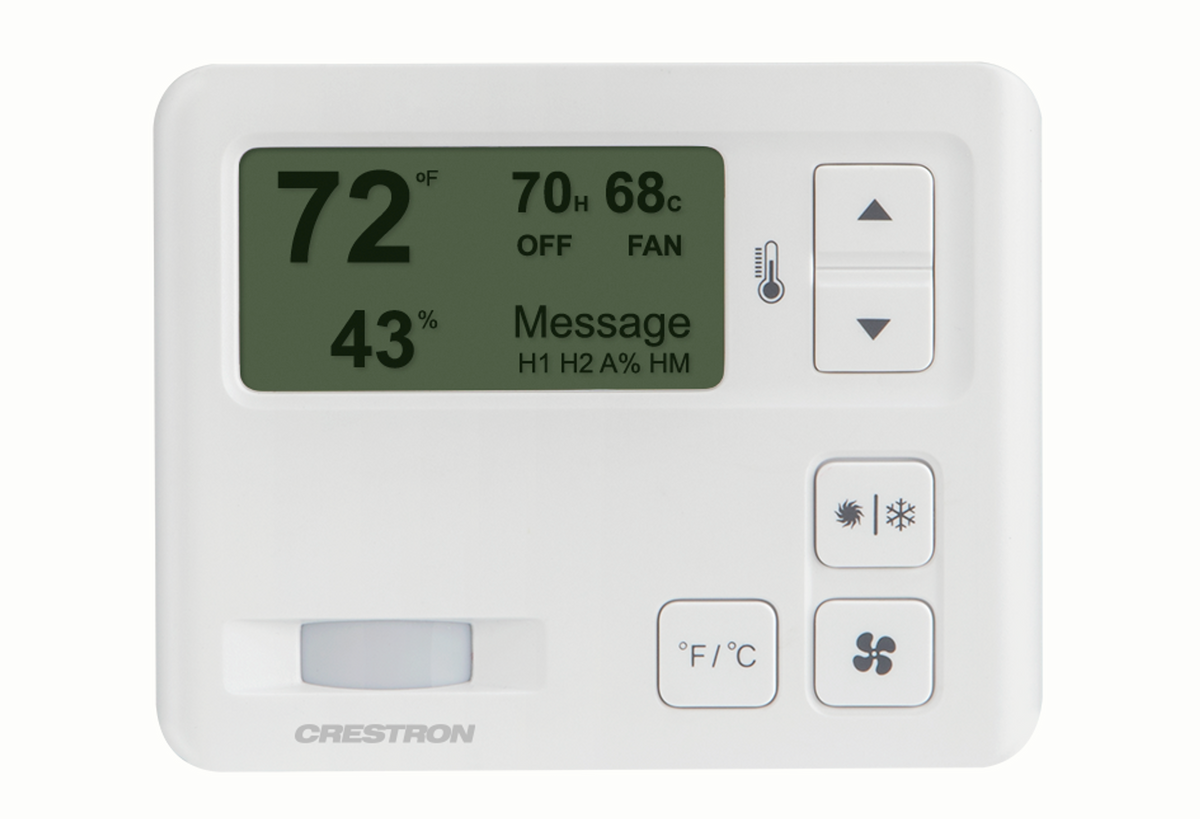

0-10V Heating/Cooling Fan-Coil Thermostat, White Textured
Overview
The CHV-TSTAT-FCU-PIR-10 thermostat enables precision 0-10V control of fan coil unit (FCU) HVAC systems. Achieve variable heating, cooling, and fan speed control in hotels, apartments, or other multi-dwelling residences. Built with versatility and energy efficiency in mind, this thermostat has the additional benefit of a built-in passive-infrared (PIR) sensor to ensure that energy spent on climate control is never wasted on a vacant room. Whether used as a standalone unit or as part of a complete Crestron® control system, the CHV-TSTAT-FCU-PIR-10 delivers superior functionality in a stylish wall mount design – a complement to any décor.
The backlit LCD display and large, easy-to-read pushbuttons make this thermostat easy to navigate and use. The screen displays useful information such as the current room temperature, setpoint, mode, and fan setting. Pushbuttons for raising and lowering the temperature, putting the unit in Heat or Cool mode, adjusting the fan speed, and toggling between temperature scales complete the sleek look and intuitive controls of this thermostat. Climate control features include separate heating and cooling setpoints, with an optional automatic changeover between heating and cooling modes. Adjustable anticipators prevent overshooting the set temperature, and continuous fan operation can be selected when needed for increased circulation.
Multiple Crestron thermostats may be networked via Cresnet® wired communications, a simple 4-wire network bus that acts as the communications backbone for Crestron lighting dimmers, keypads, shades, thermostats, and other devices. Integrate the thermostat network with any 3-Series® control system or newer, including the DIN-AP4, to enable global temperature and humidity adjustments from any thermostat in the system.
Features
Key Features
- 0-10V FCU thermostat for variable heating, cooling, and fan speed control
- Additional heating relay for traditional heating elements
- Built-in PIR sensor to detect room vacancy for energy efficiency
- Cresnet® wired communications
- Backlit LCD display
- Large, easy-to-use front panel buttons for heating, cooling, fan speed, temperature scale, and temperature adjustments
- Wall-mount installation
Specifications
| Measurement Range | |
| 0º to 110º F (-18º to 43º C) | |
| Temperature Tolerance | |
| Over Full Range | ±1º F (±0.5º C) |
| At Room Temperatures | ±1º F (+0.1/-0.4º C) |
| Setpoint Range | |
| Heat | 38° to 89° F (3° to 32° C) |
| Cool | 59° to 99° F (15° to 37° C) |
| Relay Rating | |
| 1A @ 40VDC or 24VAC (nominal) | |
| Power Requirements | |
| Cresnet | 24VDC |
| HVAC Unit | 24VAC |
| Power Consumption | Approximately 1.5 W |
| Communications | |
| Cresnet® Wired | Control system integration or networking; Unit is a fully functional standalone thermostat and does not require a connection to the Cresnet network |
| Fan Coil Unit Control | |
| Fan Control | Variable speed control via 0-10V signal; 20 mA max sink or source; Fan speed is not full modulating. It provides four adjustable discrete voltage levels for Off, Low, Medium, and High. |
| Cooling (Modulating Valve) | Variable valve control via 0-10V signal; 20 mA max sink or source |
| Heating (Modulating Valve) | Variable valve control via 0-10V signal; 20 mA max sink or source; Heat is not full modulating. It provides 0V signal for Off and 10V signal for On. |
| Heating (Relay) | Contact closure to HVAC |
| Buttons | |
| HOT/COLD | Toggles between Heat and Cool modes |
| FAN | Controls fan speed; Cycles through Auto, High, Medium, Low, and Off settings |
| UP | Raises the room’s setpoint by 1ºF or 0.5ºC, depending on the active temperature scale |
| DOWN | Lowers the room’s setpoint by 1ºF or 0.5ºC, depending on the active temperature scale |
| °F/°C | Toggles between Fahrenheit and Celsius temperature scales |
| Motion Sensor | |
| On-board passive infrared sensor; Enables thermostat to toggle between two previously defined setpoints; When motion is detected, the Occupied setpoint is used; When the room is vacant, the Unoccupied setpoint is used |
|
| Display | |
| Displays current room temperature, current setpoint, current Heat or Cool mode, thermostat’s call for heating or cooling, and current fan setting | |
| Type | Transflective LCD, backlit |
| Size | 2.75 in. (70 mm) |
| Resolution | 128 x 64 |
| Viewing Angle | ±50° horizontal at 0° vertical; ±50° vertical at 0° horizontal |
| Connections | |
| HVAC | (3) 6-position terminal blocks with connections that include the following: Power Connections (Required): 24 (C): 24VAC common terminal supplies remote 24VAC power to thermostat; 24 (R): 24VAC reference terminal – Can be connected to R by P4 jumper setting, or tied directly to power source HVAC Control Connections (System Dependent): FAN 0-10V FAN COMMON HEAT 0-10V HEAT COMMON COOL 0-10V COOL COMMON HEAT RELAY A HEAT RELAY B |
| Network | (1) 4-position terminal block; Cresnet device port, connects to Cresnet control network |
| Environmental | |
| Humidity | 10% to 95% RH (noncondensing) |
| Construction | |
| Plastic, surface-mountable to the front of a horizontally-oriented 1-gang electrical box | |
| Dimensions | |
| Height | 3.75 in. (96 mm) |
| Width | 5.00 in. (127 mm) |
| Depth | 1.18 in. (30 mm) |
| Weight | |
| 5.80 oz (165 g) | |
| Compliance | |
|
Regulatory Model: M202349001 ETL Listed for the United States and Canada to UL/IEC 60730-2-9 safety standards. CE compliant for applicable European market requirements. |
|
