Product Information

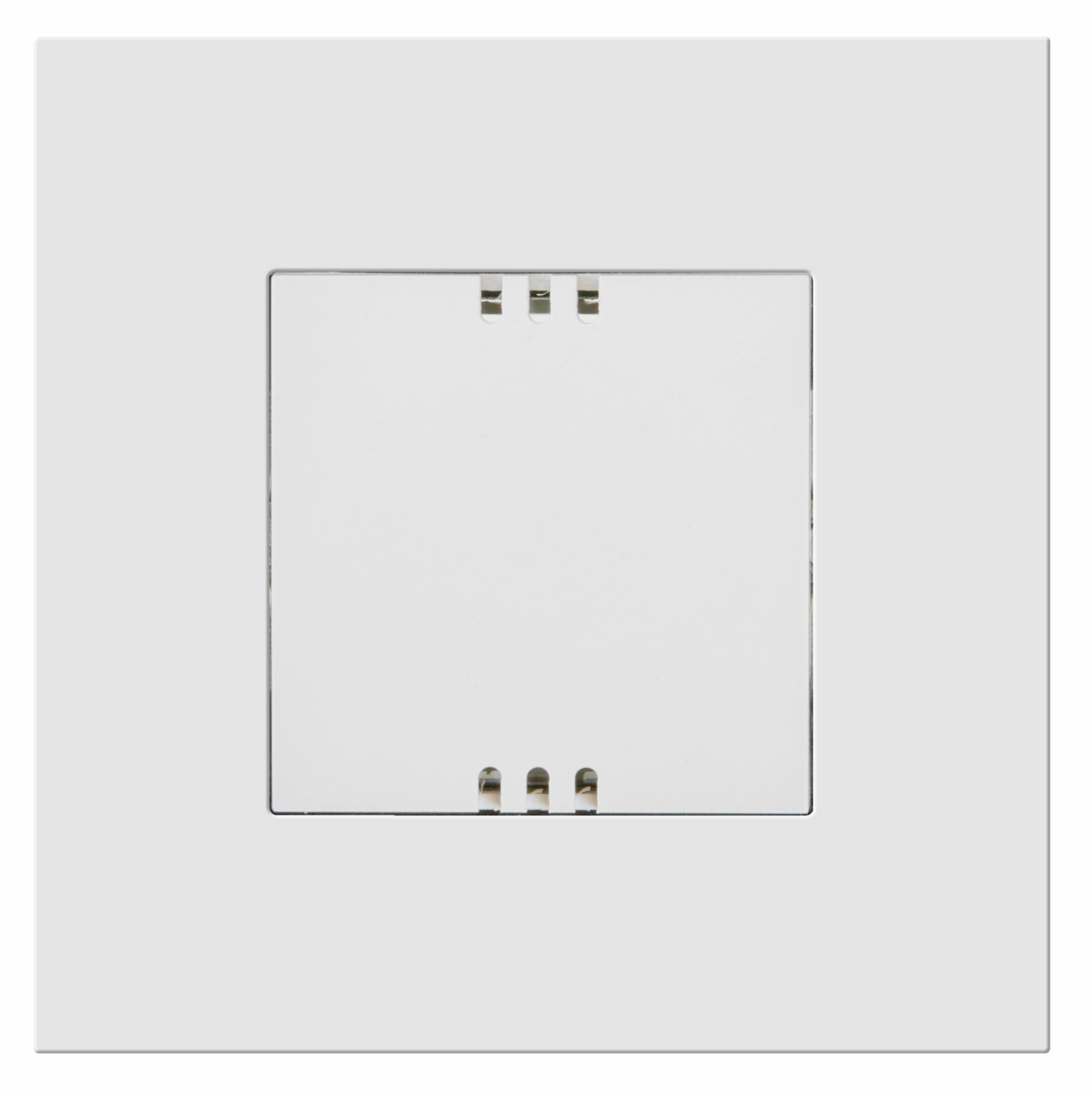

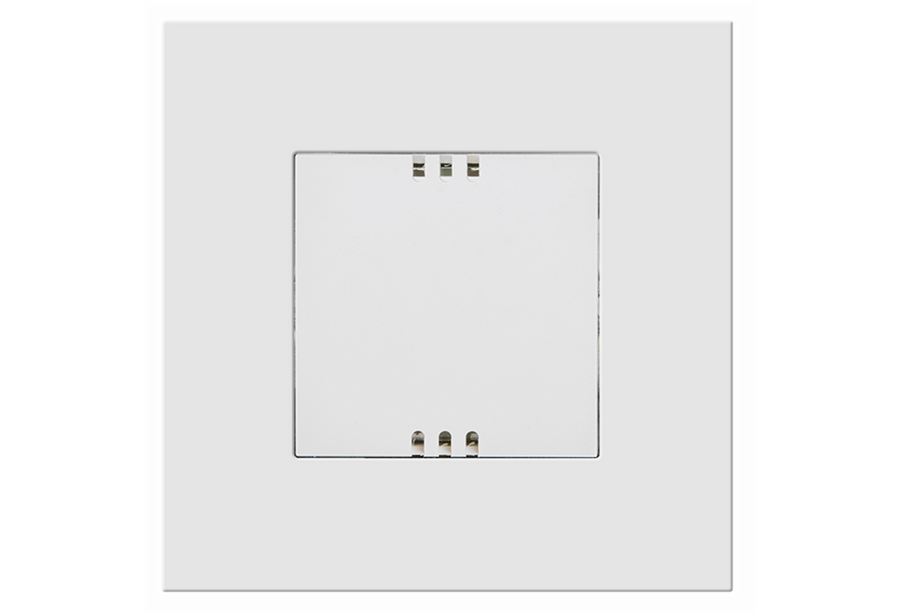

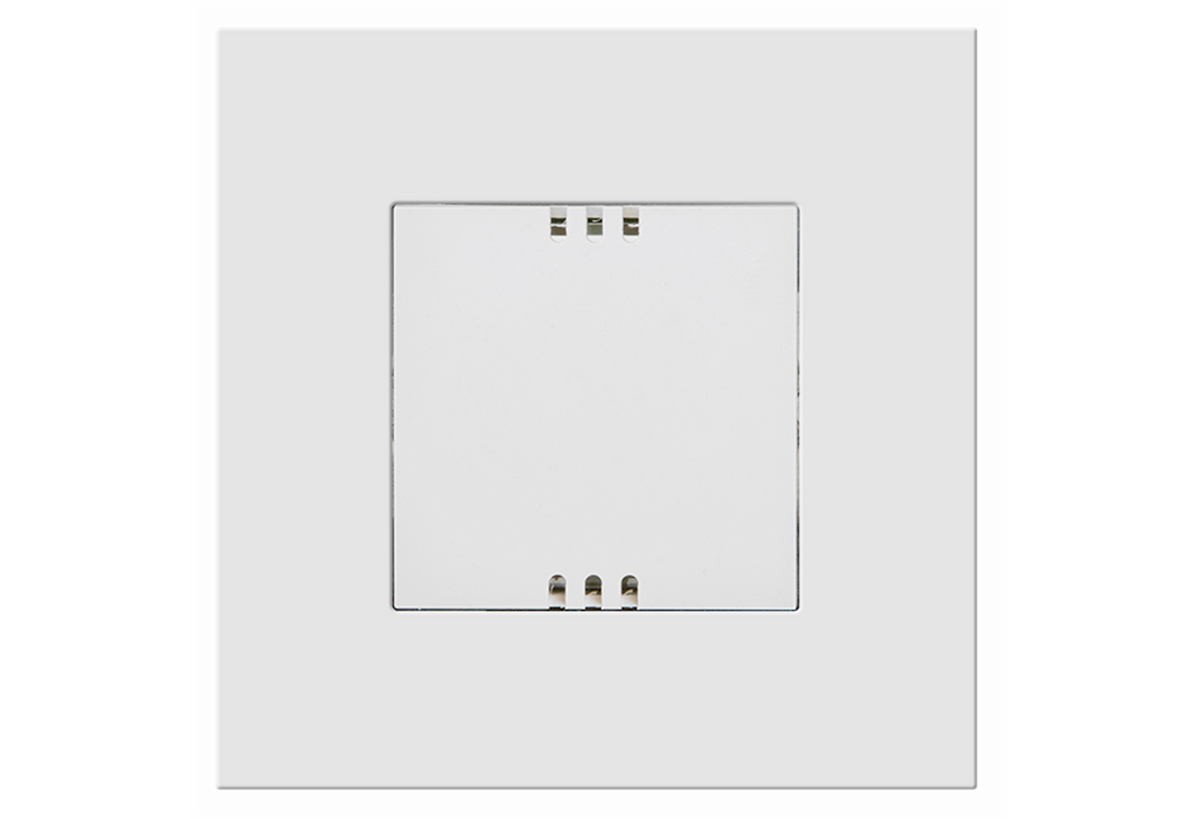

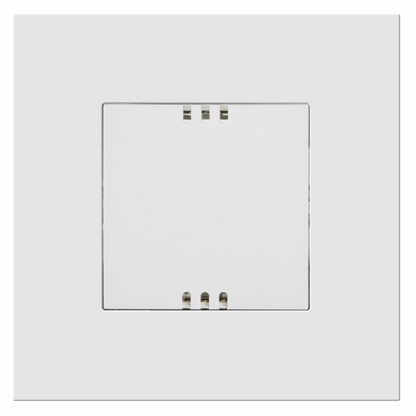

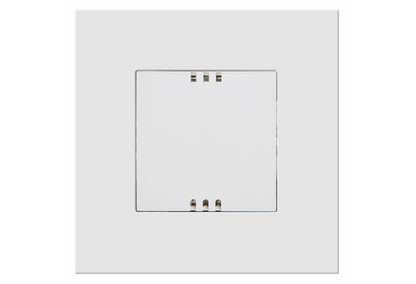

Wall Mount Remote Temperature Sensor, White
Overview

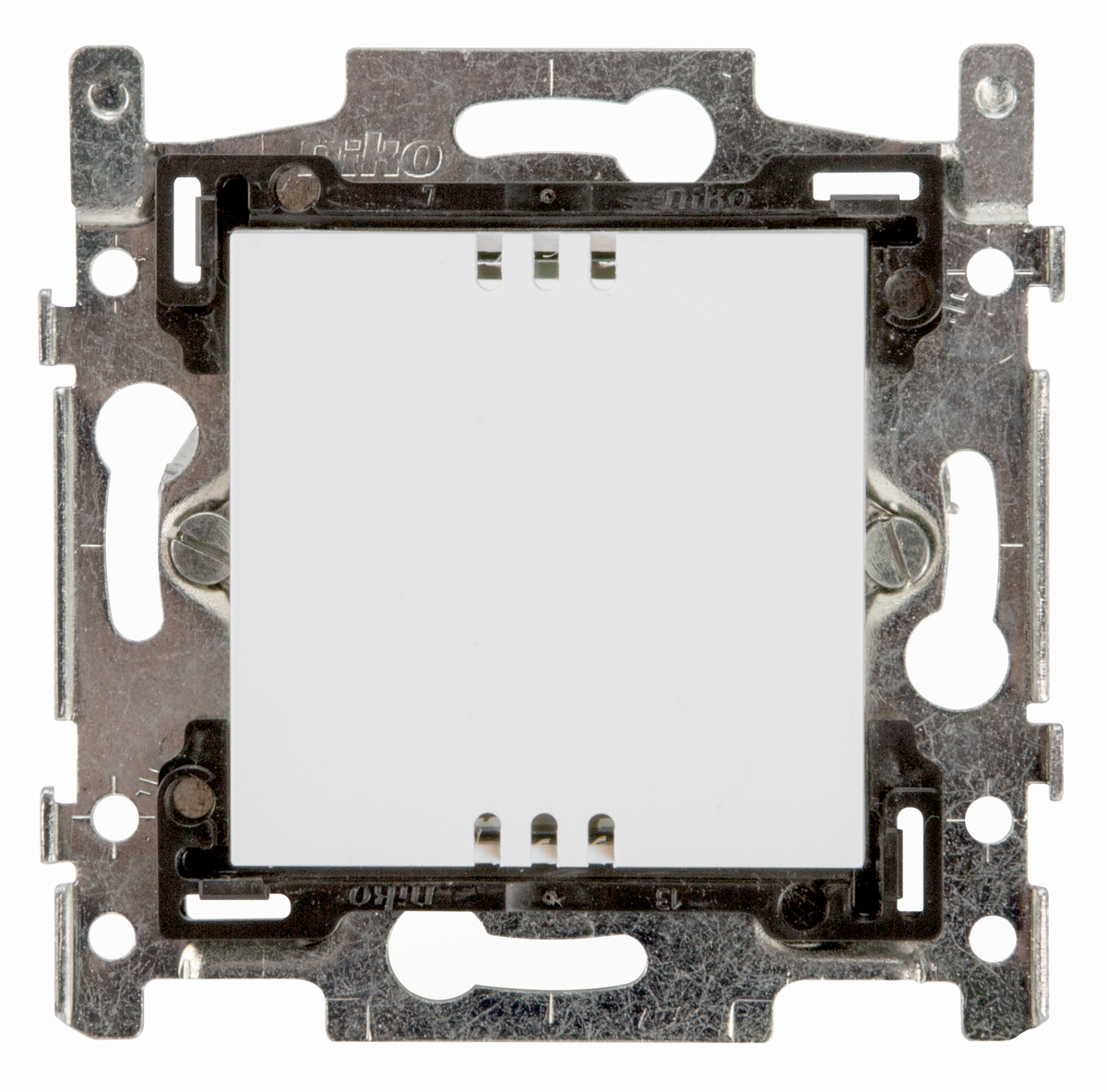

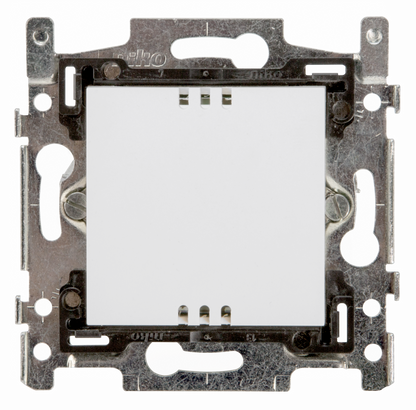

The CHVI-RTS-1G-N-W is a wall-mounted remote temperature sensor designed for use with Crestron® thermostats. It mounts in a 1-gang UK or European style electrical box, and connects to the thermostat via a single non-polarized twisted pair wire. The wire length may be up to 152 m (500 ft) using CAT5e or similar low-capacitance wire. A complete installation requires an FP-INTENSE or FP-PURE series faceplate (sold separately).
The CHVI-RTS-1G-N-W is compatible with HZ-THSTAT, CHV-TSTAT, CHV-THSTAT, CHV-TSTAT-FCU, CHV-TSTATEX, and CHV-TSTATEX-FCU series thermostats, and C2N-LCDB3 keypads.
Features
Key Features
- Remote temperature sensor for use with most Crestron® thermostats
- Compatible with the C2N-LCDB3 keypad
- 1-gang UK or European electrical box installation
- Single twisted-pair wire connection
- Supports wire runs up to 152 m (500 ft) using CAT5e
- FP INTENSE or FP PURE series faceplates sold separately
- Durable metal and plastic construction
- Attractive white finish
Specifications
| Temperature Sensing | ||
| Measurement Range | -18° to 43° C (0° to 110° F) | |
| Temperature Tolerance | ±0.5° C (±1° F) over full range; +0.1°/-0.4° C (±1° F) at room temperature |
|
| For indoor use only | ||
| Connections | ||
| (1) 2-pin 3.5 mm detachable terminal block; Sensor output, non-polarized; Connects to HZ-THSTAT, CHV-TSTAT, CHV-THSTAT, CHV-TSTAT-FCU, CHV-TSTATEX and CHV-TSTATEX-FCU series thermostats or C2N-LCDB3 keypads. Maximum Cable Length: 152 m (500 ft) using CAT5e or equivalent low-capacitance twisted pair wire (<7 nF total); 30 m (100 ft) using thermostat wire (not recommended) |
||
| Construction | ||
| Housing | Metal with plastic front, white finish | |
| Mounting | Mounts in a 1-Gang UK (BS 4662) electrical box or 1-Gang European (DIN 49073) electrical box | |
| Faceplate | Requires a Crestron FP-INTENSE or FP-PURE series faceplate (sold separately) | |
| Dimensions | ||
| Height | 71 mm (2.80 in) | |
| Width | 73 mm (2.88 in) | |
| Depth | 43 mm (1.70 in) | |
| Weight | ||
| 57 g (2 oz) | ||
| Compliance | ||
| CE | ||
