Settable 3-speed fan control and a full range of incandescent and electronic low-voltage dimming control for ceiling fans with attached lighting. Built with the ultra-reliable infiNET EX® wireless communications technology. Visit the Crestron® Lighting Fixture Compatibility page to find out which Crestron lighting devices have been tested and are compatible with third party lighting fixtures.
Overview

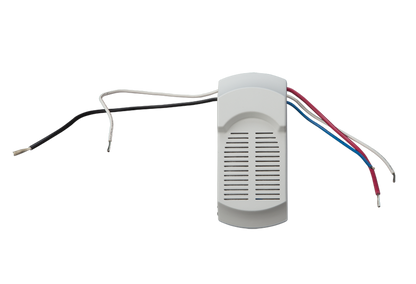

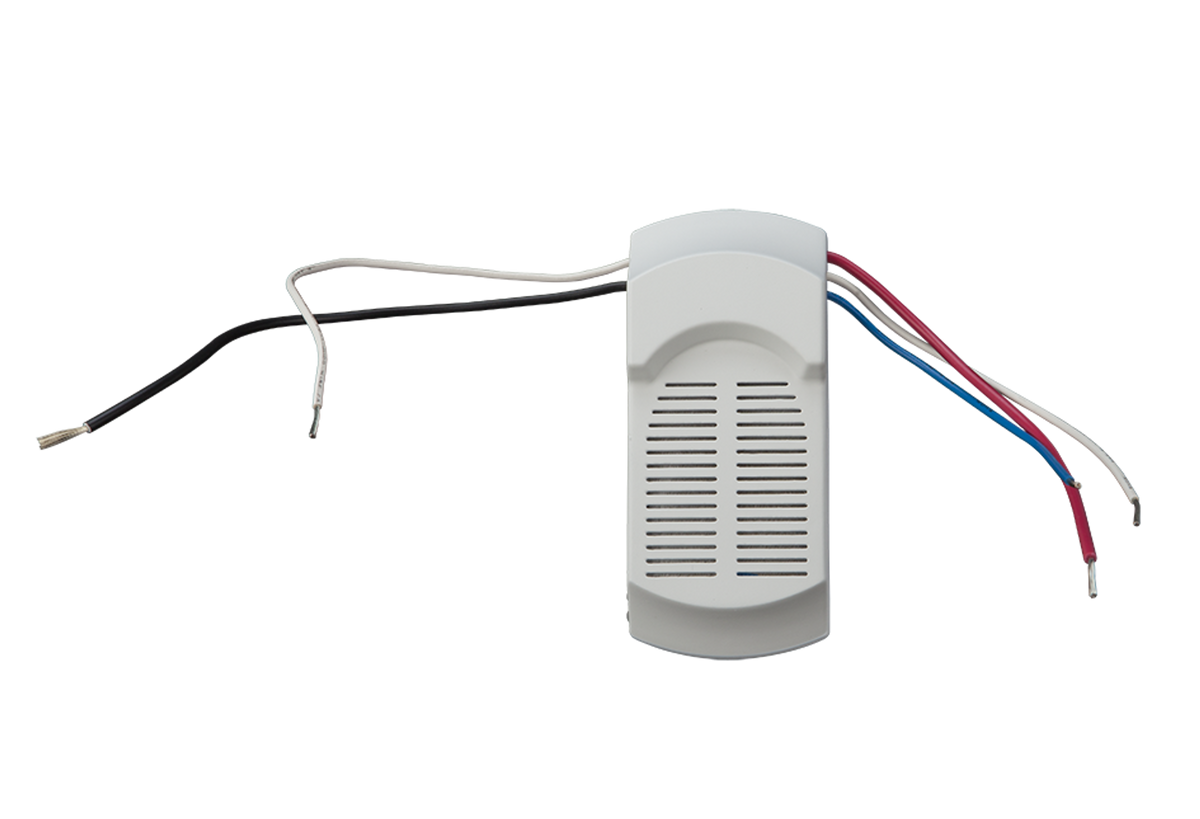

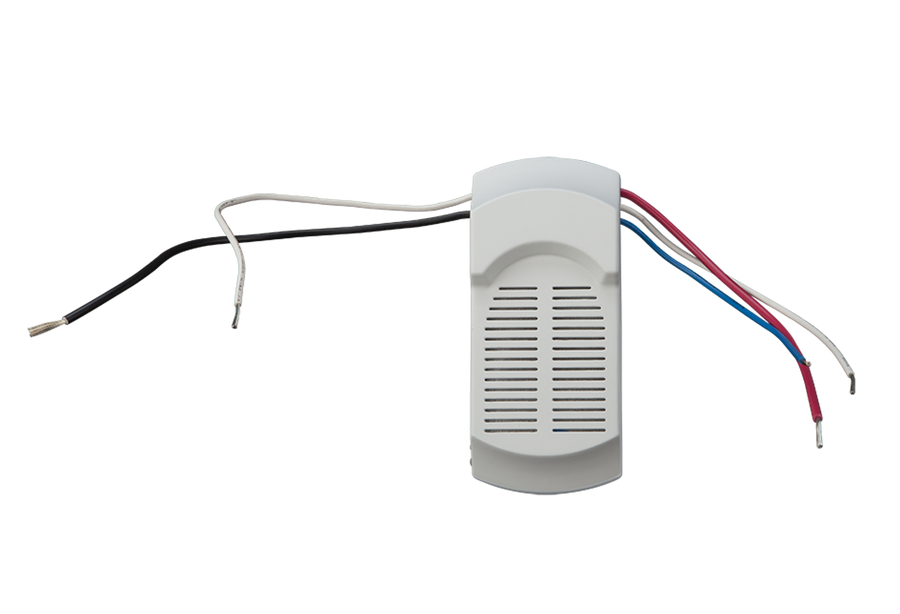

Wirelessly control ceiling fans and lighting loads by adding the CLC-FANDELVEX to any Crestron® control system. The CLC-FANDELVEX provides fan speed control and a full range of incandescent and electronic low-voltage dimming for the light attached to the fixture. Through programming, the device has three custom-selectable fan speed settings as well as power off. Discreetly mounted within the fan canopy, the CLC-FANDELVEX can be installed into new or retrofit applications without necessitating any rewiring. Built with the ultra-reliable infiNET EX® wireless communications technology, the CLC-FANDELVEX seamlessly integrates with any Crestron control system for a complete, elegant whole-home automation solution.
infiNET EX
Ultra-reliable infiNET EX wireless technology provides steadfast two-way RF communications throughout a residential or commercial structure without the need for physical control wiring. Employing a 2.4 GHz mesh network topology, each infiNET EX device functions as an expander, passing command signals through to every other infiNET EX device within range (approximately 150 feet or 46 meters indoors), ensuring that every command reaches its intended destination without disruption.[1]
The CLC-FANDELVEX communicates with a Crestron control system via an infiNET EX Wireless Gateway (model CEN-GWEXER, DIN-AP3MEX, or MC3[2]). Up to 100 infiNET EX devices may coexist on a single wireless network, and every device that is added to the network effectively increases the range and stability of the entire network by providing multiple redundant signal paths.[1] Built-in Dynamic Frequency Allocation continuously monitors RF conditions, automatically selecting the clearest channel to prevent interference from neighboring networks, cordless phones, and microwaves.
Short Circuit Protection
Built-in short circuit protection prevents failure caused by excessive loading or improper wiring.
Features
Key Features
- Lighting load and motor controller for ceiling fans with attached lighting
- Full-range dimming control for incandescent or electronic low-voltage lighting
- Three fan speed settings and off
- Provides reverse-phase dimming
- No rewiring required for retrofit applications
- Built-in infiNET EX® wireless communications
- Fan canopy installation
Specifications
| Load Ratings | ||
| Load Types | Incandescent, electronic low-voltage, motor | |
| Lighting Load | 120 VAC, 200 Watts, 60 Hz (100 Watts max for CFL or LED Loads) | |
| Fan Load | 120 VAC, 0.8 Amps, 60 Hz | |
| Minimum Load | 10 Watts | |
| Power Requirements | ||
| 110 Volts AC, 60 Hz, line power | ||
| Controls & Indicators | ||
| LIGHT | (1) Green LED, indicates lighting load is powered on | |
| FAN | (1) Green LED, indicates fan motor load is powered on | |
| STATUS | (1) Green and Red LED, indicates device’s status; Green illumination indicates power is supplied to the device; Red illumination indicates an error |
|
| ACQUIRE | (1) Pushbutton, for entering Acquire mode | |

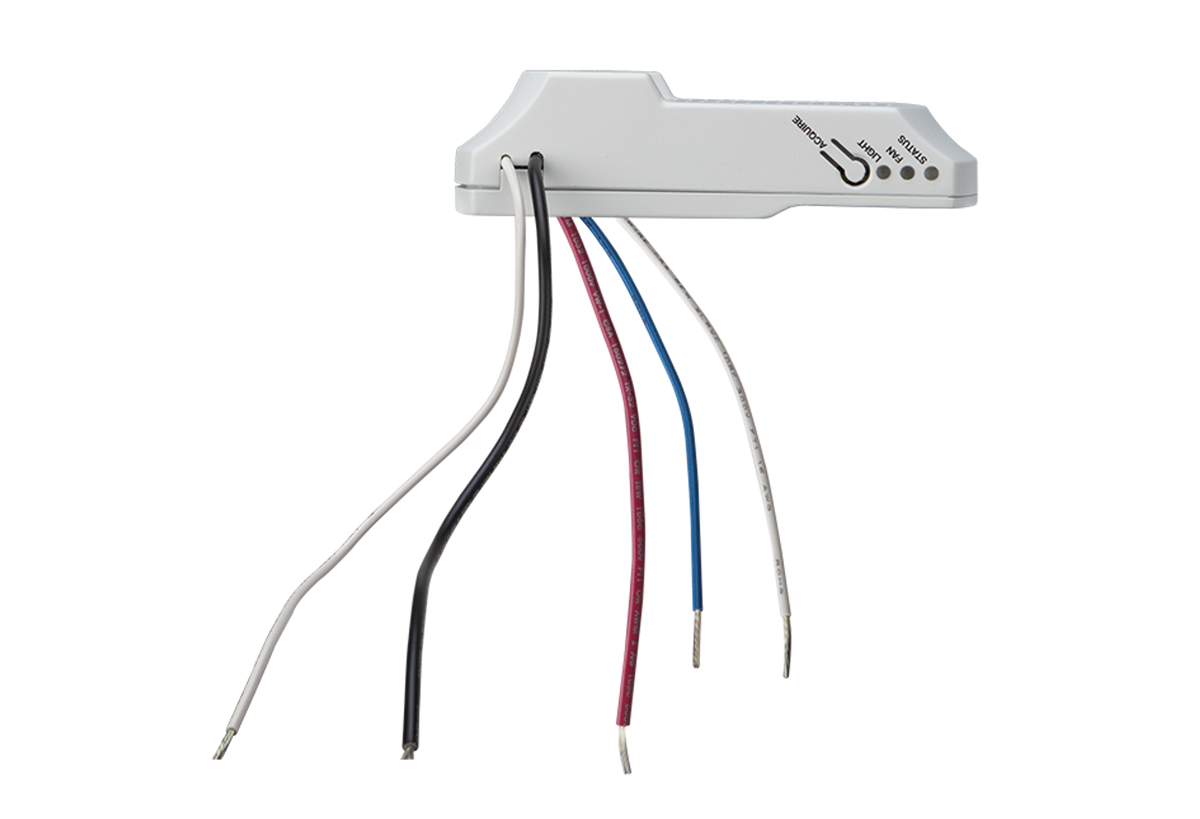

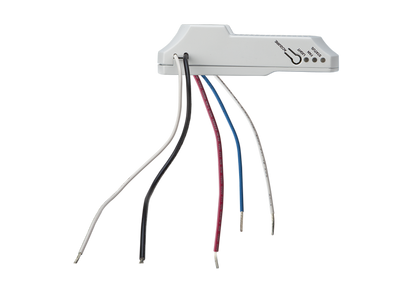

| Connections | ||
| Hot | (1) 14 AWG flying lead, black | |
| Neutral Input | (1) 14 AWG flying lead, white | |
| Lighting Load | (1) 14 AWG flying lead, blue | |
| Fan Motor Load | (1) 14 AWG flying lead, red | |
| Neutral Output | (1) 14 AWG flying lead, white | |
| Wireless Communications | ||
| RF Transceiver | infiNET EX® 2-way RF, 2.4 GHz ISM Channels 11-26 (2400 to 2483.5 MHz), default channel 15; IEEE 802.15.4 compliant | |
| Range (Typical) | 150 ft (46 m) indoor, 250 ft (76 m) outdoor to nearest mesh network device(s); Subject to site-specific conditions and individual device capabilities[1] |
|
| Gateway | Requires an infiNET EX gateway[2] | |
| Environmental | ||
| Temperature | 32° to 104° F (0° to 40° C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Enclosure | ||
| Housing | Plastic | |
| Mounting | Mounts in fan canopy | |
| Dimensions | ||
| Height | 4-3/4 in (121 mm) | |
| Width | 2-1/8 in (54 mm) | |
| Depth | 1-1/4 in (32 mm) | |
| Weight | ||
| 0.5 oz (14 g) | ||
| Compliance | ||
| UL® Listed for the United States and Canada to UL 1917 and CSA C22.2 No. 156. | ||
