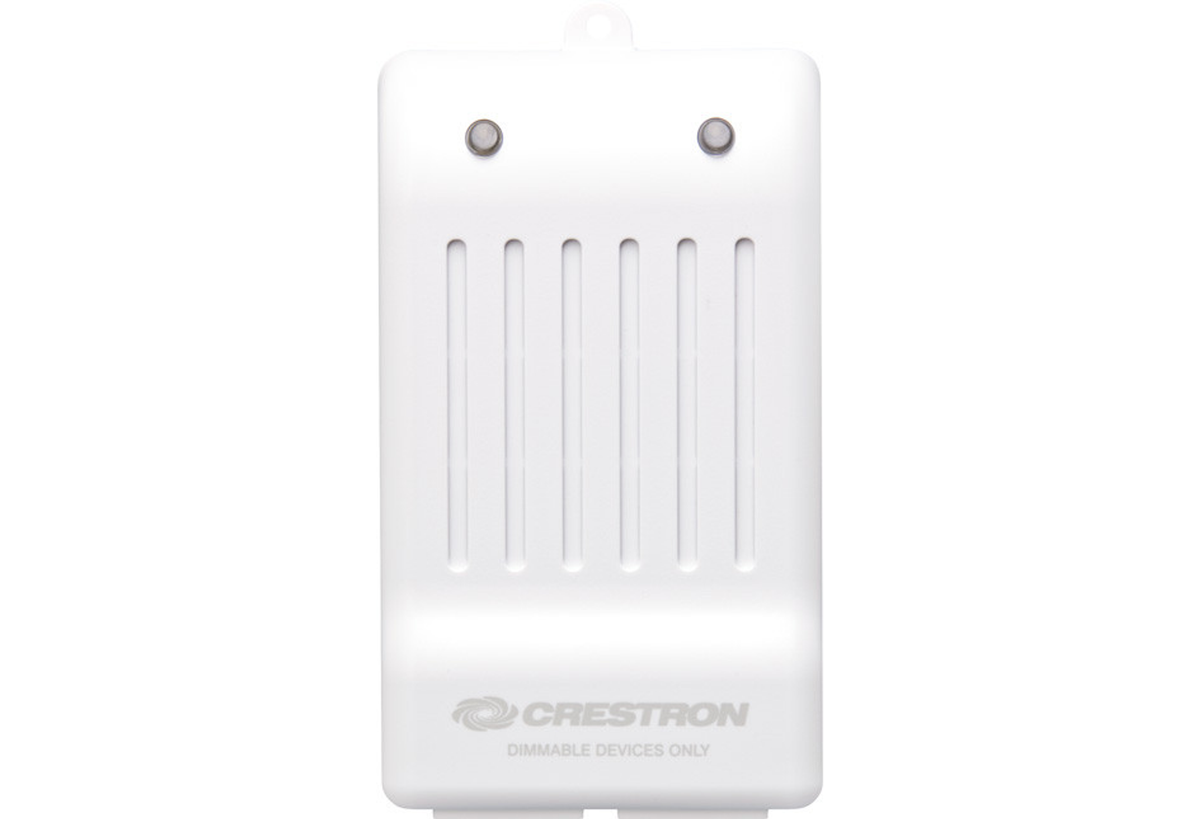

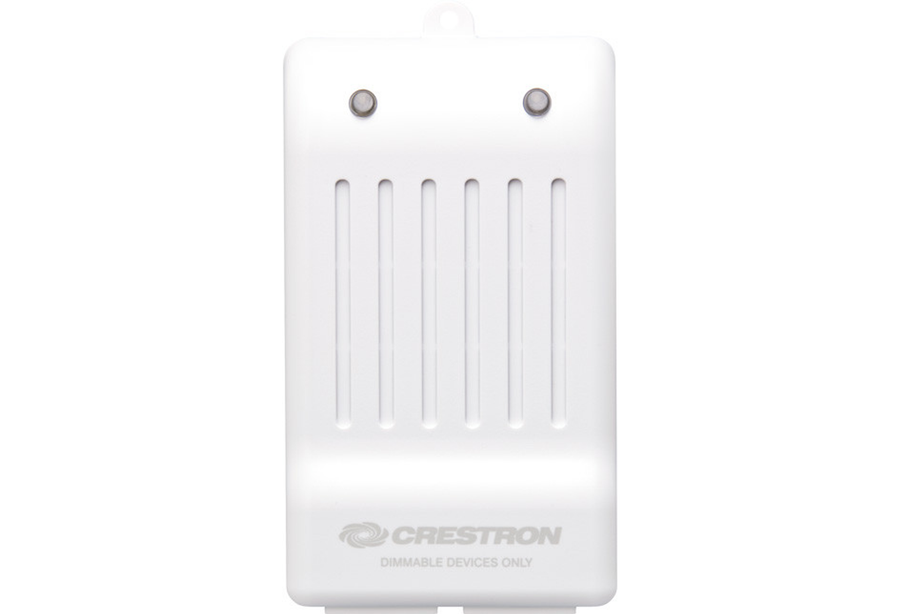

Transform any standard lamp into a fully controllable Crestron® device with the CLW-LDIMEX.
Overview
The CLW-LDIMEX is a plug in dimmer designed to operate as part of a complete Crestron® automation system communicating via the infiNET EX® wireless control network. Without the need for additional control wiring, the CLW-LDIMEX easily acts in place of standard in-wall dimmer or light switch for conventional floor and table lamps.
infiNET EX
Ultra-reliable infiNET EX wireless technology provides steadfast two-way RF communications throughout a residential or commercial structure without the need for physical control wiring. Employing a 2.4 GHz mesh network topology, each infiNET EX device functions as an expander, passing command signals through to every other infiNET EX device within range (approximately 150 feet or 46 meters indoors), ensuring that every command reaches its intended destination without disruption[1].
The CLW-LDIMEX communicates with a Crestron control system via an infiNET EX Wireless Gateway (model CEN-RFGW-EX, DIN-AP3MEX, or MC3[2]). Up to 100 infiNET EX devices may coexist on a single wireless network, and every non-battery-powered device that is added to the network effectively increases the range and stability of the entire network by providing multiple redundant signal paths[1]. Built-in Dynamic Frequency Allocation continuously monitors RF conditions, automatically selecting the clearest channel to prevent interference from neighboring networks, cordless phones, and microwaves.
Easy Installation
System design, installation, and upgrades using infiNET EX controlled dimmers could not be easier. Since there's no control wire required, the CLW-LDIMEX can be installed at any outlet and operate like any conventional dimmer.
Features
Key Features
- Convenient wireless lamp controller
- Control system integration via infiNET EX® wireless network
- Plugs into any standard grounded outlet
- 600 Watt load rating
- Single- and dual-channel models available
- Models available for ground pin down and ground pin up outlet configurations
- CEC Title 24 2013 Compliant
Specifications
| Load Ratings | ||
| Incandescent/Tungsten Halogen | 600 Watts total[3] | |
| Magnetic Low Voltage | 600 VA / 450 Watts total[3] | |
| Wireless | ||
| RF Transceiver | infiNET EX® 2-way RF, 2.4 GHz ISM Channels 11-26 (2400 to 2483.5 MHz), default channel 15; IEEE 802.15.4 compliant | |
| Range (typical) | 150 ft (46 m) indoor, 250 ft (76 m) outdoor to nearest mesh network device(s); subject to site-specific conditions and individual device capabilities[1] | |
| Gateway | Requires an infiNET EX gateway[2] | |
| Controls and Indicators | ||
| Power/Setup | (1) Pushbutton per channel with green LED, for load on/off, dim up/down, and setup | |
| Connectors | ||
| (1) Grounded AC plug | ||
| Power Requirements | ||
| 120 Volts AC, 60 Hz | ||
| Enclosure | ||
| Plastic | ||
| Environmental | ||
| Temperature | 32° to 104°F (0° to 40°C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Dimensions | ||
| Height | 5.38 in (137 mm) | |
| Width | 3.13 in (80 mm) | |
| Depth | 1.75 in (45 mm) | |
| Weight | ||
| Single Channel Model | 8.3 oz (240 g) | |
| Dual Channel Model | 8.6 oz (250 g) | |
| Compliance | ||
| UL® Listed for the United States and Canada to UL 244 and CSA C22.2 No. 205. | ||
