The CLWI-DIMUNEX delivers Crestron® dimming control to any light in new or retrofit 230 Volt applications. Featuring robust infiNET EX® wireless technology, the CLWI-DIMUNEX can be installed in virtually any location, thanks to reliable mesh networking. Universal dimming provides automatic compatibility with both forward and reverse phase loads.Visit the Crestron® Lighting Fixture Compatibility page to find out which Crestron lighting devices have been tested and are compatible with third party lighting fixtures.
Overview
The CLWI-DIMUNEX delivers Crestron® dimming control to any light in new or retrofit 230 Volt applications. Featuring robust infiNET EX® wireless technology, the CLWI-DIMUNEX can be installed in virtually any location thanks to reliable mesh networking. Universal dimming provides automatic compatibility with both forward- and reverse-phase loads.
Field-Replaceable and Engravable Buttons

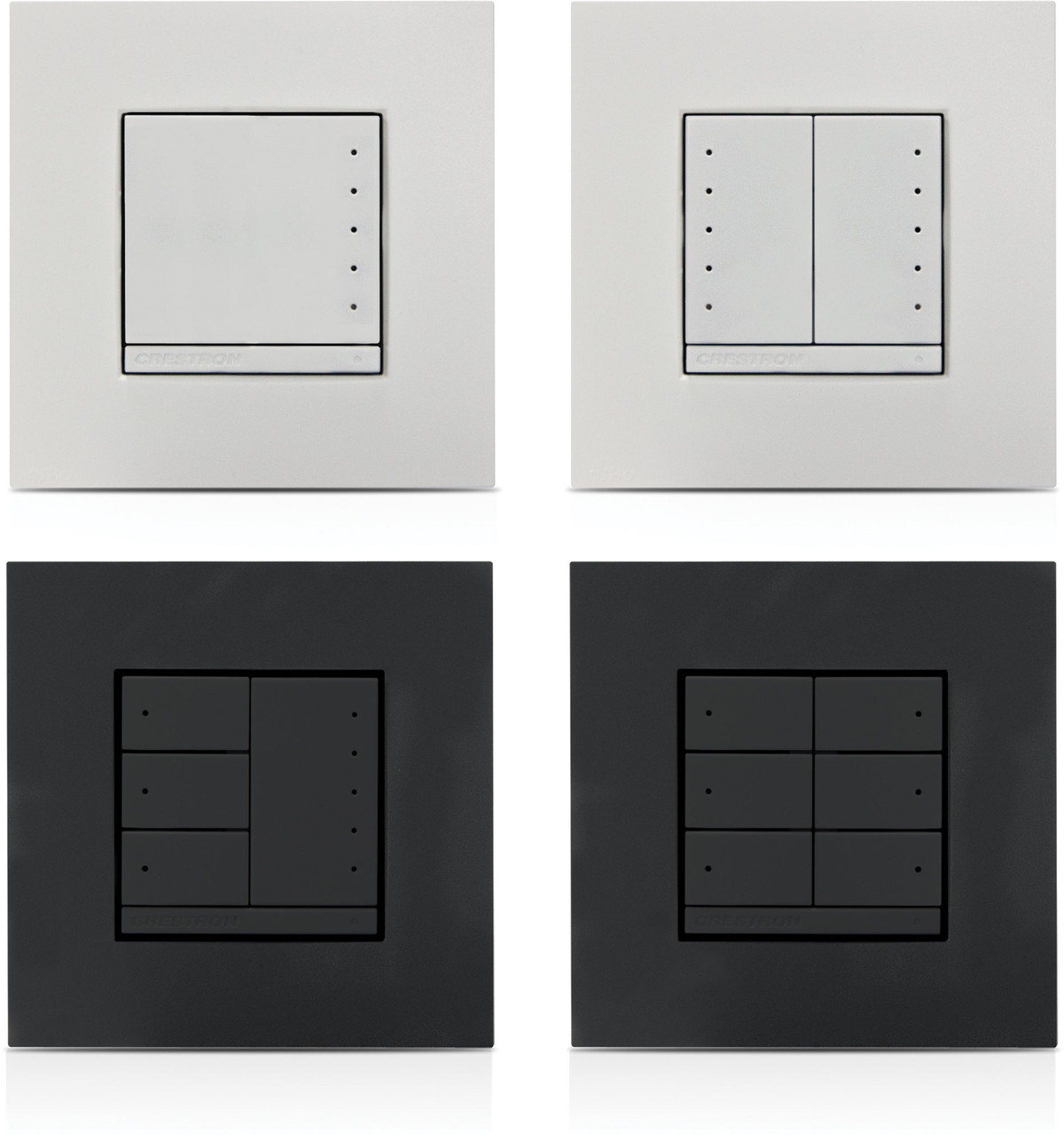

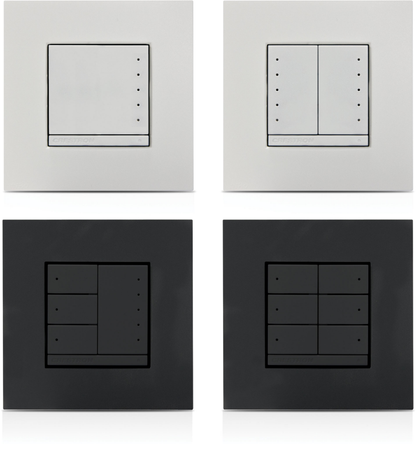

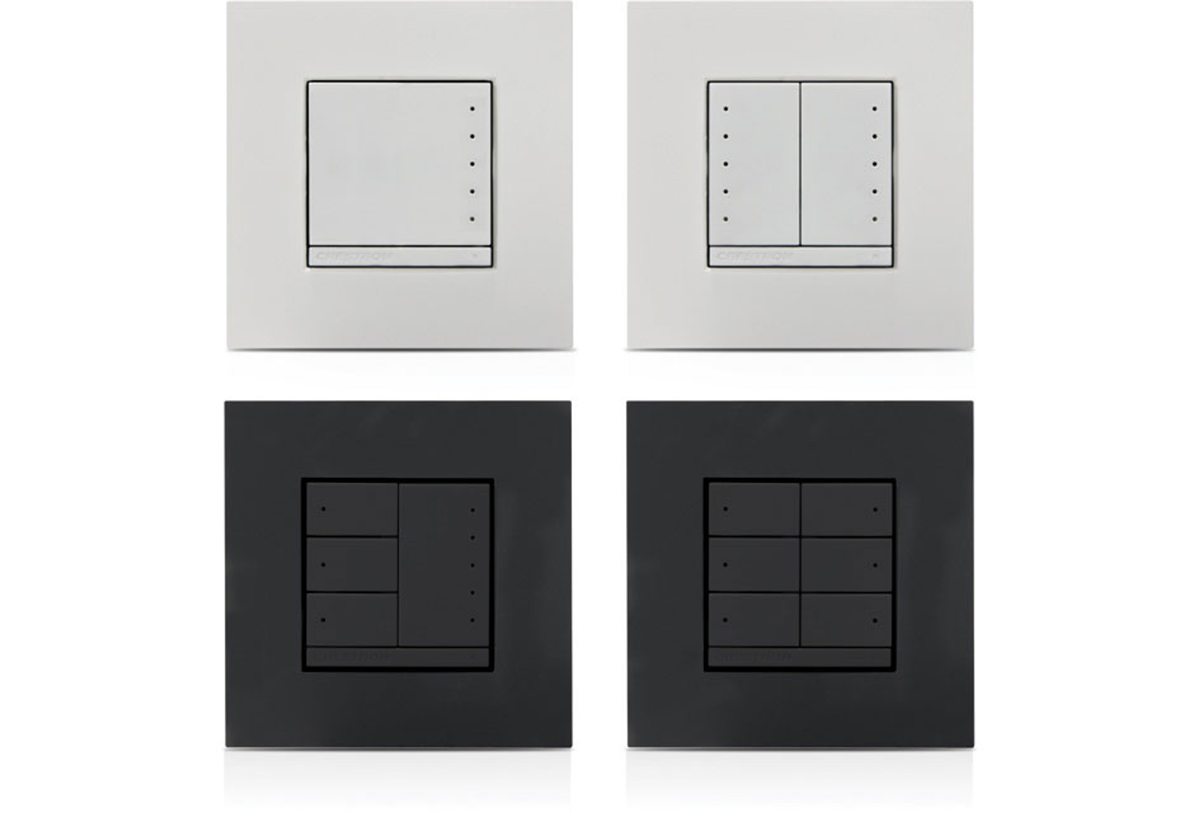

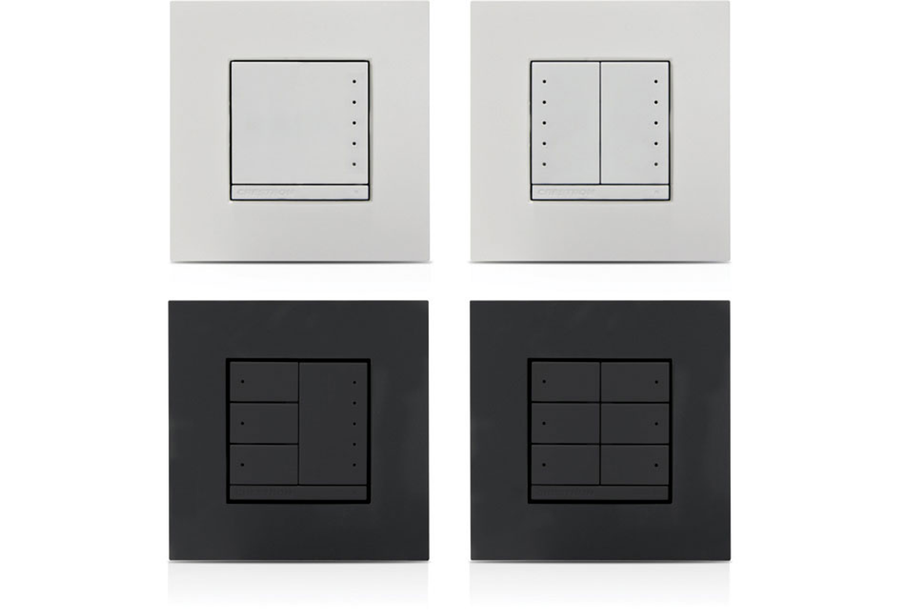

The CLWI-DIMUNEX features engravable buttons that can be swapped out in the field. Any change in room décor or functionality is easy to handle long after the dimmer or switch has been installed. Positive snap-on fittings require no tools. Configure the dimmer or switch with a large rocker or any combination of up to two adjacent half-size rockers or triple button pad. Each CLWI-DIMUNEX ships with a full assortment of blank buttons as well.
Integrated Keypad
Because the CLWI-DIMUNEX is attached to the Crestron network, it can also function as a keypad, sending commands to trigger whole-room lighting scenes or distributed audio functions. Supporting up to six buttons, the in-wall dimmer or switch serves as a great control interface in any Crestron system. Its single-box form factor maximizes control capability in a small space while increasing the opportunity for Crestron control in every room. Also available are aesthetically-matched standalone keypads that use Cresnet® or infiNET EX communications.
infiNET EX
Ultra-reliable infiNET EX wireless technology provides steadfast two-way RF communications throughout a residential or commercial structure without the need for physical control wiring. Employing a 2.4 GHz mesh network topology, each infiNET EX device functions as an expander, passing command signals through to every other infiNET EX device within range (approximately 150 feet or 46 meters indoors), ensuring that every command reaches its intended destination without disruption.[1]
The CLWI-DIMUNEX communicates with a Crestron control system via an infiNET EX Wireless Gateway (model CEN-GWEXER, DIN-AP3MEX, or MC3[2]). Up to 100 infiNET EX devices may coexist on a single wireless network, and every non-battery-powered device that is added to the network effectively increases the range and stability of the entire network by providing multiple redundant signal paths[1]. Built-in Dynamic Frequency Allocation continuously monitors RF conditions, automatically selecting the clearest channel to prevent interference from neighboring networks, cordless phones, and microwaves.
Streamlined Installation
In addition to field replaceable buttons, the CLWI-DIMUNEX features screw-clamp connectors for simplified wiring and reduced installation time and material costs. So slim, the CLWI-DIMUNEX can be installed in square gang boxes making them the perfect choice for both new and retrofit projects.
Features
Key Features
- infiNET EX® wireless communication
- Designed for low-wattage loads, especially LEDs
- Field-replaceable, engravable buttons
- Available in anthracite or white finishes
- Stylish bargraph LED array provides real-time status feedback
- Configurable for up to 6 buttons
- Screw-clamp connectors for easy installation
Specifications
| Load Ratings | ||
| Load Types | Incandescent, Tungsten-Halogen, Magnetic Low Voltage, Dimmable CFL, Electronic Low Voltage, Phase Control Dimmable LED | |
| Maximum Load Per Channel | 450 VA/Watts | |
| Minimum Load Per Channel | 15 Watts | |
| Power Requirements | ||
| 220-240 Volts AC, 50/60 Hz, line power | ||
| Controls | ||
| Buttons | Configurable for 1 rocker (up/down), or any combination of up to 2 small rockers and/or 2 three-button pad; Maximum layout contains 6 buttons; Each press configurable for up to 3 discrete functions via single click, double click and hold; Programmable via control system |
|
| Dimming Ramp Rate | 5 seconds (default), software adjustable 0.01 to 10 seconds | |
| Preset Fade Time | 2 seconds (default), software adjustable 0.01 to 120 seconds | |
| LED Indicator | ||
| Feedback | Up to (10) White LEDs, depending on button configuration | |
| Wireless | ||
| RF Transceiver | infiNET EX® 2-way RF, 2.4 GHz ISM Channels 11-26 (2400 to 2483.5 MHz), default channel 15; IEEE 802.15.4 compliant | |
| Range (typical) | 150 ft (46 m) indoor, 250 ft (76 m) outdoor to nearest mesh network device(s); Subject to site-specific conditions and individual device capabilities[1] |
|
| Gateway | Requires an infiNET EX gateway[2] | |
| Connections | ||
| Live | (1) 14-12 AWG (1 x 1.5 – 2.5 mm2), screw terminal, line power input | |
| Neutral | (1) 14-12 AWG (1 x 1.5 – 2.5 mm2), screw terminal, neutral connection | |
| Dimmed Live | (1) 14-12 AWG (1 x 1.5 – 2.5 mm2), screw terminal, load output | |
| Ground | (1) screw post, ground | |
| Environmental | ||
| Temperature | 32° to 104°F (0° to 40°C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Enclosure | ||
| 1-gang mountable in a 35 mm deep square or round electrical box in horizontal or vertical positioning; Requires faceplate (not included)[3] |
||
| Dimensions | ||
| Height | 2.80 in (72 mm) | |
| Width | 2.80 in (72 mm) | |
| Depth | 1.24 in (32 mm) including front face w/ buttons | |
| Weight | ||
| 3.0 oz (85 g) | ||
