Provides four channels of motor control for 120 Volt residential lighting applications. Supports 3-wire bidirectional motors for drapes, blinds, projection screens, and lifts. Installs in a CAEN or CAEN-MLO wall mount automation enclosure as part of a complete Crestron® centralized lighting control system.
Overview
The Crestron® CLX-1MC4 is a four-channel, single-feed motor control module designed for 120V lighting system applications. It installs in a CAEN or CAEN-MLO enclosure and provides control of bidirectional motors for drapes, blinds, projection screens, lifts, and other equipment. Each channel is rated for 10 Amps or 1/2 HP, with a total module rating of 16 Amps.
Centralized Lighting Cabinet Installation
Crestron CLX series lighting control modules are designed to be installed in a CAEN or CAEN-MLO wall mount enclosure. Available in a variety of sizes, CAEN and CAEN-MLO enclosures provide a scalable, high-density centralized lighting control solution for any-sized residence. A selection of CLX module types is offered to accommodate a wide range of load types and system configurations.

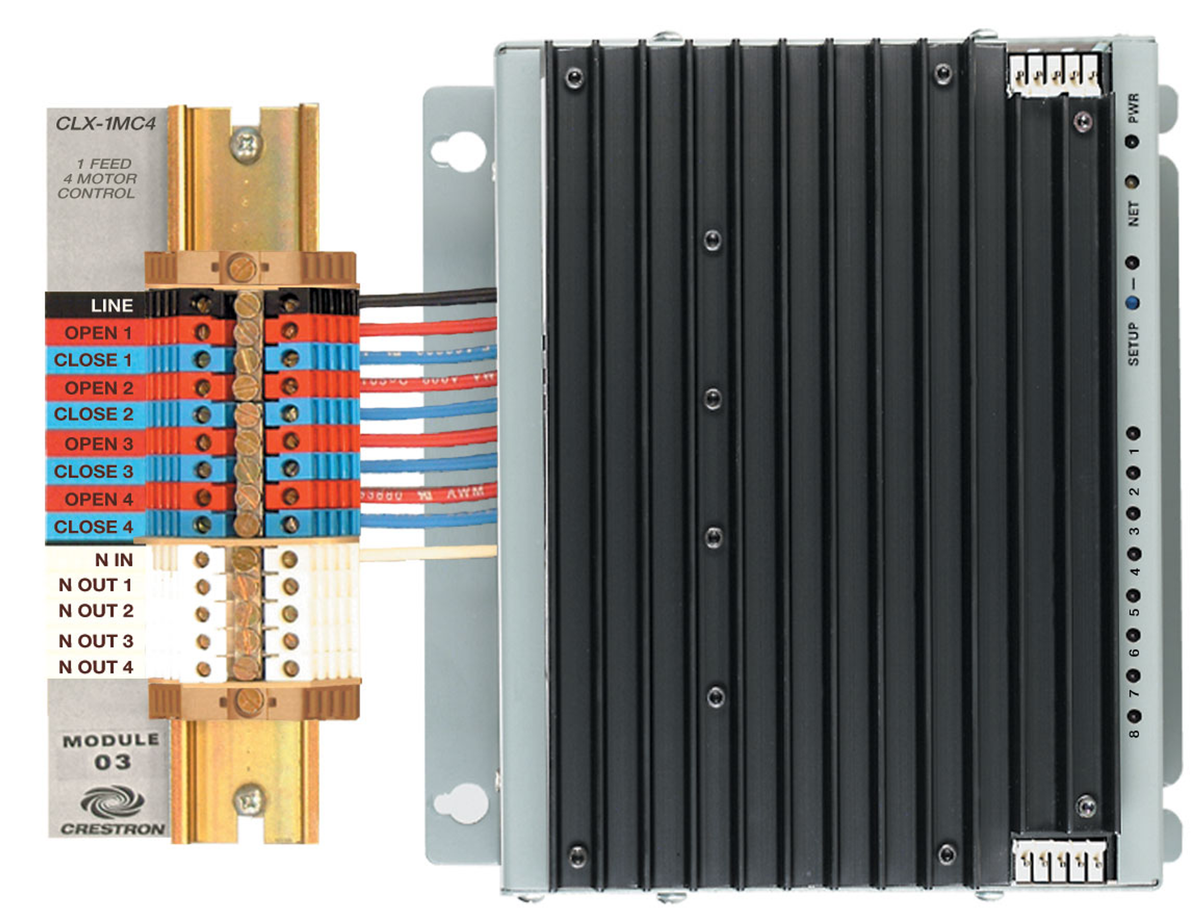

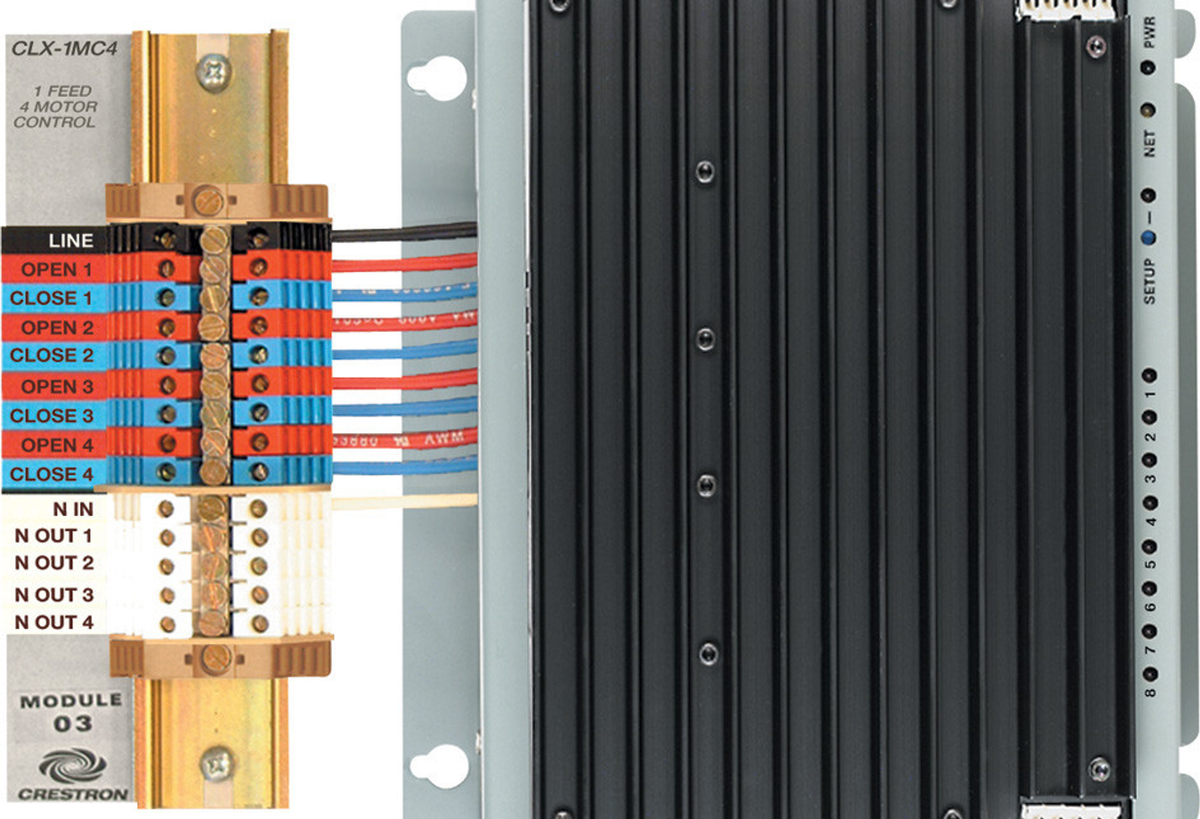

Termination of high-voltage wiring to the CLX-1MC4 module is facilitated using a CLT-1MC4 terminal block, which is sold separately to enable termination of the wiring prior to installing the module. This terminal block mounts beside the module within the enclosure. Low-voltage control signals are bussed between each of the modules within an enclosure via a simple 5-wire link (interconnect jumpers included), which terminates to a single terminal block (model CAEN-BLOCK, sold separately) at the bottom of the enclosure.
Cresnet® Communications
The CLX-1MC4 interfaces with a Crestron control system (a.k.a., control processor or automation processor) via Cresnet. Cresnet is a simple 4-wire network bus that provides the communications backbone for a system of Crestron motor controllers, dimmers, switches, keypads, shades, thermostats, and other devices.
Features
Key Features
- Four-channel motor control module for residential lighting applications
- Installs in a Crestron® CAEN or CAEN-MLO enclosure
- Supports open/close or up/down control of 3-wire bidirectional motor loads up to 1/2 HP each
- Rated 10 Amps per channel, 16 Amps total, at 120 Volts AC
- Crestron system integration via Cresnet®
- Easy termination using a CLT-1MC4 terminal block (sold separately)
Specifications
| Load Control | ||
| Motor Control Channels | 4 | |
| Load Types | 3-wire bidirectional motors | |
| Per Channel Load Rating | 10 Amps, 1/2 HP | |
| Module Total Load Rating | 16 Amps | |
| Line/Load Voltage | 120 Volts AC, 60 Hz; requires one single-phase feed | |
| Connections | ||
| Via Terminal Block (sold separately) | LINE: (1) Screw terminal, black, line power feed input; OPEN 1 – 4: (4) Screw terminals, red, "open" control outputs (per channel); CLOSE 1 – 4: (4) Screw terminals, blue, "close" control outputs (per channel); N IN: (1) Screw terminal, white, line power feed neutral; N OUT 1 – 4: (4) Screw terminals, white, load neutrals (per channel); Note: Each terminal accepts one 14-10 AWG wire. |
|
| Module Interconnect | (2) 5-pin 0.156 inch headers; Cresnet/Override interconnect ports; Each connects to the adjacent module using the interconnect jumper provided; Connects to a CAEN-BLOCK (sold separately) when installed in the lowest position within the enclosure |
|
| Controls & Indicators | ||
| PWR | (1) Green LED, indicates line power is applied to the LINE terminal | |
| NET | (1) Yellow LED, indicates Cresnet communication with the control system | |
| SETUP | (1) Pushbutton and (1) red LED, used to enter Local mode and test each channel | |
| 1 – 4 | (8) Red LEDs, each indicates the open or closed status of the corresponding channel | |
| Environmental | ||
| Temperature | 32° to 104° F (0° to 40° C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Heat Dissipation | 15 BTU/hr + (0.44 BTU/hr x Load Current in Amps); 22 BTU/hr at maximum load |
|
| Enclosure | ||
| Gray metal with black heat sink, surface mount module with (2) integral mounting flanges; Occupies 1 module space in a CAEN or CAEN-MLO enclosure |
||
| Dimensions | ||
| Height | 7.59 in (194 mm) | |
| Width | 6.92 in (176 mm) | |
| Depth | 3.43 in (87 mm) | |
| Weight | ||
| 3.00 lb (1.36 kg) | ||
| Compliance | ||
| ETL Listed for the United States and Canada to UL 508 and CSA C22.2 No. 14. | ||
