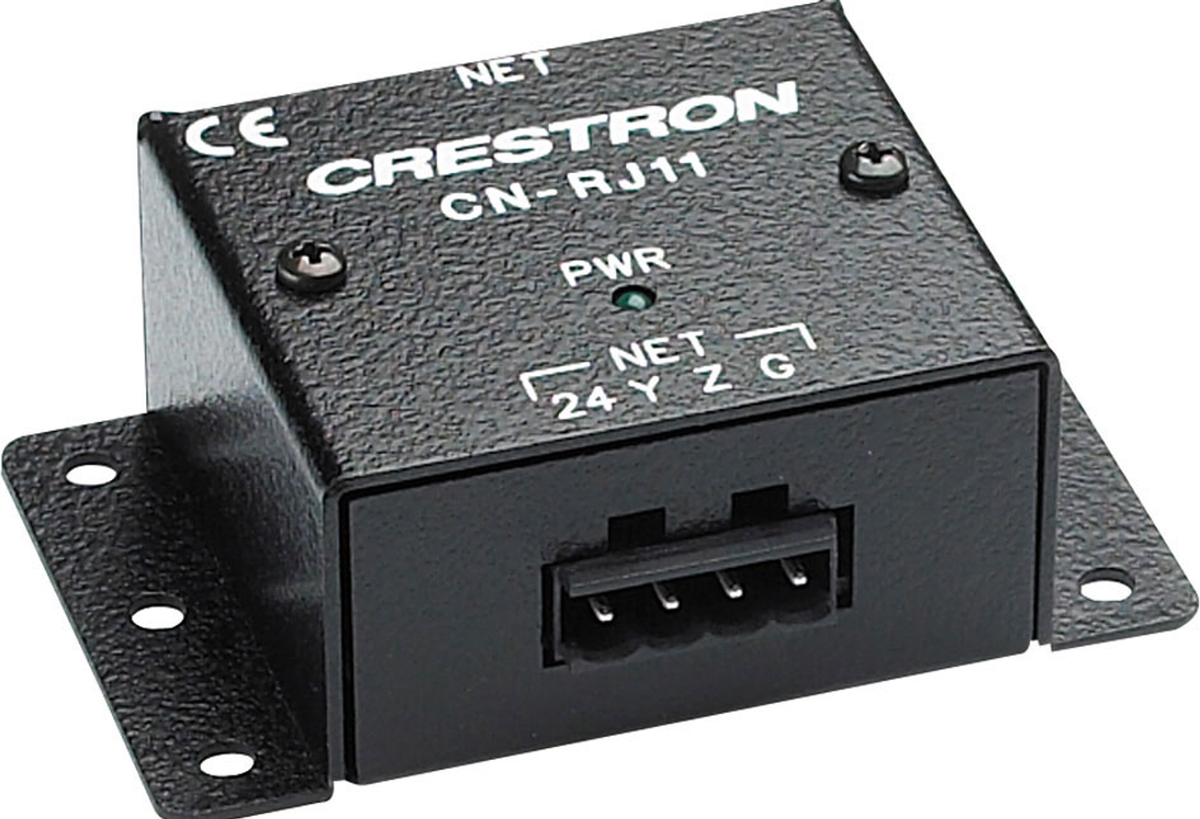

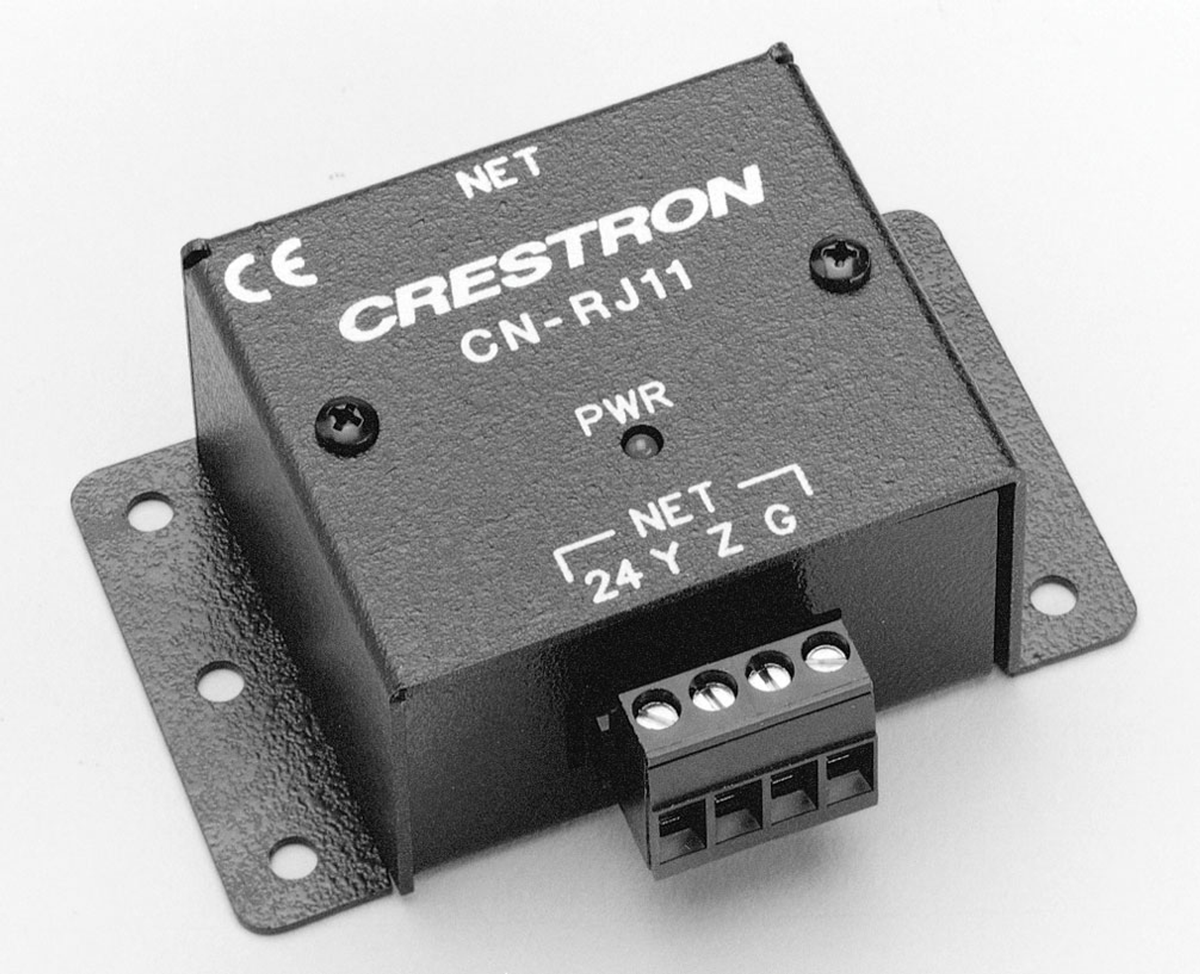

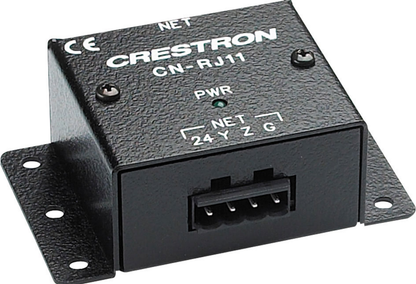

The CNRJ11 is a 1-1 converter used to adapt between a standard 4-wire Cresnet cable and a modular Cresnet cable. One 4-pin connector and one 6-pin RJ11 jack are provided, wired in parallel. The CNRJ11 is a useful accessory for wiring standard 4-wire Cresnet cable to certain control modules, pan/tilt heads, and SmarTouch wired touchpanels that utilize an RJ11 NET connector.
Overview
The CNRJ11 is a 1-1 converter used to adapt between a standard 4-wire Cresnet cable and a modular Cresnet cable. One 4-pin connector and one 6-pin RJ11 jack are provided, wired in parallel. The CNRJ11 is a useful accessory for wiring standard 4-wire Cresnet cable to certain control modules, pan/tilt heads, and SmarTouch wired touchpanels that utilize an RJ11 NET connector.
Features
Specifications
| Connectors | ||
| NET | (1) 4-pin 5mm detachable terminal block; Connects to standard 4-wire Cresnet cables |
|
| NET | (1) 6-pin RJ11 female; Connects to RJ11 modular Cresnet cables |
|
| LED Indicators | ||
| PWR | (Green) Indicates that 24VDC Cresnet power is present (at any port) | |
| Enclosure | ||
| Steel, black matte powder coat finish, surface mount box with (2) integral mounting flanges | ||
| Dimensions | ||
| Height | 1.24 in (3.14 cm) | |
| Width | 3.25 in (8.26 cm) | |
| Depth | 2.00 in (5.08 cm) | |
| Weight | ||
| 0.3 lb (0.15 kg) | ||
