Product Information
Provides a convenient method for terminating multiple Cresnet cables in an equipment cabinet, closet, or beneath a table.
Overview

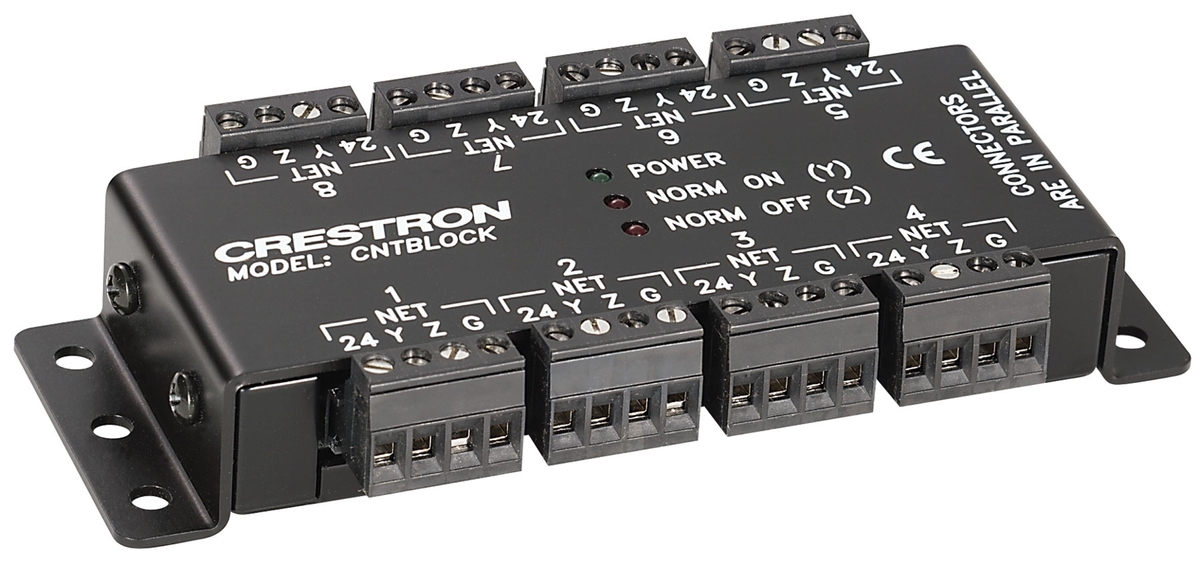

The CNTBLOCK is a parallel distribution block designed to facilitate the termination of multiple Cresnet® cables in an equipment cabinet, closet, or beneath a table. Eight 4-pin connectors are provided, grouped in two sets of four. Power can be isolated between the two sets by removing an internal jumper. Diagnostic LEDs indicate the presence of network power and data. The CNTBLOCK includes integral mounting flanges to allow for attachment to any suitable flat surface.
Features
Specifications
| Connectors | ||
| NET 1 – 8 | (8) 4-pin 5mm detachable terminal blocks | |
| Indicators | ||
| PWR | (1) green LED, indicates that 24VDC Cresnet power is present at any NET port | |
| Y | (1) red LED, indicates the presence and integrity of the Cresnet "Y" data signal | |
| Z | (1) red LED, indicates the presence and integrity of the Cresnet "Z" data signal | |
| Enclosure | ||
| Chassis | metal, black finish, with (2) integral mounting flanges | |
| Mounting | freestanding or surface mount | |
| Dimensions | ||
| Height | 0.92 in (24 mm) | |
| Width | 5.75 in (147 mm) | |
| Depth | 1.89 in (48 mm) | |
| Weight | ||
| 0.5 lb (0.2 kg) | ||
