Provides a secure, high performance, rack mountable control processor and interface for use with Crestron Home® OS. Includes a full complement of onboard control ports to handle larger home automation, home theater, multiroom video, and MDU (multidwelling unit) applications. 4 Series™ multicore CPU processor delivers remarkable speed and performance.
Overview

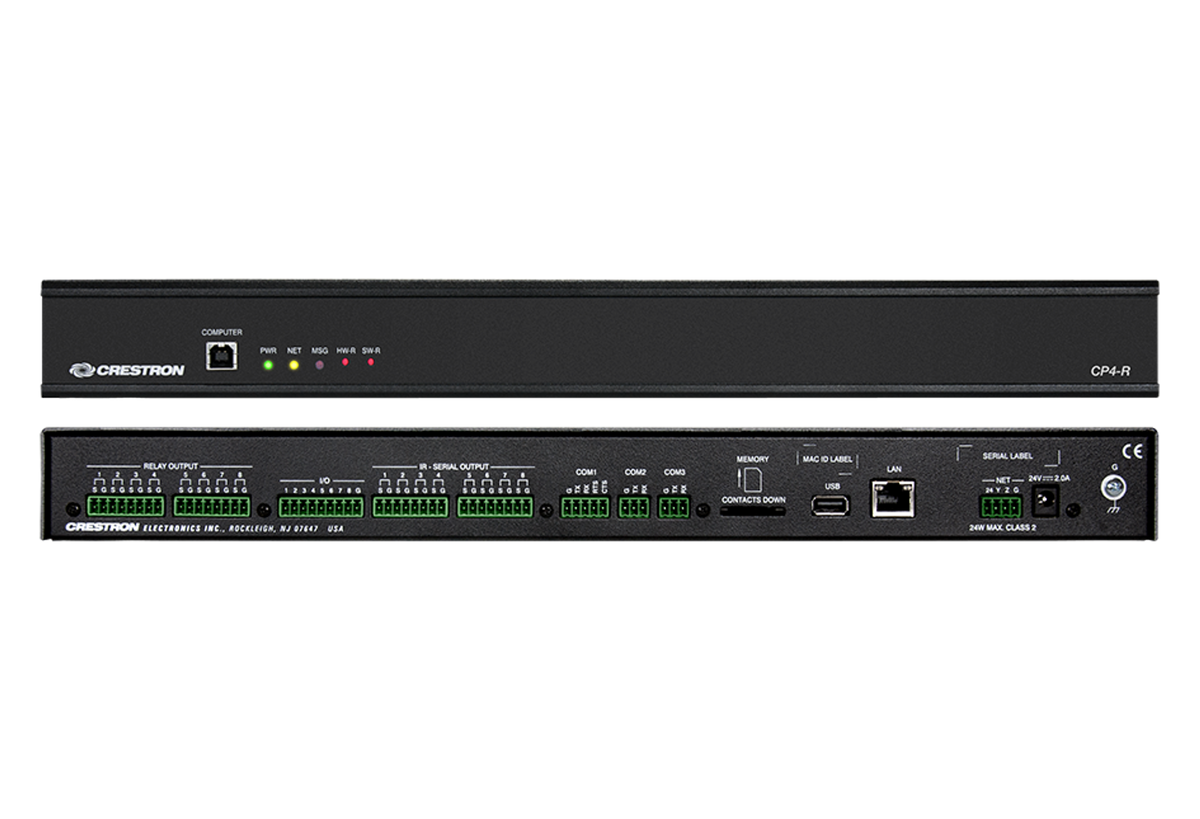

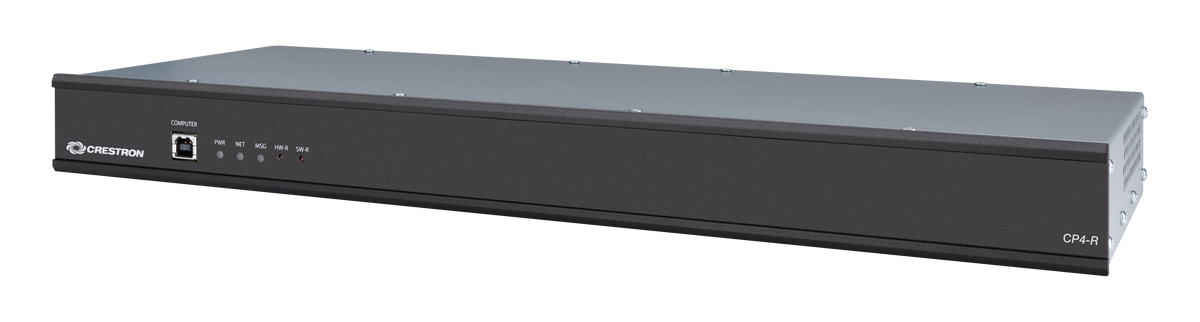

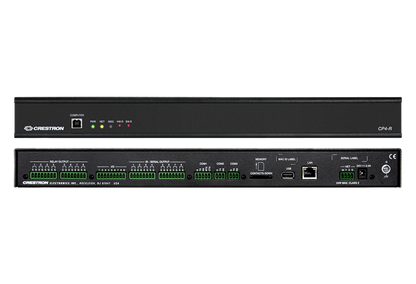

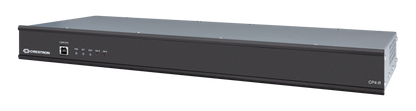

The Crestron CP4-R is a secure, high‑performance, rack‑mountable control processor with the embedded Crestron Home® operating system. It is designed exclusively to function as the core of a Crestron Home system, and features enhanced processing power to handle larger home automation, home theater, multiroom video, and MDU (multidwelling unit) applications. The CP4‑R comes equipped with a 4‑Series™ multicore CPU processor that delivers remarkable speed and performance while handling the demands of an advanced automated system.
Through a full complement of onboard control ports, the CP4‑R allows Crestron Home to integrate with a wide variety of audio, video, lighting, motorized shades, thermostats, door locks, sensors, and other equipment. Integration with a security system is supported using the optional COM Port Expanders (CEN-IO-COM-102 or CEN-IO-COM-202, both sold separately). Native support for the BACnet™ communication protocol provides a direct interface to third-party building management systems over Ethernet, simplifying integration with HVAC, security, and other systems.1
Crestron Home unlocks the full potential of a smart home. It provides dealers with the ability to deliver a simple and clean user interface that includes sophisticated page designs; fluid dynamic room controls; and powerful features such support for multiple homes, favorites, custom access, and room image customizations. The CP4‑R can be upgraded from Crestron Pyng® OS 2 to Crestron Home OS via a firmware upgrade.
Refer to www.crestron.com/crestronhome for more information about Crestron Home and for a list of supported Crestron and third‑party equipment.2
Features
Key Features
- Advanced 4‑Series™ control processor designed exclusively for Crestron Home® OS
- 4‑Series multicore CPU processor delivers remarkable speed and performance
- Enhanced performance to handle larger home automation, home theater, multiroom video, and MDU applications
- Communicates with the Crestron Home App for system configuration and control
- Integrates control and monitoring of audio, video, lighting, shades, thermostats, door locks, sensors, and other devices
- Includes built‑in IR, COM, I/O, relay, Cresnet® network, and high‑speed gigabit Ethernet control ports
- Supports infiNET EX® network wireless devices via an optional external wireless gateway
- Native BACnet™ network/IP support
- Enterprise‑class network security
- Single‑space 19 in. rack mountable
- External 100–240 V power pack included
Specifications
| Communications | |
| Ethernet | 100/1000 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, industry‑standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140‑2 compliant encryption, IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® software authentication, HTTPS web server, SMTP email client |
| Cresnet® Network | Cresnet server mode3 |
| USB | Supports USB mass storage class devices via the rear panel USB 2.0 host port, supports computer console via the front panel USB 2.0 device port |
| RS‑232/422/485 | For 2‑way device control and monitoring, all ports support RS‑232 up to 115.2k baud with software handshaking, one port also supports RS‑422 or RS‑485 and hardware handshaking |
| IR | Supports 1‑way device control via infrared up to 1.2 MHz |
| BACnet™ network/IP | Supports up to 2000 BACnet objects1 |
| Memory | |
| SDRAM | 4 GB |
| Flash | 8 GB |
| Memory Card | Supports SD and SDHC cards up to 32 GB (4 GB included) |
| External Storage | Supports USB mass storage devices up to 1 TB |

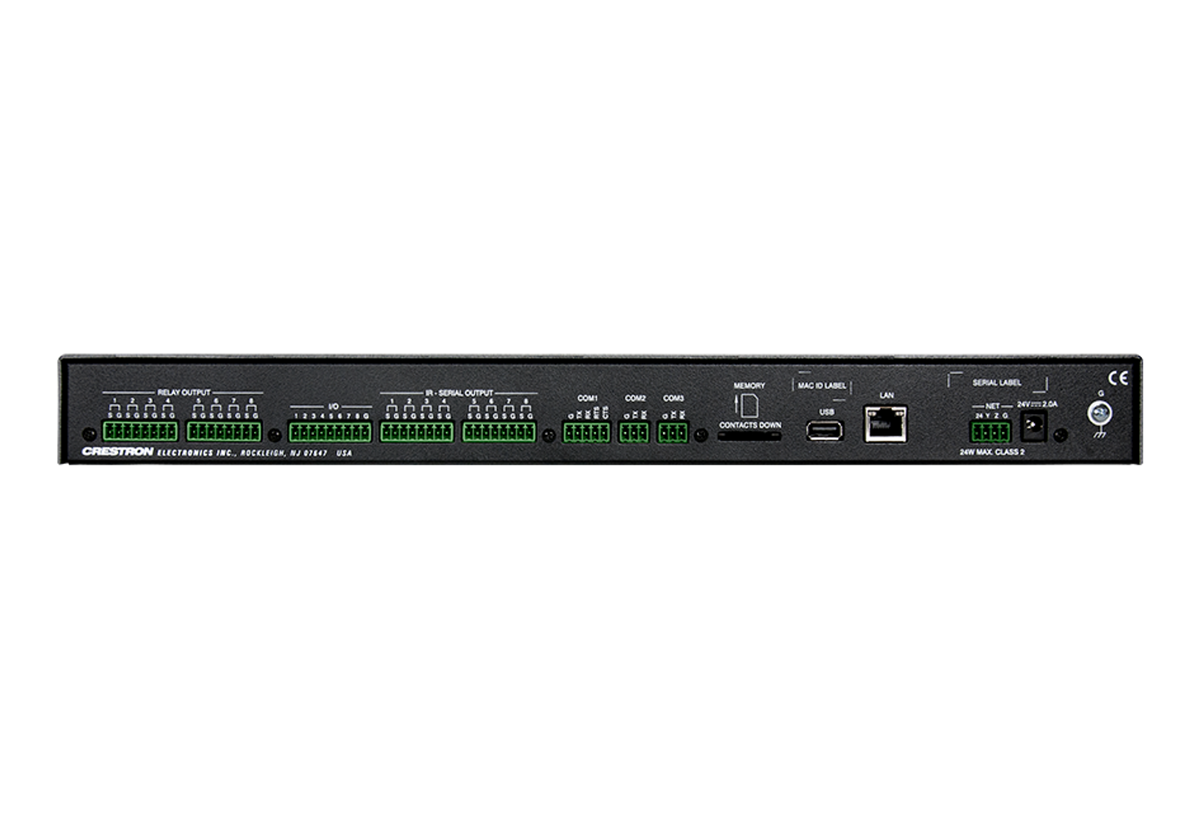

| Connectors and Card Slots | |
| RELAY OUTPUT 1–8 | (2) 8‑pin 3.5 mm detachable terminal blocks; Comprises (8) normally open, isolated relays; Rated 1A, 30VAC/VDC; MOV arc suppression across contacts |
| I/O 1–8 | (1) 9‑pin 3.5 mm detachable terminal block; Comprises (8) Versiport digital input/output or analog input ports (referenced to GND); Digital Input: Rated for 0–24VDC, input impedance 20k Ω, logic threshold >3.125V low/0 and <1.875V high/1; Digital Output: 250 mA sink from maximum 24VDC, catch diodes for use with real world loads; Analog Input: Rated for 0–10VDC, protected to 24VDC maximum, input impedance 21k Ω with pull‑up resistor disabled; Programmable 5V, 2k Ω pull‑up resistor per pin |
| IR‑Serial Output 1–8 | (2) 8‑pin 3.5 mm detachable terminal blocks; Comprises (8) IR output ports; IR output up to 1.2 MHz; 4 IRP2 IR emitters included, additional emitters sold separately |
| COM 1 | (1) 5‑pin 3.5 mm detachable terminal block; Bidirectional RS‑232/422/485 port; Up to 115.2k baud; hardware and software handshaking support |
| COM 2–3 | (2) 3‑pin 3.5 mm detachable terminal blocks; Bidirectional RS‑232 ports; Up to 115.2k baud; software handshaking support |
| MEMORY | (1) SD memory card slot; Accepts one SD or SDHC card up to 32 GB for storage of log files; 4 GB SDHC card included |
| USB | (1) USB Type-A connector, female; USB 2.0 port for storage devices |
| LAN | (1) 8‑pin RJ-45 connector, female; 100BASE‑TX/1000BASE-T Ethernet port |
| NET | (1) 4‑pin 3.5 mm detachable terminal block; Cresnet server port3; Outputs power to Cresnet devices only if the included power pack is connected to the 24VDC power input jack; Alternately functions as a Cresnet power input to power the unit from a Cresnet power supply; See "Power" section below for additional specifications |
| 24VDC 2.0A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW‑2420RU power pack included; Passes through to the NET port to power Cresnet devices; See Power section below for additional specifications |
| G | (1) 6‑32 screw; Chassis ground lug |
| COMPUTER (front) | (1) USB Type-B connector, female; USB 2.0 computer console port (6 ft / 1.8 m cable included); For setup only |

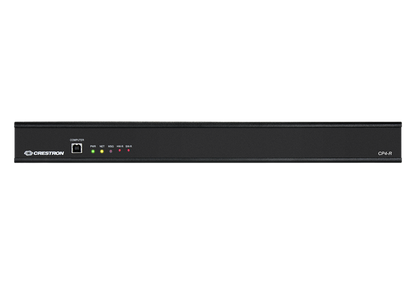

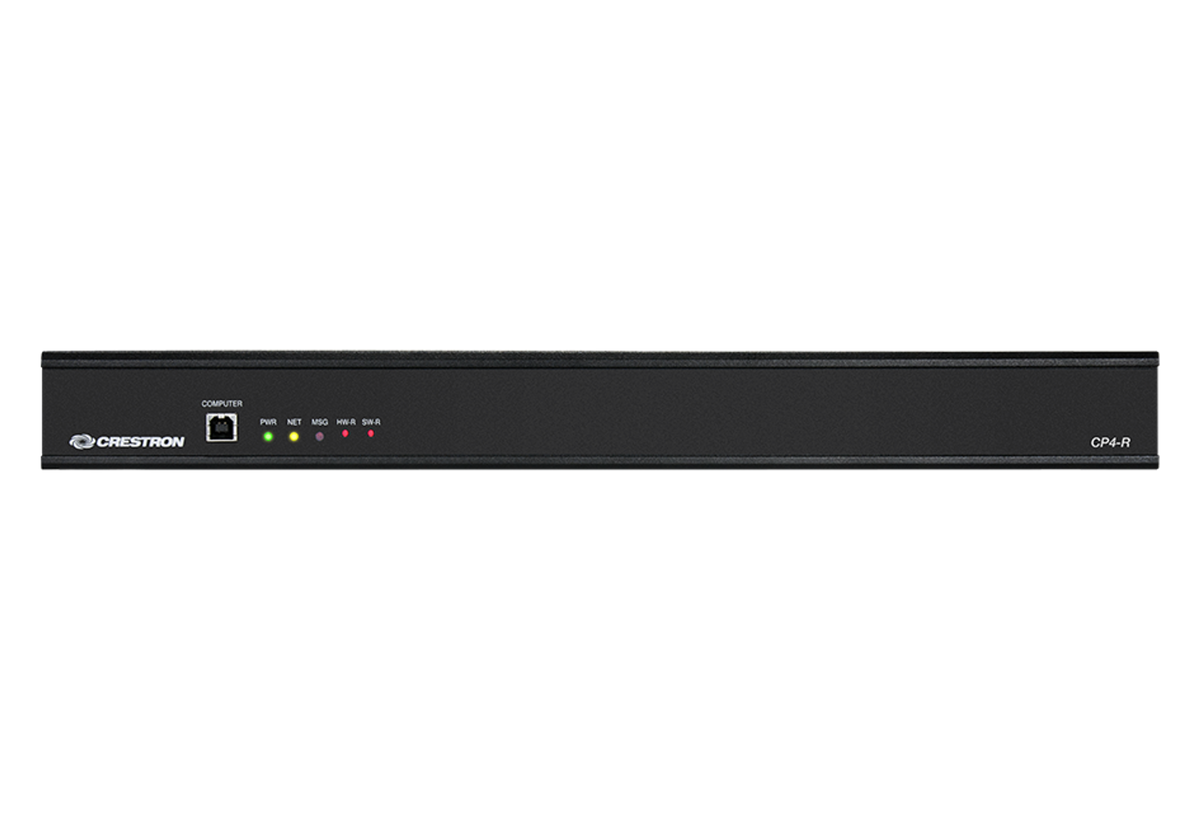

| Controls and Indicators | |
| PWR | (1) Green LED, indicates operating power is supplied from the power pack or Cresnet power supply |
| NET | (1) Amber LED, indicates communication with Cresnet devices |
| MSG | (1) Red LED, indicates control processor has generated an error message |
| HW-R | (1) Recessed push button for hardware reset |
| SW-R | (1) Recessed push button for software reset |
| LAN (rear) | (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity |
| Power | |
| Power Source Options | Power pack or Cresnet (connect only one) |
| Power Pack (included) | Input: 100–240VAC, 50/60 Hz; Output: 2.5A @ 24VDC; |
| Cresnet Power Usage | 15 W (0.625A @ 24VDC) when powered by a Cresnet power supply only |
| Available Cresnet Power | 24 W (1A @ 24VDC) when powered by the included power pack only |
| Power Consumption | 15 W (not including any connected Cresnet devices) |
| Environmental | |
| Temperature | 41 to 113°F (5 to 45°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Heat Dissipation | 50 BTU/hr |
| Construction | |
| Chassis | Steel |
| Front Panel | Extruded metal, black finish, polycarbonate label overlay |
| Mounting | Freestanding or 1U 19 in. rack‑mountable (adhesive feet and rack ears included) |
| Dimensions | |
| Height | 1.70 in. (44 mm) without feet |
| Width | 17.28 in. (439 mm), 19.00 in. (483 mm) with rack ears |
| Depth | 6.56 in. (167 mm) |
| Weight | |
| 3.12 lb (1.42 kg) | |
| Compliance | |
|
Regulatory Model: M201903003 UL® Listed for the United States and Canada, under UL/IEC 60950-1. CE compliant for applicable European market requirements. |
|
