Crestron® certified cable for use in the wiring of a Cresnet® control network. Provides extra-large conductors for power and ground to support devices that draw a large amount of power over the Cresnet bus.
Overview
The Cresnet® bus is the communications backbone for many Crestron® keypads, lighting controllers, shade motors, sensors, and other devices. Cresnet is a simple, yet flexible 4-wire network that provides bidirectional communication and 24VDC power for Cresnet devices. Cresnet allows for both home run and daisy-chain wiring topologies, with cable lengths up to 3000 ft (915 m) per run.

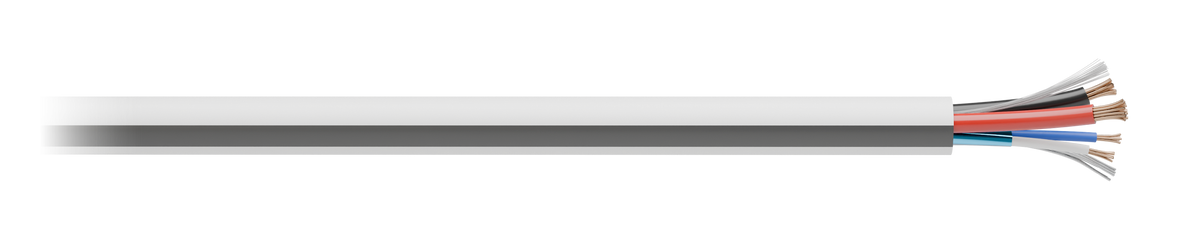

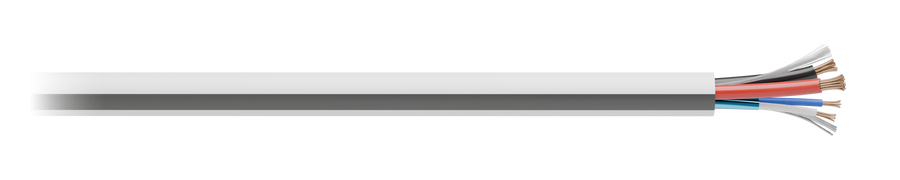

Cresnet "High-Power" control cable features extra-large conductors for power and ground to support devices that draw a large amount of power over the Cresnet bus. Within a single non-plenum PVC jacket, CRESNET‑HP‑NP contains (1) 12 AWG pair for 24VDC and Ground, and (1) 22 AWG shielded twisted pair for control data.
Features
Specifications
| Data Pair | |
| Colors | Blue/white |
| Conductors | (2) 22 AWG (0.33 mm²) stranded bare copper, twisted |
| Insulation | High Density Polyethylene; Thickness: 0.015 in. (0.381 mm), nominal; Outer Diameter: 0.059 in. (1.499 mm), nominal |
| Shield | Aluminum/Polyester (100% coverage) |
| Drain | (1) 24 AWG (0.20 mm²) stranded tinned copper |
| Power | |
| Colors | Red/black |
| Conductors | (2) 12 AWG (3.31 mm²) stranded bare copper |
| Insulation | PVC; Thickness: 0.012 in. (0.305 mm), nominal; Outer Diameter: 0.114 in. (2.896 mm), nominal |
| Shield | None |
| Outer Jacket | |
| Material | PVC |
| Thickness | 0.04 in. (1.02 mm) nominal |
| Outer Diameter | 0.33 in. (8.38 mm) nominal |
| Environmental | |
| Temperature | -4° to 167°F (-20° to 75°C) |
| Weight | |
| 68 lb (30.8 kg)/1000 ft (304.8 m) | |
| Compliance | |
| NEC Article 800; UL Subject 13, Type CM; CSA Type CMG; RoHS | |
