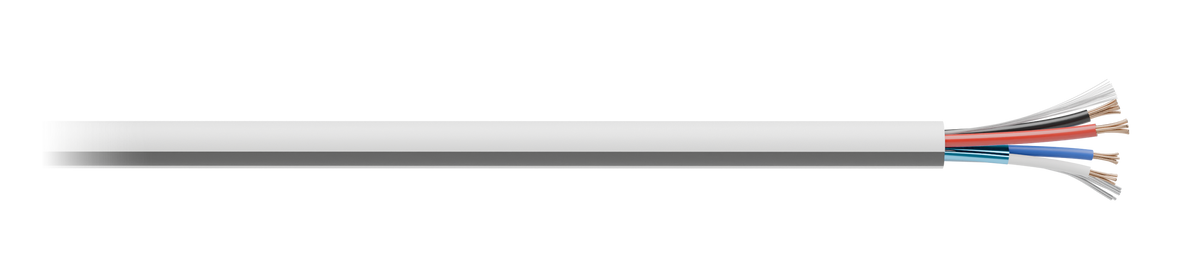

Crestron® certified cable for use in the wiring of a Cresnet® control network. Provides (1) 22 AWG shielded twisted pair for Cresnet control data, and (1) 18 AWG pair for 24VDC and Ground, within a single PVC jacket.
Overview
The Cresnet® bus is the communications backbone for many Crestron® keypads, lighting controllers, shade motors, sensors, and other devices. Cresnet is a simple, yet flexible 4-wire network that provides bidirectional communication and 24VDC power for Cresnet devices. Cresnet allows for both home run and daisy-chain wiring topologies, with cable lengths up to approximately 3000 feet (915 meters) per run.
Within a single non-plenum PVC jacket, CRESNET-NP contains (1) 18 AWG pair for 24VDC and Ground, and (1) 22 AWG shielded twisted pair for control data.
Features
Specifications
| Data Pair | |
| Colors | Blue/white |
| Conductors | (2) 22 AWG (0.33 mm²) stranded bare copper, twisted |
| Insulation | Polyethylene; Thickness: 0.015 in. (0.381 mm), nominal; Outer Diameter: 0.059 in. (1.499 mm), nominal |
| Shield | Aluminum/Polyester (100% coverage) |
| Drain | (1) 24 AWG (0.20 mm²) stranded tinned copper |
| Power | |
| Colors | Red/black |
| Conductors | (2) 18 AWG (0.82 mm²) stranded bare copper |
| Insulation | PVC; Thickness: 0.010 in. (0.254 mm), nominal; Outer Diameter: 0.066 in. (1.676 mm), nominal |
| Shield | None |
| Outer Jacket | |
| Material | PVC |
| Thickness | 0.032 inch (0.813 mm) nominal |
| Outer Diameter | 0.25 in. (6.35 mm) nominal |
| Environmental | |
| Temperature | -4° to 167°F (-20° to 75°C) |
| Weight | |
| 16 lb (7.3 kg)/500 ft (152.4 m) | |
| Compliance | |
| NEC Article 800; UL Subject 13, Type CM; CSA Type CMG; RoHS | |
