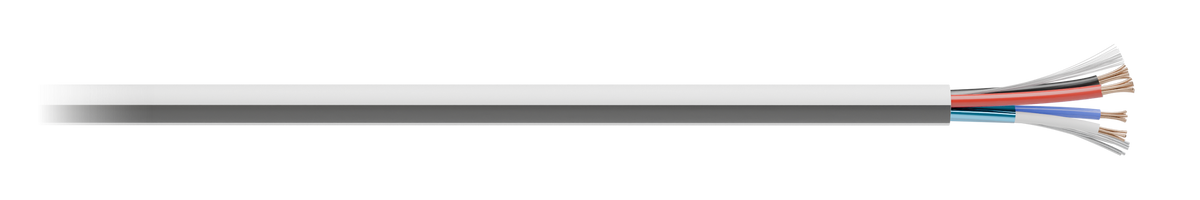

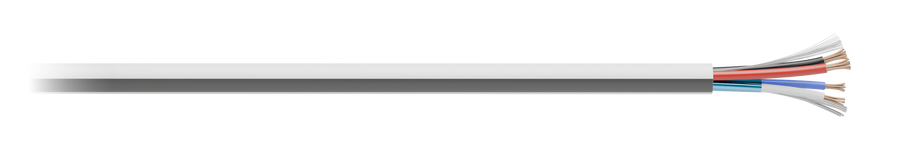

Crestron® certified cabling for use in the wiring of a Cresnet® control network. Provides (1) 22 AWG shielded twisted pair for Cresnet control data, and (1) 18 AWG pair for 24VDC and Ground, within a single plenum-rated jacket.
Overview
The Cresnet® bus is the communications backbone for many Crestron® keypads, lighting controllers, shade motors, sensors, and other devices. Cresnet is a simple, yet flexible 4-wire network that provides bidirectional communication and 24VDC power for Cresnet devices. Cresnet allows for both home run and daisy-chain wiring topologies, with cable lengths up to 3000 ft (915 m) per run.
Within a single plenum-rated polymer jacket, CRESNET-P contains (1) 18 AWG pair for 24VDC and Ground, and (1) 22 AWG shielded twisted pair for control data.
Features
Specifications
| Data Pair | |
| Colors | Blue/white |
| Conductors | (2) 22 AWG (0.33 mm²) stranded bare copper, twisted |
| Insulation | FEP; Thickness: 0.012 in. (0.305 mm), nominal; Outer Diameter: 0.053 in. (1.346 mm), nominal |
| Shield | Aluminum/Polyester (100% coverage) |
| Drain | (1) 24 AWG (0.20 mm²) stranded tinned copper |
| Power | |
| Colors | Red/black |
| Conductors | (2) 18 AWG (0.82 mm²) stranded bare copper |
| Insulation | Plenum polymer; Thickness: 0.010 in. (0.254 mm), nominal; Outer Diameter: 0.068 in. (1.727 mm), nominal |
| Shield | None |
| Outer Jacket | |
| Material | Plenum polymer |
| Thickness | 0.020 in. (0.381 mm) nominal |
| Outer Diameter | 0.19 in. (4.83 mm) nominal |
| Environmental | |
| Temperature | -4° to 167°F (-20° to 75°C) |
| Weight | |
| 30 lb (13.6 kg)/1000 ft (304.8 m) | |
| Compliance | |
| NEC Article 800; UL Subject 444, Type CMP; CSA Type CMP; NFPA 262; CSA FT6 (Steiner Tunnel test); RoHS | |
