Product Information
Plenum-rated power supply designed for Cresnet® network shade and Zūm® lighting devices.
Overview

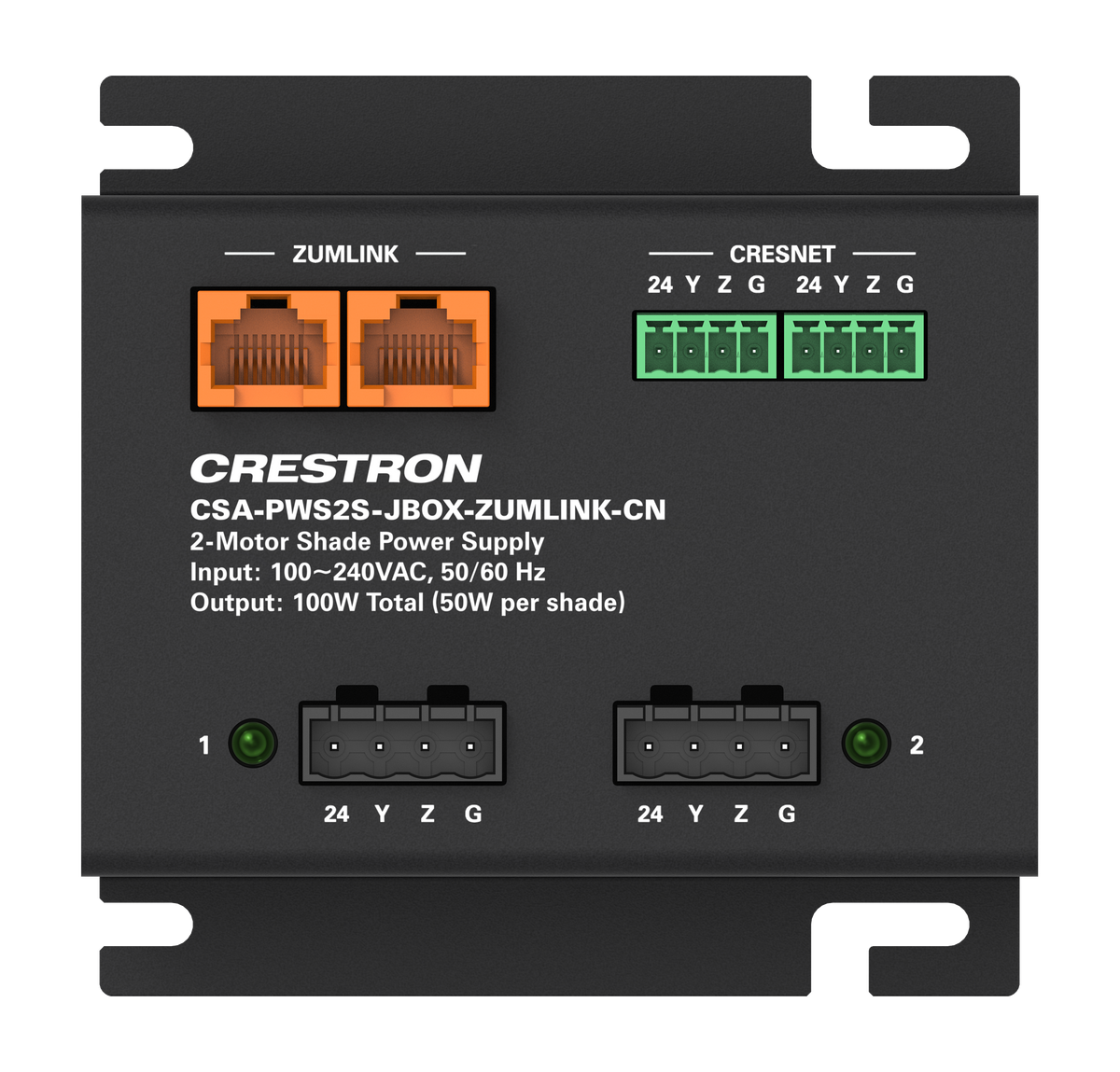

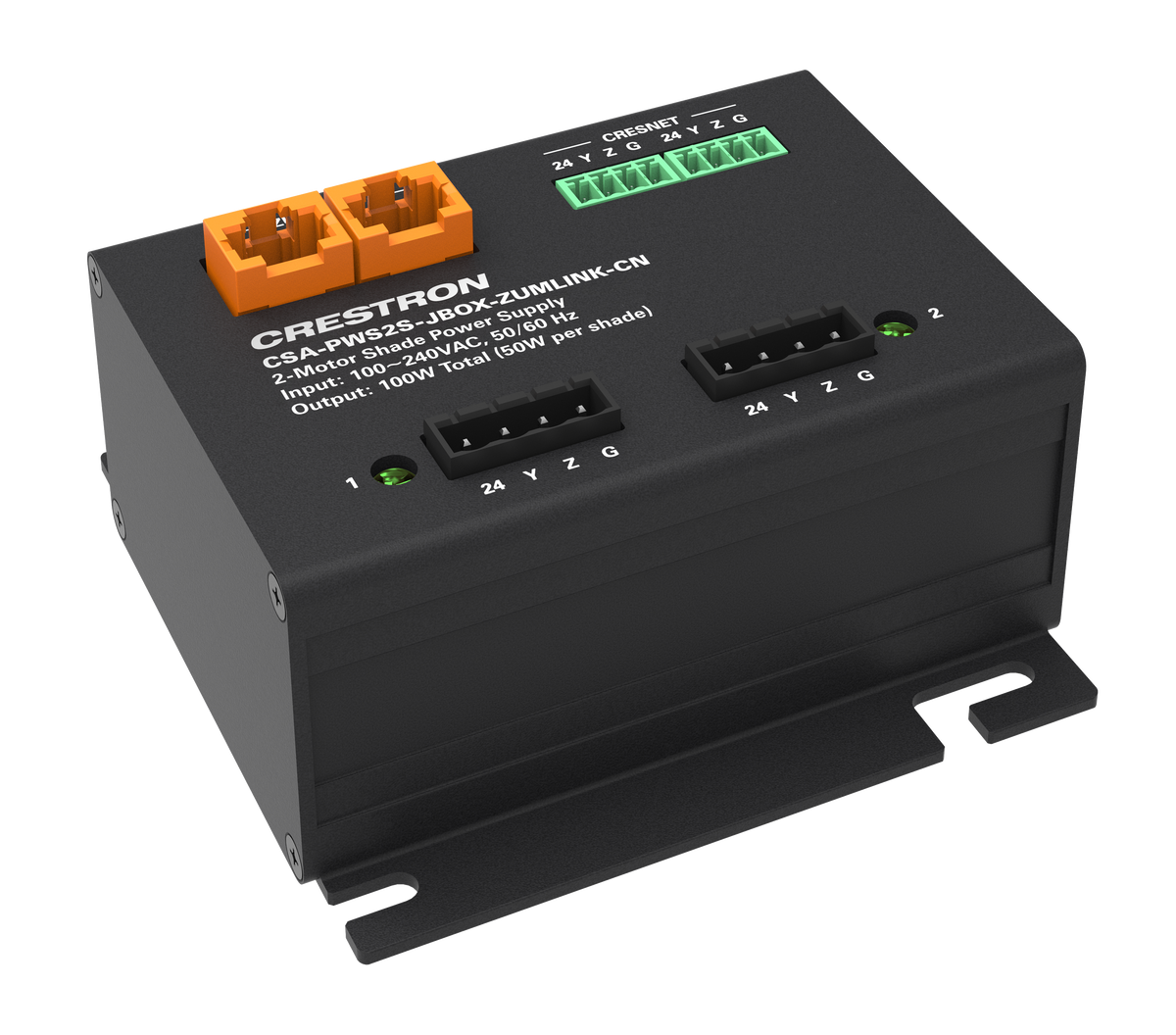

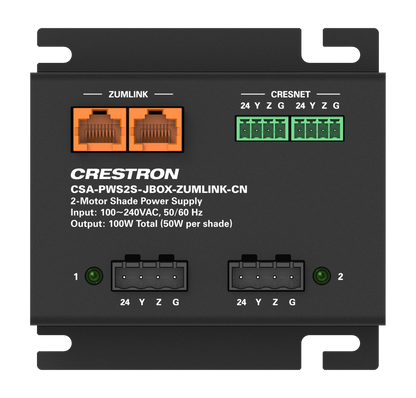

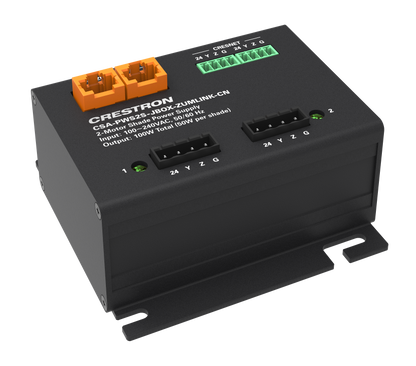

The CSA‑PWS2S‑JBOX‑ZUMLINK‑CN is a plenum-rated power supply designed for Crestron shade and Zūm® lighting devices. It features dual outputs for shades or Cresnet devices. This power supply is engineered to be hardwired into a standard 4 in. x 4 in junction box, providing seamless and secure installation.
Digital Quiet Motor Technology
Quiet Motor Technology allows for nearly inaudible operation while providing precise control of shade movement. Digital QMT® shade motors also keep track of the shade's position which allows the shade to be programmatically adjusted to the user's desired position.
Cresnet® Wired Communications (-CN Motors)
Cresnet wired communication provides dependable two-way communication with a control system. The Cresnet bus offers easy wiring and configuration, carrying bidirectional communication and 24VDC power to each device over a simple 4‑conductor cable.
Features
Key Features
- Power supply for up to two Crestron QMT series roller shades or drapery system motors
- Allows external power to pass through two Cresnet or two Zūm Link connections
- Zūm Link ports for commercial lighting applications utilizing custom programming
- 100 W total, 50 W per shade, 24V
- Individual per-motor overcurrent protection
- Miswire protection on power output terminals
- Anodized, black metal housing to blend with open ceilings
- LEDs to indicate power status for each shade
NOTES:
- The CSA‑PWS2S‑JBOX‑ZUMLINK‑CN must be installed by a licensed electrician and comply with local building codes.
- Outputs can be used for either shades or additional Cresnet devices. Do not combine shades and Cresnet devices on a single output. Each shade or device must have its own dedicated output.
- To configure shades or order shading parts and accessories, please use the Crestron Design Tool for Crestron Shading Solutions or call 1‑855‑53‑S‑H‑A‑D‑E (537‑4233) for support.
Specifications
| Power Requirements | |
| AC Input Power | 100-240VAC, 50-60 Hz |
| Input Current | 1A at 120VAC, 0.53A at 240VAC; Measured at full rated output |
| Maximum Output Rating | 100 W (4.2A) @24VDC total, LPS; 50 W (2.1A) @24VDC per output, LPS; 75 W @24VDC total (continuous load) for additional Cresnet devices |
| Ripple/Noise | <0.5% |
| Efficiency | > 85% |
| Motor Support | Provides power for up to two motors with each motor homerun to the power supply; Supports two Crestron roller shade motors, two drapery motors, or a combination of both; Carries 145 lbs per load |
| Wired Communications | |
| Zūm Link | (2) RJ‑45 ports |
| Cresnet | (2) 4-pin 3.5 mm detachable terminal blocks |
| Indicators | |
| 24VDC | (2) Green LEDs, indicate the presence of 24VDC on its respective shade output |
| Connections | |
| Line | (1) 18 AWG Class 1 flying lead; Black, line power input |
| Neutral | (1) 18 AWG Class 1 flying lead; White, neutral |
| Ground | (1) 16 AWG Class 1 flying lead; Green, ground |
| Shade Outputs | (2) 4-pin 5mm detachable terminal blocks; Independent Cresnet power output ports with polarity-sensitive terminals, supporting a maximum load of 50 W per output |
| CRESNET | (2) 4-pin 3.5 mm detachable terminal blocks, paralleled. Provides power and communication pass-through for Cresnet products. Maximum wire size: 14 AWG (1.5 mm2) |
| ZUMLINK | (2) RJ-45 ports for in-room Zūm Link device daisy-chaining. Passes through data from either the Cresnet ports or the Zūm Link ports |
| Environmental | |
| Indoor use only | |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Heat Dissipation | 19 BTU/hr @ 120VAC input and 1A on each output; 34 BTU/hr @ 120VAC input and 2A on each output; 45 BTU/hr @ 240VAC input and 1A on each output; 58 BTU/hr @ 240VAC input and 2A on each output; |
| Construction | |
| Housing | Anodized Black, metal |
| Mounting | Mounts using screws on the back of the enclosure. Meets UL 2043 requirements for installation in an environmental air-handling (plenum) space |
| Dimensions | |
| Height | 4.00 in. (102 mm) |
| Width | 4.16 in. (106 mm) |
| Depth | 2.18 in. (55 mm) |
| Weight | |
| 22 oz (635 g) | |
| Compliance | |
| Regulatory Model: M202237001 | |
| ETL® Listed for US & Canada, IC, FCC Part 15 Class B digital device, Conforms to UL 2043 | |
