Product Information
The CSAI‑PWS40 is an international, wall-mounted power pack that provides power for a Crestron® CSM-QMTDC international series roller shade or drapery track motor.
Overview

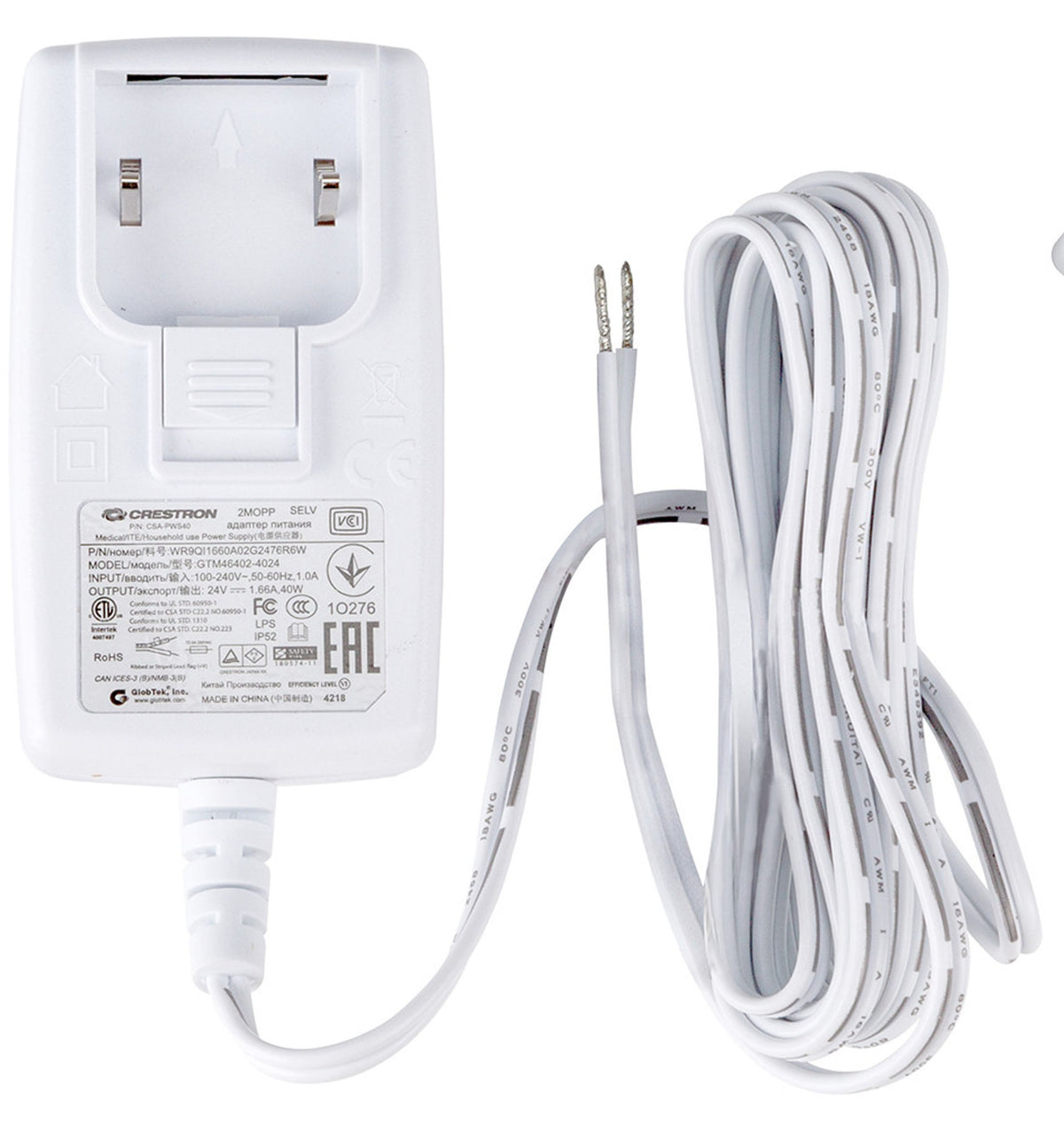

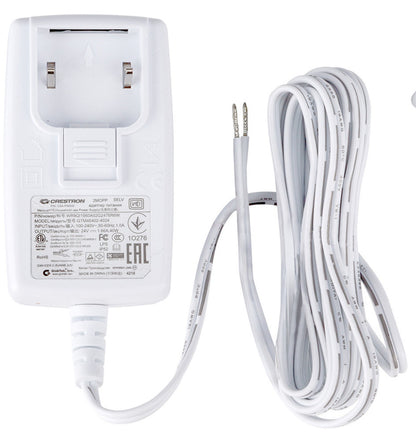

The CSAI‑PWS40 is an international, wall-mounted, 40 W, 24 VDC regulated power pack that provides power for one Crestron® CSM‑QMTDC international series roller shade or drapery track motor. The CSAI‑PWS40 is ideally suited to provide local power for motors that communicate using the infiNET EX® network.
Features
Key Features
- Wall-mount power pack, international version
- 24 VDC, 40 W max output
- Ideal for powering a single infiNET EX® wireless roller shade or drapery track motor
- Compatible with international CSM-QMTDC series roller shade and drapery track motors
Specifications
| Power Requirements | |
| Input | 1 A @ 100–240 VAC, 50/60 Hz |
| Output | 24 VDC, 40 W (1.66 A), regulated |
| Connections | |

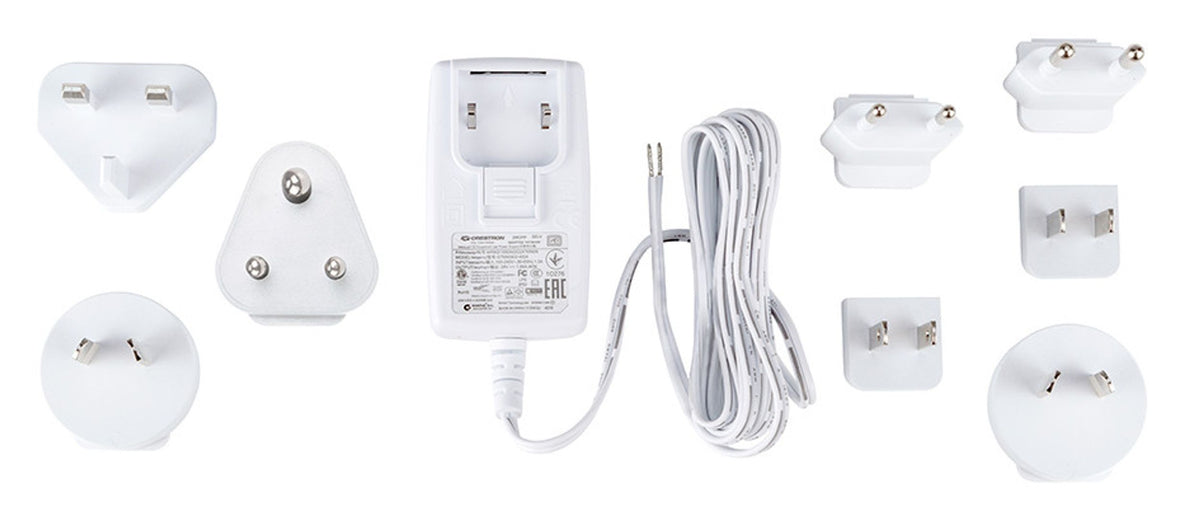

| Line | (1) Ungrounded AC power plug, line power input; Plug type is selectable via region-specific adapter inserts (NEMA 1-15P 2 blade, AS 3112 2 blade, UK BS 1363 3 blade, CEE 7/16 2 pin, KS C8305 2 pin, IRAM 2073 2 blade, GB 2099 2 blade, IS 1293 6A/SANS 164-3/BS546 3 pin) |
| Load | (1) 8 ft (2.43 m) attached cable with inline ferrite core and flying leads; Connect only one CSM‑QMTDC international series roller shade or drapery track motor |
| Construction | |
| 94V-0 polycarbonate, white, outlet-mountable | |
| Environmental | |
| Temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 15% to 95% RH (noncondensing) |
| For indoor use only | |
| Dimensions | |
| Height | 2.91 in (74 mm) |
| Width | 1.71 in (43 mm) |
| Depth | 2.21 in. (53 mm); Projects 1.54 in. (39 mm) from the AC outlet |
| Weight | |
| 6.4 oz (182 g) | |
| Compliance | |
| cETLus 60950, cETLus UL1310, UL, SELV, EAC, LPS, 2MOPP, CE, Ukraine UKRSepro, VCCI, RoHS Level VI, FCC, CAN ICES-3, IP52, Double Insulation, WEEE | |
