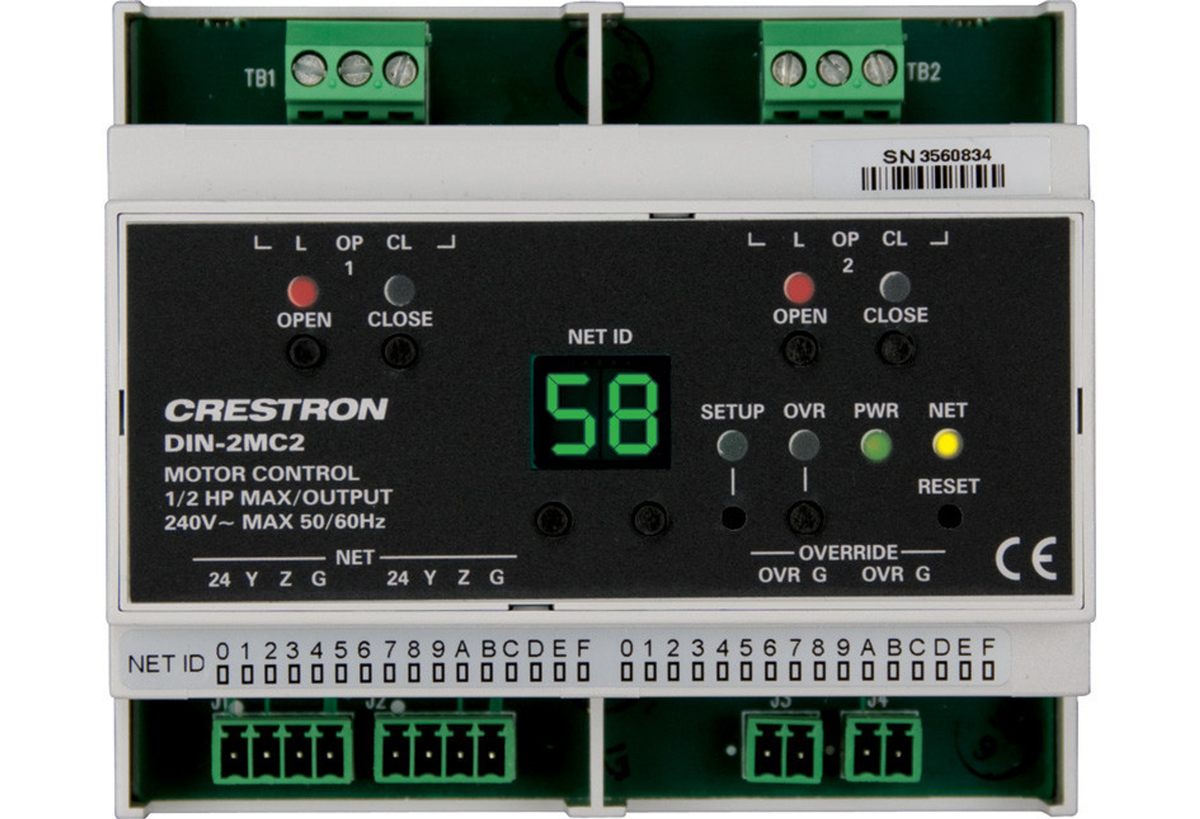

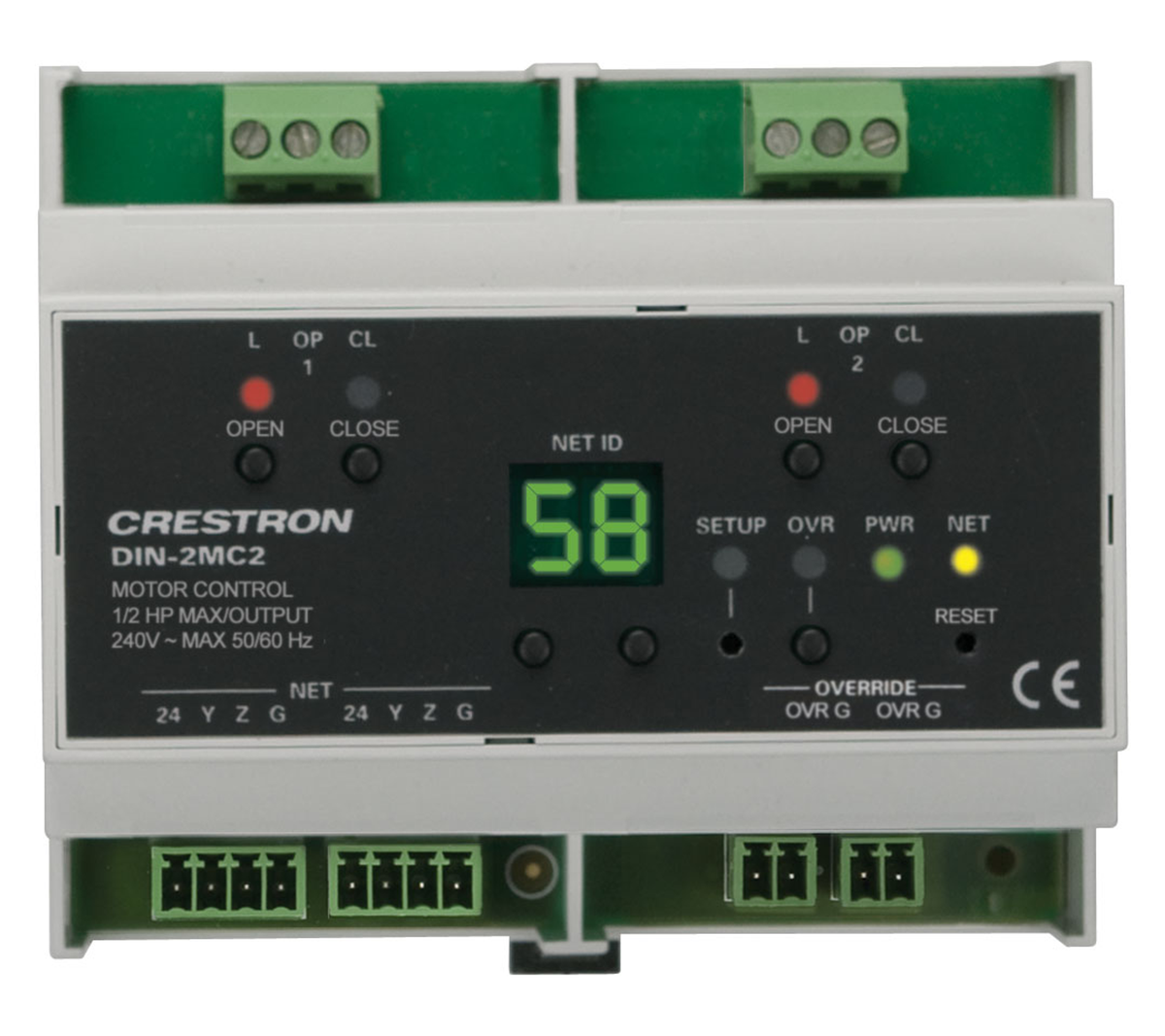

The DIN-2MC2 is a 2-channel motor control module designed to provide control of bidirectional motors for drapes, shades, projection screens, lifts, skylights, and gates.
Overview
The DIN-2MC2 is a 2-channel motor control module designed to provide control of bidirectional motors for drapes, shades, projection screens, lifts, skylights, and gates. Each channel supports up/down or open/close control of a conventional three-wire bidirectional type motor up to 1/2 HP at voltages up to 240 Volts. Built-in timing and interlock logic make it easy to program the DIN-2MC2 for failsafe operation.
Override Input
An override input is provided to allow an external contact closure to momentarily override the control system program and set each channel output to its override preset state. States can be set and saved locally from the front panel, or remotely via software.
DIN Rail Installation
The DIN-2MC2 is designed to snap onto a standard DIN rail for installation in a wall mount enclosure. Wiring connections are made using screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel. When installed in an enclosure utilizing 45 mm cutouts, the DIN-2MC2's front panel stays accessible while the connections are concealed.
Cresnet®
The DIN-2MC2 communicates with a Crestron control system via the Cresnet control network. A pair of Cresnet ports is provided on the DIN-2MC2 allowing for easy daisy-chaining of several DIN Rail Series automation control modules.
Features
Key Features
- Dual-channel bidirectional motor control
- Supports 120 to 240 Volt 50/60 Hz
- Override input
- Cresnet® communications
- Setup via front panel or software
- Programmable functionality via DIN-AP2
- 6M wide DIN rail mounting
Specifications
| Load Ratings | |
| Motor Control Channels | 2 |
| Per Channel | 0.5 HP @ 240 Volts AC, 50/60 Hz |
| Module Total | 1 HP @ 240 Volts AC, 50/60 Hz |
| Load Types | 3-Wire bidirectional motors |
| Connections | |
| 1 - 2 | (2) sets of (3) captive screw terminals; 3-wire bidirectional motor control relays; Maximum Wire Size: 12 AWG (2.5 mm²) |
| NET | (2) 4-pin 3.5mm detachable terminal blocks, paralleled; Cresnet slave port |
| OVERRIDE |
(2) 2-pin 3.5mm detachable terminal blocks, paralleled; |
| Controls & Indicators | |
| OPEN & CLOSE 1 – 2 |
(4) Red LEDs and (4) miniature pushbuttons for status indication and local control of each channel |
| NET ID | (2) 7-Segment green LED digits and (2) miniature pushbuttons for setting Cresnet ID |
| SETUP | (1) Red LED and (1) recessed miniature pushbutton for enabling setup mode and touch-settable ID |
| OVR | (1) Red LED and (1) miniature pushbutton for enabling override mode and saving override presets |
| PWR | (1) Green LED, illuminates when DC power is applied to the NET port |
| NET | (1) Yellow LED, indicates communication with the control processor |
| RESET | (1) Recessed miniature pushbutton, resets internal processor |
| Enclosure | |
|
Light gray polycarbonate housing with polycarbonate label overlay, UL94 V-0 rated, 35 mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45mm front panel cutout, occupies 6 DIN module spaces (108 mm) |
|
| Power Requirements | |
| Cresnet Power Usage |
3 Watts (0.125 Amps @ 24 Volts DC) |
| Environmental | |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Heat Dissipation | 10 BTU/hr |
| Dimensions | |
| Height | 3.71 in (94.2 mm) |
| Width | 4.18 in (106.0 mm) |
| Depth | 2.35 in (59.5 mm) |
| Weight | |
| 7.4 oz (210 g) | |
