Crestron

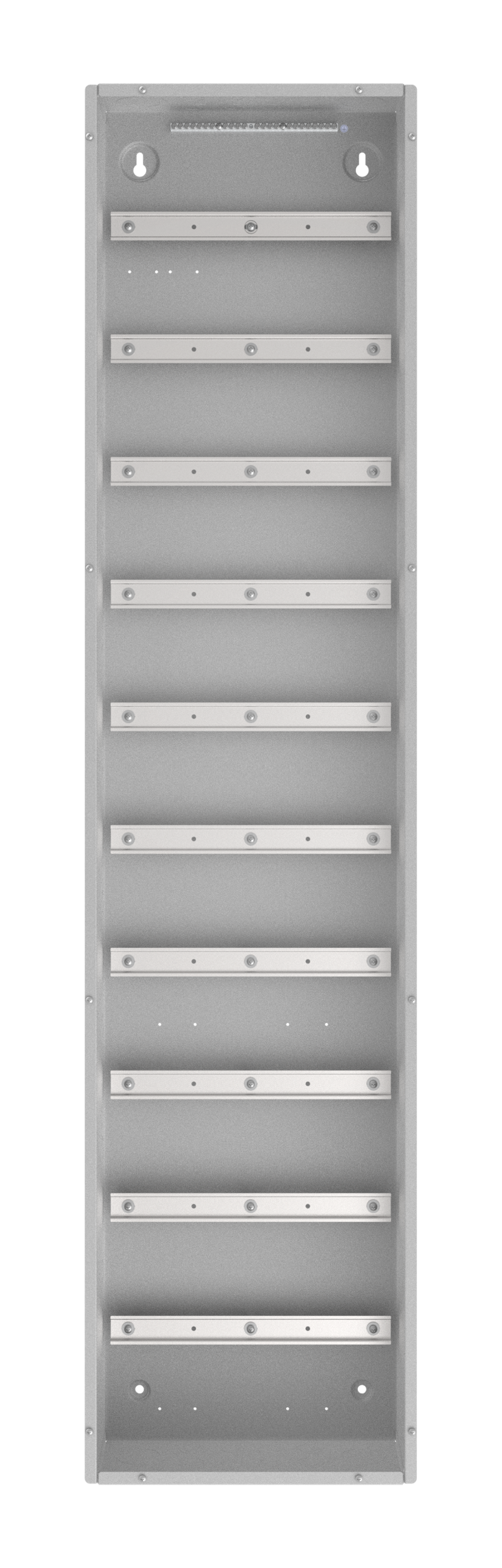

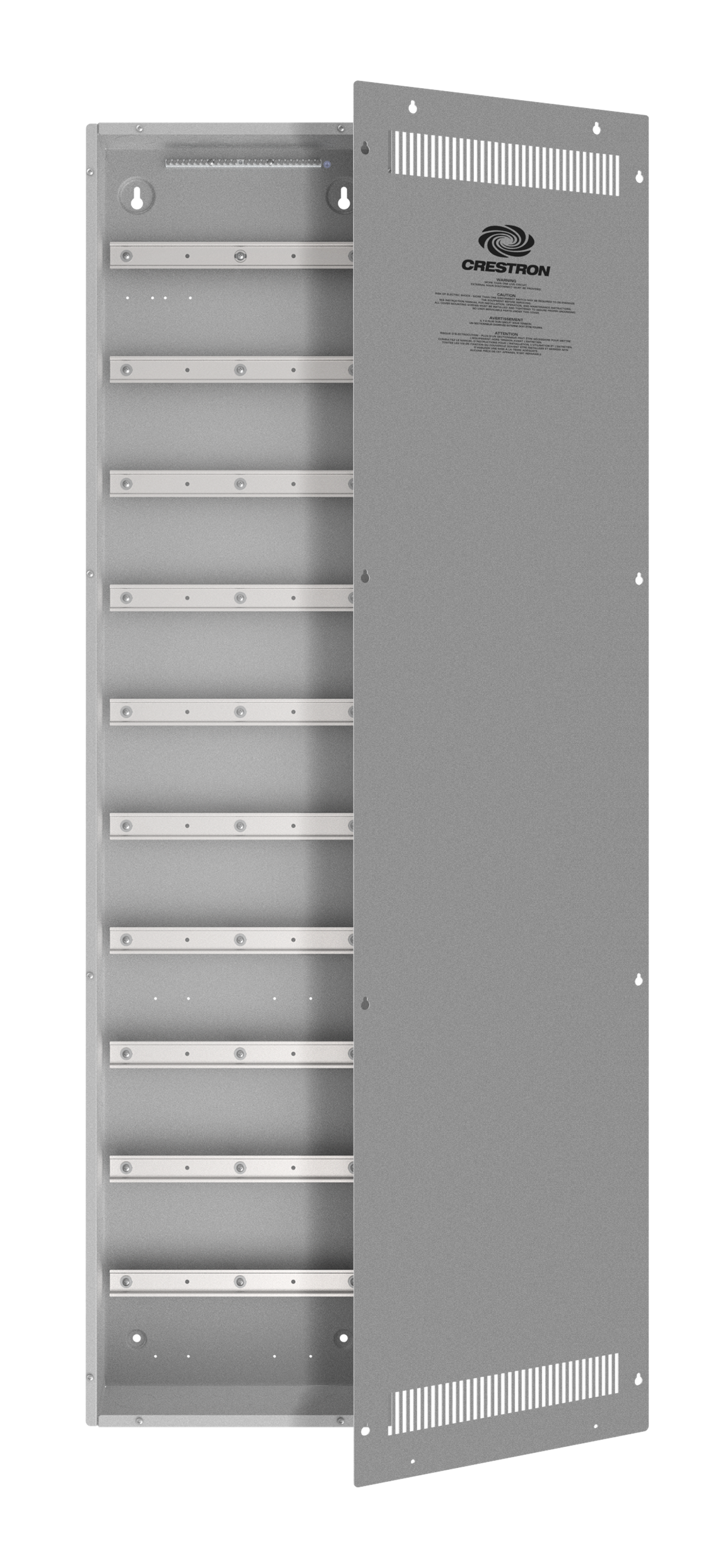

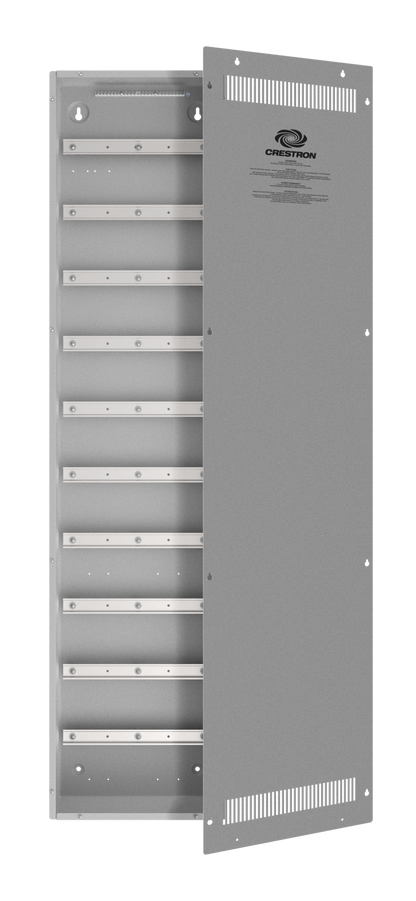

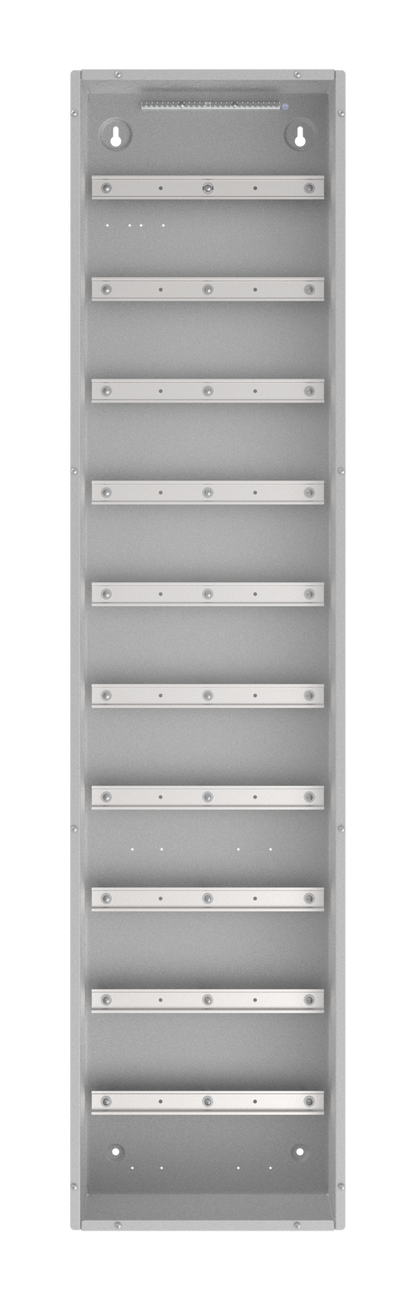

CTN DIN-EN-10X18M DIN Rail Enclosure, 10 DIN Rails, 18 M Wide

CTN DIN-EN-10X18M DIN Rail Enclosure, 10 DIN Rails, 18 M Wide

MFR: Crestron MPN : DIN-EN-10X18M
SKU: DIN-EN-10X18M
$1,181.25 USD
$1,181.25 USD
Sale Sold out
Shipping calculated at checkout.

Fast & Reliable Shipping

Ships in 3–5 business days

Secure Checkout

Your information is protected

Expert Support

Call, chat or email our team

View full details
Product Information

Enclosure that provides a centralized mounting solution for DIN rail products. Available with 2, 3, 6, 10 DIN rails, 18 M wide.

Overview

The Crestron® DIN‑EN series of enclosures provide centralized mounting solutions for DIN rail products such as the DIN‑AP4, DIN‑DLI, DIN‑1DIMU4, and Zūm® DIN lighting control modules. The enclosures also include a removable front cover for easy access to installed devices. DIN‑EN enclosures are taller than the previous generation of enclosures and provide more room for wiring.

The DIN‑EN enclosures offer knockouts at each row to provide through-wiring capabilities along the side of the cabinet. The DIN‑EN‑10X18M features a deeper cabinet than other enclosures to allow for additional cable routing.

Note: Third‑party DIN devices can also be installed in the enclosures.

DIN Rail Mounting
DIN‑EN enclosures utilize 18 M wide DIN rails. An additional 1 m (18 mm) clearance between the DIN rail end and the enclosure wall provides space for DIN device locking blocks or side‑routed wiring. The enclosures are available in four sizes to accommodate two, three, six, or ten DIN rails.

TAA Compliant

Features

Key Features
  • DIN rail enclosure for Crestron® DIN devices
  • Available with two, three, six, or ten DIN rails, 18 M wide
  • Removable front cover for easy device access
  • Features additional interior space for easy through-wiring capability
  • Intertek® listed for US and Canada

Specifications

DIN Rail Detail
DIN‑EN‑2X18M (2) 342 mm x 35 mm rails
DIN‑EN‑3X18M (3) 342 mm x 35 mm rails
DIN‑EN‑6X18M (6) 342 mm x 35 mm rails
DIN‑EN‑10X18M (10) 342 mm x 35 mm rails
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (noncondensing)
Construction
Enclosure 16‑gauge galvanized steel
Cover 16‑gauge galvanized steel;
Gray powder coat finish
Mounting Surface wall mount
Dimensions
DIN‑EN‑2X18M Height: 15.91 in. (404 mm);
16.06 in. (408 mm) with cover

Width: 14.13 in. (359 mm);
14.13 in. (359 mm) with cover

Depth: 4.13 in. (105 mm);
4.27 in. (108 mm) to outside of cover;
4.38 in. (111 mm) to top of screw
DIN‑EN‑3X18M Height: 23.50 in. (597 mm);
24.25 in. (616 mm) with cover

Width: 14.35 in. (364 mm);
16.10 in. (409 mm) with cover

Depth: 4.25 in. (108 mm);
4.31 in. (110 mm) to outside of cover;
4.43 in. (112 mm) to top of screw
DIN‑EN‑6X18M Height: 41.22 in. (1,047 mm);
41.97 in. (1,066 mm) with cover

Width: 14.35 in. (364 mm);
16.10 in. (409 mm) with cover

Depth: 4.25 in. (108 mm);
4.31 in. (110 mm) to outside of cover;
4.43 in. (112 mm) to top of screw
DIN‑EN‑10X18M Height: 64.85 in. (1,647 mm);
65.60 in. (1,666 mm) with cover

Width: 14.35 in. (364 mm);
16.10 in. (409 mm) with cover

Depth: 6.00 in. (152 mm) to inside of cover;
6.07 in. (154 mm) to outside of cover;
6.18 in. (157 mm) to top of screw
Weight
DIN‑EN‑2X18M 12.05 lb (5.47 kg)
DIN‑EN‑3X18M 17.79 lb (8.07 kg)
DIN‑EN‑6X18M 30.00 lb (13.61 kg)
DIN‑EN‑10X18M 50.60 lb (22.95 kg)
Compliance
Regulatory Model: DIN‑EN

Intertek® listed for US and Canada
Empty enclosure meets UL 50 & CSA C22.2 No. 94.1
