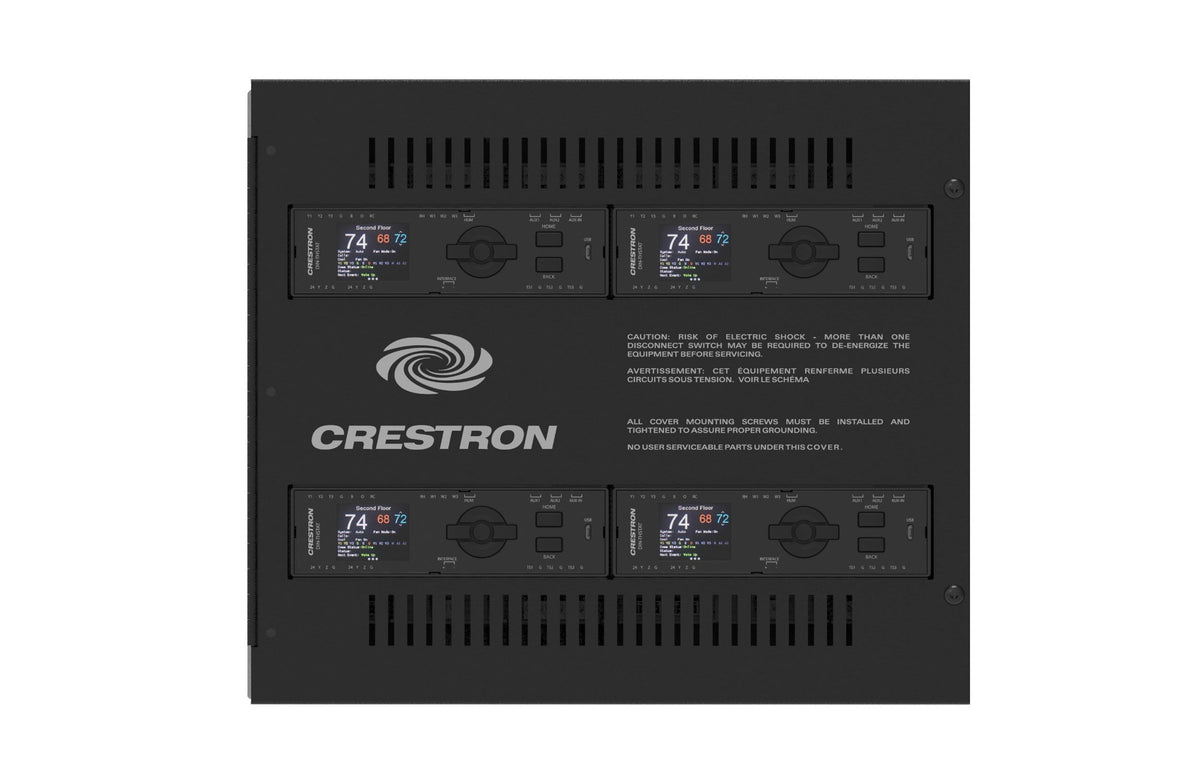

The Crestron® DIN-EN-2X18-HC-2OPEN is a UL® Listed enclosure that provides an attractive centralized mounting solution for the DIN-THSTAT thermostats and other DIN rail modules. An elegantly finished black cover matches the aesthetic of the DIN-THSTAT thermostat while providing a professional look and feel. A hinged cover provides easy access to equipment wiring while openings in the cover provide access to the DIN modules through the cover.
Overview
The Crestron® DIN-EN-2X18-HC-2OPEN is a UL® Listed enclosure that provides an attractive centralized mounting solution for the DIN-THSTAT thermostats and other DIN rail modules. An elegantly finished black cover matches the aesthetic of the DIN-THSTAT thermostat and provides a professional look and feel. A hinged cover provides easy access to equipment wiring while openings in the cover provide access to the DIN modules through the cover.
DIN Rail Mounting
The DIN-EN-2X18-HC-2OPEN enclosure utilizes 18M wide DIN rails to install up to 2 DIN modules (9M wide) per DIN rail.
Raised DIN rails allow access to the DIN module's control surface through the cover openings. The DIN-EN-2X18-HC-2OPEN provides 2 raised DIN rails (18M wide) with the ability to install 4 DIN modules (9M wide).
Features
Key Features
- DIN rail enclosure for the DIN-THSTAT thermostat and other DIN modules (sold separately)
- 2 Cover openings provide access for up to 4 DIN modules (9M wide) through the cover
- 2 DIN rails, 18M wide
- Raised DIN rails allow for additional wiring behind the DIN rails
- Elegantly finished black cover
- Blank cover plates (3M and 9M wide) supplied to cover unpopulated cover openings
- Hinged cover for easy access to the equipment wiring
- UL® Listed
Specifications
| DIN Rail Detail | |
| (2) DIN rails, 18M wide (342 mm x 35 mm); (2) Raised DIN rails to allow access to the DIN module through the (2) cover openings |
|
| Cover Openings | |
| (2) Cover openings; Allows access to DIN modules through the cover opening; Class 2 terminations are allowed in this area |
|
| Environmental | |
| Temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Construction | |
| Enclosure | 16-gauge galvanized steel |
| Cover | 16-gauge galvanized steel; Black powder coat finish; Cover openings for DIN module access; Hinged, secure with included screws |
| Mounting | Surface or flush wall mount NOTE: Custom framing may be required to flush mount. |
| Dimensions | |
| Height | 12.32 in (323 mm) |
| Width | 14.13 in (359 mm) |
| Depth | 4.38 in (111 mm) |
| View the DIN-EN-2X18-HC-2OPEN CAD drawings for detailed dimension information. | |
| Weight | |
| 10.75 lb (4.9 kg) | |
| Compliance | |
| UL Listed | |
