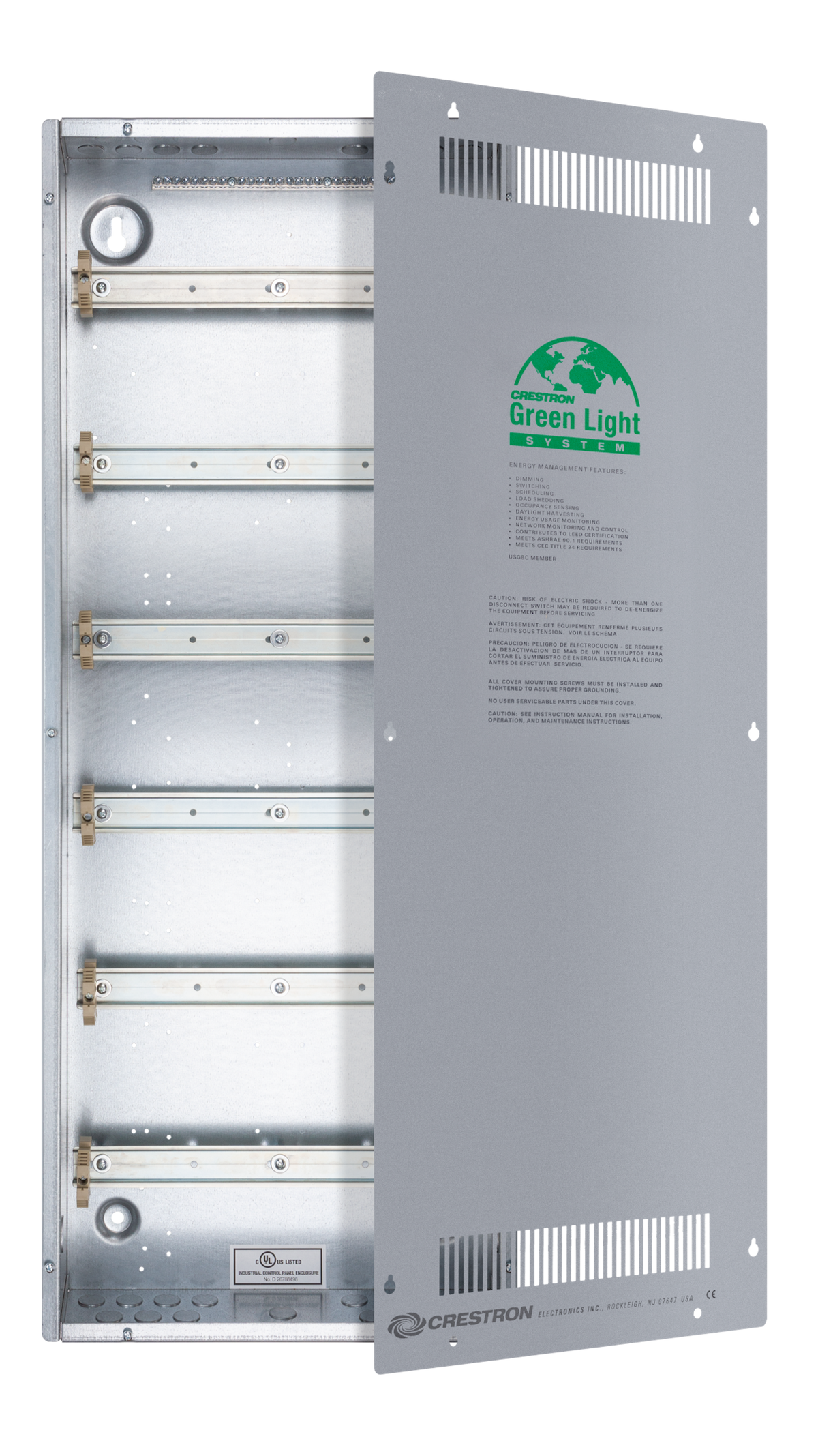

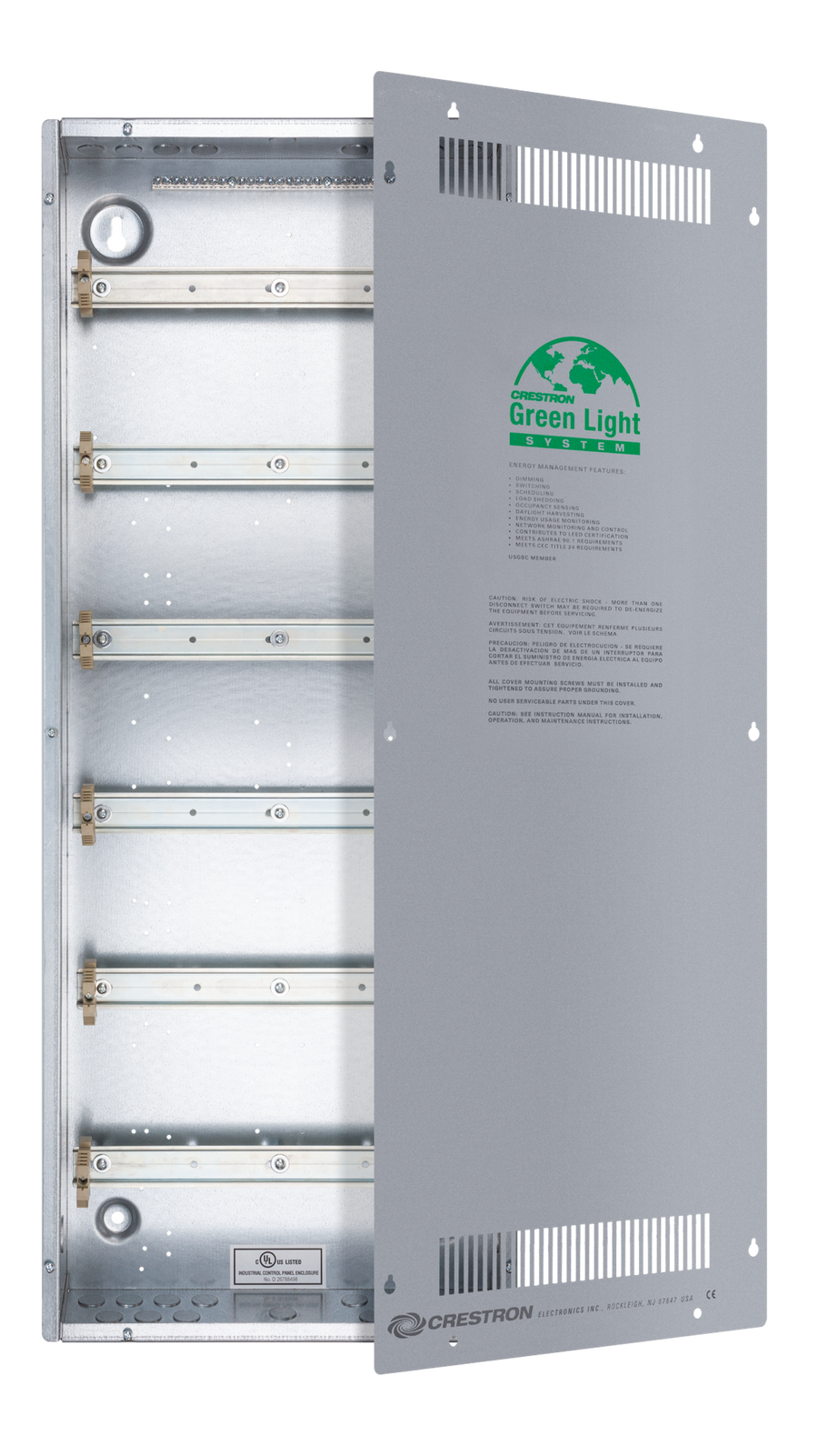

• Crestron DIN-EN-6X18 - Enclosure for DIN Rail Devices, 6 DIN Rails, 18 M Wide
1 1

Crestron

CTN DIN-EN-6X18 Enclosure for DIN Rail Devices, 6 DIN Rails, 18 M Wide

CTN DIN-EN-6X18 Enclosure for DIN Rail Devices, 6 DIN Rails, 18 M Wide

MFR: Crestron MPN : DIN-EN-6X18
SKU: DIN-EN-6X18
$606.25 USD
$606.25 USD
Sale Sold out
Shipping calculated at checkout.

Fast & Reliable Shipping

Ships in 3–5 business days

Secure Checkout

Your information is protected

Expert Support

Call, chat or email our team

View full details
Product Information

Enclosure that provides a centralized mounting solution for DIN rail products. Available with 2, 3, or 6 DIN rails, 18 M wide

Overview

The Crestron® DIN‑EN series of enclosures provide centralized mounting solutions for DIN rail products such as the DIN‑AP3, DIN‑DALI‑2, and DIN‑1DIMU4. Third‑party DIN devices can also be installed. Included with these enclosures is a removable front cover for easy access to installed devices.

DIN Rail Mounting
Crestron DIN‑EN enclosures utilize 18 M wide DIN rails with 1 M (18 mm) of extra space between the end of the DIN rail and the enclosure wall to provide room for DIN device locking blocks or for wiring along the sides of the enclosure. Each enclosure is available in three sizes to accommodate two, three, or six DIN rails.

CrestronHome (2) TAA Compliant

Features

Key Features
  • DIN rail enclosure for Crestron® DIN devices
  • Available with 2, 3, or 6 DIN rails, 18 M wide
  • Removable front cover for easy device access
  • Intertek® Listed for US & Canada

Specifications

DIN Rail Detail
DIN-EN-2X18 (2) 342 mm x 35 mm rails
DIN-EN-3X18 (3) 342 mm x 35 mm rails
DIN-EN-6X18 (6) 342 mm x 35 mm rails
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (noncondensing)
Construction
Enclosure 16-gauge galvanized steel
Cover 16-gauge galvanized steel;
Gray powder coat finish
Mounting Surface wall mount
Dimensions
DIN-EN-2X18 Height: 12.32 in. (323 mm);
Width: 14.13 in. (359 mm);
Depth: 4.38 in. (111 mm)
DIN-EN-3X18 Height: 23.50 in. (597 mm);
Width: 14.38 in. (366 mm);
Depth: 4.44 in. (113 mm)
DIN-EN-6X18 Height: 38.88 in. (989 mm);
Width: 14.38 in. (366 mm);
Depth: 4.44 in. (113 mm)
Weight
DIN-EN-2X18 11.4 lb (5.17 kg)
DIN-EN-3X18 20.3 lb (9.18 kg)
DIN-EN-6X18 30.5 lb (13.83 kg)
Compliance
Intertek® Listed for US & Canada;
Empty enclosure is designed to meet UL50 & CSA C22.2 No 94.1
