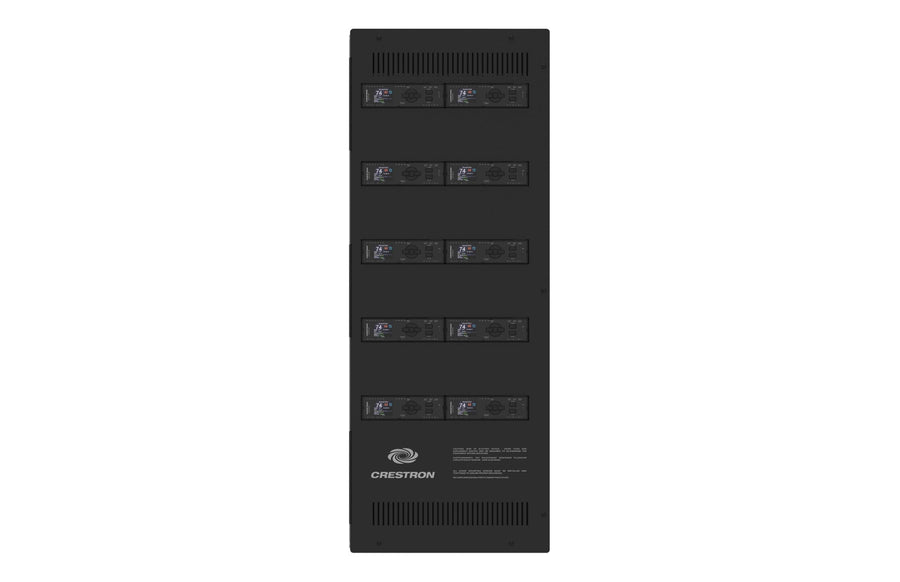

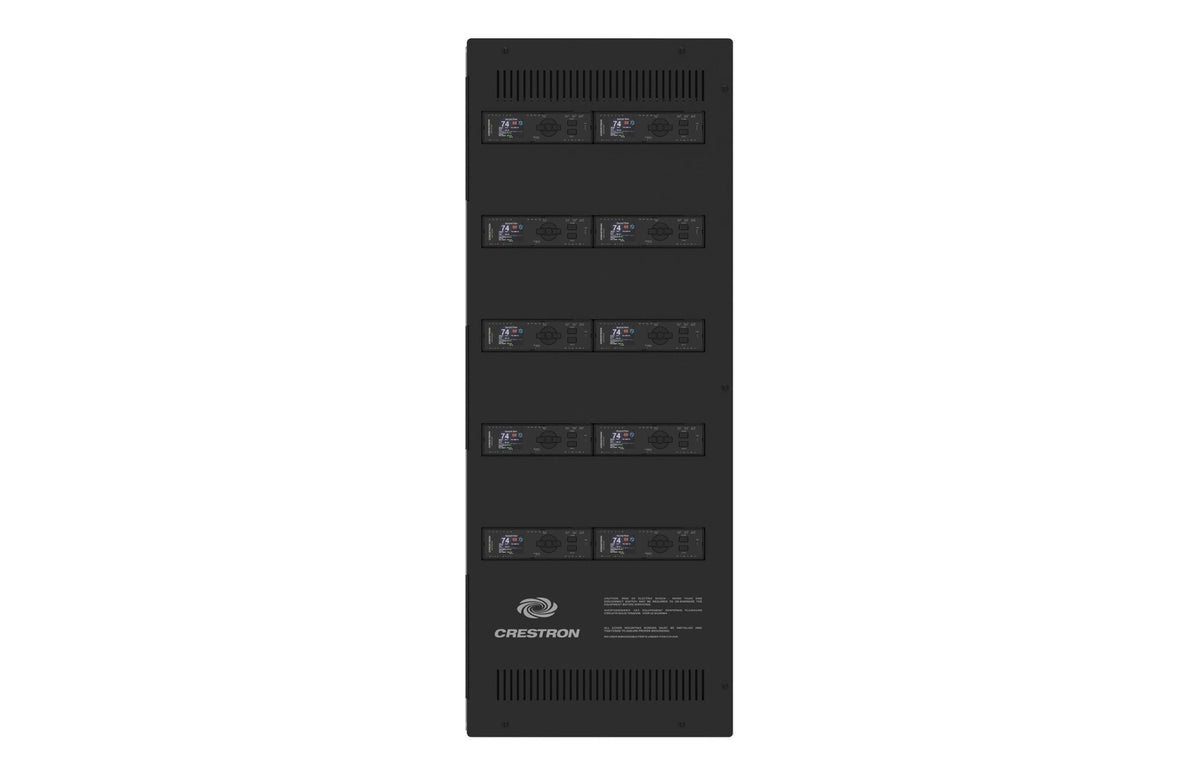

The Crestron® DIN-EN-6X18-HC-5OPEN is a UL® Listed enclosure that provides an attractive centralized mounting solution for the DIN-THSTAT thermostats and other DIN rail modules. An elegantly finished black cover matches the aesthetic of the DIN-THSTAT thermostat while providing a professional look and feel. A hinged cover provides easy access to equipment wiring while openings in the cover provide access to the DIN modules through the cover.
Overview
The Crestron® DIN-EN-6X18-HC-5OPEN is a UL® Listed enclosure that provides an attractive centralized mounting solution for the DIN-THSTAT thermostats and other DIN rail modules. An elegantly finished black cover matches the aesthetic of the DIN-THSTAT thermostat and provides a professional look and feel. A hinged cover provides easy access to equipment wiring while openings in the cover provide access to the DIN modules through the cover.
DIN Rail Mounting
The DIN-EN-6X18-HC-5OPEN enclosure utilizes 18M wide DIN rails to install up to 2 DIN modules (9M wide) per DIN rail.
Raised DIN rails allow access to the DIN module's control surface through the cover openings. The DIN-EN-6X18-HC-5OPEN provides 6 DIN rails - 5 raised DIN rails with the ability to install 10 DIN modules (9M wide) and 1 normal-height DIN rail (18M wide) located in a separate fire enclosure.
Separate Fire Enclosure
The design of the panel creates a fire enclosure which provides an installation location for line-voltage (Class 1) devices. The fire enclosure provides a barrier that maintains a separation between Class 1 device installation and wiring in the fire enclosure and Class 2 device installation and wiring in the enclosure area with the cover cutouts.
The fire enclosure contains one normal-height DIN rail and does not include cutouts in the cover. The fire enclosure is perfectly suited for devices like the DIN-PWS60 power supply or 24 VAC HVAC transformers (not supplied).
Features
Key Features
- DIN rail enclosure for the DIN-THSTAT thermostat and other DIN modules (sold separately)
- 5 Cover openings provide access for up to 10 DIN modules (9M wide) through the cover
- 6 DIN rails, 18M wide
- Raised DIN rails allow for additional wiring behind the DIN rails
- Elegantly finished black cover
- Blank cover plates (3M and 9M wide) supplied to cover unpopulated cover openings
- Hinged cover for easy access to the equipment wiring
- Fire enclosure to separate Class 1 and Class 2 device installation and wiring
- UL® Listed
Specifications
| DIN Rail Detail | |
| (6) DIN rails, 18M wide (342 mm x 35 mm); (5) Raised DIN rails to allow access to the DIN module through the (5) cover openings; (1) Normal-height DIN rail in fire enclosure |
|
| Cover Openings | |
| (5) Cover openings; Allows access to DIN modules through the cover opening; Class 2 terminations are allowed in this area |
|
| Fire Enclosure | |
| (1) Fire enclosure; Separates Class 1 and Class 2 device installation and wiring for Class 1 terminations; No cover openings; Contains (1) DIN rail, 18M wide (342 mm x 35 mm), normal-height DIN rail |
|
| Environmental | |
| Temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Construction | |
| Enclosure | 16-gauge galvanized steel |
| Cover | 16-gauge galvanized steel; Black powder coat finish; Cover openings for DIN module access; Hinged, secure with included screws |
| Mounting | Surface or flush wall mount NOTE: Custom framing may be required to flush mount. |
| Dimensions | |
| Height | 38.88 in (989 mm) |
| Width | 14.38 in (366 mm) |
| Depth | 4.44 in (113 mm) |
| View the DIN-EN-6X18-HC-5OPEN CAD drawings for detailed dimension information. | |
| Weight | |
| 31.32 lb (14.21 kg) | |
| Compliance | |
| UL Listed | |
