Product Information

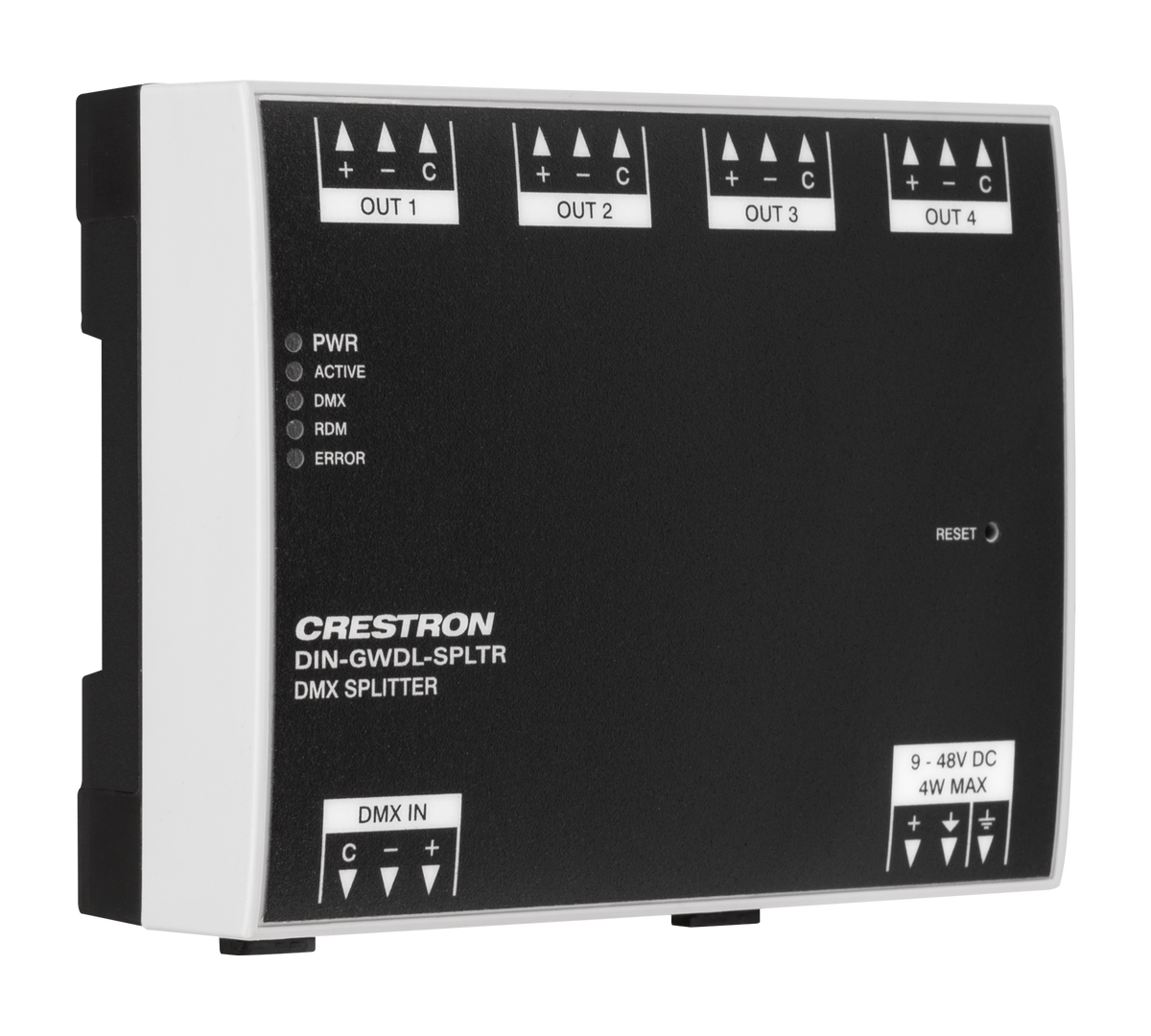

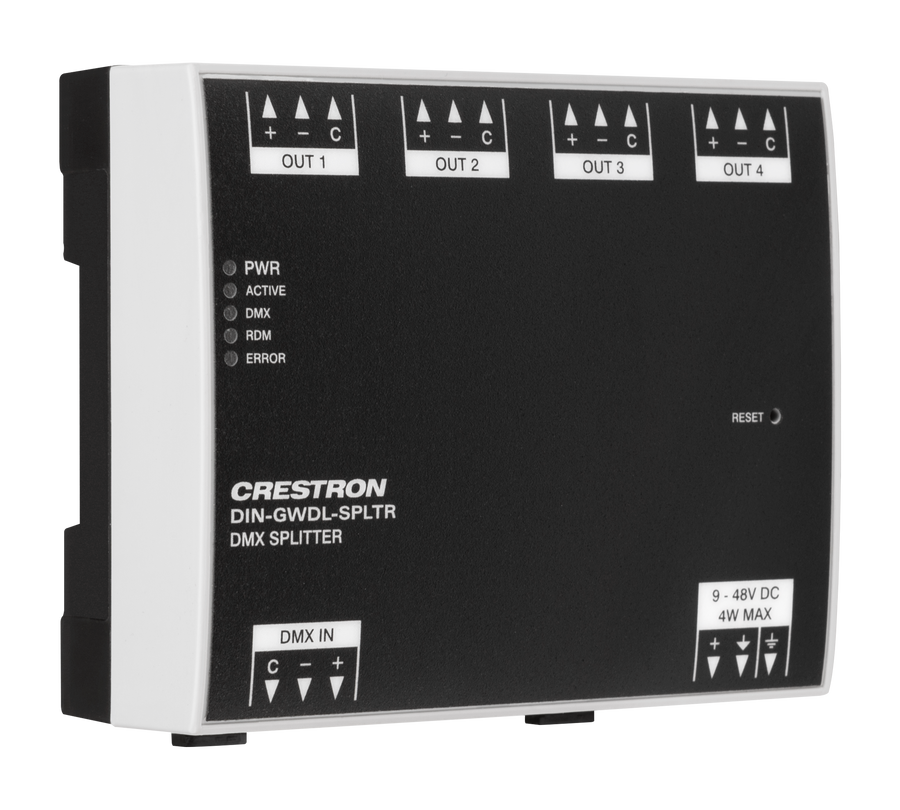

The DIN-GWDL-SPLTR expands the capability and flexibility of the DIN‑GWDL by providing four additional outputs for Crestron light fixtures and Crestron compatible third-party light fixtures.
Overview
NOTE: To order the DIN-GWDL-SPLTR as part of a configured system, use the Light Fixture Configuration Tool or call 1-888-273-7876 (option 3) for Sales Support Services and/or your Regional Sales Manager.
The DIN-GWDL-SPLTR expands the capability and flexibility of the DIN‑GWDL by providing four additional outputs for Crestron light fixtures and Crestron compatible third-party light fixtures.
Built on the DMX512 standard, DMX-C offers the speed and reliability of a traditional DMX system with the seamless and consistent user experience of the Crestron Home OS. When connected to a DIN‑GWDL, DMX-C lighting fixtures are auto-discovered, auto-addressed, and treated as native Crestron devices with a consistent and intuitive interface.
Supports up to 85 Crestron Light Fixtures and Crestron Compatible Third-Party Fixtures
The DIN‑GWDL has two DMX-C outputs, each of which supports up to 32 directly connected Crestron light fixtures and Crestron compatible third-party light fixtures, for a total of 64 directly connected fixtures. Each added DIN‑GWDL‑SPLTR adds four additional DMX-C outputs, each of which supports up to 32 directly connected Crestron light fixtures and Crestron compatible third-party light fixtures. The DIN‑GWDL with a DIN‑GWDL‑SPLTR can support a total of 85 Crestron light fixtures and Crestron compatible third-party light fixtures.
Fast Commissioning
Connect Crestron light fixtures and Crestron compatible third-party light fixtures quickly with the RJ-45 adapters. Verify the system immediately by testing lighting loads with local controls. Once connected to a Crestron Home processor through a DIN‑GWDL, DMX-C allows for lighting loads to be automatically addressed and discovered using the fixture identify tool.
Features
Key Features
- Designed exclusively for Crestron Home® OS
- Provides 4 outputs, each supporting up to 32 directly connected Crestron light fixtures and Crestron compatible third-party light fixtures
- Expands the capability of the DIN-GWDL to support up to 85 Crestron light fixtures and Crestron compatible third-party light fixtures
- Expands wire run maximum 1000 ft (305 m) beyond the DIN-GWDL
- RJ-45 adapters included for quick wiring using standard CAT5 cable
- Order using the Crestron Light Fixture Configuration Tool
- 6U 35 mm DIN rail mountable
Specifications
| Supported Fixtures | |
| Crestron light fixtures | |
| Crestron compatible third-party light fixtures | |
| Communications | |
| DMX-C | Supports discovery, auto-addressing and fixture data; DMX-C communications with Crestron light fixtures and Crestron compatible third-party light fixtures |
| Connections | |
| 9-48VDC | (1) 3-pin 5.18 mm terminal block; 9 - 48VDC, 4 W Max |
| DMX IN | (1) 3-pin 5.18 mm terminal bock; Connect to DMX 1 or DMX 2 of DIN-GWDL Termination: Terminate the connection to a DIN-GWDL-SPLTR with the 120Ω termination resistor included with the DIN-GWDL-SPLTR between the + and - pins on the terminal block that connects to DMX IN |
| OUT 1-4 | (4) 3-pin 5.18 mm terminal blocks; Isolated DMX-C outputs; One universe split between four ports; Each output supports up to 32 directly connected devices Wiring: Use shielded CAT5 wire or better with a shielded connector, do not connect drain to ground; 24 AWG minimum; RJ-45 to 3-pin adapters included to make CAT5 STP connections; Daisy chain all fixtures, do not create loops; 1,000 ft (305 m) maximum per output Termination: Terminate all daisy chain runs with the termination resistor included with the fixtures |
| Controls and Indicators | |
| RESET button | (1) Recessed push button for software reset |
| PWR LED | (1) Red LED indicates operating power is supplied |
| ACTIVE LED | (1) Red LED indicates device is active |
| DMX LED | (1) Red LED indicates DMX activity |
| RDM LED | (1) Red LED indicates RDM activity |
| ERROR LED | (1) Red LED indicates an error |
| Power | |
| Power Pack |
9-8VDC; |
| Power Consumption | 4 W max |
| Environmental | |
| Temperature | 32° to 122°F (0° to 50°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Construction | |
| Mounting | 6 unit wide DIN rail mounting enclosure (DIN43880 / EN60715 (35/7.5 rail)) |
| Ingress Protection | IP40 |
| Dimensions | |
| Height | 3.74 in. (95 mm); 5.62 in. (143 mm) with terminal blocks and RJ-45 adapters |
| Width | 4.23 in. (108 mm) |
| Depth | 1.57 in. (40 mm) |
| Weight | |
| 0.44 lb (0.2 kg) | |
| Compliance | |
| FCC, IC, CE, and UL® listed To search for product certificates, refer to support.crestron.com/app/certificates. |
|
