Simplifies integration between a Crestron® 3-Series® or 4-Series™ lighting control system and any DMX lighting fixture or controller. Enables distribution of DMX over Ethernet or Wi-Fi® via sACN, Art-Net, or ESP.
Overview

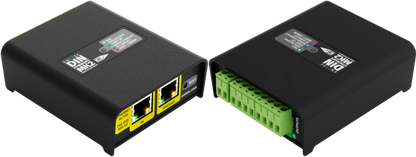

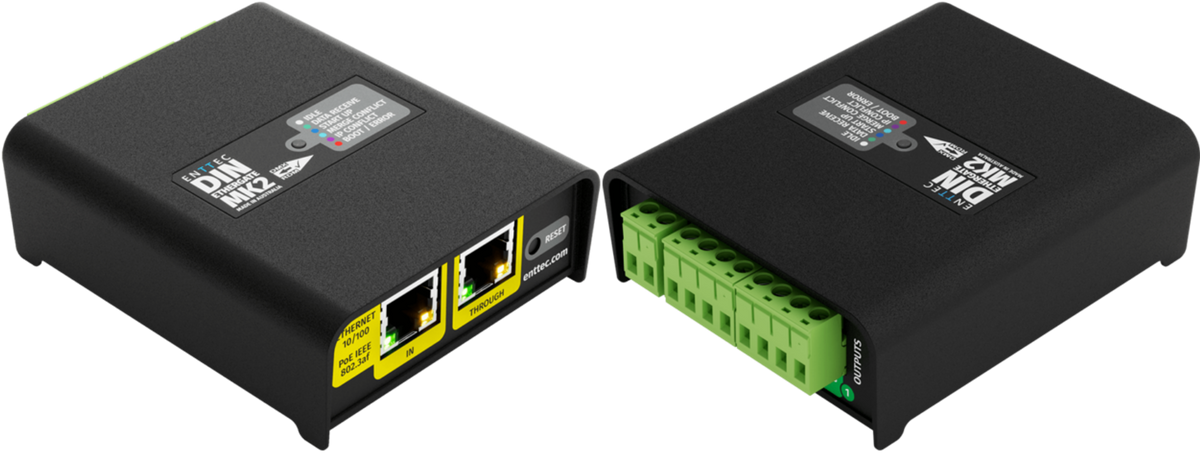

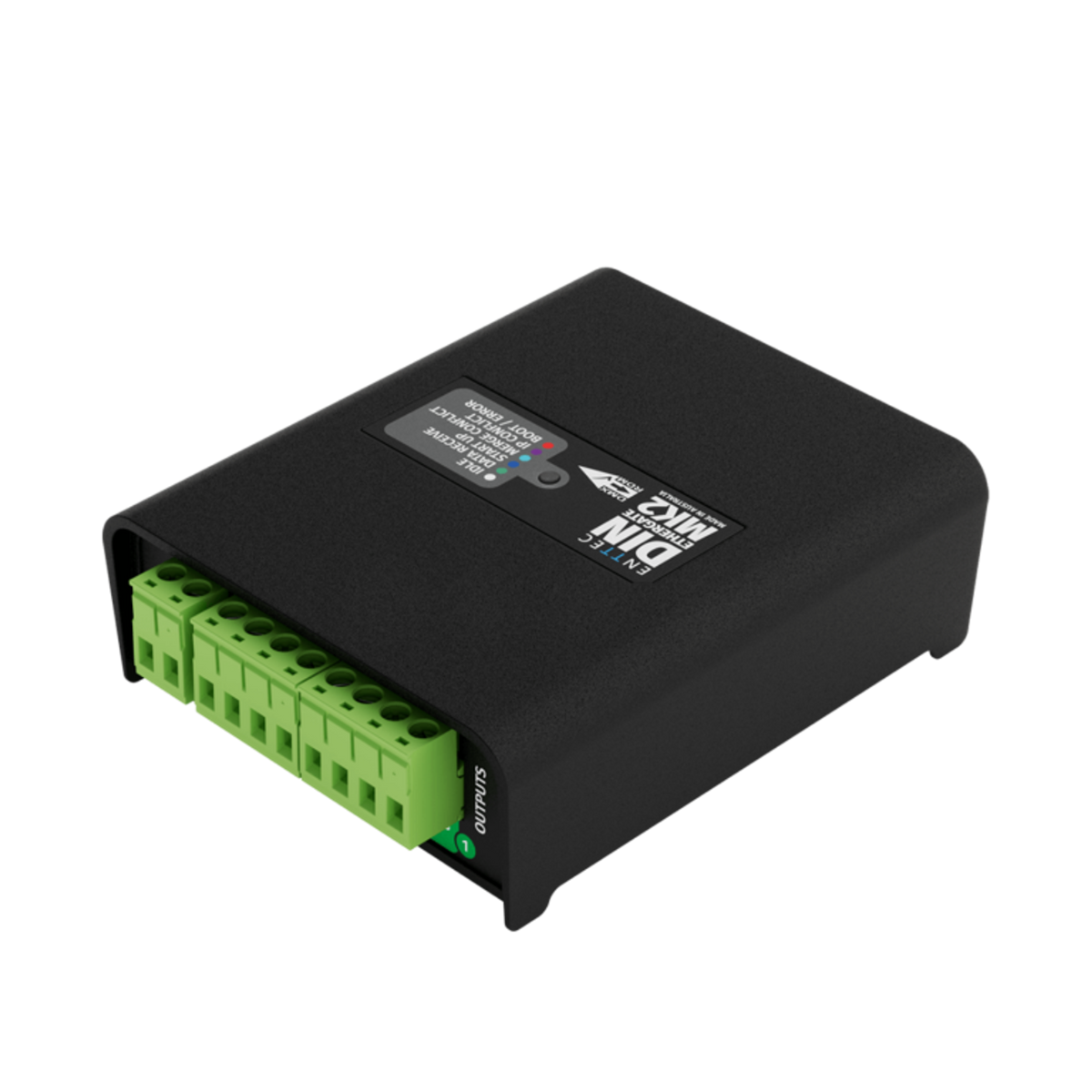

The Crestron DIN-SACN-DMX (sold by ENTTEC as model DIN Ethergate Mk2) is a cost-effective and reliable Ethernet to DMX convertor. It supports sACN, Art-Net, and ESP protocols, and integrates DMX and network controllable lighting devices and systems. As part of a Crestron architectural lighting system, it allows a 3-Series® or 4-Series™ control processor to communicate via sACN with any DMX lighting fixture or controller.

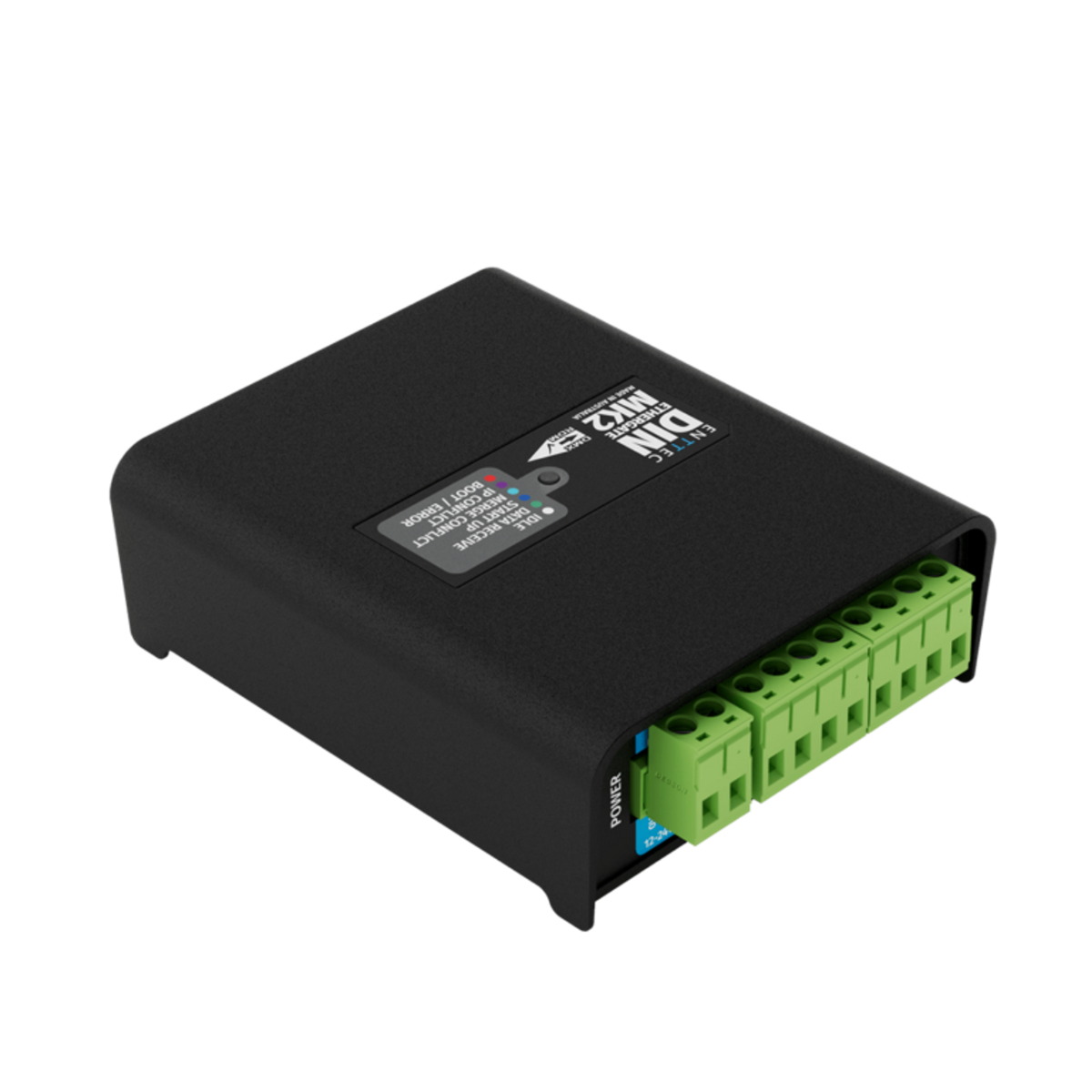

The DIN-SACN-DMX's electrically insulated housing supports TS35 DIN and surface mounting for fast installation. In addition, pluggable terminal blocks with an inbuilt termination line make wiring simple.
Features
Key Features
- Converts between DMX512A and sACN, Art-Net, and ESP protocols
- Enables distribution of DMX over a Ethernet or Wi-Fi® network
- Enables control of DMX lighting fixtures and systems by Crestron devices
- Supports a single universe Ethernet to DMX node in output mode
- Supports a single universe DMX to Ethernet node in input mode
- Supports broadcast or unicast (unicast in input mode only)
- Supports HTP/LTP merging of up to 2 DMX sources (output mode only)
- Supports RDM over Art-Net
- Easy web browser-based setup and firmware updates
- 4U 72 mm DIN rail mountable
- PoE or 12-24VDC powered (power supply not included)
Specifications
| Protocols | |
| Ethernet | sACN, Art-Net, ESP, RDM |
| DMX | USITT DMX512-A, ANSI E1.20 RDM |
| Connectors | |

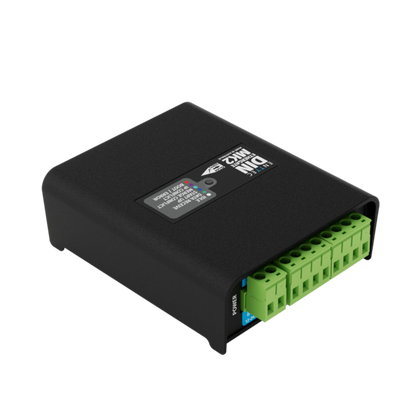

| OUTPUTS | (2) 4-pin 5.1 mm detachable terminal blocks; DMX output or input |
| POWER | (1) 2-pin 3.5 mm detachable terminal block; 12-24VDC power input |

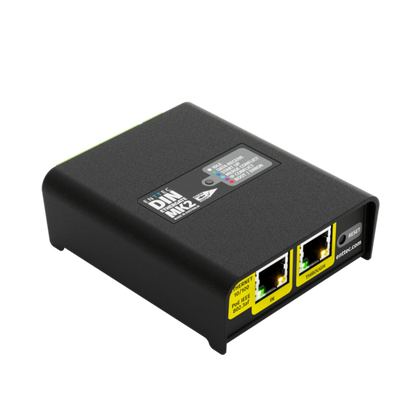

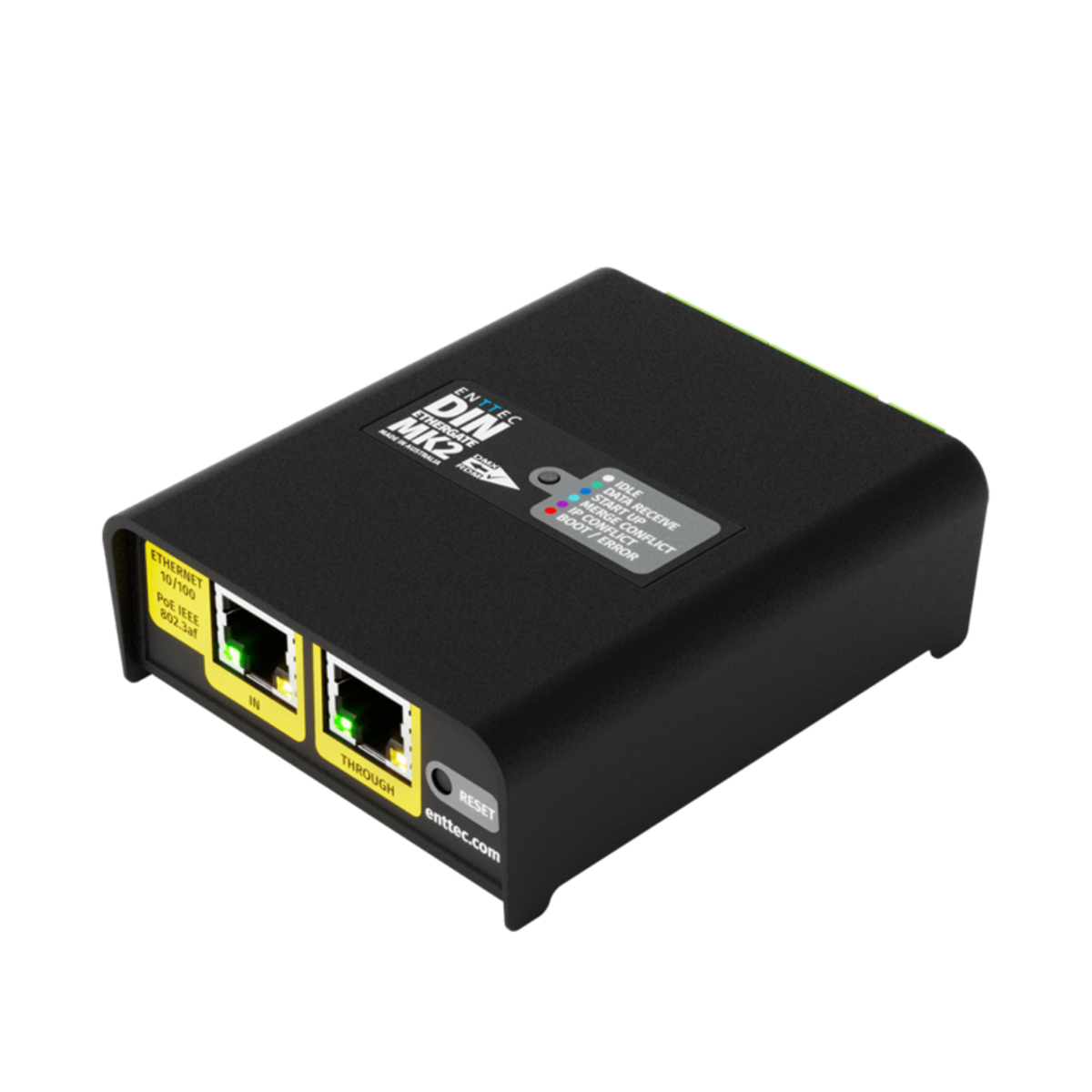

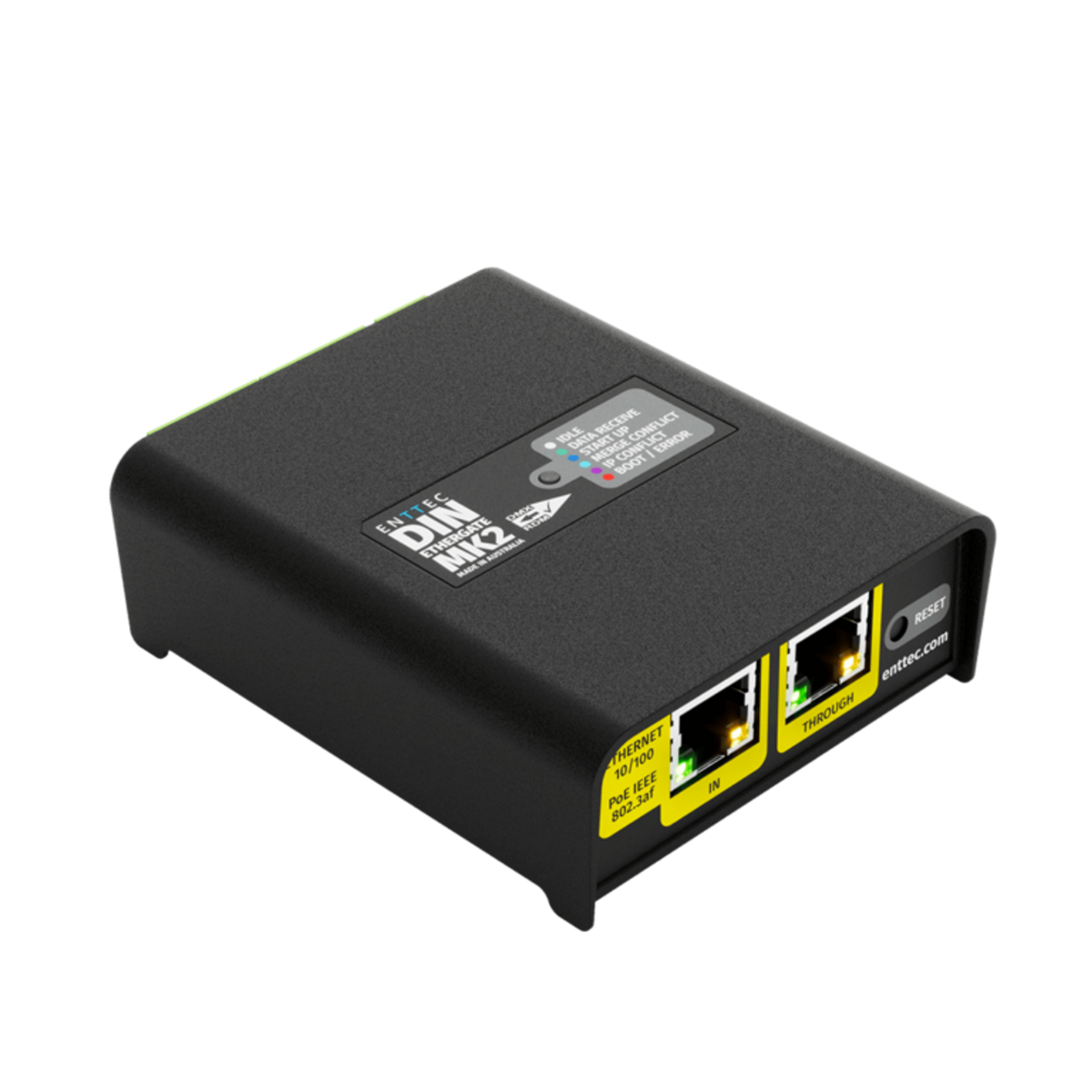

| ETHERNET IN | (1) 8-pin RJ-45 connector, female; 10BASE-T/100BASE-TX Ethernet LAN port |
| ETHERNET THROUGH | (1) 8-pin RJ-45 connector, female; 10BASE-T/100BASE-TX Ethernet pass-through LAN port |
| Controls and Indicators | |

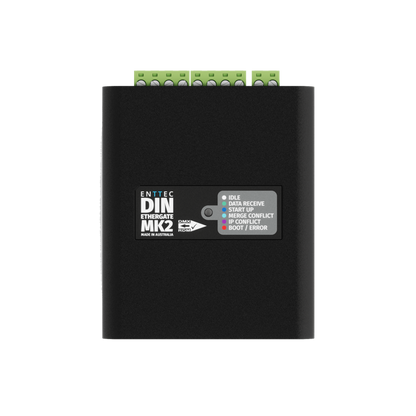

| Status LED | (1) LED, indicates operational status |
| LINK | (1) LED, indicates Ethernet link status |
| ACT | (1) LED, indicates Ethernet activity |
| RESET | (1) Recessed push button for hardware reset |
| Power | |
| DC Power | 12-24V operation, 7W; Power supply not included |
| Power over Ethernet | IEEE 802.3af |
| Environmental | |
| Temperature | 32° to 122°F (0° to 50°C) |
| Humidity | 5% to 95% (noncondensing) |
| Construction | |
| Housing | ABS Plastic |
| Mounting | TS35 DIN-Rail mount, occupies 4 DIN module spaces (72 mm) |
| Dimensions | |
| Height | 1.22 in. (31 mm) without mounting clip; 1.46 in. (37 mm) with mounting clip |
| Width | 3.10 in. (78 mm) |
| Depth | 3.95 in. (100 mm) |
| Weight | |
| 3.8 oz (109 g) | |
