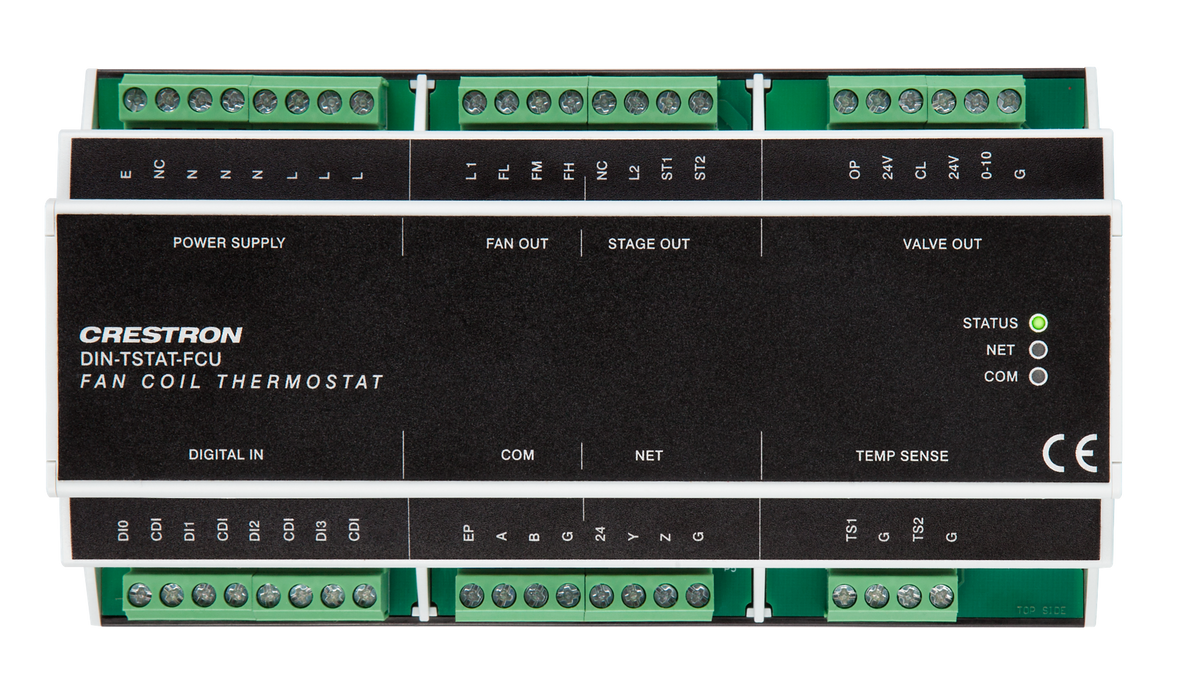

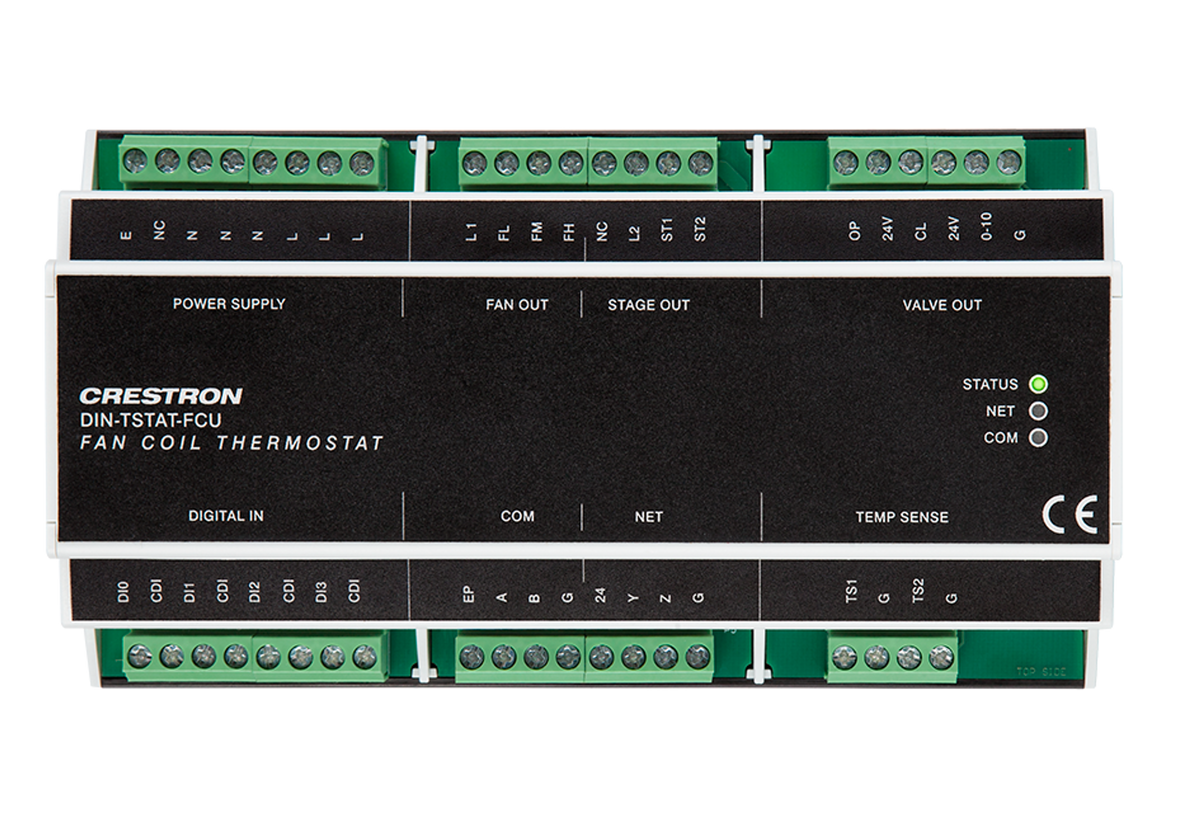

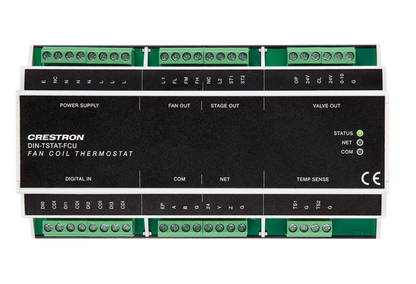

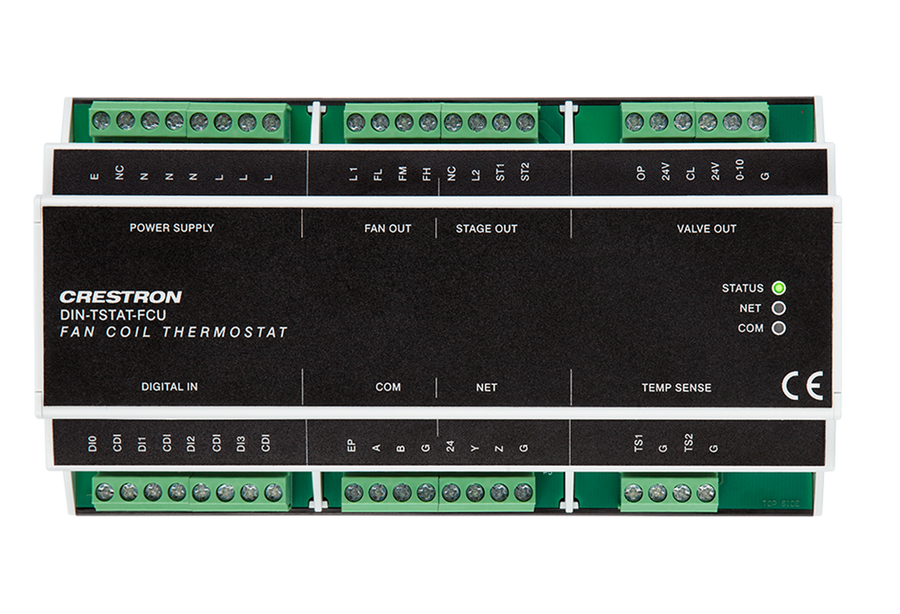

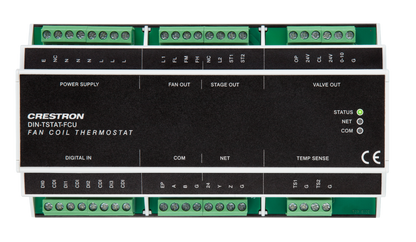

CTN DIN-TSTAT-FCU DIN Rail Heating & Cooling Fan-Coil Thermostat

CTN DIN-TSTAT-FCU DIN Rail Heating & Cooling Fan-Coil Thermostat

MFR: Crestron MPN : DIN-TSTAT-FCU
SKU: DIN-TSTAT-FCU
$456.25 USD
$456.25 USD
Sale Sold out
Shipping calculated at checkout.

Fast & Reliable Shipping

Ships in 3–5 business days

Secure Checkout

Your information is protected

Expert Support

Call, chat or email our team

View full details
Product Information

Provides a full-featured FCU controller with Cresnet® interface for integration with a Crestron® control system.

Overview

The DIN-TSTAT-FCU is a fan coil unit (FCU) controller designed for use in two-pipe applications. It may be operated as a standalone controller or integrated with a home automation system or building management system (BMS). A Cresnet® port is provided for integration with a Crestron® control system. An RS-485 port is also included for communication with Modbus® or BACnet™. Full programmability enables use in various types of applications beyond control of FCUs. Configuration is facilitated using a PC based software application.

Standard 35 mm DIN rail mounting allows the DIN-TSTAT-FCU to be installed in a DIN rail enclosure (Crestron DIN-EN series or similar). A 9M wide DIN rail is also included for alternate mounting applications. The unit is 230 Volts AC line powered.

CrestronHome

Features

Key Features
  • Fan coil controller
  • System integration via Cresnet® or RS-485
  • Supports Cresnet, Modbus®, and BACnet™ protocols
  • Fully programmable
  • Configurable via a PC software application
  • Standalone operation option
  • 35 mm DIN rail mountable
  • 230 Volts AC line powered

Specifications

Measurement Range
Indoor Temperature 0° to 100° C (32° to 212° F) in 0.1° increments
Communications
Cresnet Cresnet slave mode
RS-485 Supports Modbus and BACnet protocols
USB USB device (for setup)
Power Requirements
15 Watts maximum at 230 Volts AC +10%
Connections
POWER SUPPLY (8) Captive screw terminals;
230 VAC line power input and earth ground
FAN OUT (4) Captive screw terminals;
Comprises (3) 16 Amp relays for 3-speed fan control
STAGE OUT (4) Captive screw terminals;
Comprises (2) 16 Amp relays for compressor/heater control
VALVE OUT (6) Captive screw terminals;
Provides (1) Modulated OP-CL triac or 0-10 VDC for control of 24 VAC, 6 Watt valve
DIGITAL IN (8) Captive screw terminals;
Comprises (4) potential-free binary inputs
COM (4) Captive screw terminals;
Comprises (1) RS-485 communication and 15 VDC supply port
NET (4) Captive screw terminals;
Cresnet slave port
TEMP SENSE (4) Captive screw terminals;
Comprises (2) analog inputs for 20k Ohm NTC temperature probes
USB
(behind cover)		 (1) Mini USB connector;
USB device port for programming and parametrization
Indicators
STATUS (1) Green LED, indicates device status
NET (1) Amber LED, indicates activity on the NET port
COM (1) Amber LED, indicates activity on the COM port
Setup
(behind cover)		 (1) Pushbutton for Cresnet TSID (touch-settable ID)
Construction
Housing Plastic
Mounting 35 mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45 mm front panel cutout, occupies 9 DIN module spaces (162 mm)
Environmental
Temperature -10° to 55° C (14° to 131° F)
Humidity Up to 95% RH (non-condensing)
Protection Rating IP20 per IEC 60529
For indoor use only
Dimensions
Height 91 mm (3.59 in)
Width 162 mm (6.37 in)
Depth 61 mm (2.40 in)
Weight
460 g (16.3 oz)
