DigitalMedia™ Ultra Cable, Non-Plenum Type CMR, 1000 ft spool
Overview

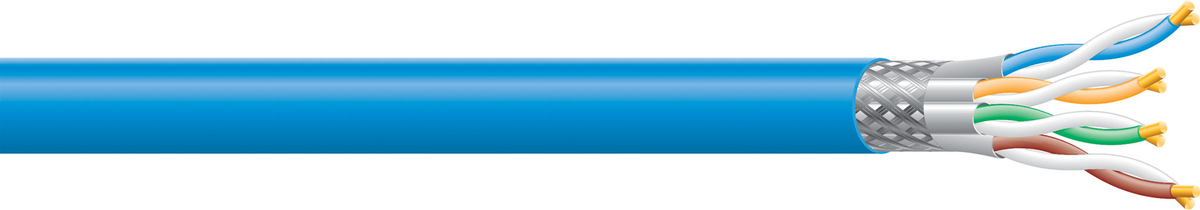

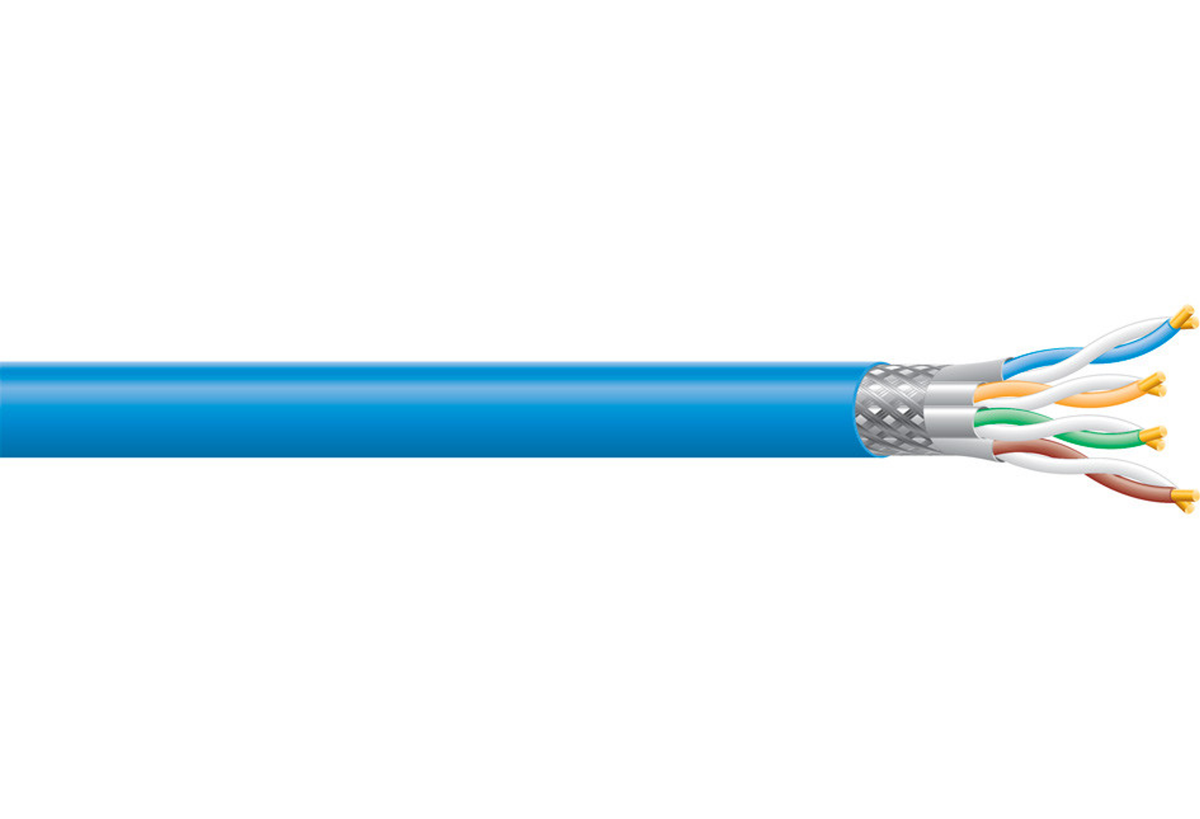

Crestron® DigitalMedia™ Ultra Cable (DM-CBL-ULTRA-NP) is a high-bandwidth CAT7a shielded twisted pair (S/FTP) cable that is engineered to deliver optimum performance for 10 gigabit data networking and 4K ultra high-definition AV signal distribution applications. It is precision manufactured and tested to exceed HDMI® specifications requiring less than one pixel error per billion at distances up to 330 ft (100 m). DigitalMedia (DM®) Ultra Cable provides a Crestron guaranteed wiring solution for use with Crestron DigitalMedia 8G+® (DM 8G+®) devices, and is also highly recommended for use with HDBaseT® and other CATx based video and audio systems. DM Ultra Cable is qualified for use with 10GBase-T Ethernet and anywhere else a high-quality shielded CAT5e, CAT6, or CAT7 cable is required.
DM Ultra Cable is easily terminated using Crestron DM-CONN shielded RJ45 type connectors. No crimping tool is required, affording fast and reliable termination in the field.[1]
DM-CBL-ULTRA-NP is rated Type CMR for installation in risers and other non-plenum spaces. For plenum applications requiring Type CMP rated cable, use DM-CBL-ULTRA-P.
Features
Key Features
- Ultra high-bandwidth CAT7a shield twisted pair (S/FTP) cable
- Enables lossless distribution of 4K and Ultra HD video signals at distances of 330 ft (100 m) via DM 8G+® or HDBaseT®
- Ensures Crestron® guaranteed performance for DigitalMedia 8G+® systems
- Exceeds HDMI® specifications requiring less than one pixel error per billion
- Qualified for use with 10-Gigabit Ethernet data networks
- Every spool individually tested and certified
- Measurement markings on the outer jacket
- Type CMR rated for riser and other non-plenum installation
Specifications
| Construction | ||
| S/FTP with four individually shielded twisted pairs, overall shield, and overall jacket | ||
| Electrical & Performance | ||
| Mutual Capacitance | ≤5.6 nF / 100 m @ 1 kHz | |
| Velocity of Propagation | 74% nominal | |
| Delay Skew | ≤25 ns / 100 m | |
| Conductor DC Resistance | ≤85 Ohms / km @ 20°C | |
| Conductor DC Resistance Unbalance | ≤2% @ 20°C | |
| Pair to Ground Capacitance Unbalance | ≤1200 pF / km | |
| Characteristic Impedance | 100 Ohms nominal | |
| (4) Shielded Twisted Pairs | ||
| Colors | Blue/white, orange/white, green/white, brown/white | |
| Conductors | 22 AWG solid bare copper | |
| Insulation | Foam PE | |
| Outer Diameter (per conductor) | 0.059 inch (1.5 mm) nominal | |
| Shield (per pair) | AL foil | |
| Overall Shield | ||
| Shield | Tinned copper braid (>50% coverage) | |
| Outer Jacket | ||
| Color | Blue | |
| Material | PVC | |
| Thickness | 0.022 inch (0.55 mm) | |
| Outer Diameter | 0.311 ±0.012 inch (7.9 ±0.3 mm) | |
| Minimum Recommended Bend Radius | 2.5 inches (64 mm) | |
| Maximum Recommended Pull Tension | 25 lbf (111 N) | |
| Environmental | ||
| Operating Temperature | -4° to 140°F (-20° to 60°C) | |
| Weight | ||
| Bulk Cable Weight | 41.67 lb / 1000 ft (62.0 kg / km) | |
| Compliance | ||
| Type CMR, NEC Article 800, UL Subject 444, cUL, IEC 61156-5, ISO/IEC 11801, Category 7a | ||
