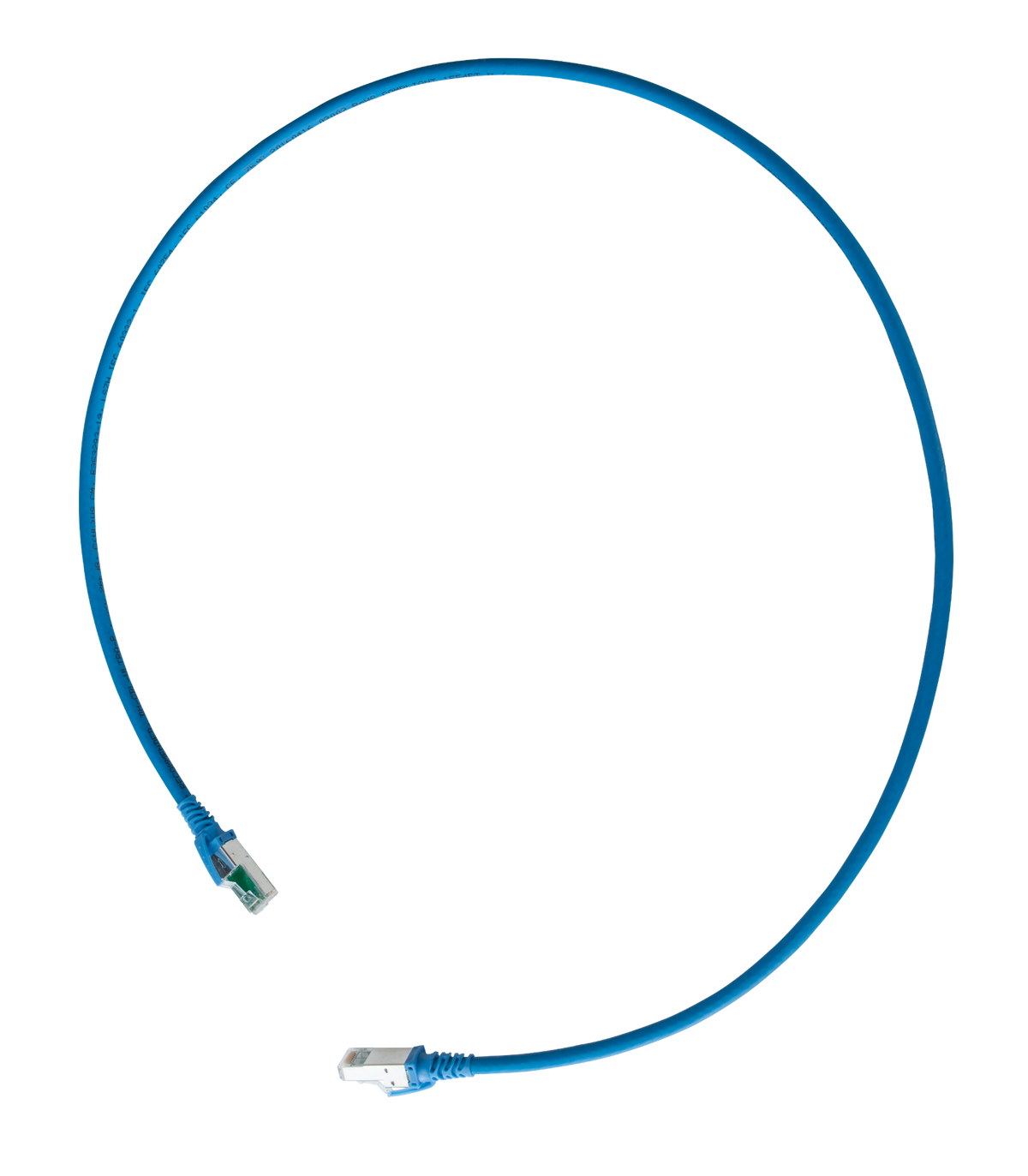

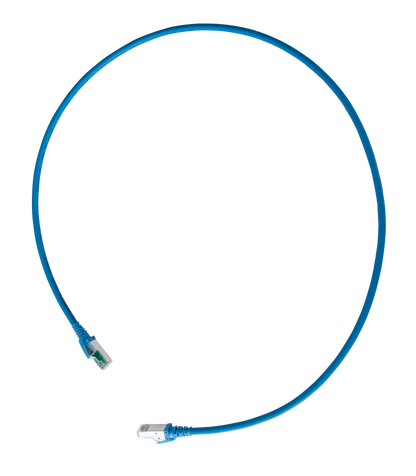

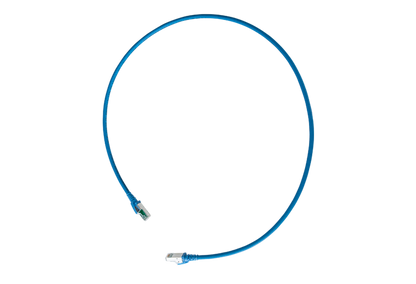

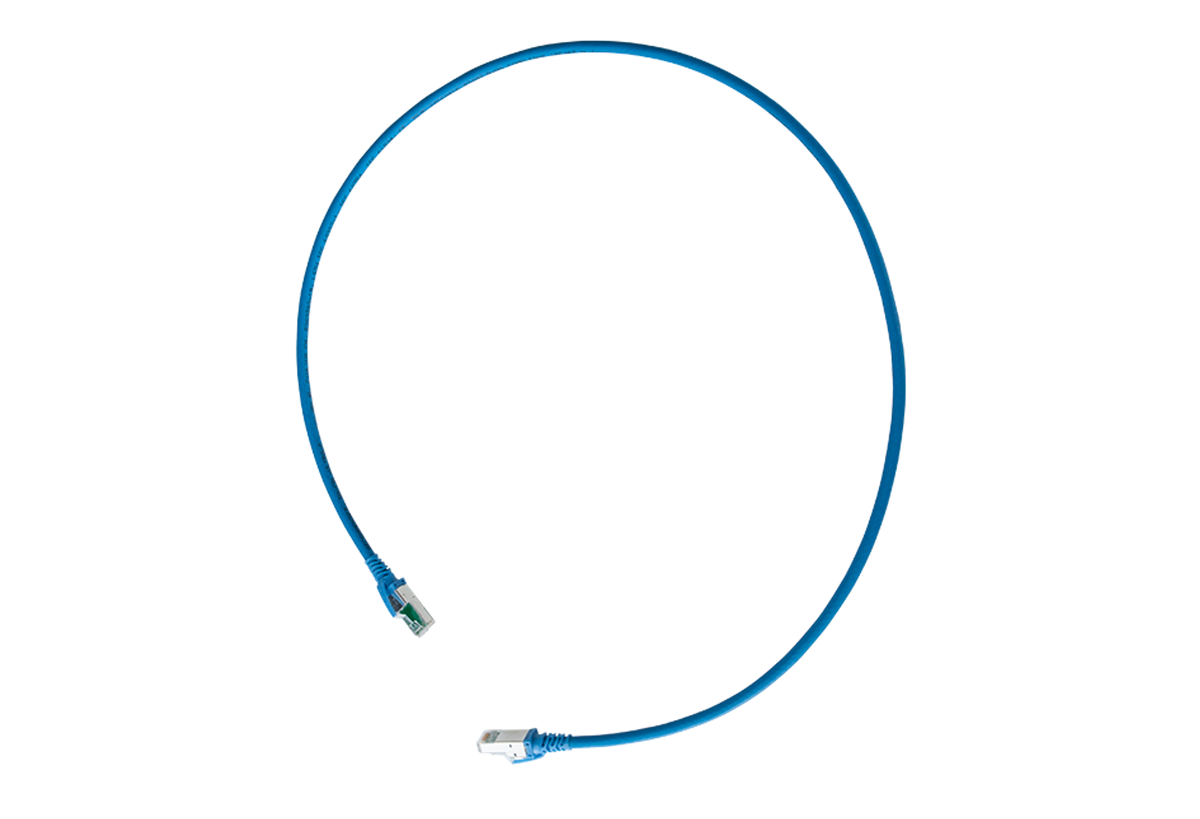

DigitalMedia™ Ultra Patch Cable, 3 ft (0.9 m)
Overview
The DM-CBL-ULTRA-PC is a shielded CAT6a patch cable designed for use with all Crestron® DigitalMedia 8G+® (DM 8G+®) products, as well as HDBaseT® and 10GBase-T Ethernet. Using the DM-CBL-ULTRA-PC in combination with other Crestron DM® Ultra structured cabling products ensures the highest performance and reliability for distributing Ethernet data and uncompressed 4K/60 video.
The DM-CBL-ULTRA-PC is the ultimate Category 6A patch cable. Its innovative PCB-based plug design optimizes signal tuning for exceptional transmission. Advanced contact technology provides decreased variability and greater reliability over traditional crimp-type plugs. Category 7 S/FTP stranded cable is used to enable optimal transmission performance while eliminating alien crosstalk. Every DM Ultra patch cable is 100% factory tested to ensure full performance and compliance.
Features
Key Features
- Fully-shielded CAT6a patch cable
- Unique PCB-based RJ45 plug design
- 360 degree shield coverage
- Low-profile, snag-resistant boot design
- Robust strain and bend relief
- Cantilevered latch for enhanced accessibility
- High-performance CAT7 S/FTP stranded cable
- Alien crosstalk preventive construction
- Ultimate performance for 10GBase-T Ethernet, HDBaseT®, and Crestron® DM 8G+®
- Sold in eight lengths from 1.5 to 50 ft (0.45 to 15 m)
- 100% factory tested
Specifications
| Electrical | ||
| Compatibility | CAT5e, CAT6, CAT6a | |
| Contact Resistance | 10 mΩ | |
| Input to Output Resistance | 200 mΩ | |
| Insulation Resistance | 500 mΩ | |
| Dielectric Withstand Voltage | 1000 Volts DC or AC peak minimum contact to contact | |
| Current Rating | 1.5 Amps | |
| PoE Compatibility | IEEE 802.3at PoE & PoE+ | |
| Surface Transfer Impedance | <10 mΩ/m @ 10 MHz | |
| Mechanical – Plug | ||
| Jack Compatibility | RJ45 | |
| Insertion Cycles | 2500 minimum | |
| Retention Force | 50 N minimum | |
| Tensile Strength | 20 lb minimum cable to plug | |
| Mechanical – Cable | ||
| Construction | S/FTP | |
| Wiring Standards | TIA/EIA T568A & T568B | |
| Conductors | 26 AWG (0.14 mm²) 7x32 stranded tinned copper | |
| Jacket Type | CM, LSZH | |
| Jacket Color | Blue | |
| Overall Outer Diameter | 0.25 in (6.35 mm) nominal | |
| Bend Radius | 2 in (50 mm) | |
| Mechanical – General | ||
| Plug Housing Material | Polycarbonate | |
| Contact Materials | 50 microinches gold plating or equivalent | |
| Plastic Materials | Flame retardant thermoplastic | |
| Flammability Rating | UL 94V-0 | |
| Green Features | RoHS, lead-free, halogen-free, PVC free | |
| Shielding | 360 degree coverage | |
| Environmental | ||
| Temperature | 14° to 140°F (-10° to 60°C) | |
| Compliance | ||
| ANSI/TIA-568-C.2, ISO/IEC 11801 Ed 2.2, IEEE 802.3an, IEEE 802.3af, IEEE 802.3at, ANSI/TIA 1096-A, IEC 60603-7-51, UL 1863 and CSA-C22.2 No. 182.4-M90, IEC 60332-1, IEC 60754, IEC 61034, Anatel Resolution No.242,2000 | ||
