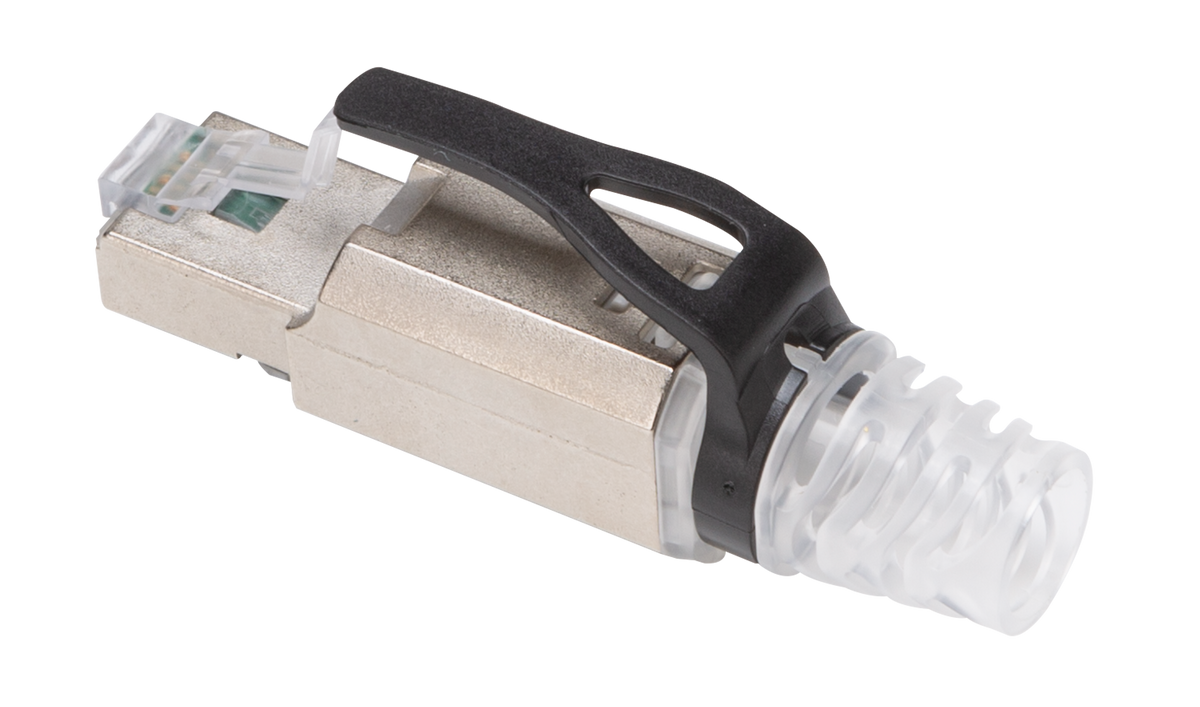

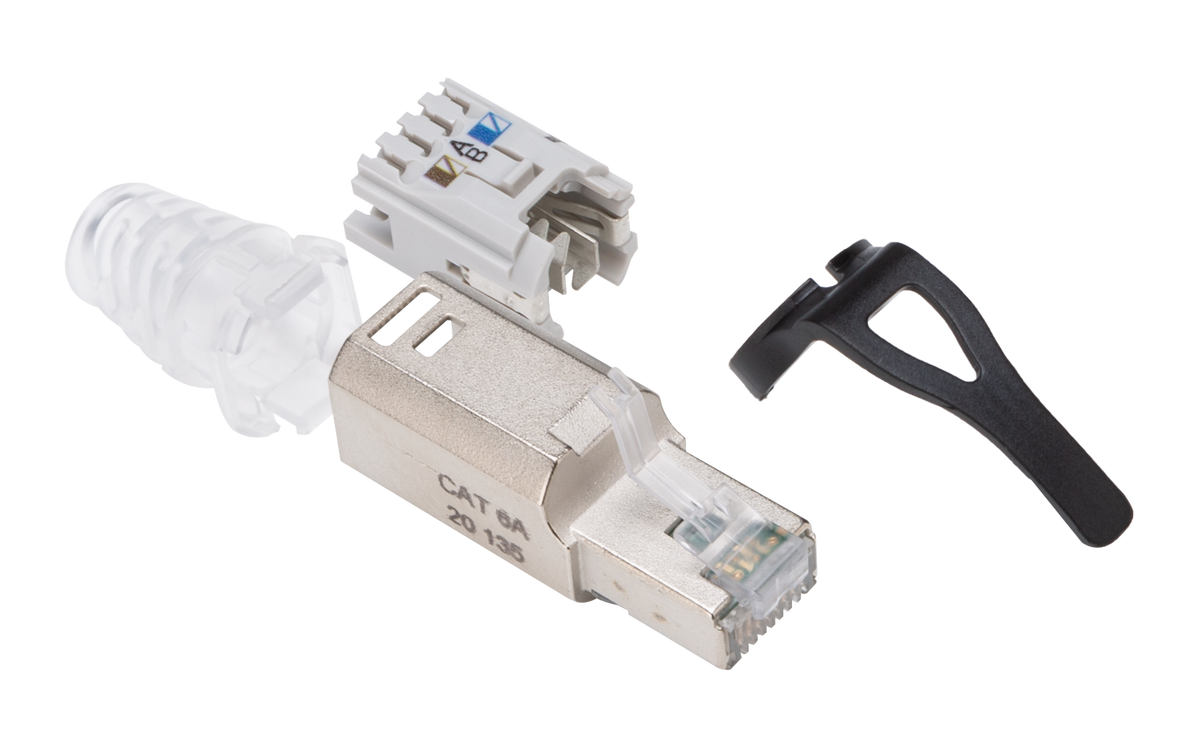

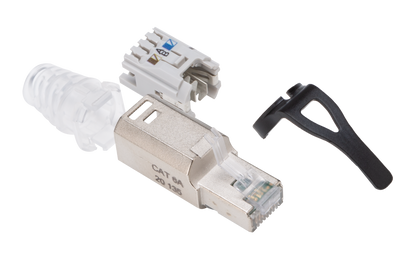

CTN DM-CONN-ULTRA-PLUG-20 Connectors for DigitalMedia™ Ultra Cables, 20 Pack

CTN DM-CONN-ULTRA-PLUG-20 Connectors for DigitalMedia™ Ultra Cables, 20 Pack

MFR: Crestron MPN : DM-CONN-ULTRA-PLUG-20
SKU: DM-CONN-ULTRA-PLUG-20
$393.75 USD
$393.75 USD
Sale Sold out
Shipping calculated at checkout.

Fast & Reliable Shipping

Ships in 3–5 business days

Secure Checkout

Your information is protected

Expert Support

Call, chat or email our team

View full details
Product Information

Provides an ultra-high-performance shielded CAT6a RJ 45 plug for use with the DM CONN ULTRA RECP 20/50 and the DM CONN ULTRA RECP XA 20 (45-Degree Angled) Connectors for DigitalMedia™ Ultra Cables.

Overview

The Crestron® DM‑CONN‑ULTRA‑PLUG‑20 is a shielded CAT6a RJ‑45 plug designed for use with the DM‑CONN‑ULTRA‑RECP‑20/50 and the DM‑CONN‑ULTRA‑RECP‑XA‑20 (45-Degree Angled) Connectors for DigitalMedia™ Ultra Cables. The connector can be field-terminated in as little as 60 seconds using the DM‑CRIMP‑ULTRA‑PLUG termination tool (sold separately).

Using the DM‑CONN‑ULTRA‑PLUG‑20 in combination with DM® Ultra cables ensures the highest performance and reliability for distributing uncompressed 4K/60 video over cable lengths up to 330 ft (100 m). It also excels for use with HDBaseT® and 10GBase-T Ethernet devices.

4K TAA Compliant

Features

Key Features
  • Shielded CAT6a RJ‑45 plug
  • Compatible with the DM‑CONN‑ULTRA‑RECP‑20/50 and the DM‑CONN‑ULTRA‑RECP‑XA‑20 (45-Degree Angled) Connectors for DigitalMedia™ Ultra Cables
  • Exceeds Category 6A performance requirements
  • Ultra-fast and reliable termination with the DM‑CRIMP‑ULTRA‑PLUG termination tool (sold separately)
  • Accommodates multiple cable diameters
  • Automatic cable shield termination
  • Ultimate performance for 10GBase-T Ethernet, Crestron DM 8G+®, and HDBaseT® devices
  • Compatible with Crestron DM 8G® and DM® Ultra cables
  • Sold in packs of 20

Specifications

Electrical
Compatible Cable Standards CAT5e, CAT6, CAT6a (including Crestron DM 8G® and DM® Ultra cable)
Contact Resistance 20 mΩ
Input to Output Resistance 200 mΩ (single conductors)
100 mΩ (shield)
Insulation Resistance 500 mΩ
Min. Dielectric Withstand Voltage 1000 VAC contact to contact
1500 VDC contact to shield
Current Rating 1.5 A
PoE Compatibility PoE Type 1,2,3,4 and PoH
Shielding 360 degree enclosure
Mechanical – Jack
Compatible Plug Types RJ‑45 (8-position), RJ-11 (6-position)
Insertion Cycles 2500 minimum
Retention Force 50 N (11.24 lbf) minimum
Mechanical – Terminals
Compatible Cable Constructions S/FTP, F/FTP, F/UTP
Wiring Standards T568A & T568B
Wire Size Range 22 to 26 AWG (0.25 to 0.14 mm²) nominal solid;
23 to 26 AWG (0.25 to 0.14 mm²) nominal stranded
Wire Conductor Diameter 0.026 in. (0.65 mm) maximum
Wire Insulation Diameter 0.063 in. (1.60 mm) maximum
Cable Overall Outer Diameter 0.35 in. (9 mm) maximum
Reterminations 5
Construction
Housing Material Zinc die cast
Contact Materials Copper alloy, plated with 50 microinches (1.27 micron) minimum thick gold or equivalent at contact interface
Plastic Materials Flame retardant thermoplastic
Flammability Rating UL® listed
Green Features RoHS, lead-free, halogen-free, PVC free
Environmental
Temperature 14° to 140° F (-10° to 60° C)
Dimensions
Height 0.83 in. (21 mm)
Width 0.57 in. (15 mm)
Depth 1.72 in. (44 mm)
Compliance
ANSI/TIA-568-2-D, ISO/IEC 11801-1 Ed 1.0, IEEE 802.3af (Type 1), IEEE 802.3at (Type 2), IEEE 802.3bt (Type 3 and 4), IEC-61156, IEC 60603-7, UL 2043, and UL 1863
