Provides an ultra-high-performance shielded CAT6a RJ45 jack for use with the DM-RPP-K24 patch panel or any keystone wall plate.
Overview

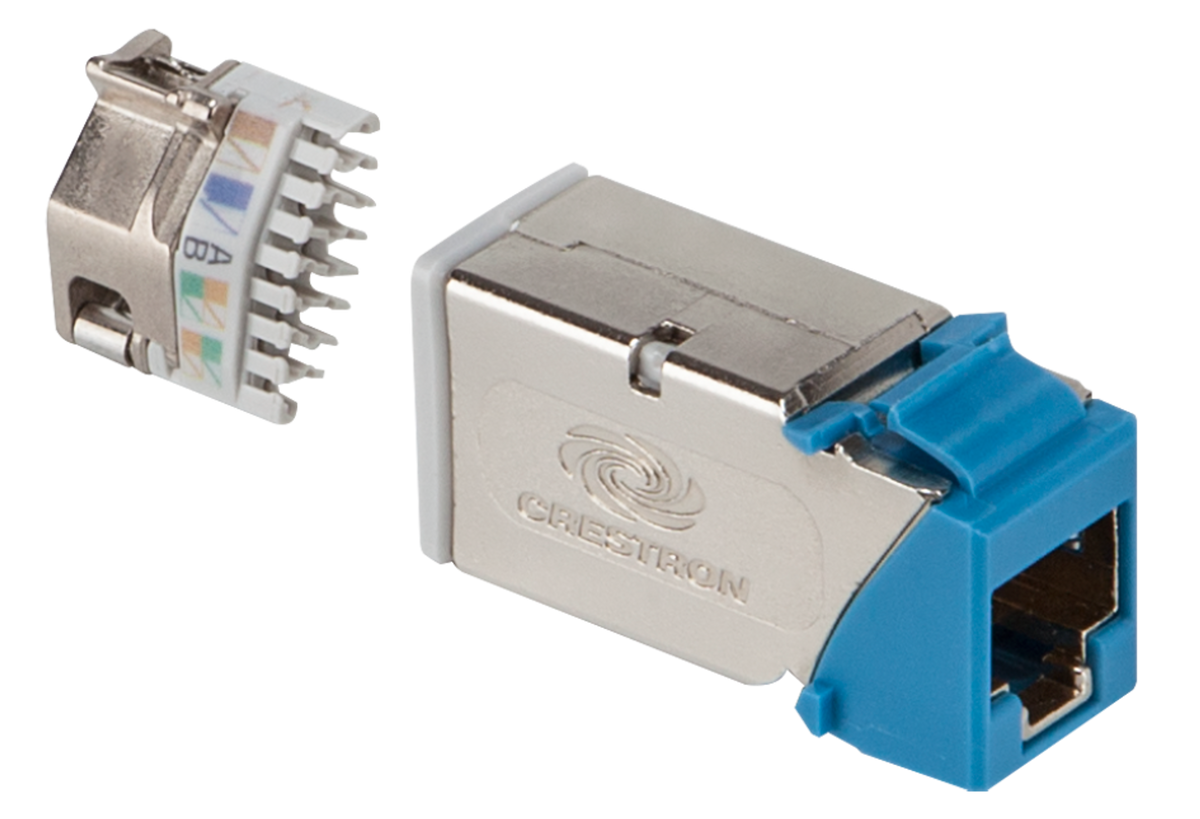

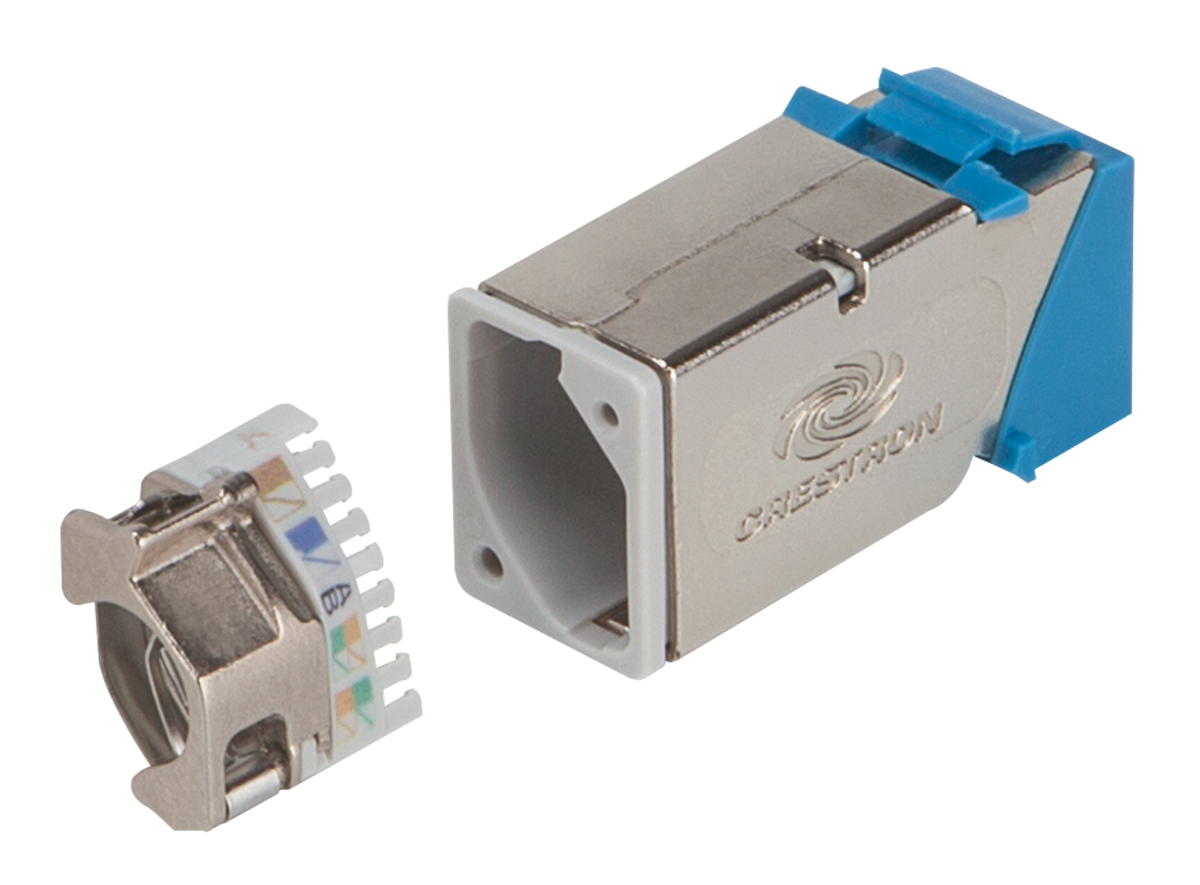

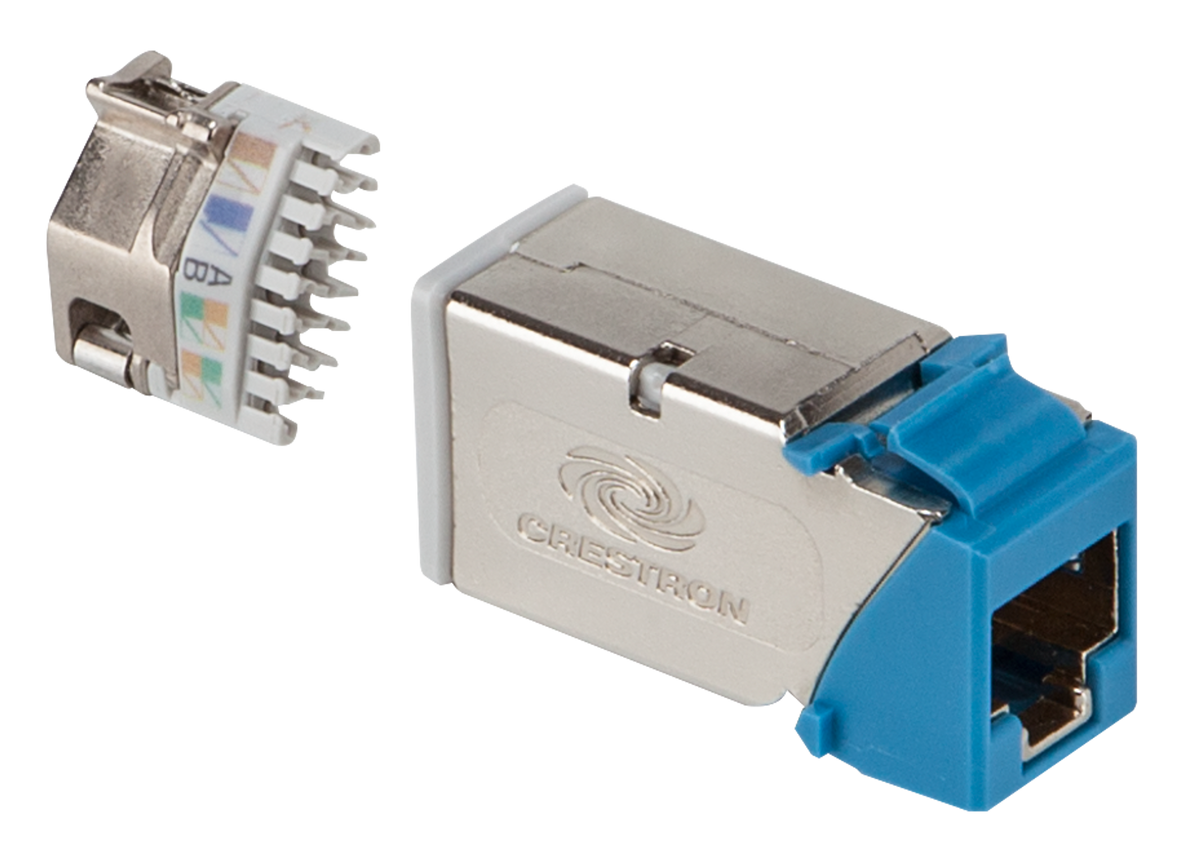

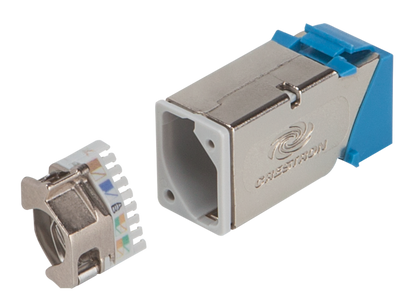

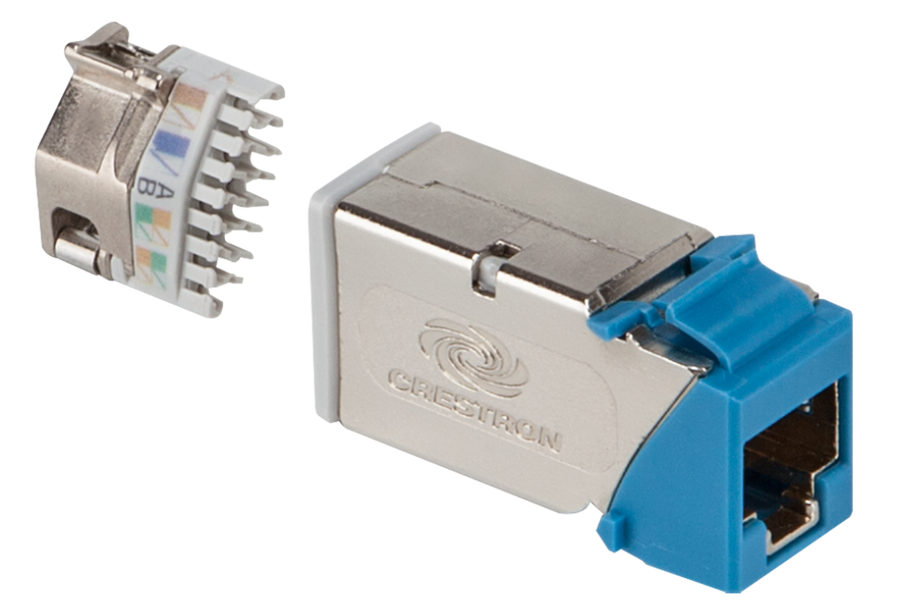

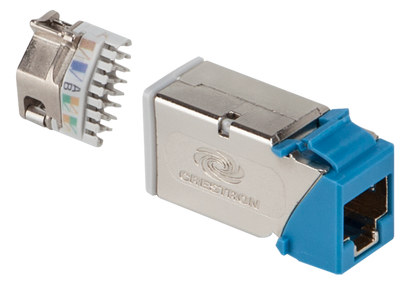

The DM-CONN-ULTRA-RECP is a shielded CAT6a RJ45 jack designed for use with the Crestron® DigitalMedia™ 24-Port Keystone Patch Panel (model DM-RPP-K24) or any keystone wall plate. It fits in a standard keystone module opening and can be field-terminated in as little as 60 seconds using the tool provided. Using the DM-CONN-ULTRA-RECP in combination with DM® Ultra cable ensures the highest performance and reliability for distributing uncompressed 4K/60 video over cable lengths up to 330 ft (100 m) as part of a complete Crestron DigitalMedia system. It also excels for use with HDBaseT® and 10GBase-T Ethernet.
The DM-CONN-ULTRA-RECP offers best-in-class performance exceeding all Category 6A performance requirements. In fact, it exceeds all applicable industry standards including ANSI/TIA-568-C.2 and ISO/IEC 11801 Ed 2.2. Such exceptional performance is achieved through an innovative termination process utilizing a unique tool and linear termination module that eliminate split and crossed pairs. The diagonally-oriented IDC contact configuration maximizes pair-to-pair separation, thereby minimizing alien crosstalk in even the densest Category 6A patching environments. The entire termination process is made incredibly quick and easy while removing variability to ensure consistently high performance and reliability.

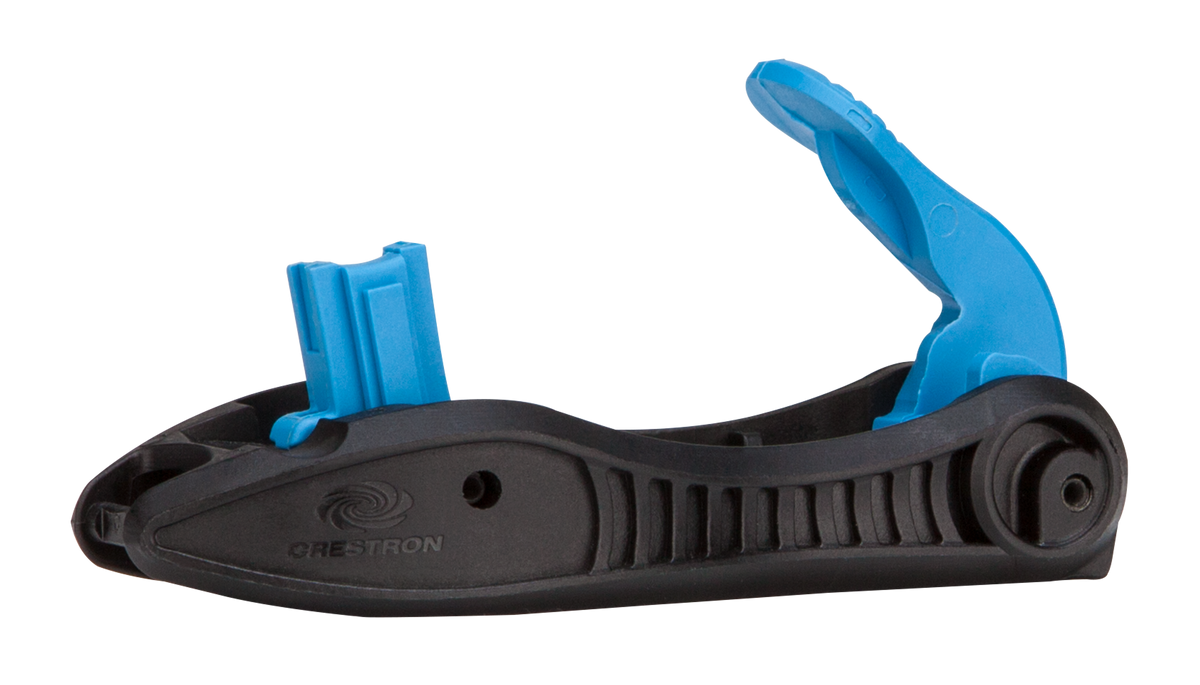

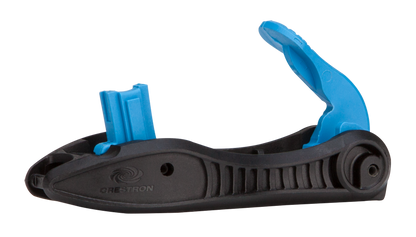

The DM-CONN-ULTRA-RECP is sold in packages of 20 or 50. Each package includes one termination tool.
Features
Key Features
- Shielded CAT6a RJ45 jack
- Keystone module form factor
- Best-in-class performance
- Exceeds Category 6A performance requirements
- Ultra-fast and reliable termination
- Robust die cast metal housing
- Enhanced 360 degree shielding
- Automatic cable shield termination [1]
- Accommodates multiple cable diameters
- Ultimate performance for 10GBase-T Ethernet, Crestron DM 8G+®, and HDBaseT®
- Compatible with Crestron DM 8G® and DM® Ultra cable
- Sold in packs of 20 or 50 with termination tool included
Specifications
| Electrical | ||
| Compatible Cable Standards | CAT5e, CAT6, CAT6a (including Crestron DM 8G® and DM® Ultra cable) | |
| Contact Resistance | 20 mΩ | |
| Input to Output Resistance | 200 mΩ | |
| Insulation Resistance | 500 mΩ | |
| Dielectric Withstand Voltage | 1500 Volts DC or AC peak minimum; 1000 Volts DC or AC peak minimum contact to contact |
|
| Current Rating | 1.5 Amps | |
| PoE Compatibility | IEEE 802.3at PoE & PoE+ | |
| Shielding | 360 degree shielded enclosure | |
| Mechanical – Jack | ||
| Compatible Plug Types | RJ45 (8-position), RJ11 (6-position) | |
| Insertion Cycles | 2500 minimum | |
| Contact Force | 50 gf minimum | |
| Retention Force | 50 N minimum | |
| Mechanical – Terminals | ||
| Compatible Cable Constructions | S/FTP, F/FTP, F/UTP | |
| Wiring Standards | TIA/EIA T568A & T568B | |
| Wire Size Range | 22 to 26 AWG (0.25 to 0.14 mm²) nominal solid; 23 to 26 AWG (0.25 to 0.14 mm²) nominal stranded |
|
| Wire Conductor Diameter | 0.023 in (0.60 mm) maximum | |
| Wire Conductor Insulation Diameter | 0.058 in (1.48 mm) maximum | |
| Cable Overall Outer Diameter | 0.354 in (9 mm) maximum | |
| Reterminations | 5 maximum (not recommended with 22 AWG shielded) | |
| Construction | ||
| Housing Material | Zinc die cast | |
| Contact Materials | Plated phosphor bronze, stainless steel | |
| Plastic Materials | Flame retardant thermoplastic | |
| Flammability Rating | UL 94V-0 | |
| Green Features | RoHS, lead-free, halogen-free, PVC free | |
| Environmental | ||
| Temperature | 14° to 140°F (-10° to 60°C) | |
| Dimensions | ||
| Height | 0.84 in (21.1 mm) | |
| Width | 0.57 in (14.5 mm) | |
| Depth | 1.60 in (41.2 mm) | |
| Weight | ||
| 1 oz (29 g) | ||
| Compliance | ||
| ANSI/TIA-568-C.2, ISO/IEC 11801 Ed 2.2, ETL Tested, IEEE 802.3an, IEEE 802.3af, IEEE 802.3at, ANSI/TIA 1096-A, IEC 60603-7-51, IEC 60512-99-001 (3rd party verified) | ||
