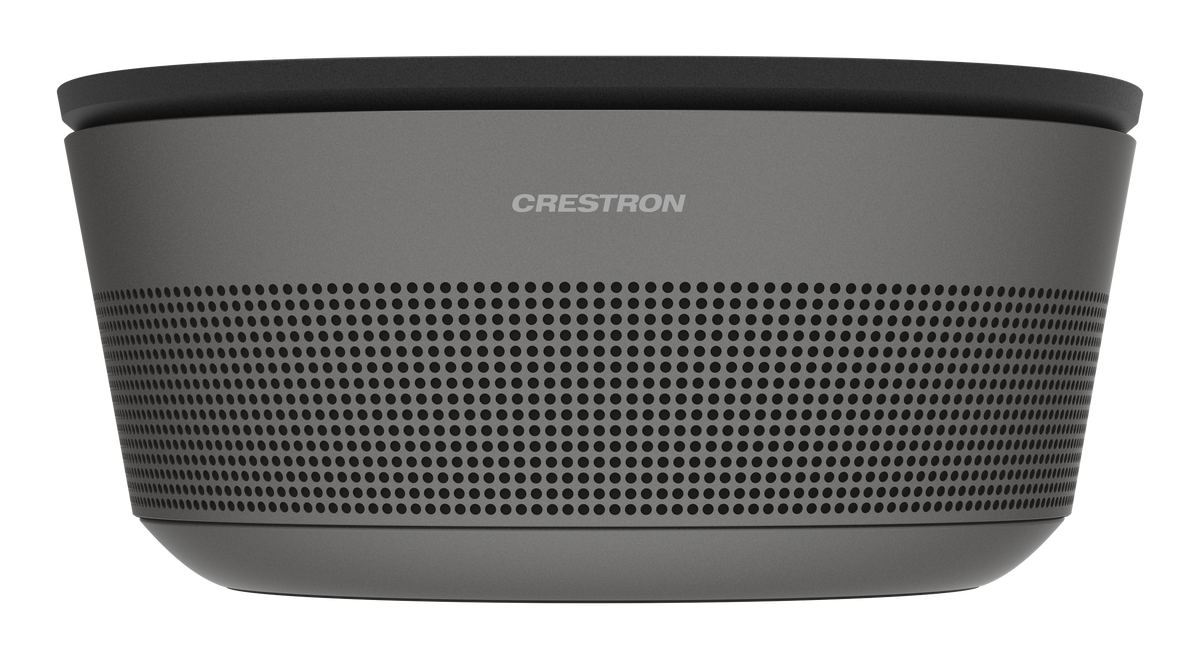

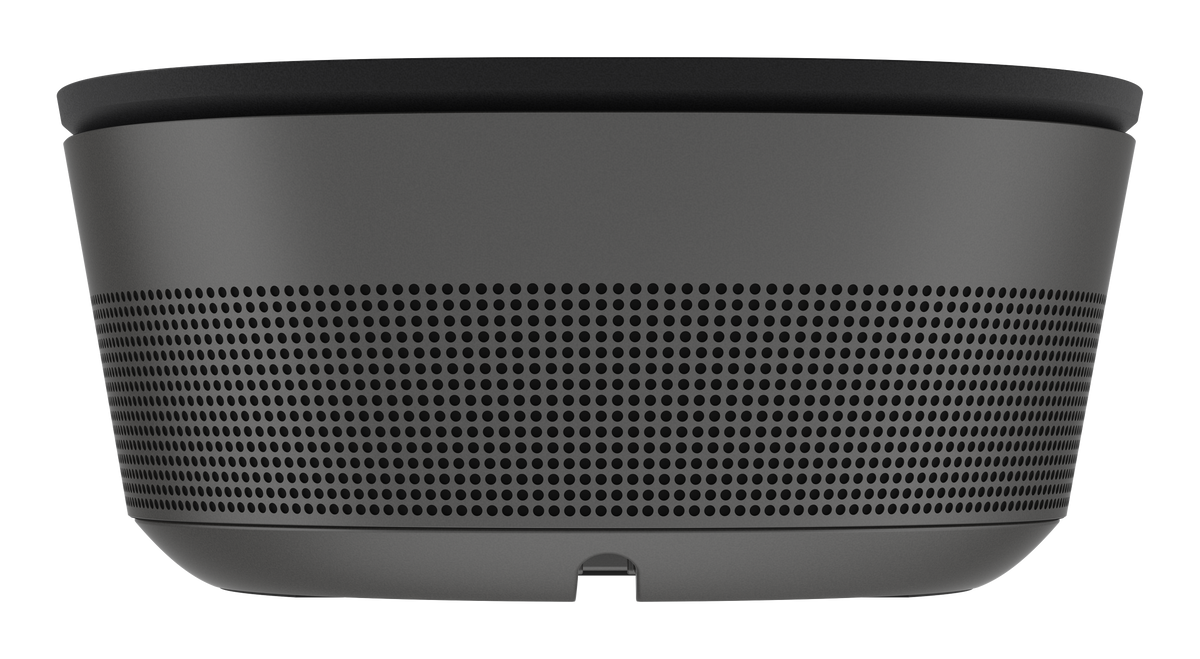

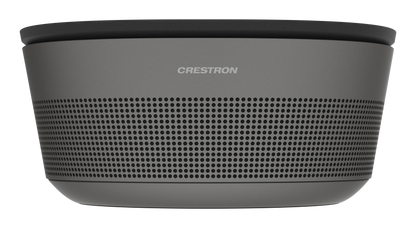

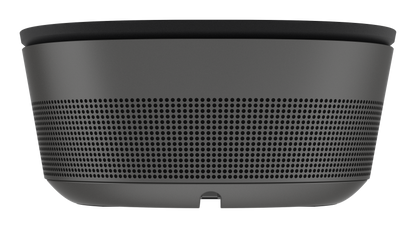

The DM-NAX-POD-MIC-SPK is a table-top microphone and speaker pod that pairs with the DM‑NAX‑AP‑100 to create a DM NAX Intelligent Audio conferencing solution.
Overview
The DM-NAX-POD-MIC-SPK is a tabletop microphone and speaker pod for unified communications and commercial audio applications.
DM NAX® Audio-over-IP Capable
The DM-NAX-POD-MIC-SPK connects to a dedicated audio-over-IP network to pair with a DM‑NAX‑AP‑100 Intelligent Audio processor (sold separately) and other microphone or speaker pods.
The processor automatically configures the necessary audio routing and level adjustments once it is paired with one or more pods and/or speakers. Pairing the DM-NAX-POD-MIC-SPK with DM NAX audio devices allows for encrypted unicast audio-over-IP streaming.
Microsoft Teams® Certified Conferencing Solution
When used in combination with the DM‑NAX‑AP‑100 Intelligent Audio processor, the DM-NAX-POD-MIC-SPK is part of a Microsoft Teams certified conferencing solution. This allows the Intelligent Audio processor to be selected as the audio interface for a BYOM device running Microsoft Teams.
Capacitive Call and Volume Buttons

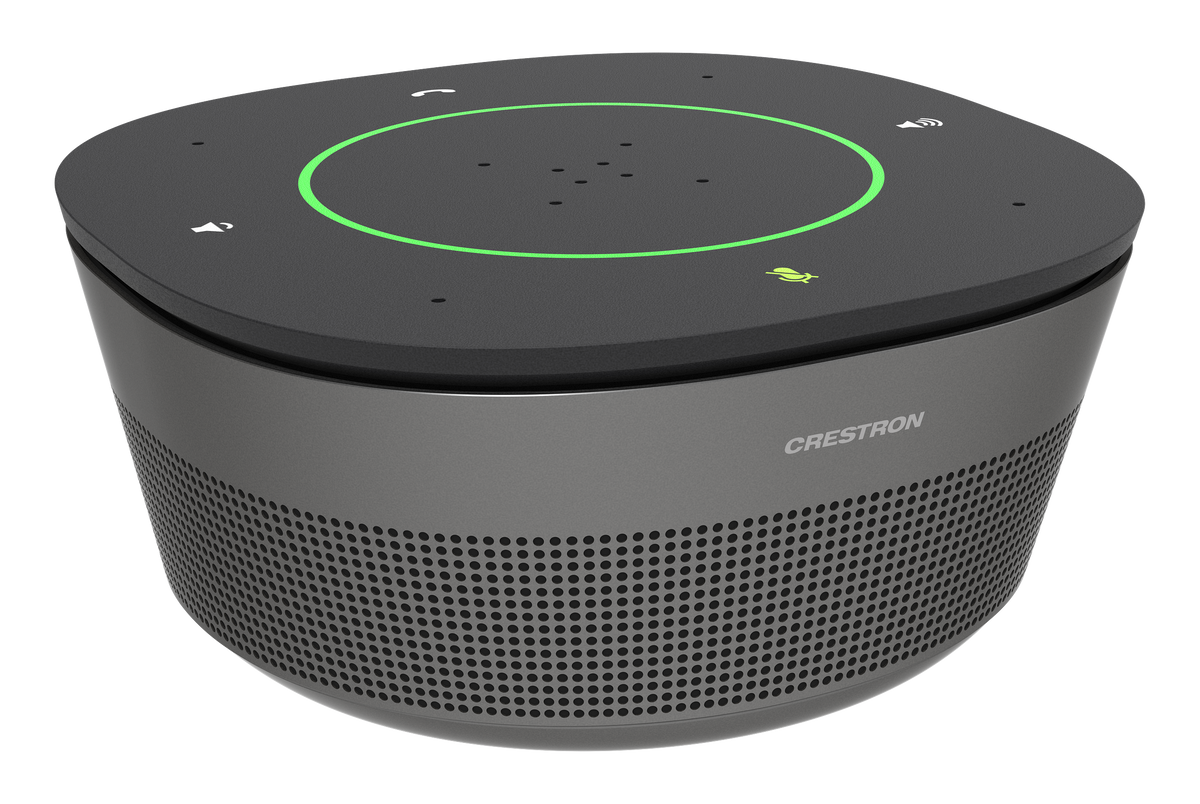

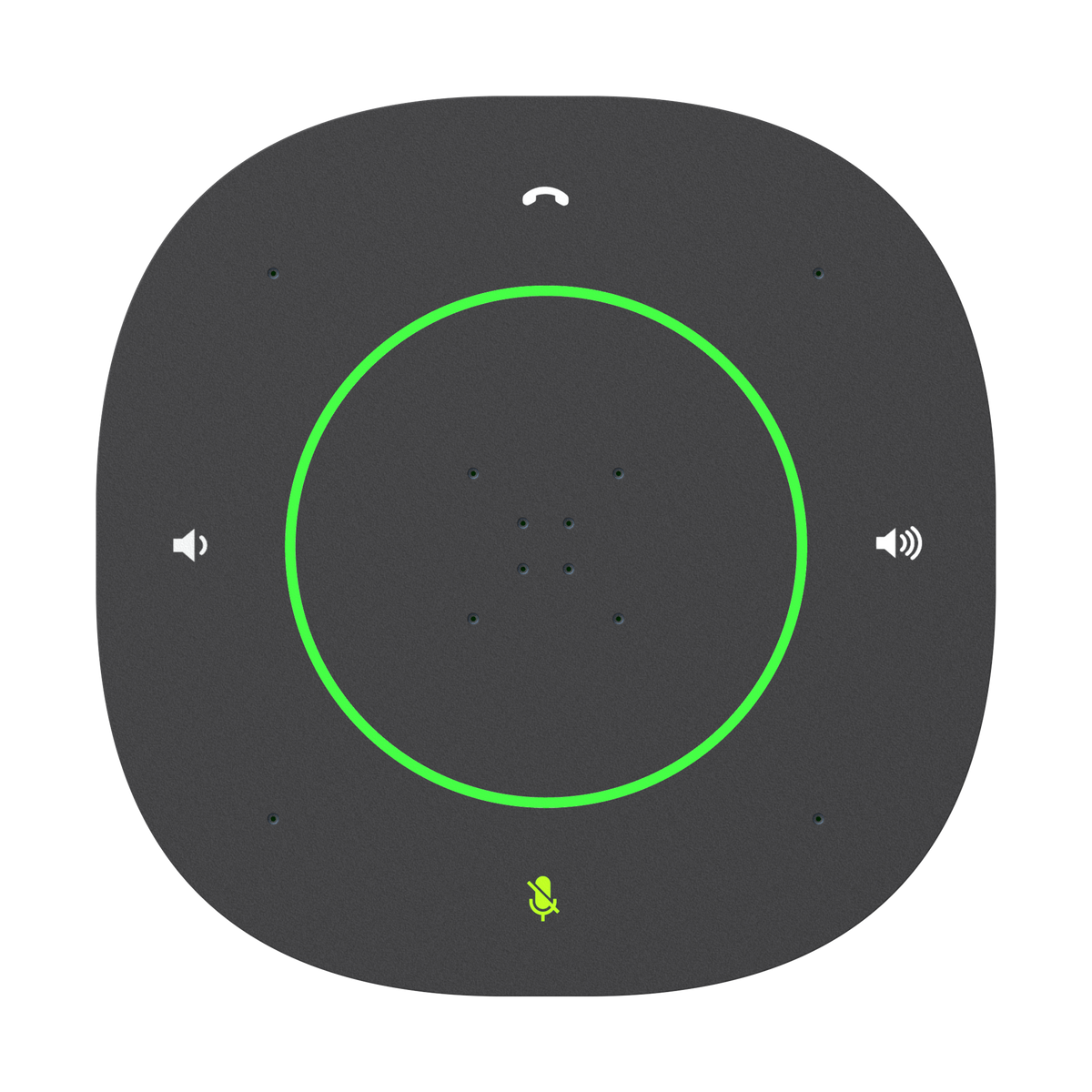

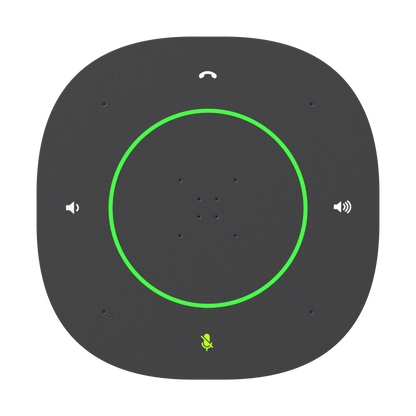

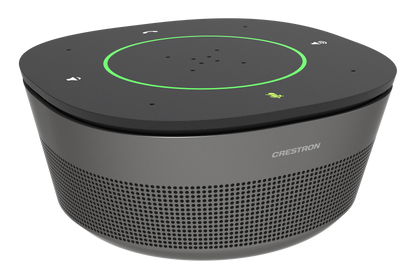

The top surface of the DM-NAX-POD-MIC-SPK features back-lit capacitive buttons for microphone mute control, speaker volume level, and call pickup and hangup functions for a connected BYOM device.
Features
Key Features
- A tabletop device for small to large room conferencing solutions with a 12-element array microphone and built-in speaker
- Convenient in-call volume and mic mute controls
- Speaker volume indicator and LED indicator ring display operational status
- Built-in AEC and noise reduction provides exceptional full-duplex audio performance with highly intelligible, echo-free two-way voice quality
- Built-in automatic gain control and automixing balances each microphone in the internal array to provide optimal signal levels while reducing extraneous noise
- Connects via network to a DM‑NAX‑AP‑100 Intelligent Audio processor, which sends and receives audio to a BYOM computer via a USB‑C® connection
- Power over Ethernet+ (PoE+) network powered
Specifications
| Communications | |
| Ethernet | For control and PoE, AoIP, and/or console, 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP |
| Microphones | |
| Microphones | 360° 12-element array |
| Pickup Radius | 7.5 ft (2.3 m) |
| Speaker | |
| Driver | One full range 2 in. speaker |
| Frequency Response | 100 Hz to 7 kHz |
| Output Level | 74 dB SPL @ 1 m |
| Audio | |
| DSP | Acoustic echo cancellation, automatic gain control, dynamic noise suppression, and speaker volume control Full-duplex IEEE 1329 Type 1 compliant |
| Connectors | |
| LAN 1 (PoE+) | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port; PoE+ PD (powered device) port; IEEE 802.3at Type 2 PoE Class 4 (25.5 W) compliant; Compatible with PoE+ compliant Ethernet switch or third-party PoE+ PSE; Dedicated for Audio-over-IP traffic only |
| Controls and Indicators | |
| Mic Mute | (1) Button, capacitive, backlit, mutes or unmutes internal microphone; (1) Bicolor red/green LED, indicates whether microphone is muted or unmuted |
| Volume Level | (2) Buttons, capacitive, backlit, increase (+) or decrease (-) speaker volume level; (5) White LEDs, indicate current speaker volume level |
| Status Ring | (1) Multicolor LED ring on top panel, indicates status conditions such as pairing, updating, or errors |
| RESET | (1) Push button: Pressing and holding the RESET button for 15 seconds with power supplied clears network settings and restores the default DHCP mode; To perform a factory restore, press and hold the RESET button with power disconnected, then connect the power supply and continue to hold the RESET button for 30 seconds |
| Power | |
| PoE+ | IEEE 802.3at Class 4 (25.5 W) compliant; Compatible with IEEE 802.3at compliant Ethernet switch or third-party PoE+ compliant PSE |
| Environmental | |
| Temperature | 41° to 104°F (5° to 40°C) |
| Humidity | 10% to 95% RH (noncondensing) |
| Construction | |
| Enclosure | Lightly textured black finish, plastic housing, perforated stainless steel grilles, and die-cast aluminum bottom cover |
| Mounting | Tabletop mounting only |
| Dimensions | |
| Height | 2.50 in. (64 mm) |
| Width | 5.52 in. (140 mm) |
| Depth | 5.52 in. (140 mm) |
| Compliance | |
| Regulatory Model: M202439002 | |
