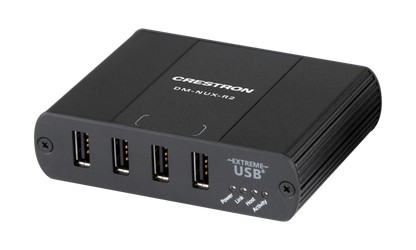

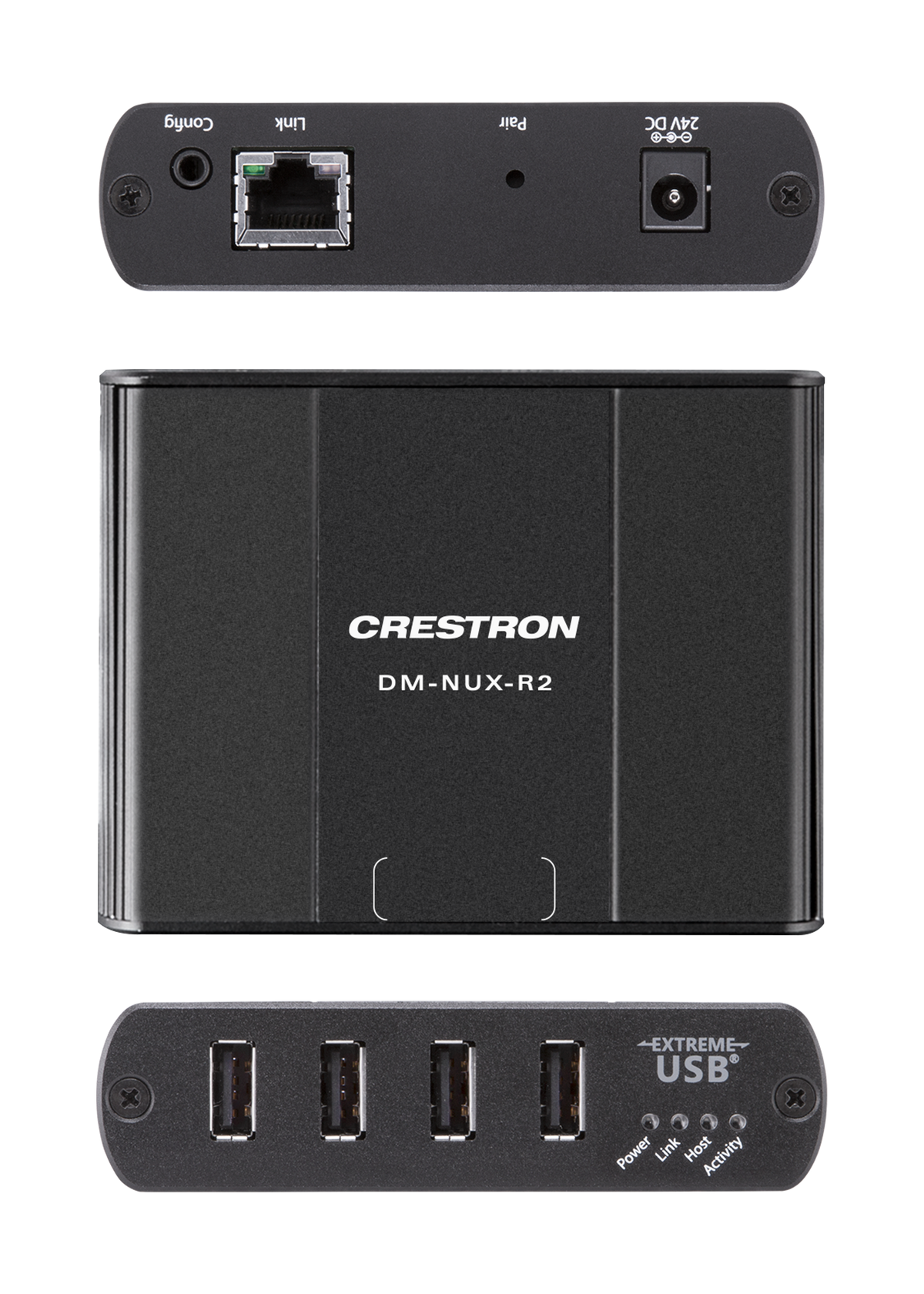

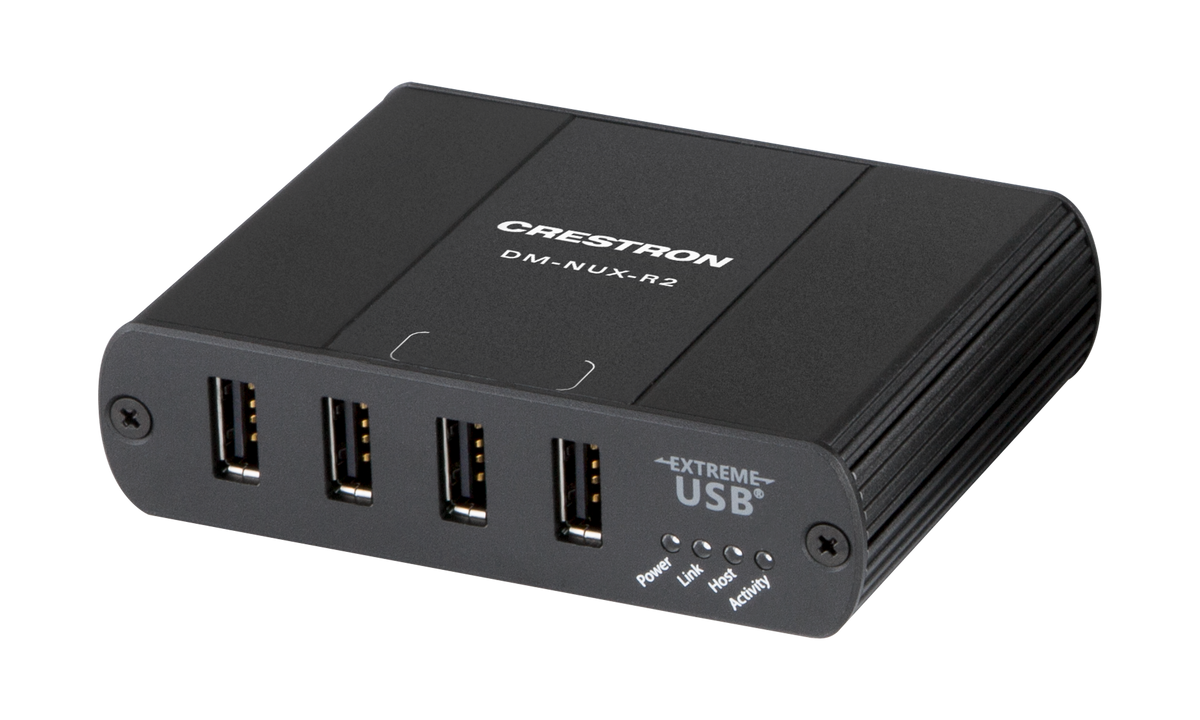

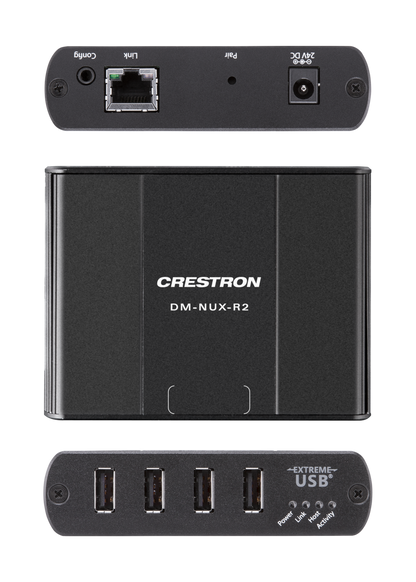

The DM-NUX-R2 delivers reliable, high‑speed USB signal extension and routing for USB 1.0, 1.1, and 2.0 devices throughout a home, business, or campus for distances up to 330 ft (100 m).
Overview
The DM NUX USB over Network with Routing (DM‑NUX‑L2 and DM‑NUX‑R2) deliver reliable, high‑speed USB signal extension and routing for USB 1.0, 1.1, and 2.0 devices throughout a home, business, or campus for distances up to 330 ft (100 m).2 Two types of USB endpoints are available:
- DM-NUX-L2 - Provides connectivity for a single USB host (computer, media server, codec, etc.)
- DM-NUX-R2 - Provides connectivity for up to four USB devices (keyboards, whiteboards, mobile devices, etc.) at one location
USB Signal Routing

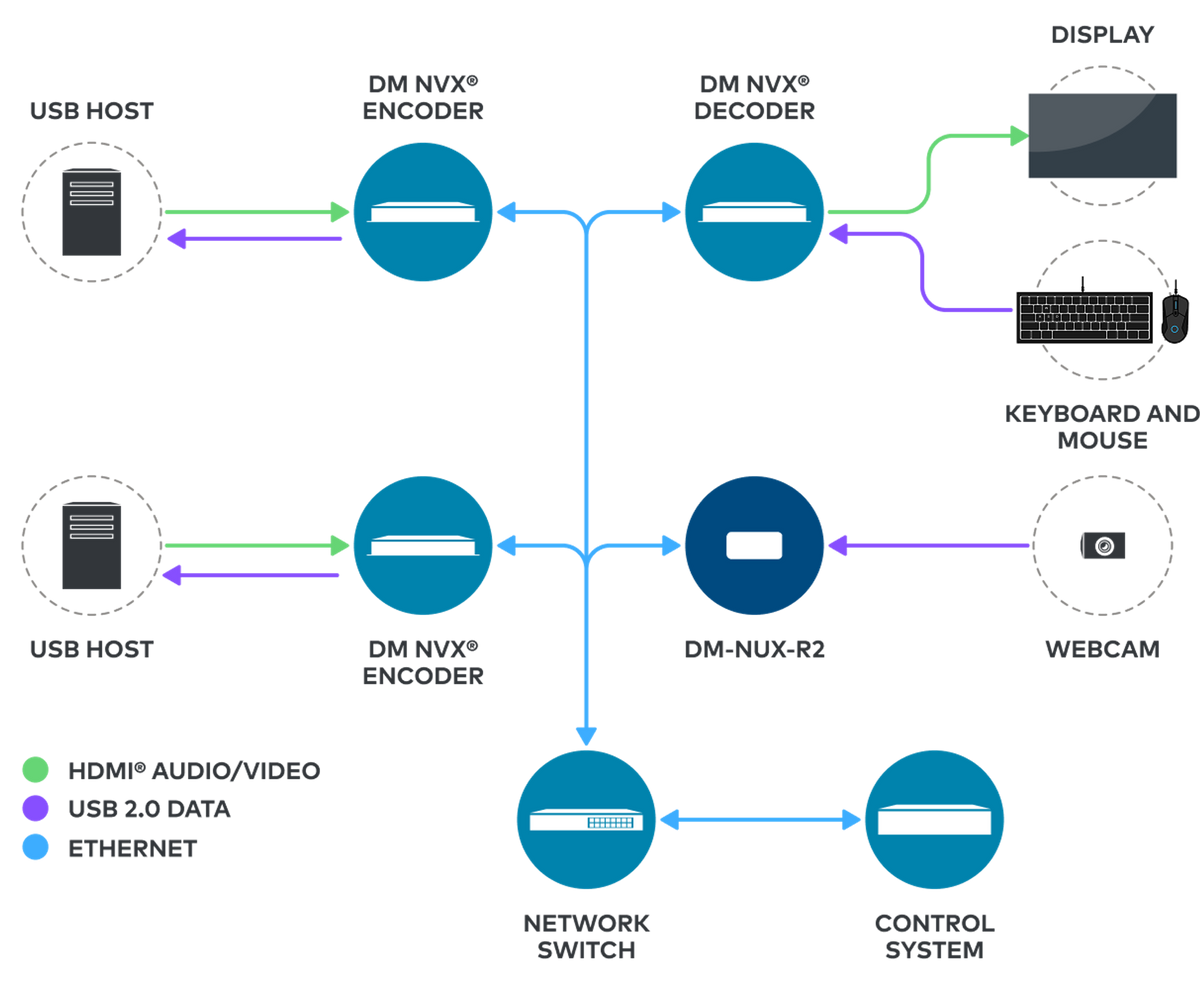

When integrated with a DigitalMedia™ system, the USB endpoints provide seamless routing of USB signals alongside video and audio. The USB endpoints can connect directly to a DM® transmitter, DM receiver, or Ethernet network via CAT5e (or better) cable.2 From any room with a video display, you can switch between several computers, media servers, and game consoles anywhere in the building and control each one using a mouse and keyboard, game controller, or electronic whiteboard.1
Virtual Hub

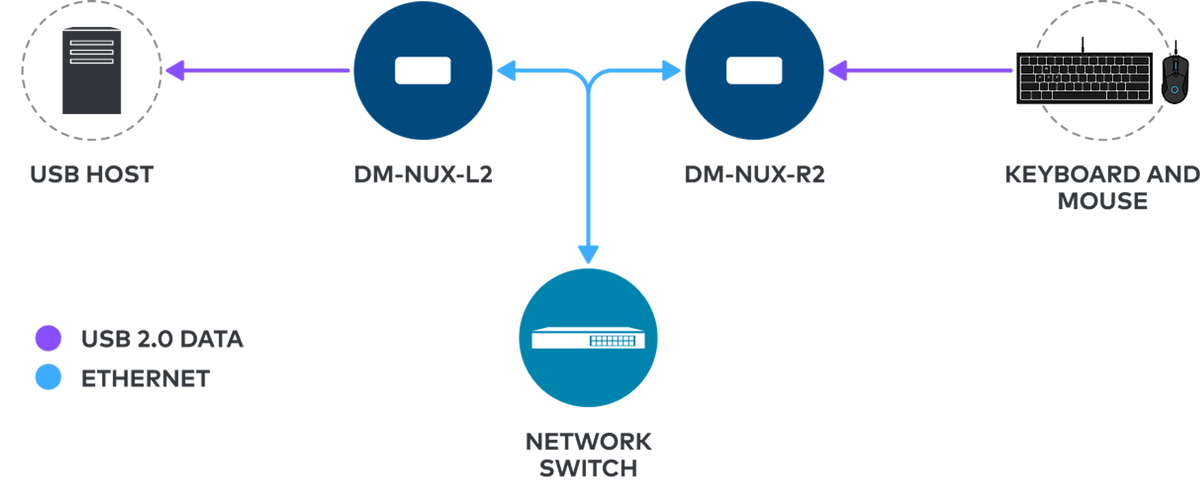

Using Virtual Hub technology, five DM-NUX-R2 endpoints may simultaneously be connected to a single DM-NUX-L2 endpoint. Creating this virtual hub allows numerous USB devices to control a single host device (such as a PC).1 The USB signals are transported over the local network and managed through a Crestron control system.
USB HID Connectivity
The USB endpoints expand on DigitalMedia’s built-in USB HID routing abilities, adding enhanced USB connectivity to DM transmitters, receivers, or switchers without requiring any additional wiring. Simply connect a USB endpoint to the LAN port of a DM transmitter or receiver, or to a port on the local area network.2

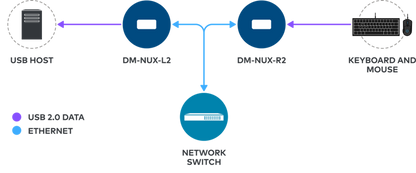

Point-to-Point Connectivity

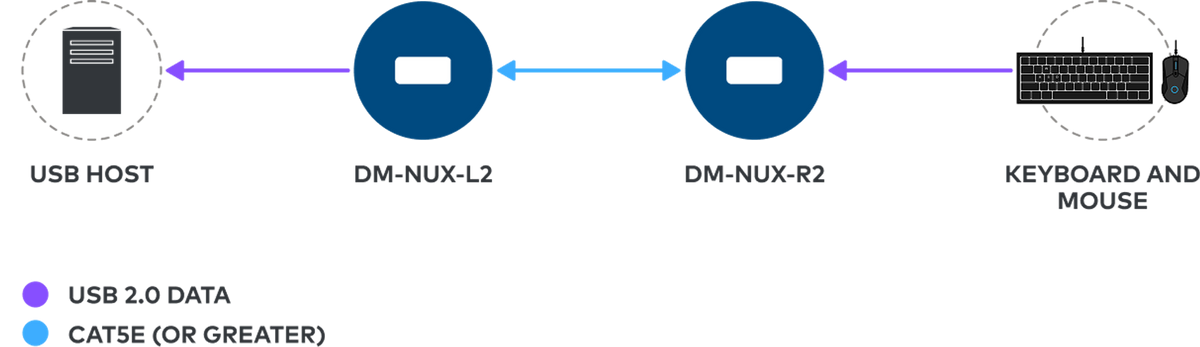

The USB endpoints may be used to provide simple, point‑to‑point USB signal extension, either over an Ethernet LAN or a dedicated CAT5e (or better) cable.2 At least one remote (device) endpoint (DM-NUX-R2) and one local (host) endpoint (DM-NUX-L2) are required to form a working system. The endpoints are sold individually to accommodate any system configuration.
NOTE: For alternative point‑to‑point USB signal extension, refer to the USB over Category Cable Extender Wall Plates (USB‑EXT‑2‑REMOTE‑1G and USB-EXT-2-LOCAL-1G) or the USB over Category Cable Extenders (USB‑EXT‑3‑KIT).
Endpoint Compatibility
The DM-NUX-L2 and DM-NUX-R2 are compatible with the DM‑NUX‑L2‑1G and DM‑NUX‑R2‑1G wallplates and DM NVX® endpoints that support USB 2.0 signal extension.
Features
Key Features
- Provide reliable, high-speed USB signal extension for most USB 1.1 or 2.0 devices1
- Compatible with DM NUX Wall Plates (DM-NUX-L2‑1G and DM-NUX-R2‑1G)
- Compatible with DM NVX® endpoints that support USB 2.0 signal extension
- Support Virtual Hub capabilities with up to five DM‑NUX‑R2 endpoints
- Enable USB signal routing under the control of a Crestron® control system or DigitalMedia™ system2
- Plug-and-play compatible with most types of USB 1.1 and 2.0 devices and hosts1
- No drivers required with Windows®, macOS®, or Linux® operating systems1
- Transport USB over Ethernet or CAT5e (or better) at speeds up to 480 Mbps
- Mass Storage Acceleration maximizes USB 2.0 bulk transfer speeds
- DM‑NUX‑R2 provides 2 USB Type A ports, expandable using up to 4 USB hubs (not included)
- Expand upon the USB-HID routing capabilities of a DigitalMedia™ system without additional wiring
- Add USB host or device ports to any DM® transmitter, receiver, or switcher
- USB local (host) or remote (device) endpoint sold individually for maximum flexibility
Specifications
| Communications | |
| Ethernet | 100Base-T or 1000Base-T, Layer 2 |
| Link Speed | Up to 480 Mbps, dependent upon network speed and quality |
| USB Device Support | USB 1.0/1.1 and 2.0 with Hub compatible including isochronous devices1 |
| USB Hub Support | Any signal chain may include up to 4 USB hubs plus one DM‑NUX‑L2 and one DM‑NUX‑R21 |
| Maximum USB Devices | 30 USB devices, or 4 USB hubs with 26 USB devices |
| Host Computer OS Support | Windows®, macOS®, and Linux® operating systems |
| USB Throughput | USB 2.0 up to 480 Mbps; USB 1.1 up to 12 Mbps |
| Connectors – Local endpoint | |
| Link | (1) 8-pin RJ‑45 connector, female; Connects to an Ethernet network or directly to a Remote endpoint3 |
| USB | (1) USB Type B connector, female (USB B to A cable included) USB 2.0 device port for connection to the USB host computer, media server, game console, annotator, codec, etc. |
| Config | For factory use only |
| Connectors – Remote endpoint | |
| 24V 1A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2407WU power pack included |
| Link | (1) 8-pin RJ‑45 connector, female; Connects to an Ethernet network or to the Link port on the Local endpoint3 |
| USB |
(4) USB Type A connectors, female; NOTE: The USB connectors of a DM NUX Remote endpoint only supply power to the connected peripheral when a USB host is connected to a paired Local endpoint. |
| Config | For factory use only |
| Indicators – Local endpoint | |
| Activity | (1) Amber LED, indicates data activity over the Link connection |
| Host | (1) Green LED, indicates a valid connection to the USB host |
| Link | (1) Green LED, indicates a valid Link connection to the Remote endpoint |
| Pair | (1) Pushbutton, used to establish a connection with a Remote endpoint |
| Power | (1) Blue LED, indicates operating power is supplied via the USB host |
| Indicators – Remote endpoint | |
| Activity | (1) Amber LED, indicates data activity over the Link connection |
| Host | (1) Green LED, indicates a valid connection to the USB host at the Local endpoint |
| Link | (1) Green LED, indicates a valid Link connection to the Local endpoint |
| Pair | (1) Pushbutton, used to establish a connection with a Local endpoint |
| Power | (1) Blue LED, indicates operating power is supplied via the power supply |
| Power | |
| DM‑NUX‑L2 | USB powered via the USB host interface |
| DM‑NUX‑R2 | Input: 100-240VAC, 50/60 Hz; Output: 0.75A @ 24VDC; PW-2407WU power pack included |
| Environmental | |
| Temperature | 32° to 122°F (0° to 50°C) |
| Humidity | 20% to 80% RH (non‑condensing) |
| Enclosure | |
| Construction | Black anodized aluminum |
| Mounting | Freestanding or surface mount (mounting bracket included) |
| Dimensions | |
| Height | 1.02 in. (26 mm) |
| Width | 3.94 in. (100 mm) |
| Depth | 2.99 in. (76 mm) |
| Compliance | |
|
Regulatory Model: M201947001 CE, IC, FCC Part 15 Class B digital device |
|
